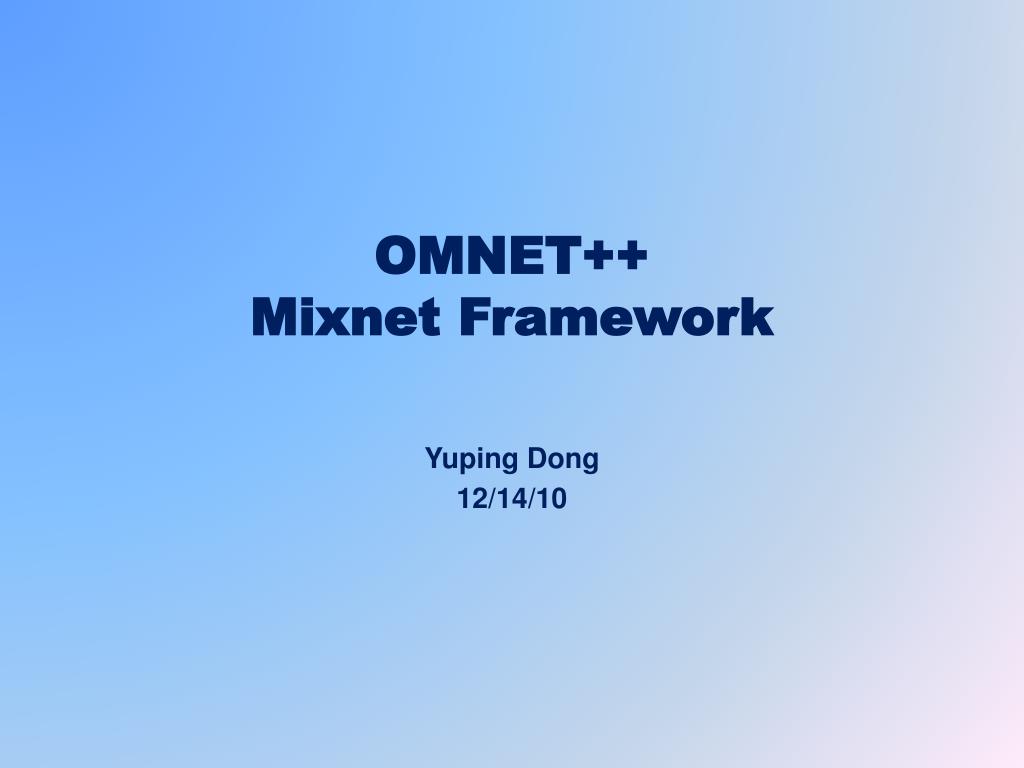

OMNET++ Mixnet Framework

OMNET++ Mixnet Framework. Yuping Dong 12/14/10. What is Mixnet and Why?. INET: wired and wireless protocols MiXiM : mobile and fixed wireless networks Mixnet : using both MiXiM and INET INET: Network layer and above MiXiM : 802.11NIC and mobility. What Mixnet can( not ) do?.

abner
Download Presentation

OMNET++ Mixnet Framework

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. OMNET++ Mixnet Framework YupingDong 12/14/10

  2. What is Mixnet and Why? • INET: wired and wireless protocols • MiXiM: mobile and fixed wireless networks • Mixnet: using both MiXiM and INET • INET: Network layer and above • MiXiM: 802.11NIC and mobility

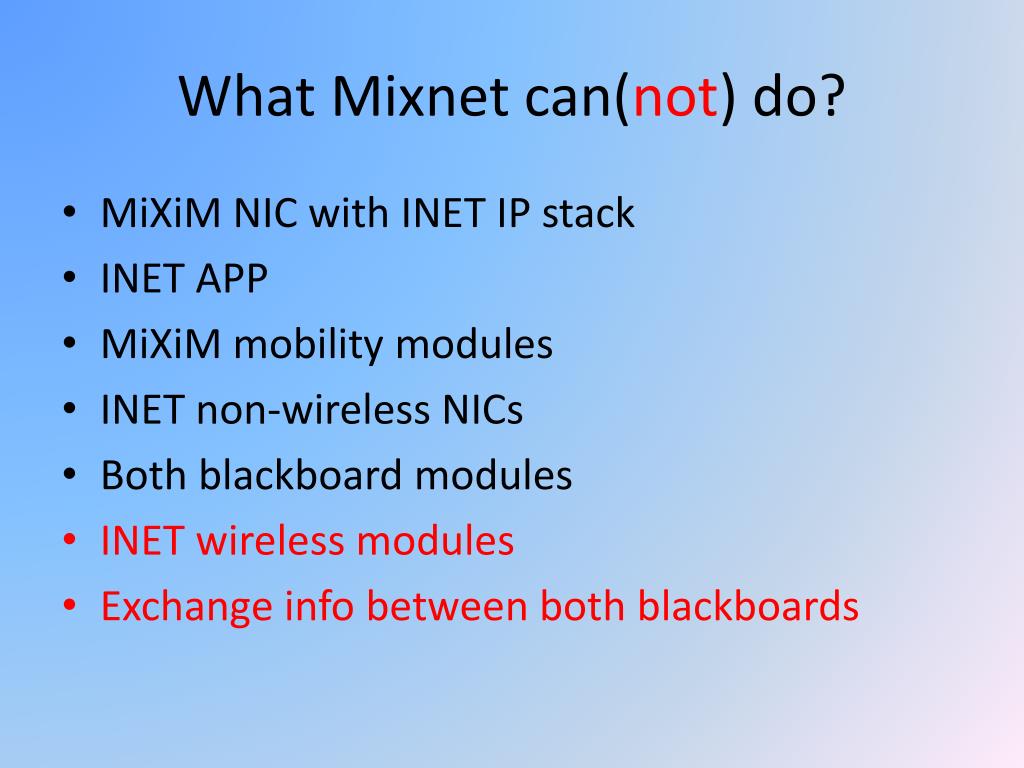

  3. What Mixnet can(not) do? • MiXiM NIC with INET IP stack • INET APP • MiXiM mobility modules • INET non-wireless NICs • Both blackboard modules • INET wireless modules • Exchange info between both blackboards

  4. Prerequisites • inet4mixnet http://github.com/mixim/inet4mixnet • MiXiM-2.0.1 sourceforge.net/projects/mixim

  5. Mixnet Modules • MixnetBridge • Connects INET network layer with MiXiM NIC • MixnetWorldUtility • Mapping between INET and MiXiM MAC addresses • Blackboard

  6. MixnetBridge • Registers NIC in INET’s ift • Converts INET control info to MiXiM control info • Forwards lower msg • Converts MAC addresses between INET and MiXiM • Stores MAC address pairs to MixnetWorldUtility

  7. MixnetWorldUtility • Extends blackboard functionality • Cross-layer info exchange • publisher -publish(BBItem)-> Blackboard -notify(BBItem)--> subscriber • Playground size, shape, dimension, etc. • Check connection manager

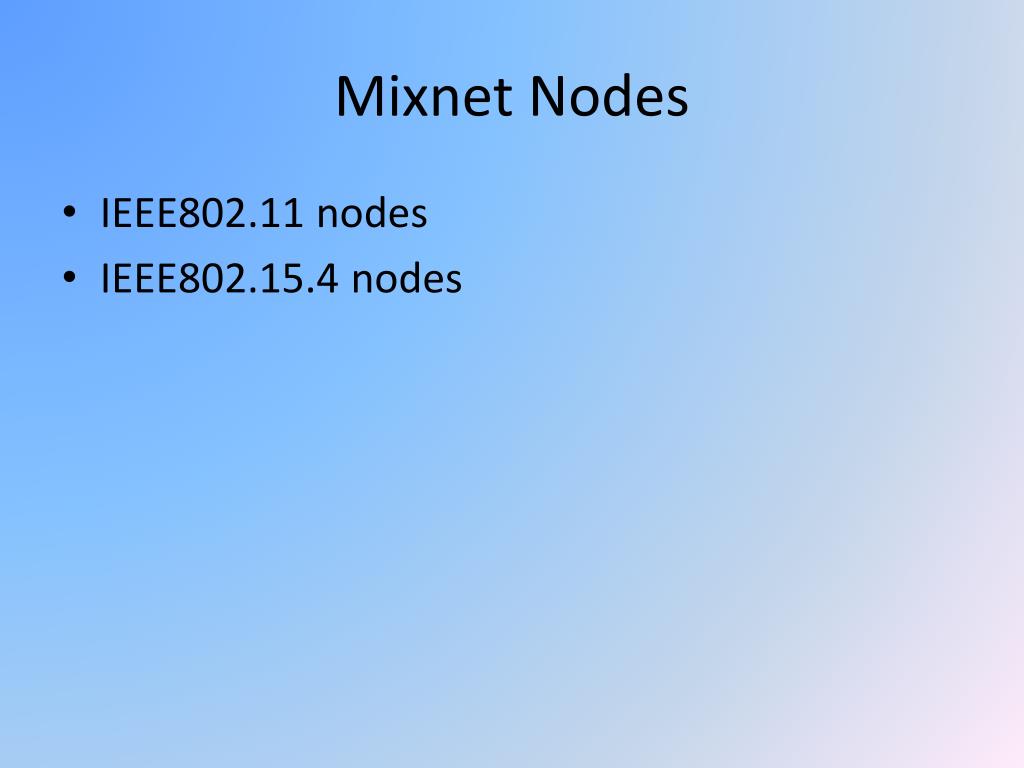

  8. Mixnet Nodes • IEEE802.11 nodes • IEEE802.15.4 nodes

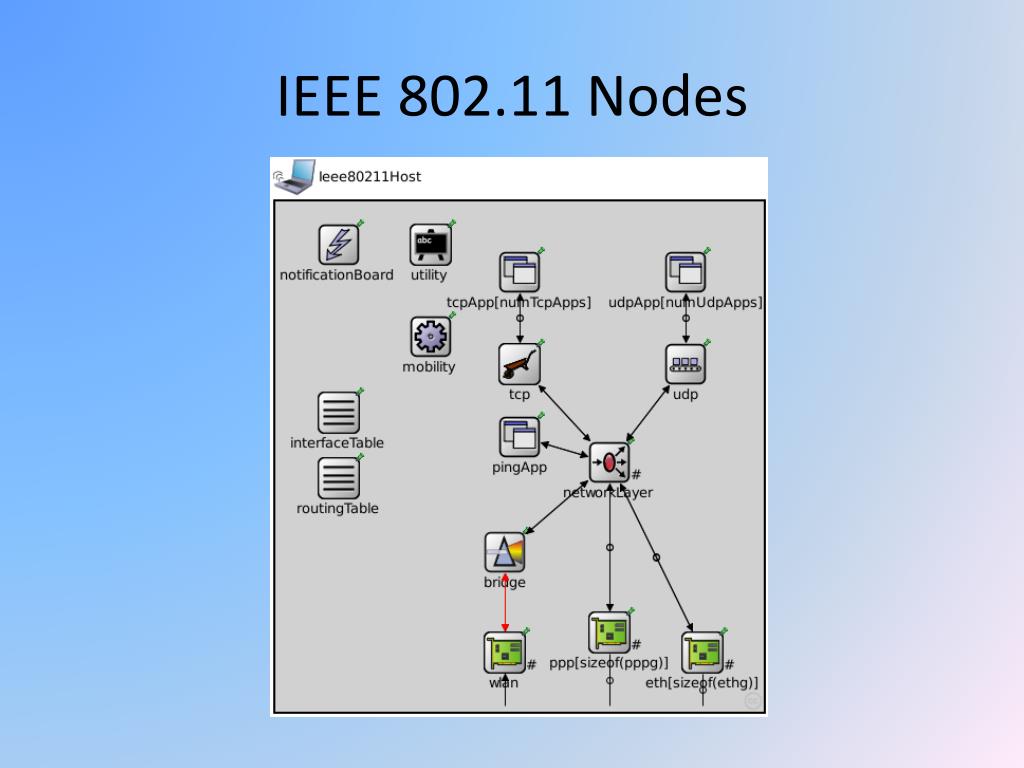

  9. IEEE 802.11 Nodes

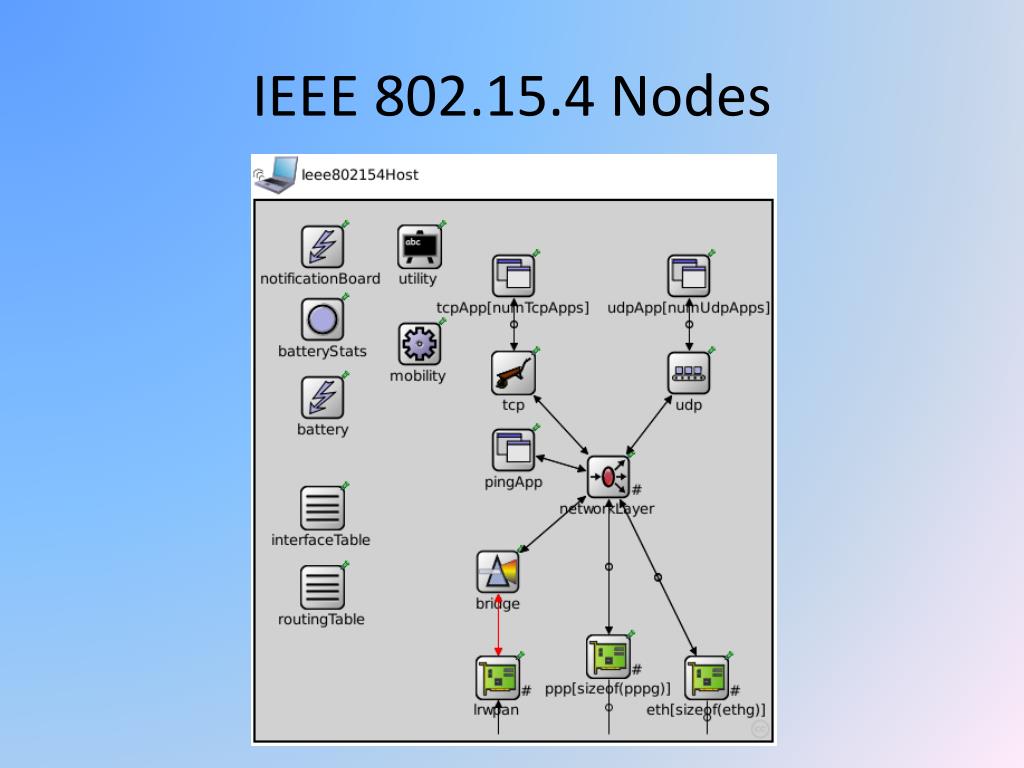

  10. IEEE 802.15.4 Nodes

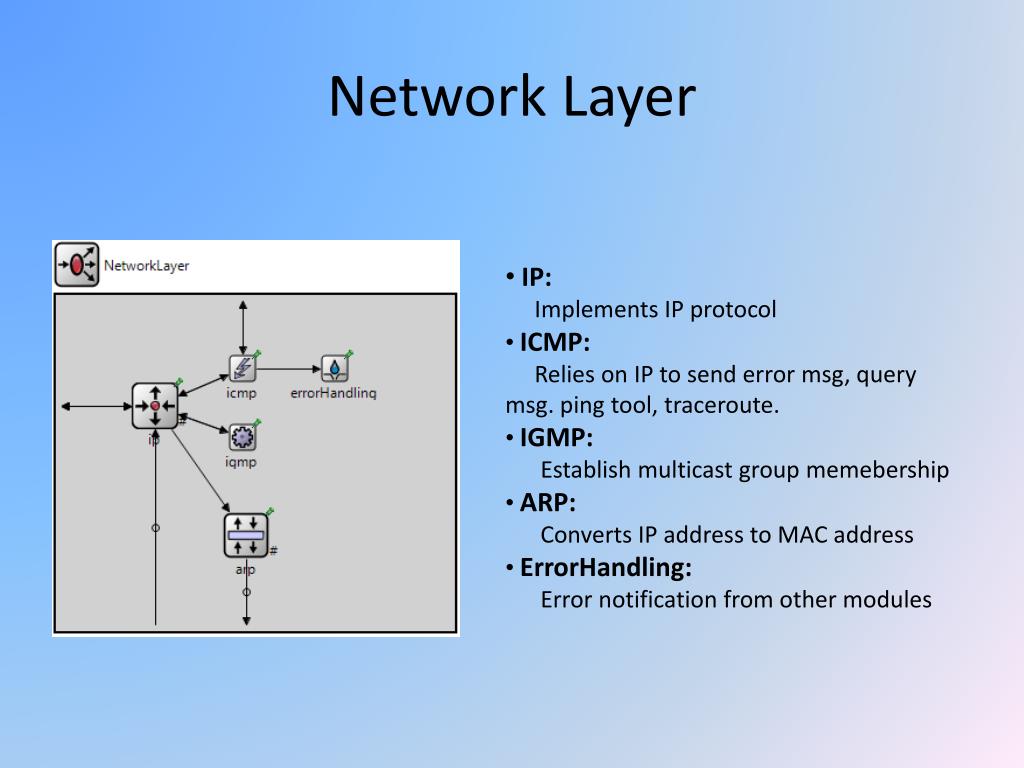

  11. Network Layer • IP: Implements IP protocol • ICMP: • Relies on IP to send error msg, query msg. ping tool, traceroute. • IGMP: • Establish multicast group memebership • ARP: • Converts IP address to MAC address • ErrorHandling: • Error notification from other modules

  12. Mixnet Example: Ad Hoc Network • ConnectionManager: • Coordinates connection between all nodes. • Calculates max interference distance. • World: • Map INET MiXiM MAC address • Get PG size • Check connection manager • Configurator: • Configure IP addresses and routing tables. • Host: • IEEE802.11 hosts

  13. 4-Stage Initialization • Stage 0 • WorldUtility: get pg size • Register interfaces in InterfaceTable • MixnetBridge: • Map input output gates • Register MAC address pair • RoutingTable: • NF status

  14. 4-Stage Initialization • Stage 1 • RoutingTable: • Create per-interface IPv4 data structures • Read RoutingTable file & interface configuration • Set RouterId • WorldUtility: check connection manager

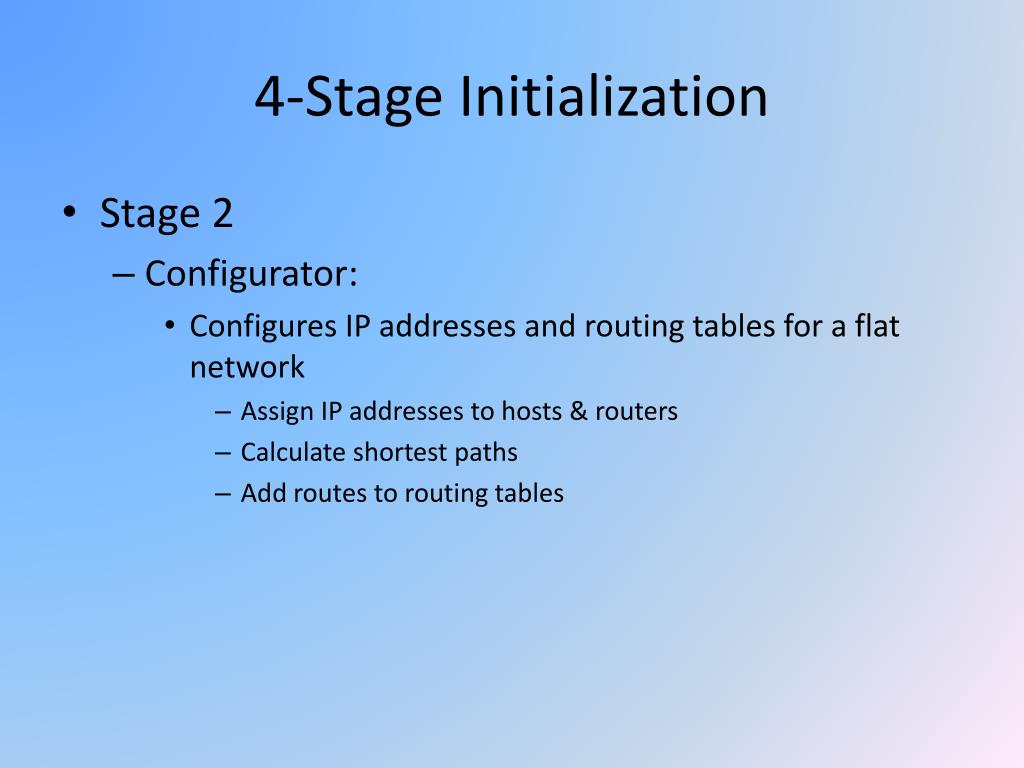

  15. 4-Stage Initialization • Stage 2 • Configurator: • Configures IP addresses and routing tables for a flat network • Assign IP addresses to hosts & routers • Calculate shortest paths • Add routes to routing tables

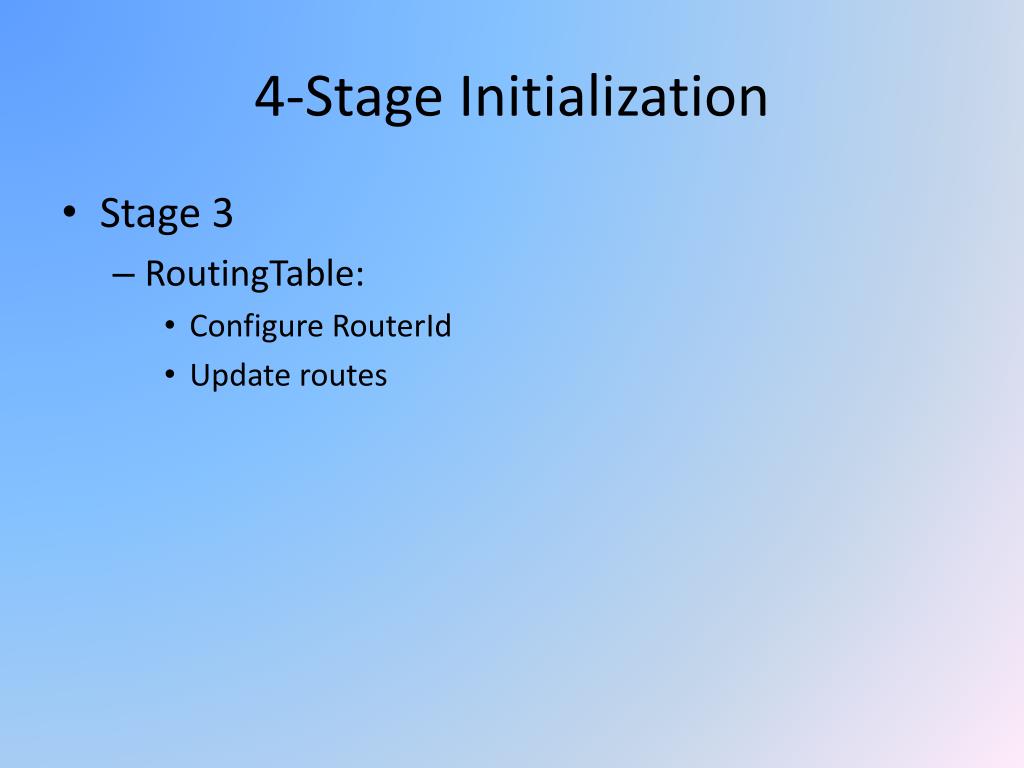

  16. 4-Stage Initialization • Stage 3 • RoutingTable: • Configure RouterId • Update routes

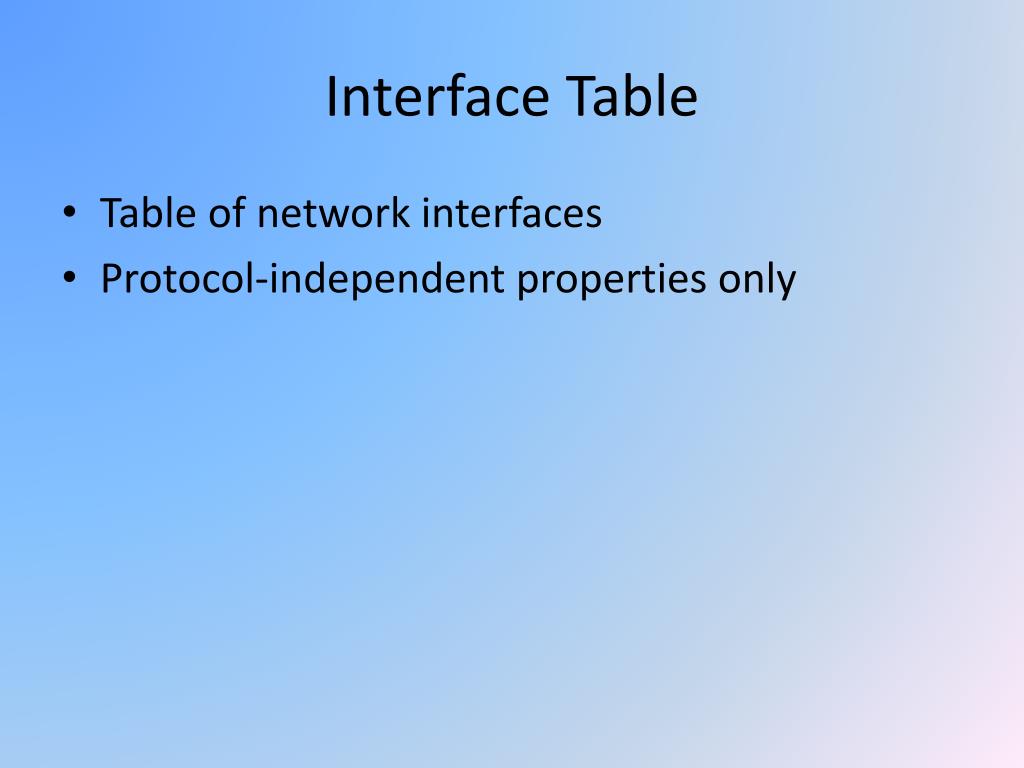

  17. Interface Table • Table of network interfaces • Protocol-independent properties only

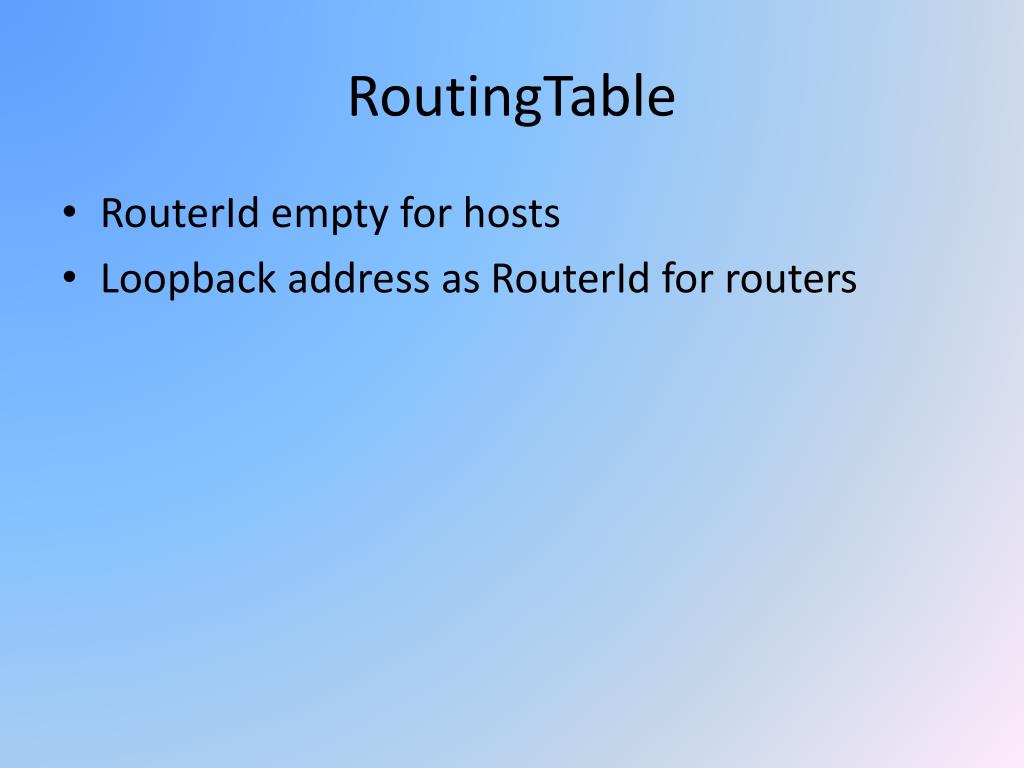

  18. RoutingTable • RouterId empty for hosts • Loopback address as RouterId for routers

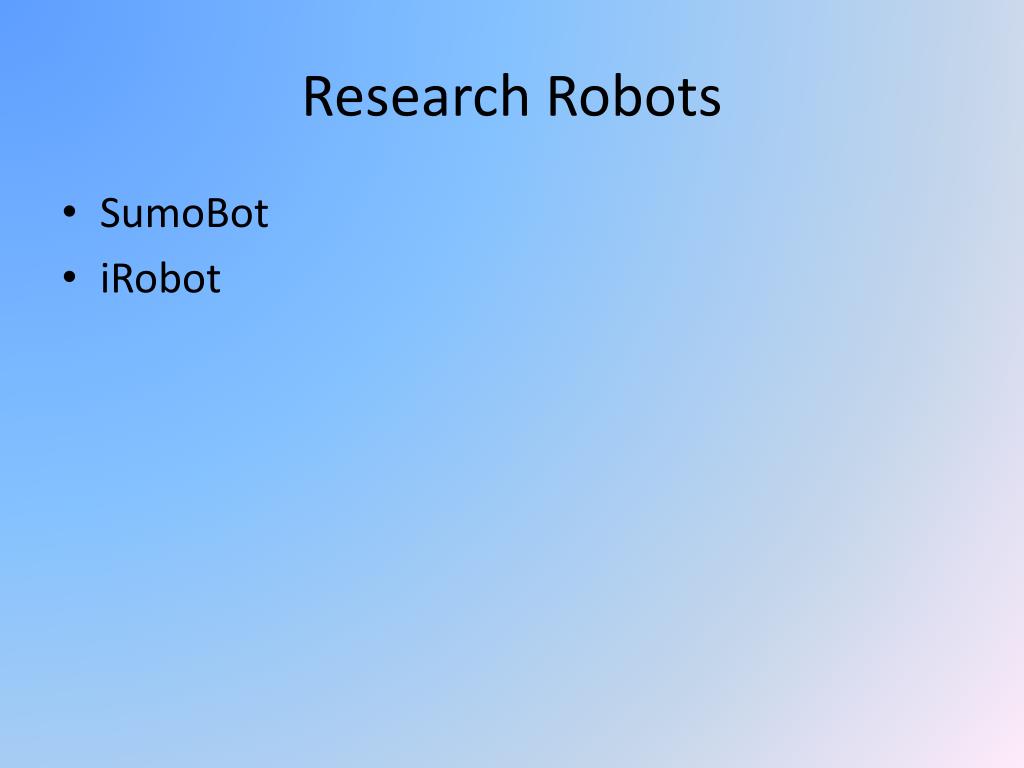

  19. Research Robots • SumoBot • iRobot

  20. SumoBot • Two SumoBot Robots wrestling. • BASIC Stamp microcontroller • Line sensors detect border • IR sensors detect opponent’s position • Breadboard on top, can extend apps • RS232 to communicate with host • Compatible RF transceiver, plug to breadboard • $239.99/set + $39.99/transceiver

  21. iRobot Create • USB communication • Can store 100 open interface commands • 30 built-in sensors • 25 pin expansion port • C++ programming • $219.99 each • Possible to wire the previous RF transceiver to iRobot Create • Can add parts to the slot
