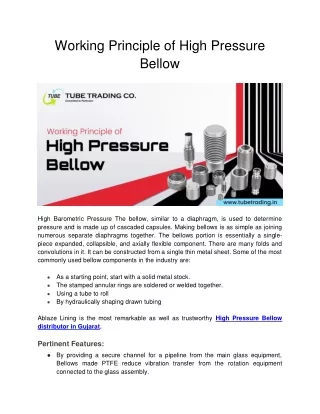

Working Principle of High Pressure Bellow

1. Working Principle of High Pressure Bellow High Barometric Pressure The bellow, similar to a diaphragm, is used to determine pressure and is made up of cascaded capsules. Making bellows is as simple as joining numerous separate diaphragms together. The bellows portion is essentially a single- piece expanded, collapsible, and axially flexible component. There are many folds and convolutions in it. It can be constructed from a single thin metal sheet. Some of the most commonly used bellow components in the industry are: ●As a starting point, start with a solid metal stock. ●The stamped annular rings are soldered or welded together. ●Using a tube to roll ●By hydraulically shaping drawn tubing Ablaze Lining is the most remarkable as well as trustworthy High Pressure Bellow distributor in Gujarat. Pertinent Features: ● By providing a secure channel for a pipeline from the main glass equipment, Bellows made PTFE reduce vibration transfer from the rotation equipment connected to the glass assembly.

2. ● Temperatures and pressures that are higher are not an issue. ● There are two, three, and five convolution constructions available. ● Lightweight design ● Corrosion-resistant Ablaze Lining is one of the most prevalent as well as dominant High Pressure Bellow distributors in Vadodara. Working: Bending and stress are used to manage the elastic members. For proper working, tension should be maintained to a minimum. The same structural principles apply to bowels as they do to diaphragms. The manufacturer uses two characteristics to describe the bellows: maximum stroke and maximum allowed pressure. To extend the stroke, increase the number of folds or convolutions. Ablaze Lining is an excellent as well as the most reputed PTFE High Pressure Bellow manufacturer in India. When selecting a material for an elastic item such as bellows, the following criteria should be considered: ●Range of pressure ●Hysteresis ●Fatigue on dynamic operation ●Corrosion ●Fabrication ease ●Sensitivity to fluctuating pressures Hysteresis and sensitivity to shifting stressors are the two most important. Hysteresis can be decreased by employing suitable manufacturing processes. For instance, a diaphragm machined from solid stock has less hysteresis than one pressed from metal. Bellows can be made using the same way. The dynamic nature of the variable in the latter scenario, depending on the device's natural frequency, is likely to create resonance soon. The gauge and the system's size can be used to compute the natural frequency.
