What is Double Window Type Sight Glass?

Double Windows Type Sight Flow Indicators are a long-lasting, rapid, and cost-effective way to check the flow of liquids through industrial process lines. They are used in process lines with high pressure and temperature conditions and are built of cast construction and fabricated design to satisfy an industrial demand of varied applications. They have two toughened glasses mounted opposite each other for greater sight.

ablazelining
Download Presentation

What is Double Window Type Sight Glass?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

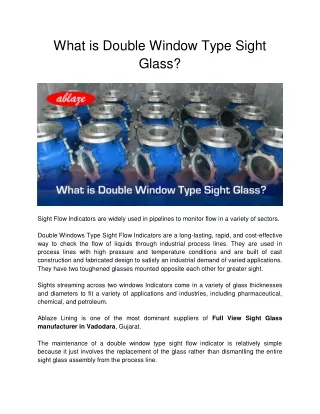

  1. What is Double Window Type Sight Glass? Sight Flow Indicators are widely used in pipelines to monitor flow in a variety of sectors. Double Windows Type Sight Flow Indicators are a long-lasting, rapid, and cost-effective way to check the flow of liquids through industrial process lines. They are used in process lines with high pressure and temperature conditions and are built of cast construction and fabricated design to satisfy an industrial demand of varied applications. They have two toughened glasses mounted opposite each other for greater sight. Sights streaming across two windows Indicators come in a variety of glass thicknesses and diameters to fit a variety of applications and industries, including pharmaceutical, chemical, and petroleum. Ablaze Lining is one of the most dominant suppliers of Full View Sight Glass manufacturer in Vadodara, Gujarat. The maintenance of a double window type sight flow indicator is relatively simple because it just involves the replacement of the glass rather than dismantling the entire sight glass assembly from the process line.

  2. Simple construction of two glasses on a single cast or fabricated body at two opposing sides is known as a Double Window Sight Glass. These flow indicators are used for spot inspection and viewing of process parameters. It comes in a variety of glass thicknesses and diameters to meet a variety of fluid pressure and temperature requirements. Ablaze Lining is an excellent Double Window Type Sight Glass manufacturer in India. Toughened Glasses come in a variety of shapes and sizes to withstand industrial pressure. All toughened glasses must comply with DIN 7080. The body end connection of a Double Window Flow Indicator can be Threaded End (BSP/NPT) or Welded End. The body length of the Double Window Flow Indicator complies with DIN EN 558-1. Ablaze Lining offers the best sight glass and is acclaimed as the most distinguished Sight Glass supplier in Vadodara, Gujarat India. It is relatively simple to change the glass in a Double Window Sight Flow Indicator without disassembling the entire Sight Glass assembly from the production line. In the application of higher pressure and temperature, the Double Window Sight Flow Indicator Glass performs better.
