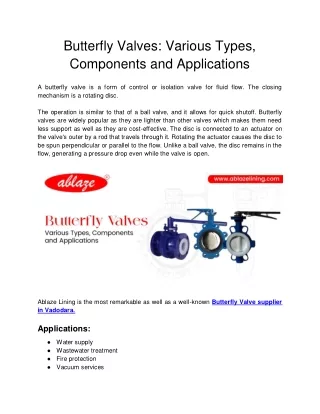

1. Butterfly Valves: Various Types, Components and Applications A butterfly valve is a form of control or isolation valve for fluid flow. The closing mechanism is a rotating disc. The operation is similar to that of a ball valve, and it allows for quick shutoff. Butterfly valves are widely popular as they are lighter than other valves which makes them need less support as well as they are cost-effective. The disc is connected to an actuator on the valve's outer by a rod that travels through it. Rotating the actuator causes the disc to be spun perpendicular or parallel to the flow. Unlike a ball valve, the disc remains in the flow, generating a pressure drop even while the valve is open. Ablaze Lining is the most remarkable as well as a well-known Butterfly Valve supplier in Vadodara. Applications: ● Water supply ● Wastewater treatment ● Fire protection ● Vacuum services

2. ● Lubrication System ● Chemical and oil industries ● Fuel handling systems ● Power generation ● Compressed air and/or gas services ● Steam Services ● Food Processing ● Pharmaceutical ● Marine System ● Sanitary Valve Application. Common Components used in a Butterfly Valve: A butterfly valve is made up of four main parts: the shell, the disc, the stem, and the seat. ●Valve body: Two pipe flanges are present on the bodies of Butterfly Valves, with the lug and wafer body form being the most prevalent. ●Butterfly valve disk: The disc is the stumbling block to the flow (disc). To optimise the sealing, movement, as well as operating torque, distinct disc designs and orientations are typically used. ●Valve Stem: A single-piece or double-piece shaft arrangement makes up the butterfly valve stem. Between the similar corrosion-resistant materials, the stem design of the valve needs to eliminate the galling possibility. ●Butterfly Valve Seat: To provide cutoff, a butterfly valve's seat uses an interference fit between the seat and the edge of the disc. The seat can be secured by glueing, pressing, or locking it in place. If you are looking for the most prominent as well as a noted Diaphragm Valve supplier in Anand, Ablaze Lining is the right choice for you. Types of Butterfly Valves: ●Concentric butterfly valves: Concentric butterfly valves have a strong rubber seat with a metal disc. ●Doubly-eccentric butterfly valves: They're also known as double-offset butterfly valves or high-performance butterfly valves. Seats and discs are also made from a variety of materials.

3. ●Triply-eccentric butterfly valves: Triple-offset butterfly valves are another name for them. Typically, manufactured seats are laminated or solid metal. ●Wafer-style butterfly valve: The wafer style butterfly valve is designed to prevent backflow in unidirectional flow systems by maintaining a seal against bi-directional pressure differentials. There are numerous ways to accomplish this, one of which is to use a tight-fitting seal. If you are looking for excellent quality High Pressure Bellow, Ablaze Lining is the most reliable supplier that you can trust in the market. ●Lug-style butterfly valve: Lug-style valves have threaded inserts on both sides of the valve body. As a result, they can be installed with only two sets of bolts and no nuts in a system. The valve is installed between two flanges, each with its own set of nuts. This arrangement allows any side of the pipe system to be disconnected without causing damage to the other. ●Rotary valve: Rotary valves are a form of butterfly valve popular in the powder processing sector. Instead of being flat, the butterfly contains pockets. It works like a butterfly valve when closed and is incredibly tight. When the valve is in rotation, however, the pockets enable a predetermined amount of solids to descend, making the valve suitable for gravity dosing of bulk products. Pneumatically operated valves with a diameter of fewer than 300 millimetres rotate 180 degrees back and forth.
