High Pressure Bellow - Features _ Working Principle

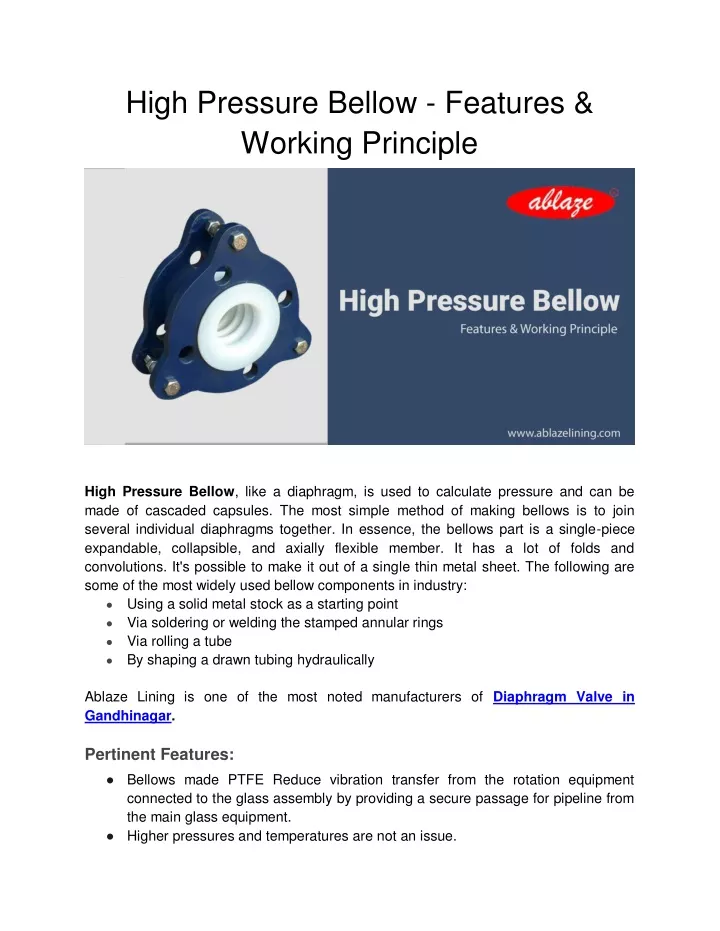

1. High Pressure Bellow - Features & Working Principle High Pressure Bellow, like a diaphragm, is used to calculate pressure and can be made of cascaded capsules. The most simple method of making bellows is to join several individual diaphragms together. In essence, the bellows part is a single-piece expandable, collapsible, and axially flexible member. It has a lot of folds and convolutions. It's possible to make it out of a single thin metal sheet. The following are some of the most widely used bellow components in industry: ●Using a solid metal stock as a starting point ●Via soldering or welding the stamped annular rings ●Via rolling a tube ●By shaping a drawn tubing hydraulically Ablaze Lining is one of the most noted manufacturers of Diaphragm Valve in Gandhinagar. Pertinent Features: ● Bellows made PTFE Reduce vibration transfer from the rotation equipment connected to the glass assembly by providing a secure passage for pipeline from the main glass equipment. ● Higher pressures and temperatures are not an issue.

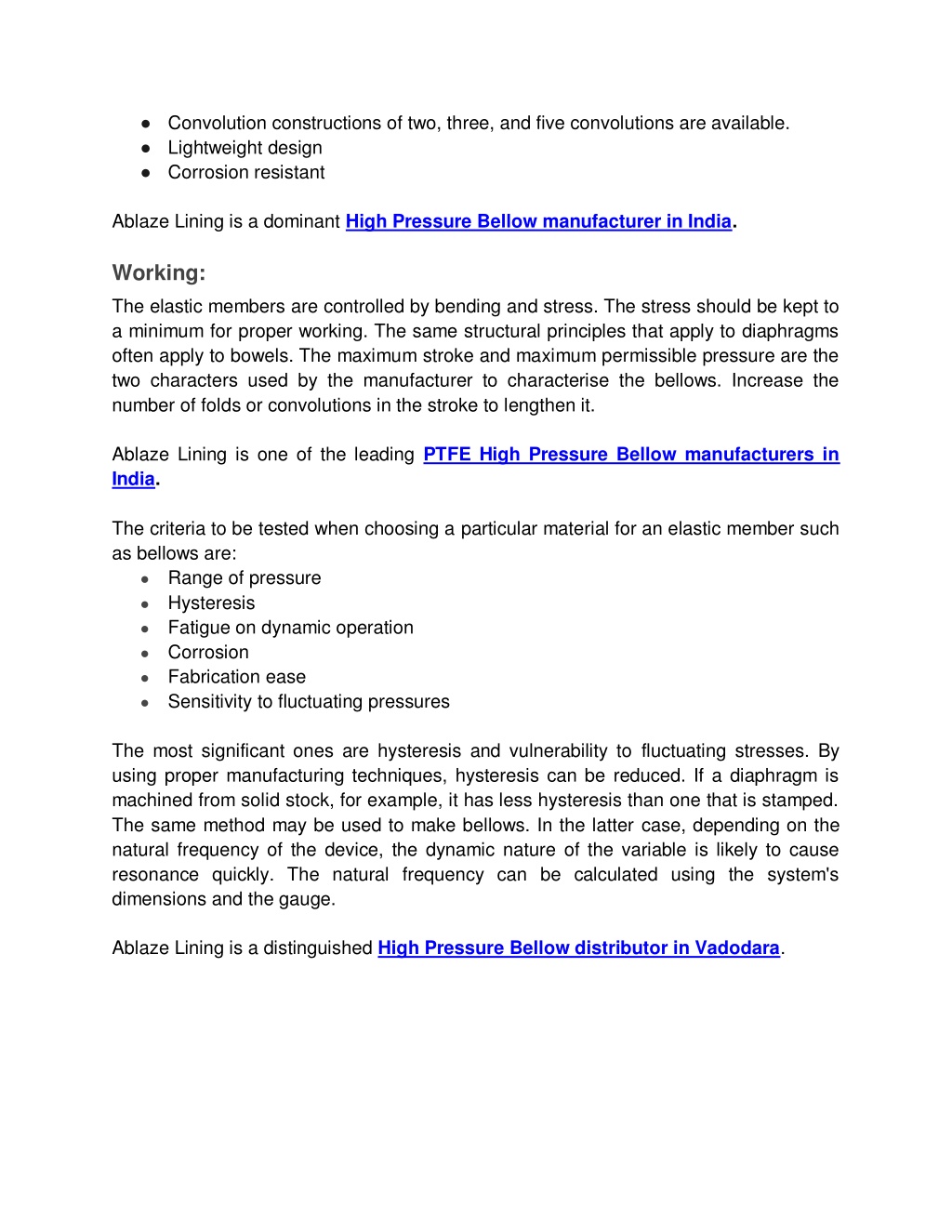

2. ● Convolution constructions of two, three, and five convolutions are available. ● Lightweight design ● Corrosion resistant Ablaze Lining is a dominant High Pressure Bellow manufacturer in India. Working: The elastic members are controlled by bending and stress. The stress should be kept to a minimum for proper working. The same structural principles that apply to diaphragms often apply to bowels. The maximum stroke and maximum permissible pressure are the two characters used by the manufacturer to characterise the bellows. Increase the number of folds or convolutions in the stroke to lengthen it. Ablaze Lining is one of the leading PTFE High Pressure Bellow manufacturers in India. The criteria to be tested when choosing a particular material for an elastic member such as bellows are: ●Range of pressure ●Hysteresis ●Fatigue on dynamic operation ●Corrosion ●Fabrication ease ●Sensitivity to fluctuating pressures The most significant ones are hysteresis and vulnerability to fluctuating stresses. By using proper manufacturing techniques, hysteresis can be reduced. If a diaphragm is machined from solid stock, for example, it has less hysteresis than one that is stamped. The same method may be used to make bellows. In the latter case, depending on the natural frequency of the device, the dynamic nature of the variable is likely to cause resonance quickly. The natural frequency can be calculated using the system's dimensions and the gauge. Ablaze Lining is a distinguished High Pressure Bellow distributor in Vadodara.
