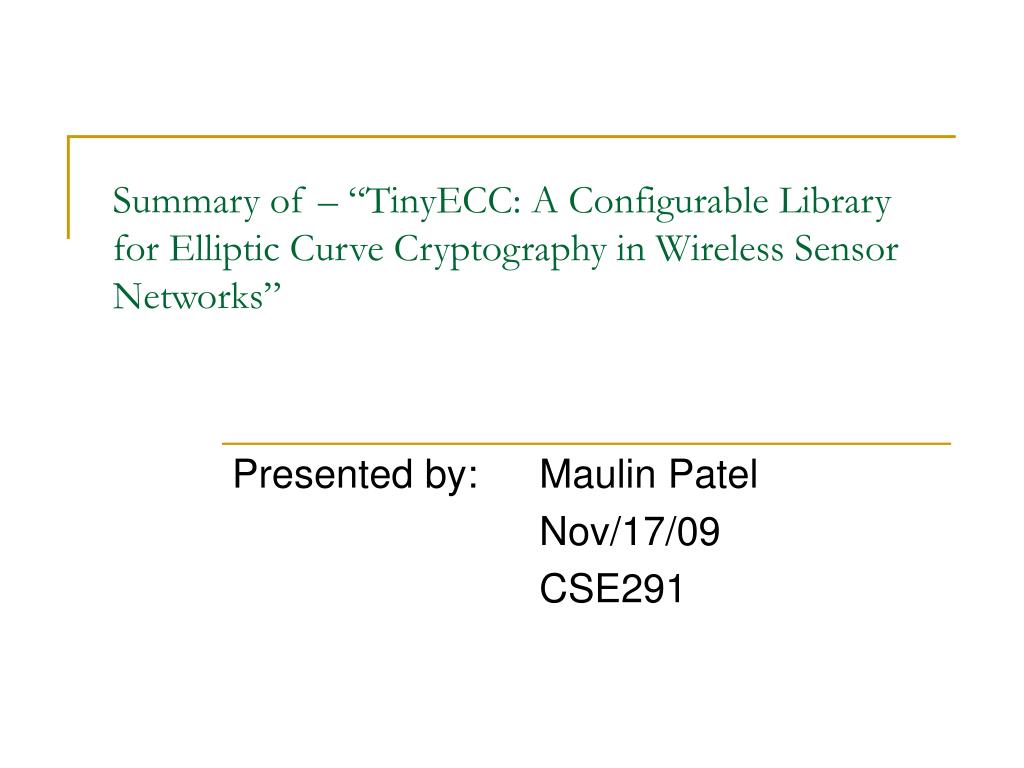

  1. Summary of – “TinyECC: A Configurable Library for Elliptic Curve Cryptography in Wireless Sensor Networks” Presented by: Maulin Patel Nov/17/09 CSE291

  2. Wireless Sensor Networks -Operations 1. WSN Base Station • Monitoring: continuously check the status of the environment • Alerting: a problematic situation is happening / going to happen • Querying: provide information “On-Demand” • Reporting: transmit short report of the environment • Others: autonomous, self-configurable, distributed computing, decentralized, easily deployable, inexpensive, … DWSN HWSN …

  3. Shooter localization… • And by far the most important threat needing secure communications channel….

  4. Wireless Sensor Network – Drawacks • Hardware/Software Constrained : • Typical node specs (i.e MIZAz): • 8 Mhz, 4KB RAM and 128KB ROM • Low patter capacity • Low power transceiver (e.g IEEE 802.15.4) • And the most important • Specific context of WSN  Increases likelihood of of attacks!! • Physical: • Easy access to the network environment (nodes) • Logical: • Wireless communication: Confidentiality, Authenticity, Integrity

  5. How to protect them? • Symmetric Key Cryptography (SKC) • Low computation cost • Smaller key sizes • Public Key Cryptography • It provides more security than SKC…but it requires a nontrivial amount of processing power and memory 2004 2007 Past Future Imposible to use PKC Possible to use PKC Doubt in using PKC

  6. Background on ECC • Public key (asymmetric) cryptosystem • Based upon a hard number theoretic problem: Elliptic Curve Elliptic Curve Discrete Logarithms (ECDLP) • Given an elliptic curve and points P and Q the curve, find K such that Q = k*P • The hardness of ECDL defines the security level of all ECC protocols: No sub-exponential algorithm known which can solve the ECDLP • ECC131p => $2 million • ECC163p => $1 trillion (> 20 years) • At the base of ECC operations is finite field (Galois Field) algebra with focus on prime Galois Fields (GF(p)) and binary extension Galois Fields (GF(2m)) • ECC Performance, Security, Size is a function of: finite field selection, elliptic curve type, point representation type, algorithms used, protocol, key size, hardware/software breakdown, memory available, code and area

  7. Elliptic Curves • Elliptic curve over prime field Fp is defined by a cubic equation y2 = x3 +a*x+b, where a,b are an element of Fp such that 4* a3 + 27*b3≠ 0 • To encrypt data, a point Q on the chosen curve over the finite field. The fundamental encryption operation is a point scalar multiplication i.e a point P1 added to itself k times. • Q = k*P = P + P + …P • In order to compute Q, a double and add method is used and k is represented in binary form and scanned right to left from LSB to MSB, performing a Point double each step and an addition if ki is 1. • Will require (m-1) Point doublings and an averae of (m-1)/2 Point additions, where m is the bit length of the field prime, p

  8. Elliptic curve over Finite Fields • Fields that contain finite number of elements • Number of elements of a finite prime field is pn , p is prime number and n is a positive integer

  9. Finite Fields

  10. Point Addition/ Point Doubling • Point Addition: • 2 multiplications, 1 division and 6 addition/subtractions • Point Doubling • 3 multiplications, 1 division, 7 addition/ subtractions • Division is the critical operation (implemented via inversion followed by multiplication)

  11. ECC Operations Hierarchy • First Level: Basic Prime Field Operations • GF addition : a + b mod p • GF multiplication : a * d mob p • GF inversion : 1/b mod p • GF division : a/b mod p • GF subtraction : a - b mod p • Second level: Elliptic Curve point operations • Point Add : P + Q • Point Double : 2 * P • Third Level: Elliptic Curve point operation • Point (scalar) Multiplication : k*P = P + P + … P (k summands) • fundamental and most time consuming operation in ECC • Requires multiple Point additions and Point double operations • Various optimization algorithms available which are field type and coordinate representation dependent. • Fourth Level: ECC protocol • ECDSA, ECDH, ECIES,

  12. TinyECC Design Objectives • Security: Provide security based on known PKC primitives (ECSDA, ECDH, ECIES) • Defined in Standards for Efficient Cryptography • Implements Curve Parameters recommended by SECG • a, b, G (base point), p… • Portability • Runs on TinyOS on the following platforms: MicaZ, TelosB, Tmote Sky, and Imote2 • Some modules (for MICAz, TelosB) implement Assembly for faster execution (causes TOSSIM to break) • Resource Awareness and Configurability: • Optimizations are user configurable via compiler supplied parameters • Efficiency • Adapt almost all existing optimizations for ECC operations • Use prime Fp fields or binary extension fields F2m • Binary field operations are better suited when application specific hardware is available

  13. ECC Algorithms • Digital Signatures • ECDSA: Elliptic Curve Digital Signature Algorithm • Scheme for demonstrating the authenticity of a digital message • Provides a sign and verfiy operation analogous to DSA • Key Agreement • ECDH: Elliptic Curve Diffie-Hellman • Allows two parties, each having an elliptic curve public-private key pair, to establish a shared secret over an insecure channel. • Shared secret maybe directly used as a key, or to derive another key which will be used to encrypt subsequent communication using a symmetric key cipher • Diffie-Hellman; p(qG) = q(pG); qG,pG are public values; p and q are private • Encryption • ECIES: Elliptic Curve Integrated Encryption Standard • Uses ECDH to derive a shared key which is then used to derive a symmetric key and a message authentication code used for encryption/ signing

  14. Optimizations for Large Integer Operations • Barret Reduction: • Faster than modular division when reducing various numbers modulo the same number (the prime value p) many times • Useful large numbers • Can only reduce numbers that, at most twice as long (in words ) as the modulus) • Store off u = floor( b^k/p)= floor(2^(w*k)/p) • p is a prime k words long • w is bit with of the word (i.e 8 for an 8 bit processor) • Assumes that b^k is of the form 2^w • Divisions and modular reductions can be replaced by Right Shifts and AND operations if b is a power of 2 • Algorithm: http://www.cosic.esat.kuleuven.be/publications/article-1115.pdf • Hybrid Multiplication • Maximizes the utilization of registers and reduces the number of memory load operations (intended for assembly code) since a set size register bank is needed. • Algorithm: http://research.sun.com/people/eberle/CHES_2004.pdf • Hybrid Squaring: • Takes advantage of the fact that partial products of a number where the ith word position not equal the jth word position occur twice.

  15. ECC Operations • Projective Coordinate Systems • (1) Point doubling and (2)Point addition, scalar multiplication (uses 1,2) are on critical path • Point addition/ doubling require additions, multiplications and inversion in a standard setup. • Inversions are more computationally difficult can be removed with the compensation of • Solution, mixed coordinate system (x,y,z) vice just (x,y) get rid of the need for inversions. • Sliding Window for Scalar Multiplications • To compute k*P, k is scanned from MSB to LSB. • Each bit requires 1 Point doubling regardless and if the bit position is a 1, it requires a Point Addition • Instead of evaluating individual bits, blocks of bits w bits width are evaluated and a look up table is created which reduces computation • Shamir’s Trick • a*P+b*Q: requires two scalar multiplication and a Point addition. • By using a pre-computed value of P+Q, we can reduce two scalar multiplications to be a bit more expensive than one such operation • Curve Specific Optimization • Another modular reduction trick based on the prime value p chosen that eliminates divisions

  16. Evaluation • Objectives: • Measure performance and resource consumption of TinyECC on a spectrum of sensors • High end: Imote2 • Low End: MICAz, TelosB and Tmote Sky • Provide detailed performance and resource results for commonly desirable configurations • Fastest execution time • Least memory consumption • Two cases were studied: • Case A: for each optimization, disabled all other optimizations and obtained metrics when optimization under test was enabled/disabled • Case B: for each optimization, enabled all other optimizations and obtained metrics when optimization was enabled/ disabled • Metrics Measured: RAM size, ROM size, Execution Time and Energy (Voltage * Current Draw * Execution Time)

  17. Eye Candy: Execution Time • Execution Time: zero optimizations • Execution Time: all optimizations

  18. The Jist: Results • Execution Time went down as optimizations were used • RAM & ROM size increased when optimizations were enabled • Energy went down as optimizations were turned on • 25.4 => 6 (largest difference)
