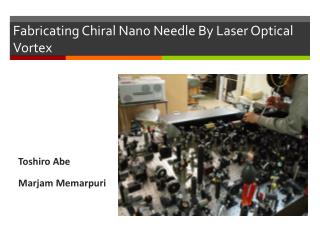

Fabricating Chiral Nano Needle By Laser Optical Vortex. Toshiro Abe Marjam Memarpuri. Properties of Lasers Background.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Fabricating Chiral Nano Needle By Laser Optical Vortex' - abia


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
properties of lasers background
Properties of LasersBackground

Fig. 1: 1. Highmonochromaticity, coherence and directionality, compared to ordinary sources of light that can allow laser light to focus towards the diffraction limit.

2. Pulsed beam (fs~ns):pulse energy is equal to the average power divided by the repetition rate.

These two futures provide laser with ability to melt metals.

High Peak energy

optical vortex
Optical Vortex

Fig. 2 : Ordinary laser versus optical vortex

Optical Vortex= the light which has orbital angular momentum(L)

Total angular momentum J=L+S

Ref. : http://iphys3-ap.eng.hokudai.ac.jp

how to fabricate structures
How to Fabricate structures
  • Peak power = Average PWR / pulse width
  • Light angular momenta directly force on sample.

Fig. 3: Experimental setup for the ablation.

Ref.: T. Omatsu and R. Morita, Light twists a material on the nanoscale, 21 August 2013, SPIE Newsroom.

DOI: 10.1117/2.1201308.004959

ablation result sem image

Ablation Result (SEM image)

( a,c,e) :Twisted nano needle was fabricated by the

Optical vortex

with a total angular momentum,j,of-2(Clockwise)

(b,d,f) :Twisted nano needle was fabricated by the

Optical vortex with a total angular momentum,j,of 2

(counter-clockwise)

Can transfer laser chirality

to the materials!

Ref.: T. Omatsu and R. Morita, Light twists a material on the nanoscale, 21 August 2013, SPIE Newsroom.

DOI: 10.1117/2.1201308.004959.

chirality
Chirality

These two structures are mirror images of each other

  • Chiral molecules have different optical, chemical and biological properties.
  • Ex. : Orange and Lemon are the same molecules but enantiomers.
  • Many molecules in the human bodies of living beings are enantiomers themselves.
applications
Applications

Chiral nanoneedles could be used in:

  • Nanoscale imaging systems like (AFM) Atomic force microscopes and (STM) scanning tunneling microscopes , sensors.
  • Possibility to chirally select chemical reactions on plasmonic nanostructures.
  • Selectivity and identity of chiral chemical composites.
  • Possibly identity of chiral drugs.
  • Planar chiral metamaterials.

Ref.: T. Omatsu and R. Morita, Light twists a material on the nanoscale, 21 August 2013, SPIE Newsroom. DOI: 10.1117/2.1201308.004959.

applications gold nanoneedles
ApplicationsGold nanoneedles
  • Aligned gold nanoneedle arrays for surface-enhanced Raman scattering (SERS)
  • A simple Ar+-ion irradiation route has been developed to prepare goldnanoneedlearrays.
  • Nanoneedlesexhibited very sharp tips with an apex diameter of 20 nm.
  • Arrays were evaluated as potential SERS substrates using malachite (Cu2CO3(OH)2) green molecules.
  • A new technique for producing controllable and reproducible SERS substrates potentially applicable for chemical and biological assays.

Ref.: Y. Yang et al., Aligned gold nanoneedle arrays for surface-enhanced Raman scattering , NANOTECHNOLOGY; AUG 13, 2010, p. 21-32.

applications silver nanoneedles
ApplicationsSilver nanoneedles

Controlled fabrication of silver nanoneedles array for SERS and rapid detection of narcotics

  • Novel SERS with high activity are ideal for novel SERS sensors, which detect illegal narcotics and explosives.

Ref.: Y. Yang et al., Controlled fabrication of silver nanoneedles array for SERS and their application in rapid detection of narcotics, NANOSCALE; 2012, 4 8, p2663-p2669

applications silver nanoneedles1
ApplicationsSilver nanoneedles
  • A simple Ar+-ion sputtering route was developed to fabricate well aligned silvernanoneedles arrays on silicon substrates.
  • With high substrate sensitivity in 3 s can detect and becomes an important analytical technique in forensic laboratories.

Ref.: Y. Yang et al., Controlled fabrication of silver nanoneedles array for SERS and their application in rapid detection of narcotics, NANOSCALE; 2012, 4 8, p2663-p2669

applications antibody functionalized nanoneedle
Applicationsantibody-functionalized nanoneedle

Evaluation of the actin cytoskeleton state using an antibody-functionalized nanoneedle and an AFM

  • Atomic Force Microscopy (AFM) was used to develop a cell diagnosis technique.
  • An ultra thin sharpened 200 nm nanoneedle was inserted into the living cell without affecting its viability.

Ref. AFM: 1. Loparic M. et al. (2010), Biophysical Journal 98, 2731–2740.2. Plodinec M. et al. (2012), Nature Nanotechnology 7, 757–765.

Ref.: Y. R. Silberberg et al., Evaluation of the actin cytoskeleton state using an antibody-functionalized nanoneedle and an AFM, DOI: 10.1016/j.bios.2012.06.044.

applications antibody functionalized nanoneedle1
Applicationsantibody-functionalized nanoneedle
  • Nanoneedle was functionalised with antibody to measure unbinding forces, specific mechanical interactions and intracellular content of the cell, during evacuating nanoneedle in the cell.
  • Possible beneficial technique for the evaluation of cytoskeleton conditions in health and disease, for the selection of specific cells according to their intracellular protein contents, without the need for introduction of marker proteins into the cell.
applications chirality and drugs
ApplicationsChirality and drugs

Ref.: www.alltomvetenskap.se/nyheter/spegelvanda-molekyler-skapar-oreda-i-naturen.

  • Neurosedyn (Thalidomide) gave 10000 infants malformations and its mirror image, which is a drug and has sedating effects.
applications chirality and drugs1
ApplicationsChirality and drugs
  • 1957 a drug called Thalidomide (Contergan, in Sweden Neurosedyn) was released in germany.
  • Prescribed as sedative or hypnotic to cure anexity and insomnia.
  • Later used for nausea to relieve sickness in pregnant women.
  • 1960 became a ”over the counter ” drug with no prescription required.
  • Shortly after up to 7000 infants were born with malformation of the limbs (phocomelia).
  • Throghout Europe, Australia, United States 10000 infants were reported with phocomelia, only 50% survived.
  • Since then development av more structured drug regualtions and control over drug use, ex. enantiomers of stereoisomeric drugs are required to be studied accurately.

Ref.: www.wikipedia.org

references
References
  • Ref. Figur :http://iphys3-ap.eng.hokudai.ac.jp/
  • Ref.: T. Omatsu and R. Morita, Light twists a material on the nanoscale, 21 August 2013, SPIE Newsroom. DOI: 10.1117/2.1201308.004959.
  • Ref.: Y. Yang et al., Aligned gold nanoneedle arrays for surface-enhanced Raman scattering , NANOTECHNOLOGY; AUG 13, 2010, p. 21-32.
  • Ref.: Y. Yang et al., Controlled fabrication of silver nanoneedles array for SERS and their application in rapid detection of narcotics, NANOSCALE; 2012, 4 8, p2663-p2669.
  • Ref. AFM: 1. Loparic M. et al. (2010), Biophysical Journal 98, 2731–2740.2. Plodinec M. et al. (2012), Nature Nanotechnology 7, 757–765.
  • Ref.: Y. R. Silberberg et al., Evaluation of the actin cytoskeleton state using an antibody-functionalized nanoneedle and an AFM, DOI: 10.1016/j.bios.2012.06.044.
  • Ref.: www.alltomvetenskap.se/nyheter/spegelvanda-molekyler-skapar-oreda-i-naturen.
  • Ref.: www.wikipedia.org
