  1. KDD Cup ’99: Classifier LearningPredictive Model for Intrusion Detection Charles Elkan 1999 Conference on Knowledge Discovery and Data Mining Presented by Chris Clifton

  2. KDD Cup Overview • Held Annually in conjunction with Knowledge Discovery and Data Mining Conference (now ACM-sponsored) • Challenge problem(s) released well before conference • Goal is to give best solution to problem • Relatively informal “contest” • Gives “standard” test for comparing techniques • Winner announced at KDD conference • Lots of recognition to winner

  3. Classifier Learning forIntrusion Detection • One of two KDD’99 challenge problems • Other was a knowledge discovery problem • Goal is to learn a classifier to define TCP/IP connections as intrusion/okay • Data: Collection of features describing TCP connection • Class: Non-attack or type of attack • Scoring: Cost per Test Sample • Wrong answers penalized based on type of “wrong”

  4. Data: TCP “connection” information • Dataset developed for 1998 DARPA Intrusion Detection Evaluation Program • Nine weeks of raw TCP dump data from simulated USAF LAN • Simulated attacks to give positive examples • Processed into 5 million training “connections”, 2 million test • Some “attributes” derived from raw data • Twenty-four attack types in training data, four classes: • DOS: denial-of-service, e.g. syn flood; • R2L: unauthorized access from a remote machine, e.g. guessing password; • U2R:  unauthorized access to local superuser (root) privileges, e.g., various ``buffer overflow'' attacks; • probing: surveillance and other probing, e.g., port scanning. • Test set includes fourteen attack types not found in training set

  5. Basic features of individual TCP connections

  6. Content features within a connection suggested by domain knowledge

  7. Traffic features computed using a two-second time window

  8. Scoring • Each prediction gets a score: • Row is correct answer • Column is prediction made • Score is average over all predictions

  9. Results • Twenty-four entries, scores:0.2331 0.2356 0.2367 0.2411 0.2414 0.2443 0.2474 0.2479 0.2523 0.2530 0.2531 0.2545 0.2552 0.2575 0.2588 0.2644 0.2684 0.2952 0.3344 0.3767 0.3854 0.3899 0.5053 0.9414 • 1-Nearest Neighbor scored 0.2523

  10. Winning Method:Bagged Boosting • Submitted by Bernhard Pfahringer, ML Group, Austrian Research Institute for AI • 50 samples from the original 5 million odd examples set • Contrary to standard bagging the sampling was slightly biased: • all of the examples of the two smallest classes U2R and R2L • 4000 PROBE, 80000 NORMAL, and 400000 DOS examples • duplicate entries in the original data set removed • Ten C5 decision trees induced from each sample • used both C5's error-cost and boosting options. • Final predictions computed from 50 single predictions of each training sample by minimizing “conditional risk” • minimizes sum of error-costs times class-probabilities • Took approximately 1 day of 200MHz 2 processor Sparc to train

  11. Confusion Matrix(Breakdown of score)

  12. Analysis of winning entry • Result comparable to 1-NN except on “rare” classes • Training sample of winner biased to rare classes • Does this give us a general principle? • Misses badly for some attack categories • True for 1-NN as well • Problem with feature set?

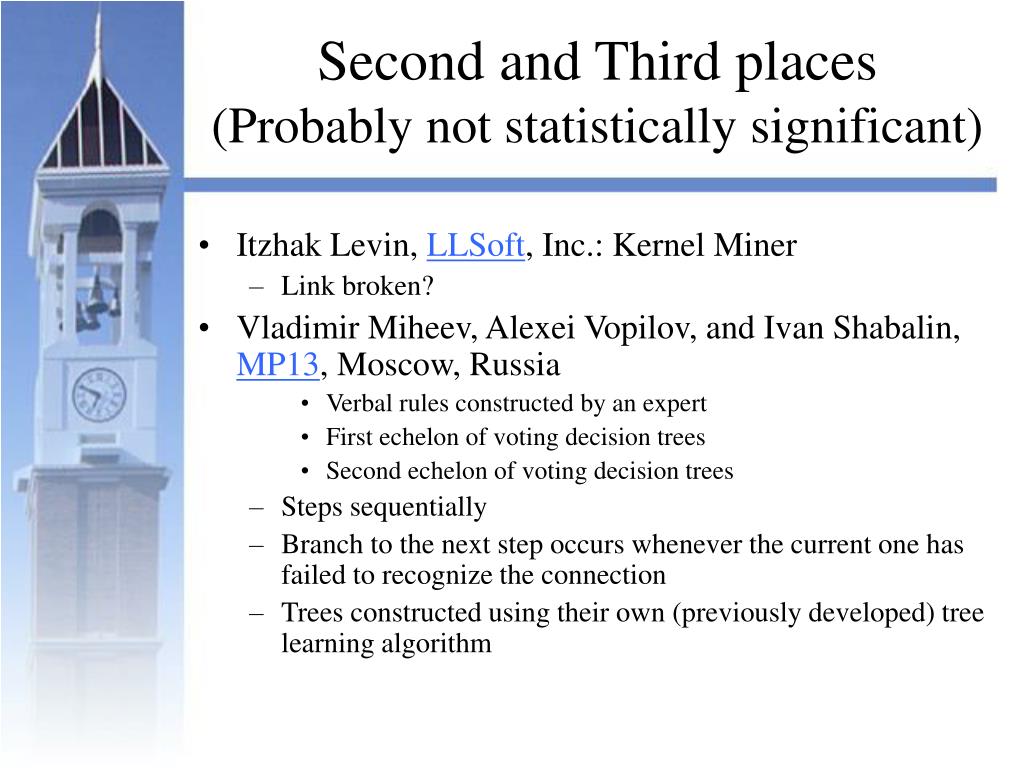

  13. Second and Third places(Probably not statistically significant) • Itzhak Levin, LLSoft, Inc.: Kernel Miner • Link broken? • Vladimir Miheev, Alexei Vopilov, and Ivan Shabalin, MP13, Moscow, Russia • Verbal rules constructed by an expert • First echelon of voting decision trees • Second echelon of voting decision trees • Steps sequentially • Branch to the next step occurs whenever the current one has failed to recognize the connection • Trees constructed using their own (previously developed) tree learning algorithm
