introduction to internet protocol over satellite ipos tia 1008

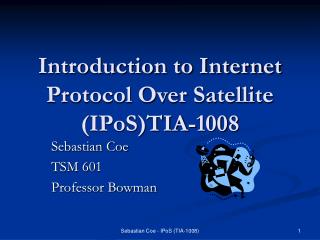

Introduction to Internet Protocol Over Satellite(IPoS)TIA-1008

Sebastian Coe

TSM 601

Professor Bowman

Sebastian Coe - IPoS (TIA-1008)

how does ip over satellite work
How does IP over Satellite Work?

Sebastian Coe - IPoS (TIA-1008)

overview
Overview
  • IPoS is governed by TIA standard 1008
  • It divides the use of IPoS into three main ‘segments’ [1]

(Hughes Network Systems)

Sebastian Coe - IPoS (TIA-1008)

user segment
User Segment
  • Individual PC users have a small outdoor satellite dish that has a direct ‘line of sight’ orientation towards a satellite in the sky. [6]
  • Inside, the user has a special modem that connects the outdoor portion and

indoor portion of the user segment [6]

Sebastian Coe - IPoS (TIA-1008)

user segment5
User Segment
  • At the user segment the demodulated IPoS packets can be ‘rerouted using standard Ethernet card or wireless communication techniques such as WLAN.’ [6]
  • Put simply, once IPoS packets

are on the ground, they can be easily

retransmitted through well known systems

Sebastian Coe - IPoS (TIA-1008)

hub segment
Hub Segment
  • The Hub Segment serves as a ‘gateway’ for large numbers of IPoS users. [1]
  • It is a ground link between

users, satellites, and the rest of

the networks that make up the

internet

Sebastian Coe - IPoS (TIA-1008)

hub segment7
Hub Segment
  • The Hub segment is in charge of converting packets from ‘one protocol to another’. [1]
  • It is in charge of making sure that traffic is properly routed through the

network. [1]

Sebastian Coe - IPoS (TIA-1008)

space segment
Space Segment
  • Ku Band Transponders [6]
  • Bi-directional transmission is possible between user and hub segments [1]
          • Bent pipe transmission is used [1]
          • One hub segment can access multiple space segments simultaneously [1]

Sebastian Coe - IPoS (TIA-1008)

ipos protocol
IPoS Protocol
  • IPoS protocol is

An extension of IP

It is designed to allow

IP packets to travel

Through a space

Based medium

(Hughes Network Systems)

Sebastian Coe - IPoS (TIA-1008)

quick review
Quick Review
  • IPoS works through the coordination of the user, hub, and space segments.
  • IPoS uses space based transponders, it uses microwaves to transmit information

Sebastian Coe - IPoS (TIA-1008)

quick review11
Quick Review
  • IPoS encapsulates IP packets so they can travel across the satellite network. IP and IPoS work together, but can be developed separately.
  • The hub segment has the major task

of bringing together and getting user

information to and from the Internet

Sebastian Coe - IPoS (TIA-1008)

notes
Notes
  • IPoS allows for up to 155Mbps

bandwidth

  • Required Equipment: IPoS enabled modem, user equipped satellite dishes, dedicated satellite transponders, ground base stations

Sebastian Coe - IPoS (TIA-1008)

references
References
  • [1] Hughes Network Systems. HNS-30740. January 2004. “IP Over Satellite (IPoS)” October 12, 2008, http://www.hughes.com/HUGHES/Doc/0/01LKEPT5PQH43D7PP4NMB9195C/IPOS-whitepaper-Jan2004.pdf
  • [2] Telecommunications Industry Association. Standards Department. 2008. “About Standards” October 23, 2008. http://www.tiaonline.org/standards/about/index.cfm
  • [3] Ciber Habitat. Gobierno de Mexico Satelites Mexicanos. 2008. “Sistema Satmex” October 23, 2008 http://ciberhabitat.gob.mx/medios/satelites/mexicanos/satmex.htm
  • [4] Project MESA. MESA DTR 70.0008v1.5.4 Technical Report. Technical Specifications Group SYSTEM. April, 2005. “Technologies with Potential Applicability to Project MESA”. October 12, 2008, http://www.projectmesa.org/ftp/TSG_SYS/SYS07_Boston_2006/SYS07_07_Technologies%20with%20Potential%20Applicability%20to%20Project%20MESA%20SYS0070008v154.doc

Sebastian Coe - IPoS (TIA-1008)

references14
References
  • [6] Viinamaki, Jarkko. Department of Electrical Engineering, Helsinki University of Technology. “IP Over Satellite”. October 12, 2008, http://www.tml.hut.fi/Opinnot/T-109.551/2004/reports/ipoversatellite_v3.doc
  • [7] Working Party 4B. Draft Revision of Recommendation ITU-R S. 1709. 2006 “Technical Characteristics of Air Interfaces of Global Broadband Satellite Systems.” October 12, 2008, www.catr.cn/itu/itujy/P020061123539714986882.doc
  • [8] Universidade de Vigo. Recomendación UIT-R S. 1709-1 Cuestion UIT-R 269/4. 2005-2007 “Características técnicas de las interfaces radioeléctricas para sistemas mundiales de comunicaciones por satélite en banda ancha” October 12, 2008, http://webs.uvigo.es/servicios/biblioteca/uit/rec/S/R-REC-S.1709-1-200701-I!!PDF-S.pdf

Sebastian Coe - IPoS (TIA-1008)
