  1. Catheterization Conference • October 27, 2011 • Anit Mankad, MD Ivabradine: Is there a cardiovascular benefit to pure heart rate reduction? 1

  2. By Harlan Jay Ellison (1965) • “Heart Beat Hypothesis” 2

  3. Overview • Beta Blockers • Activity, impact, intolerance • Adrenergic (sympathetic) activity • If current and “Funny” Channels • Ivabradine • Early trials • BEAUTIFUL and SHIFT trials • Current indications outside the U.S. • Future considerations 3

  4. Case • 55 yo WM, PMH history of CAD s/p previous PCI, Ischemic cardiomyopathy, EF 35%, Severe COPD with frequent use of inhalers, comes to your clinic for follow-up, describing low grade stable angina for months (since PCI). • On metoprolol 6.25mg bid, amlodipine 10mg, asa, plavix, statin, ISMN 60mg • BP 110/60, HR 88 at rest. • What can we offer him? 4

  5. Elevated Resting Heart Rate • Accelerates production of atherosclerosis (Int J Cardiol 2008;126:302-12) • Associated with coronary plaque disruption (Circulation 2001;126:1477-82) • Framingham Study • progressive increase in all cause and cardiovascular mortality in relation to antecedent HR (Am Heart J 1987; 113:1489-94) • Continuous increase in death rates in survivors of Acute MI • starting at HR > 70(J Am Coll Cardiol 2007;50:823-30) 5

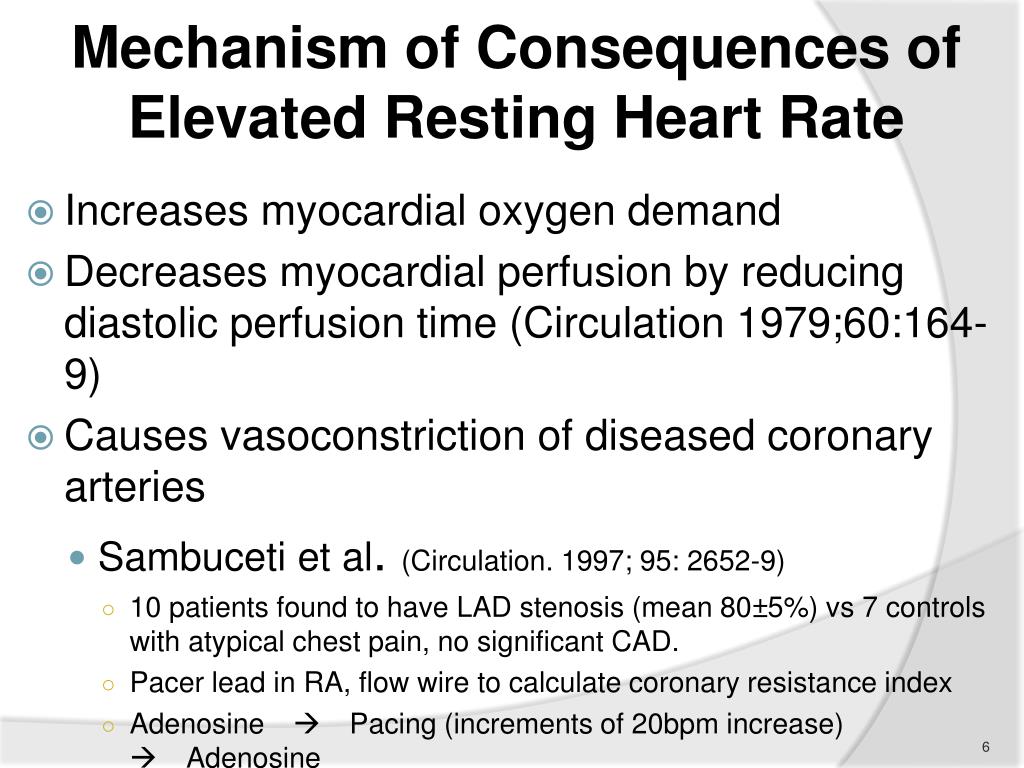

  6. Mechanism of Consequences of Elevated Resting Heart Rate • Increases myocardial oxygen demand • Decreases myocardial perfusion by reducing diastolic perfusion time (Circulation 1979;60:164-9) • Causes vasoconstriction of diseased coronary arteries • Sambuceti et al. (Circulation. 1997; 95: 2652-9) • 10 patients found to have LAD stenosis (mean 80±5%) vs 7 controls with atypical chest pain, no significant CAD. • Pacer lead in RA, flow wire to calculate coronary resistance index • AdenosinePacing (increments of 20bpm increase) Adenosine 6

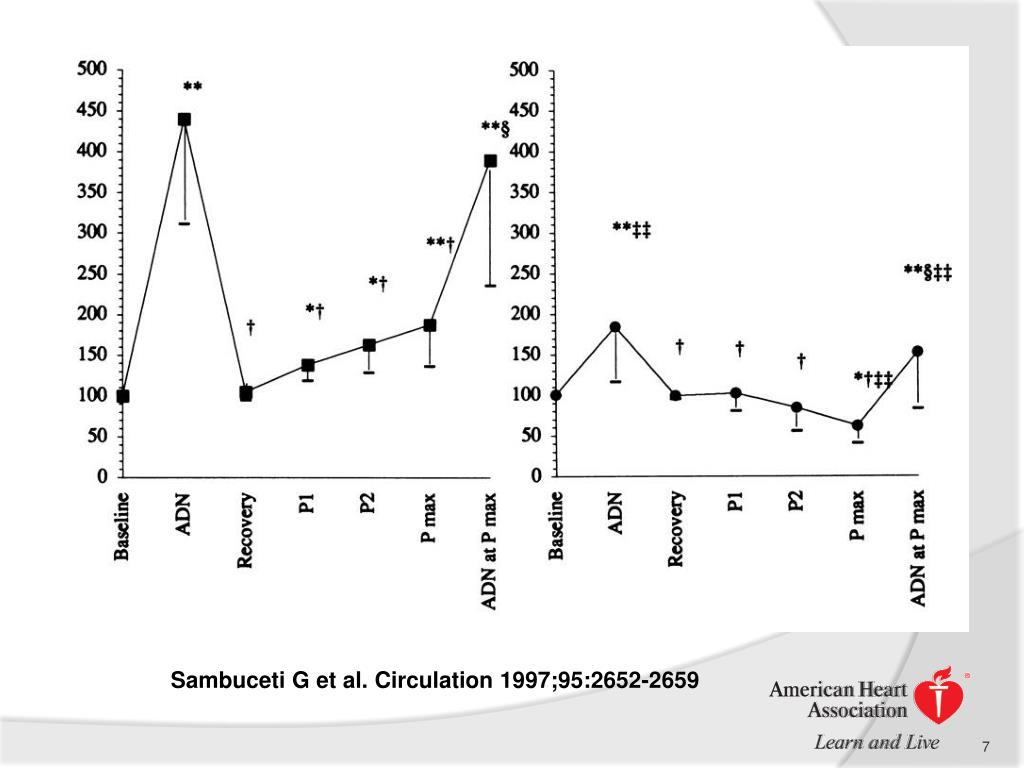

  7. . Sambuceti G et al. Circulation 1997;95:2652-2659 7

  8. Heart Rate in Cardiovascular Outcomes • Diaz et al. • 25,000 patients who had cardiac cath requests for suspected or proven CAD • Divided heart rate into quintiles • Multivariable Cox PH models • Adjusted for beta-blockers use • As well as smoking, DM, HTN, gender, age, EF, antiplatelet and lipid agents 8

  9. 9

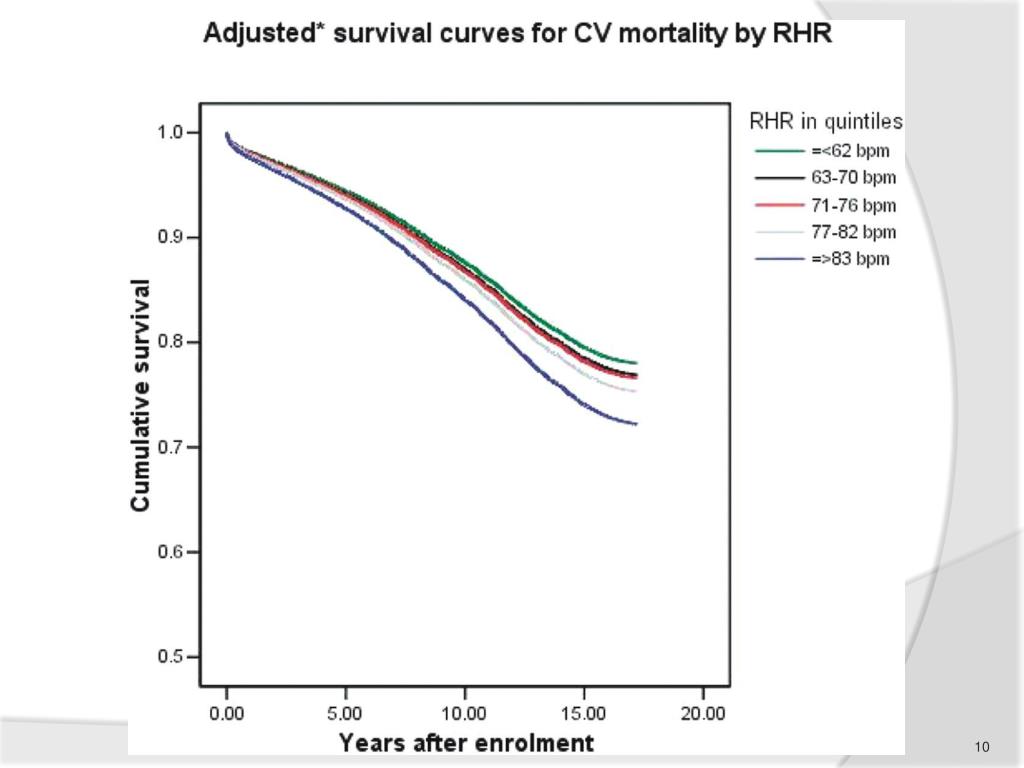

  10. 10

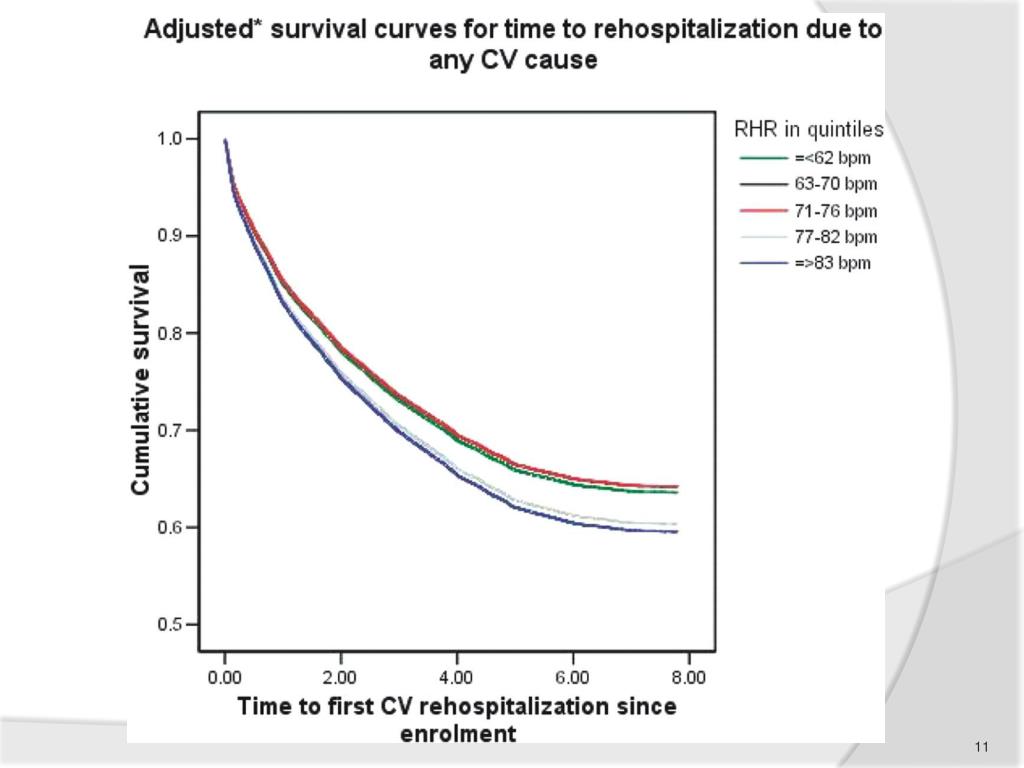

  11. 11

  12. 12

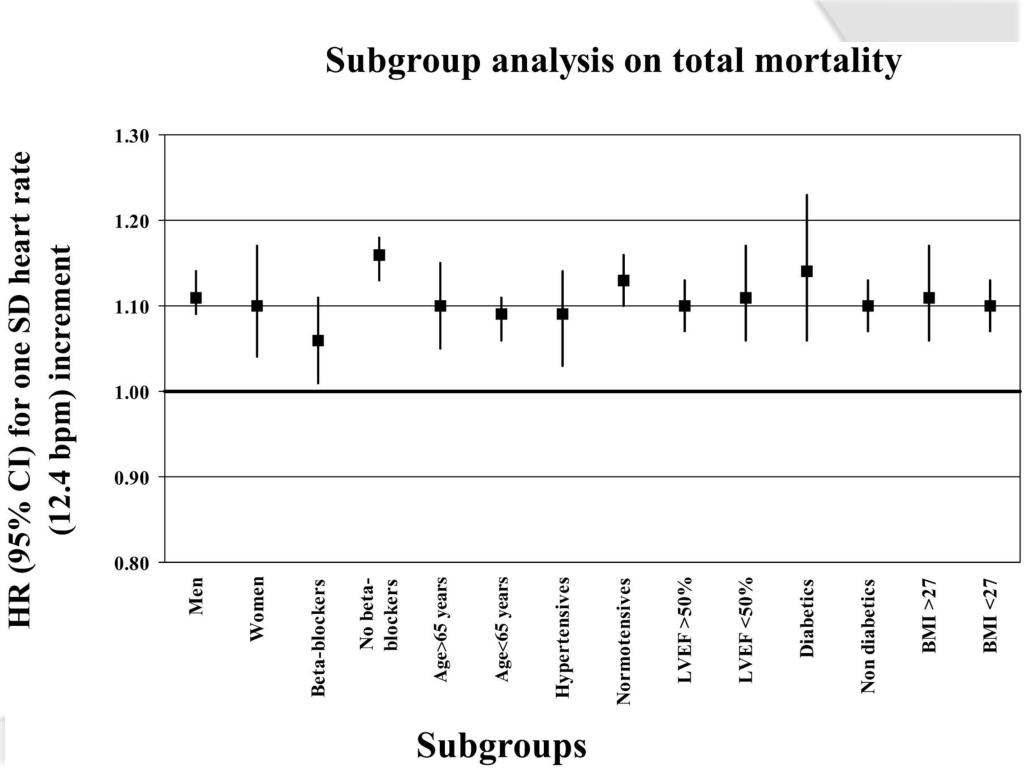

  13. 13

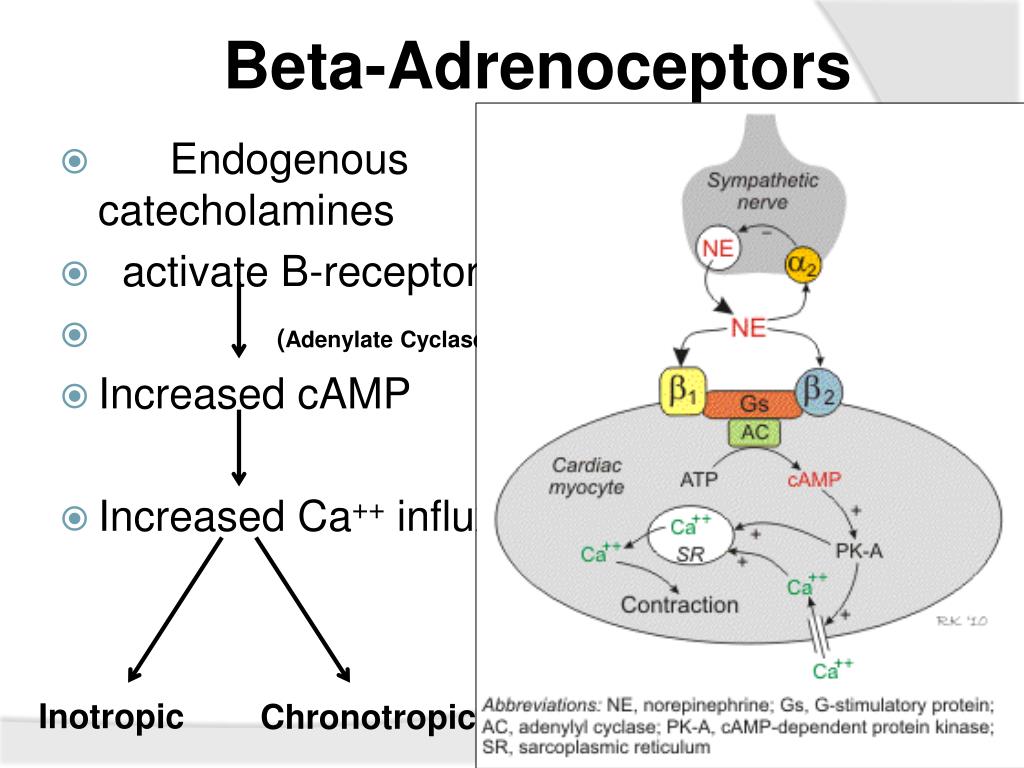

  14. Beta-Adrenoceptors • Endogenous catecholamines • activate B-receptors • (Adenylate Cyclase) • Increased cAMP • Increased Ca++ influx Inotropic Chronotropic 14

  15. Beta Blockers (BB) • B1negative chronotropy and inotropy • AV conduction delay • Reduced atrial and ventricular arrythmias • B2Bronchoconstriction • Peripheral unopposed alpha constriction • Decrease glycogenolysis • (contribute to hypoglycemic events) • Other antagonize release of renin • reduces intraocular pressures 15

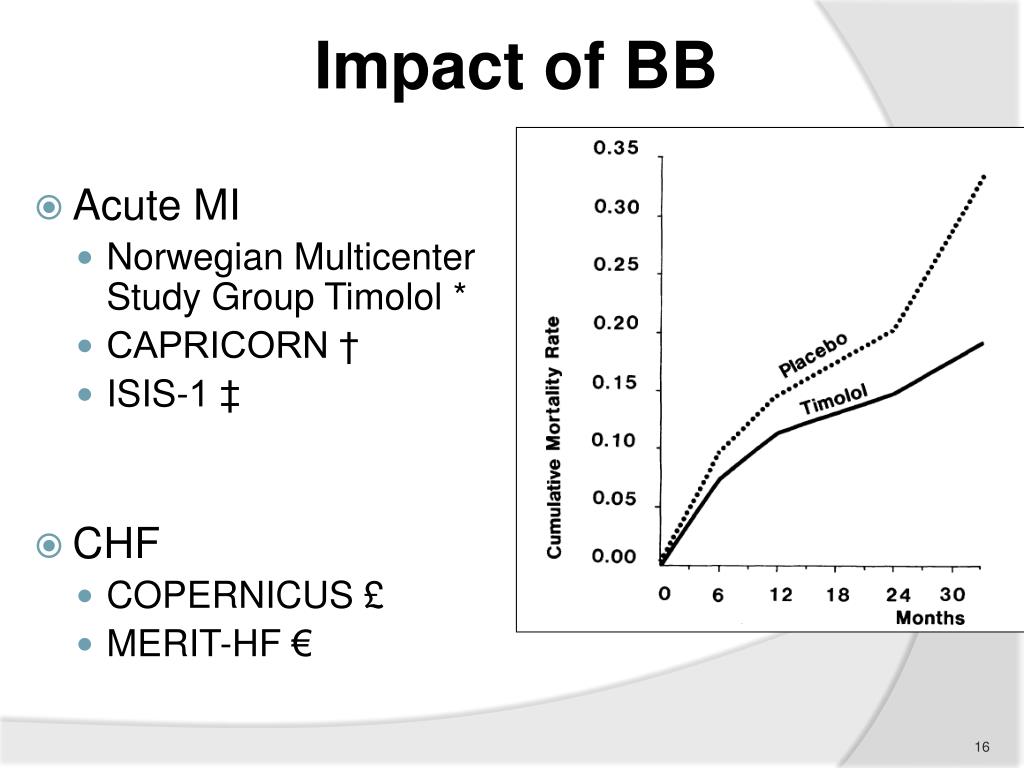

  16. Impact of BB • Acute MI • Norwegian Multicenter Study Group Timolol * • CAPRICORN † • ISIS-1 ‡ • CHF • COPERNICUS £ • MERIT-HF € 16

  17. Intolerence of BB • Side effects • Bronchoconstriction, AV delay, hypoglycemia • Weight gain, depression, fatigue • BB may not be tolerated in high enough doses to attain heart rates below 70bpm • Acute setting (Acute MI, or CHF), the negative inotropic effect could be deleterious • This has been shown in dogs (Eur Heart J (2004) 25 (7): 579-586 17

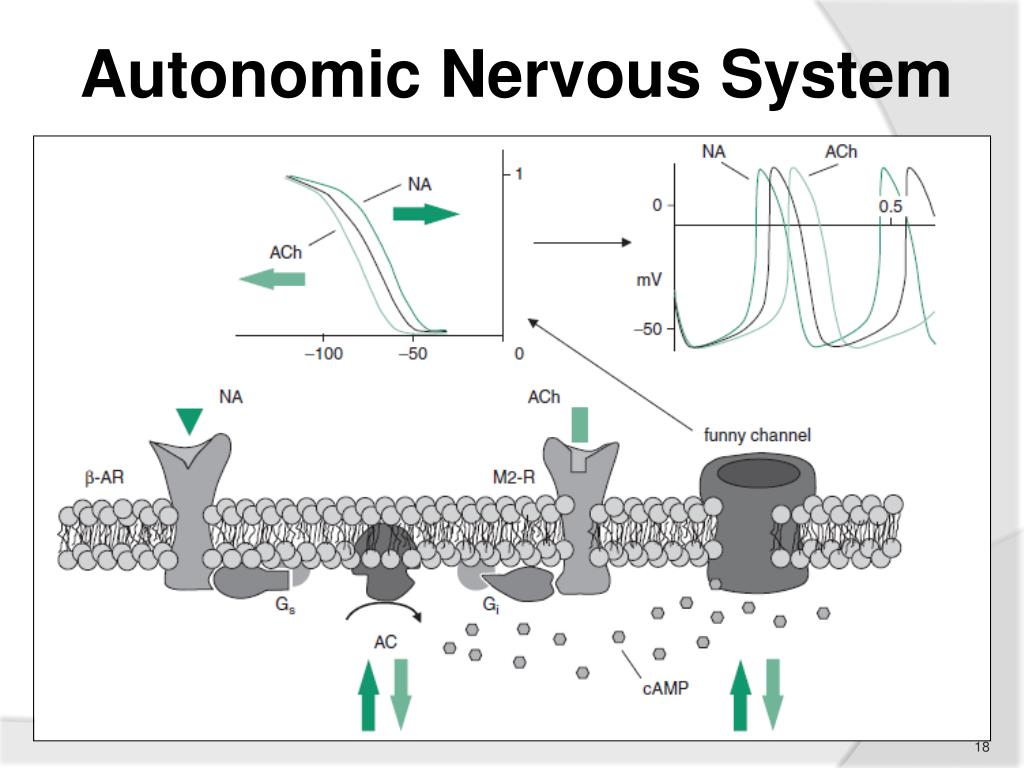

  18. Autonomic Nervous System 18

  19. If Current • H.F.Brown (1979) • means for acceleration of diastolic depolarization (heart rate) in adrenergic response • Sinoatrial Node • NA-K inward current • Regulated by the Funny Channel • cAMP 19

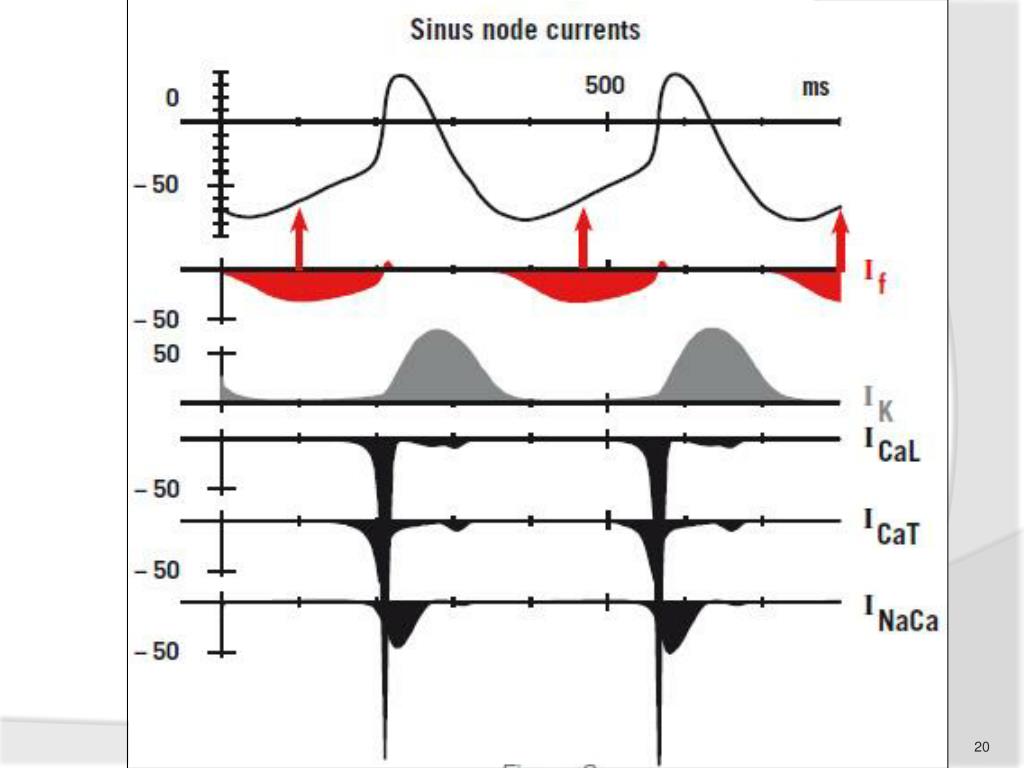

  20. 20

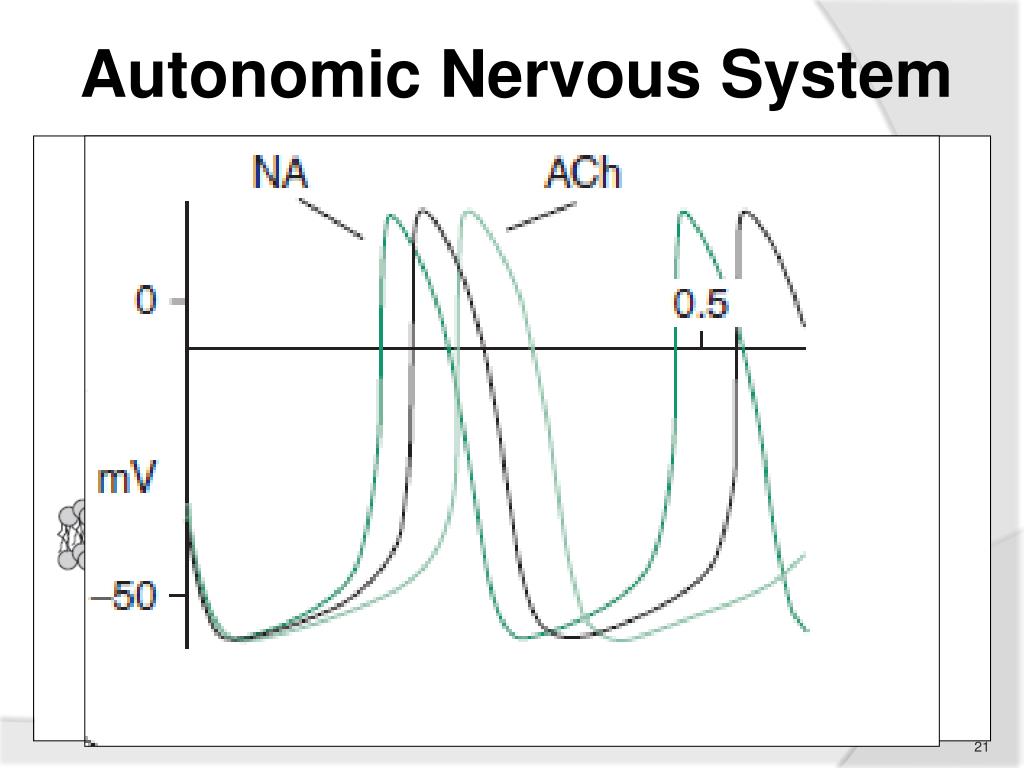

  21. Autonomic Nervous System 21

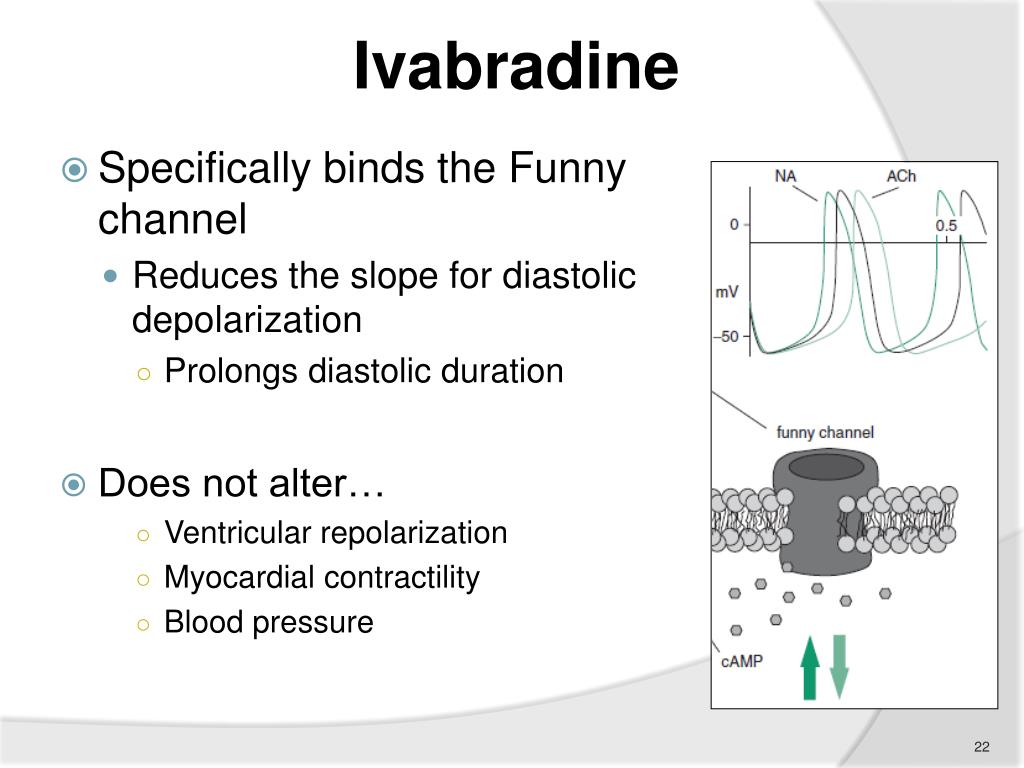

  22. Ivabradine • Specifically binds the Funny channel • Reduces the slope for diastolic depolarization • Prolongs diastolic duration • Does not alter… • Ventricular repolarization • Myocardial contractility • Blood pressure 22

  23. Ivabradine • 2005--Approved by the European Medicine Agency • Trade: Procoralan, Coralan (India), Corlentor (Italy) • 2.5mg, 5mg, 7.5mg. Two times a day • Side Effects (%) • Teratogenic • Pregnancy • Breast feeding 23

  24. Early Studies 24

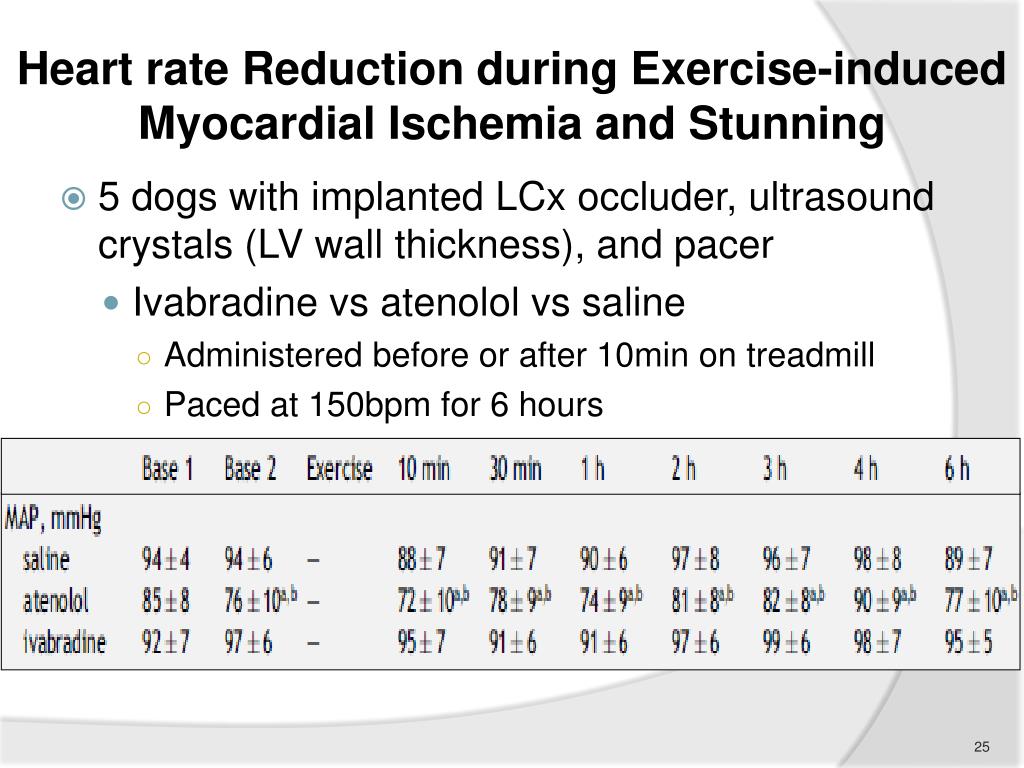

  25. Heart rate Reduction during Exercise-inducedMyocardial Ischemia and Stunning • 5 dogs with implanted LCx occluder, ultrasound crystals (LV wall thickness), and pacer • Ivabradine vs atenolol vs saline • Administered before or after 10min on treadmill • Paced at 150bpm for 6 hours 25

  26. Administration BEFORE Onset of Exercise Saline (full circles) Ivabradine (open circles) Atenolol (open triangles) *P<0.05: atenolol and ivabradine significantly different from saline. Monnet X et al. Eur Heart J 2004;25:579-586 26

  27. Administration BEFORE Onset of Exercise AND PACED Saline (full circles) Ivabradine (open circles) Atenolol (open triangles) *P<0.05: atenolol and ivabradine significantly different from saline. †P<0.05: atenolol significantly different from ivabradine. Monnet X et al. Eur Heart J 2004;25:579-586 27

  28. Administration AFTER Onset of Exercise Saline (full circles) Ivabradine (open circles) Atenolol (open triangles) *P<0.05: atenolol and ivabradine significantly different from saline. †P<0.05: atenolol significantly different from ivabradine. Monnet X et al. Eur Heart J 2004;25:579-586 28

  29. Administration AFTER Onset of Exercise AND PACED Saline (full circles) Ivabradine (open circles) Atenolol (open triangles) *P<0.05: atenolol and ivabradine significantly different from saline. †P<0.05: atenolol significantly different from ivabradine. Monnet X et al. Eur Heart J 2004;25:579-586 29

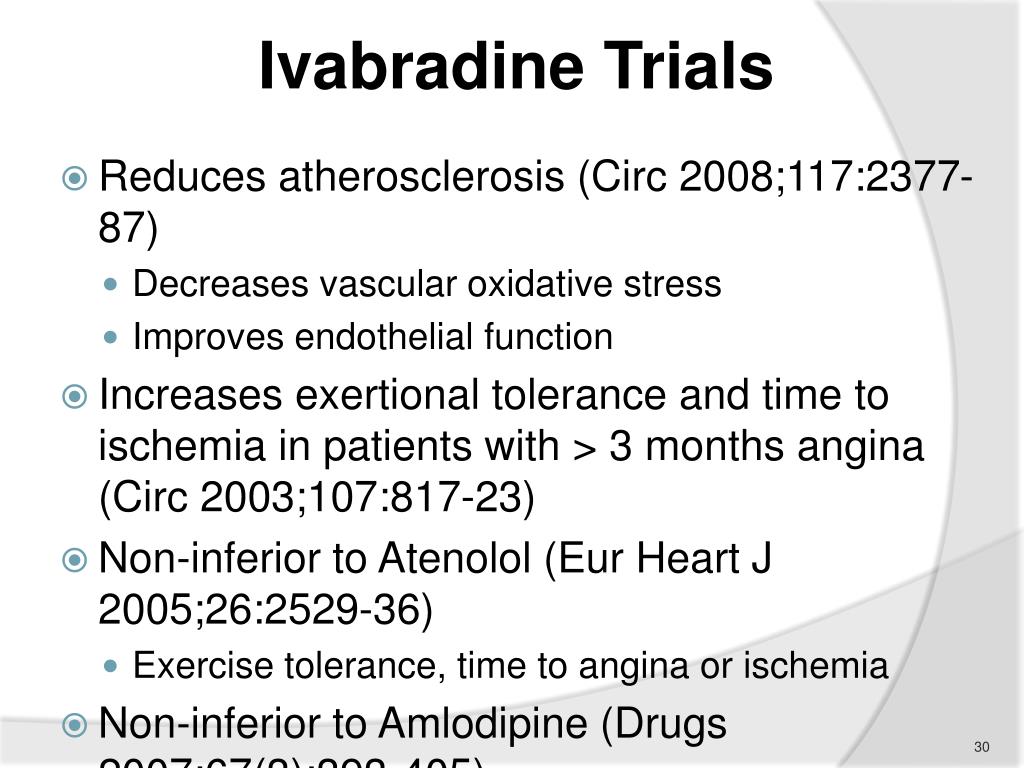

  30. Ivabradine Trials • Reduces atherosclerosis (Circ 2008;117:2377-87) • Decreases vascular oxidative stress • Improves endothelial function • Increases exertional tolerance and time to ischemia in patients with > 3 months angina (Circ 2003;107:817-23) • Non-inferior to Atenolol (Eur Heart J 2005;26:2529-36) • Exercise tolerance, time to angina or ischemia • Non-inferior to Amlodipine (Drugs 2007;67(3):393-405) 30

  31. BEAUTIFUL Trial • Randomized, double-blinded, placebo controlled • 781 centers, 33 countries • 11,000 subjects (between 2005 and 2007) • Male (98%), Caucasian (83%), HR>60, EF<40% • CAD and on optimal medical management • 87% on BB, 89% on ACE/ARBs, 27% Aldo antagonists • Ivabradine vs placebo, followed for 3 years • 5mg bid, if HR >60 at 2 weeks, increase to 7.5mg • Primary endpoint was a composite of CV death and hospitalizations for MI or CHF • Subgroup analysis: HR>70 (5,400) 31

  32. 32

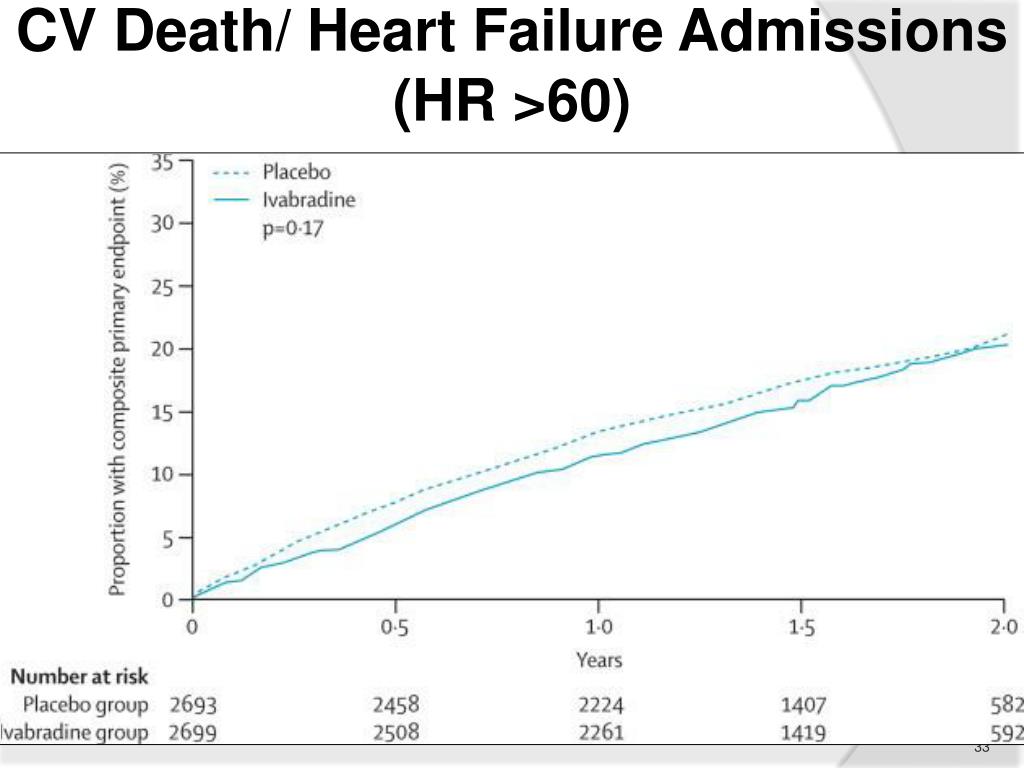

  33. CV Death/ Heart Failure Admissions(HR >60) 33

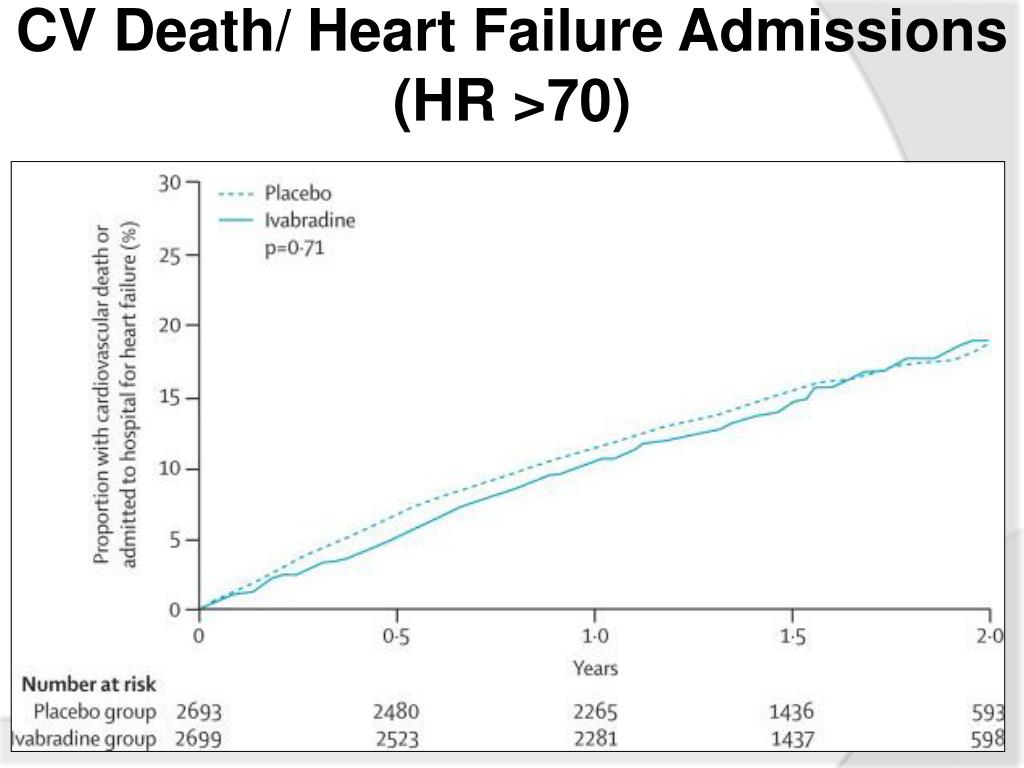

  34. CV Death/ Heart Failure Admissions(HR >70) 34

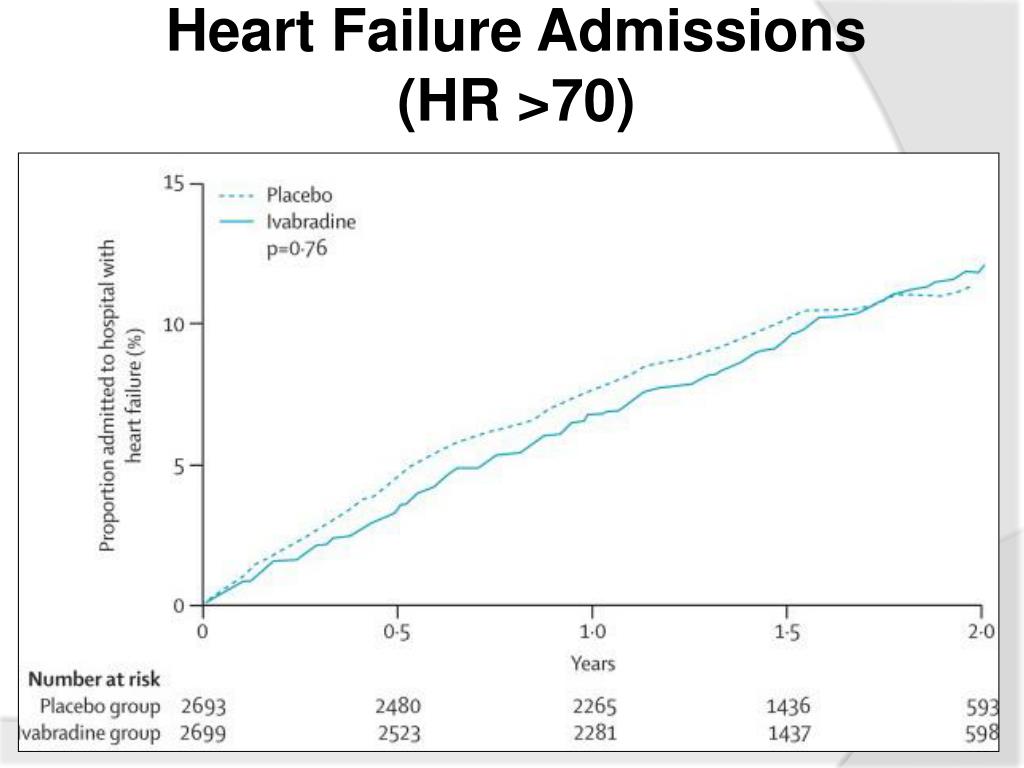

  35. Heart Failure Admissions(HR >70) 35

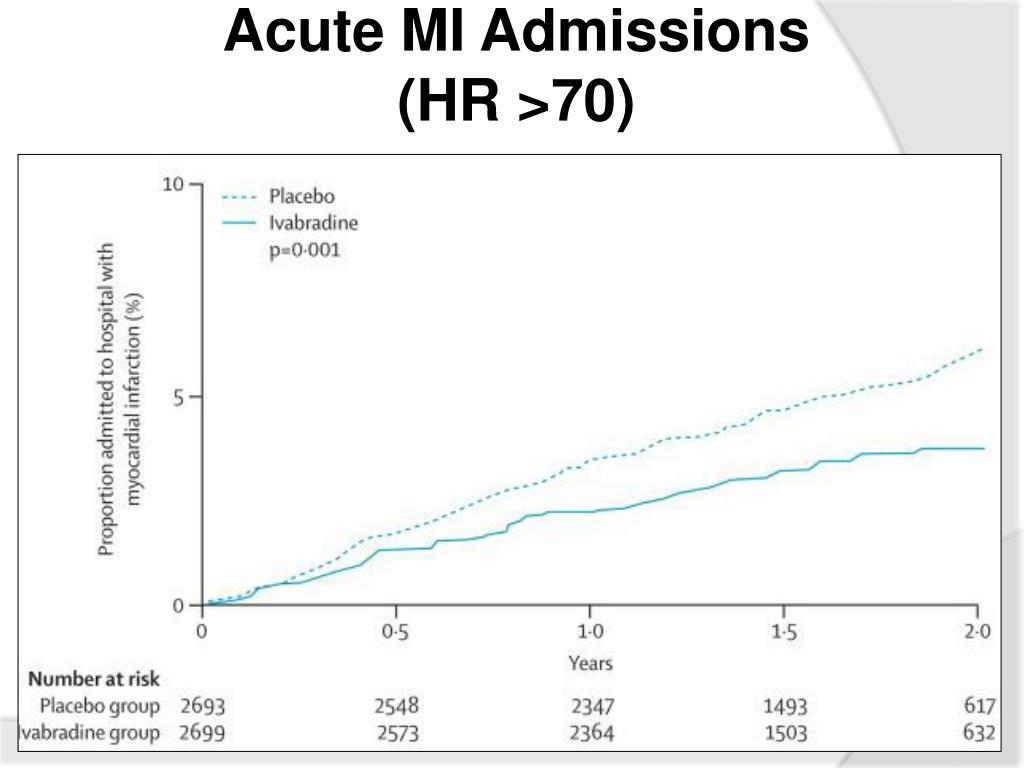

  36. Acute MI Admissions(HR >70) 36

  37. Proportion Requiring PCI(HR >70) 37

  38. What Can We Conclude from the BEAUTIFUL Trial? • While there was no difference total cardiovascular mortality • Ivabradine use appears to be a benefit in reducing readmissions due to coronary artery disease (when resting heart rate > 70) • Acute Myocardial Infarction • Coronary Revascularization 38

  39. SHIFT Trial • Randomized, double-blinded, placebo controlled • 6,500 subjects • Male (76%), Caucasian (89%) • Class II – IV heart failure, EF<35%, HR>70bpm • Admission for heart failure in the previous 2 months • On optimal medical management • 90% on BB, 84% on ACE/ARBs, 60% Aldo antagonists • Ivabradine vs placebo, followed for 3 years • Primary endpoint: composite of CV death or hospital admission for heart failure. 39

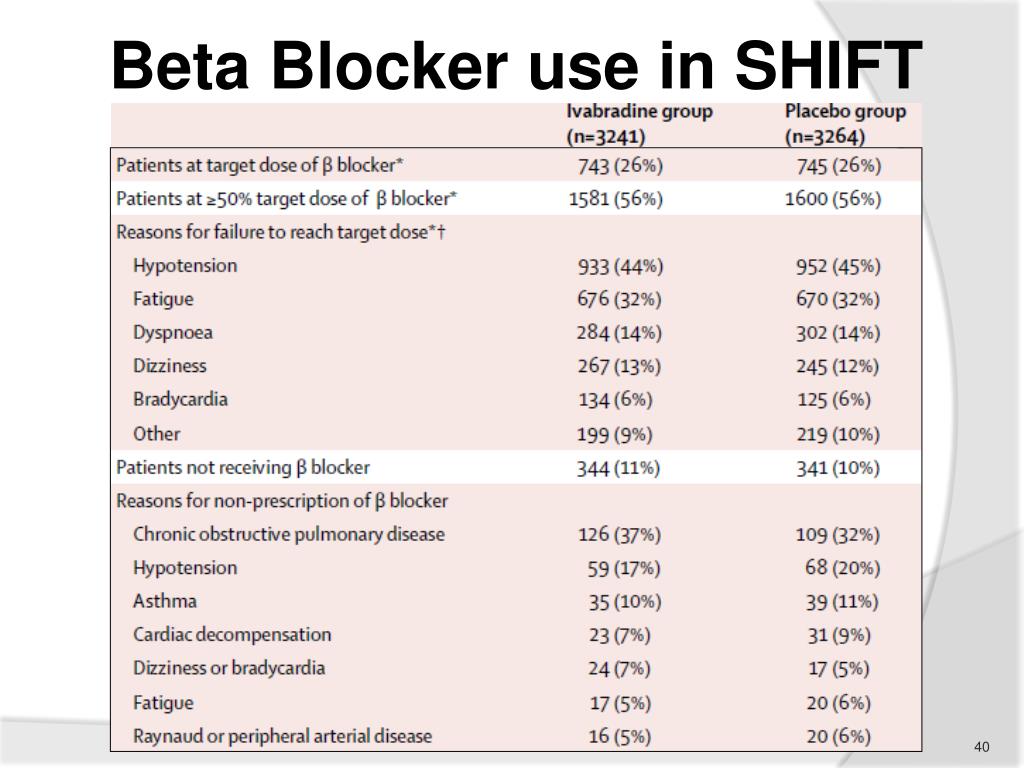

  40. Beta Blocker use in SHIFT 40

  41. 41

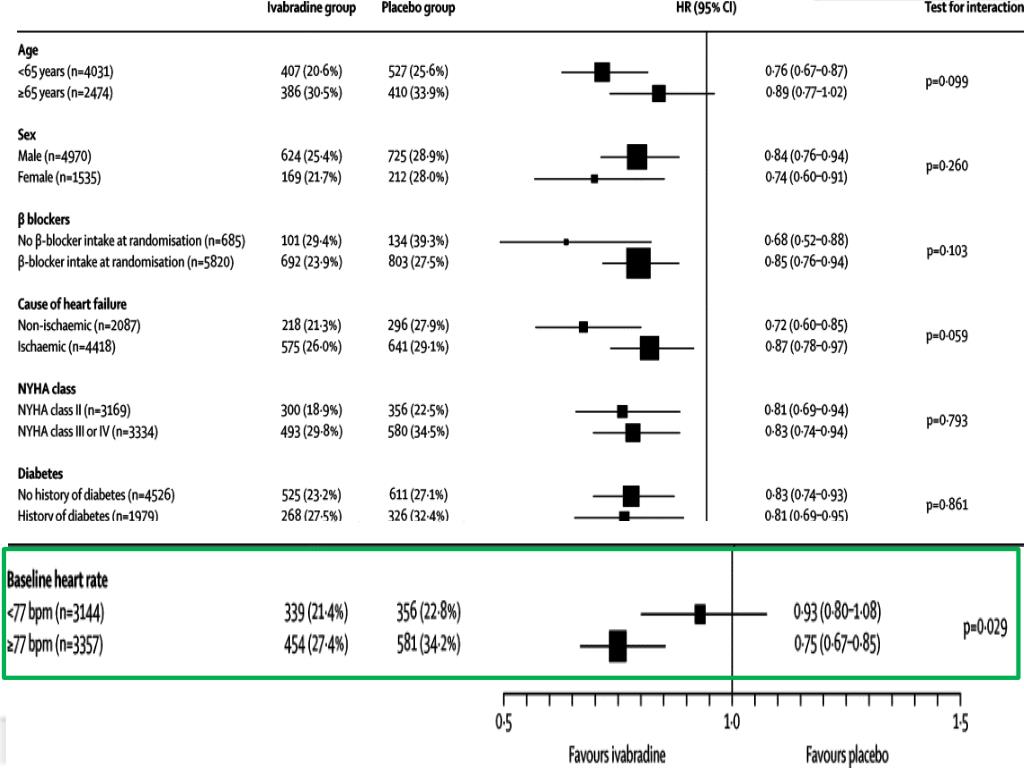

  42. 42

  43. Cardiovascular Death and Heart Failure Admissions 43

  44. Heart Failure Admissions 44

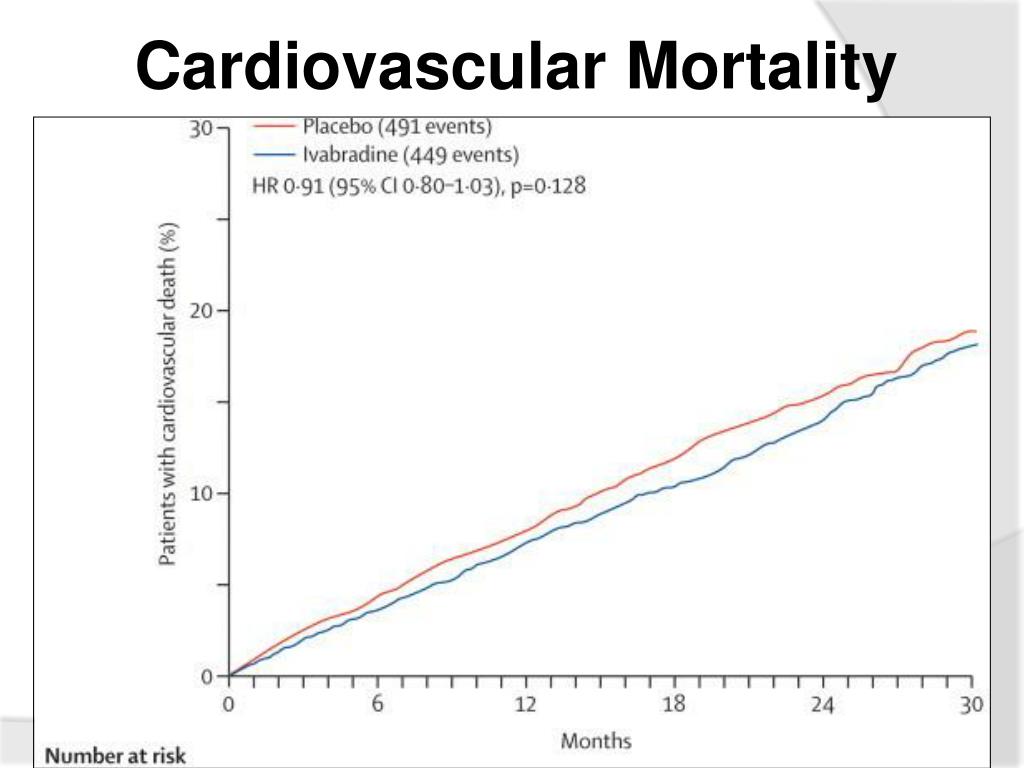

  45. Cardiovascular Mortality 45

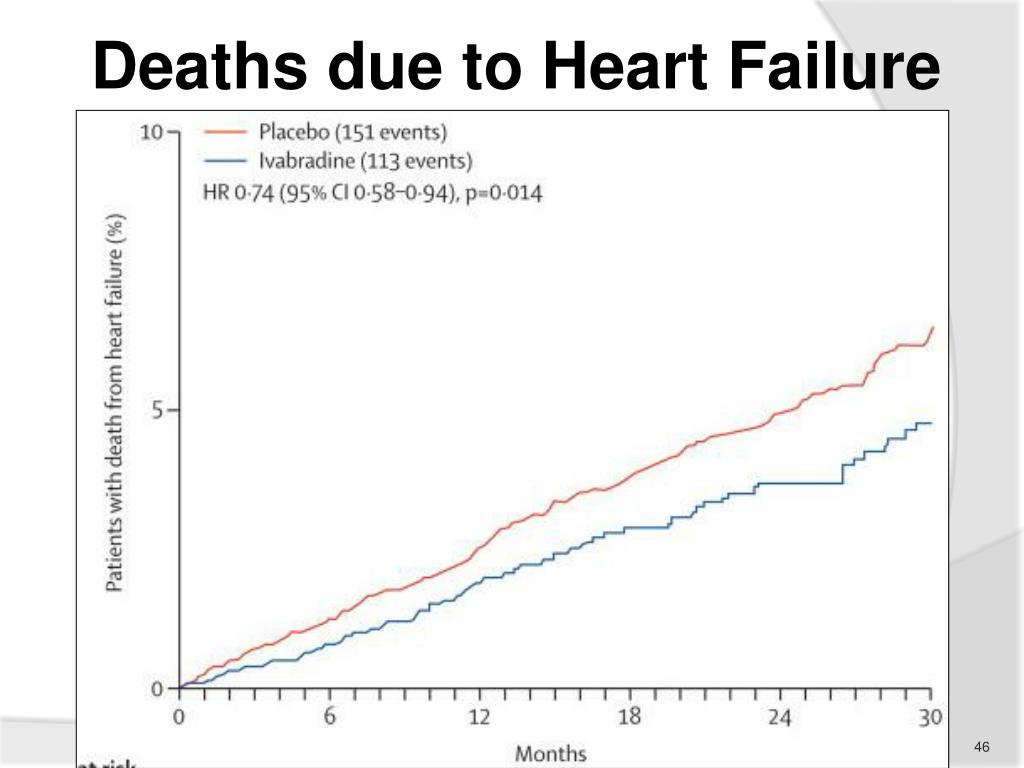

  46. Deaths due to Heart Failure 46

  47. SHIFT Echo substudy 47

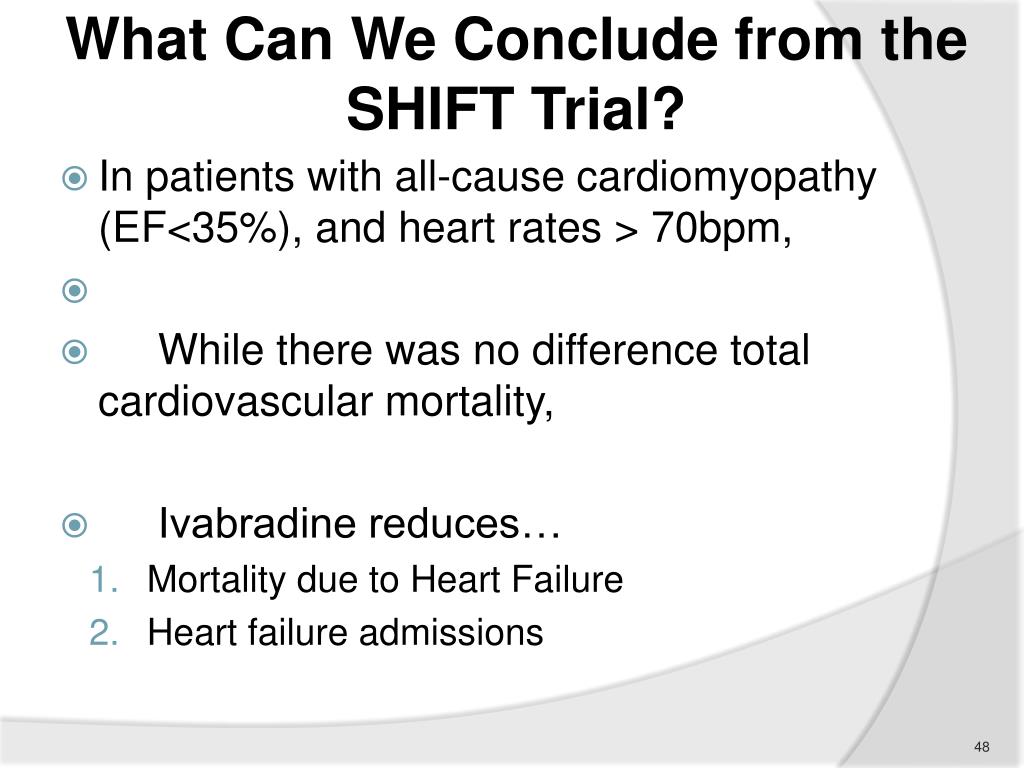

  48. What Can We Conclude from the SHIFT Trial? • In patients with all-cause cardiomyopathy (EF<35%), and heart rates > 70bpm, • While there was no difference total cardiovascular mortality, • Ivabradine reduces… • Mortality due to Heart Failure • Heart failure admissions 48

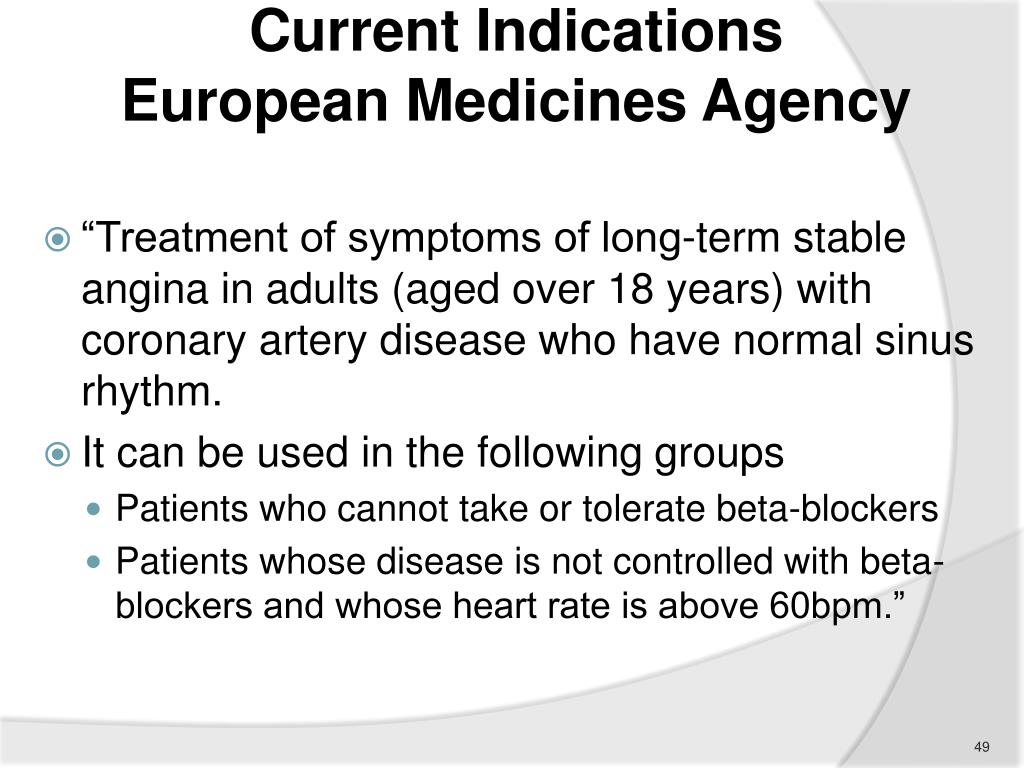

  49. Current IndicationsEuropean Medicines Agency • “Treatment of symptoms of long-term stable angina in adults (aged over 18 years) with coronary artery disease who have normal sinus rhythm. • It can be used in the following groups • Patients who cannot take or tolerate beta-blockers • Patients whose disease is not controlled with beta-blockers and whose heart rate is above 60bpm.” 49

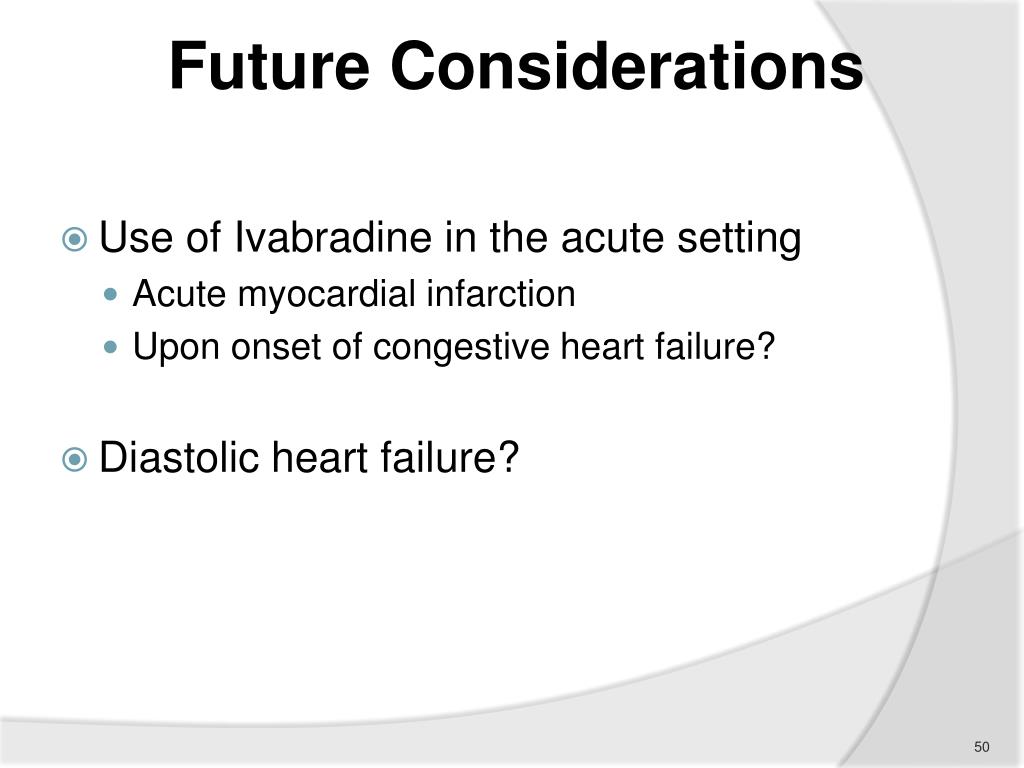

  50. Future Considerations • Use of Ivabradine in the acute setting • Acute myocardial infarction • Upon onset of congestive heart failure? • Diastolic heart failure? 50
