Presentation Transcript

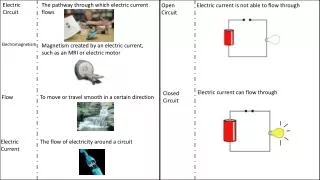

slide1

Electric Circuit

The pathway through which electric current flows

Open Circuit

Electric current is not able to flow through

Electromagnetism

Magnetism created by an electric current, such as an MRI or electric motor

Electric current can flow through

Closed Circuit

To move or travel smooth in a certain direction

Flow

Electric Current

The flow of electricity around a circuit
