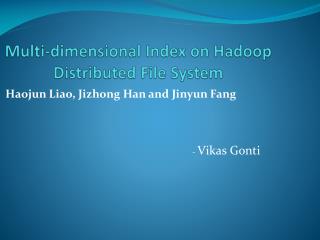

Multi-dimensional Index on HadoopDistributed File System

Haojun Liao, Jizhong Han and Jinyun Fang

- Vikas Gonti

contents
Contents
  • Introduction
  • Design Overview
  • Details of Implementation
  • Experimental Evaluation
  • Conclusion and Future work
introduction
Introduction
  • Why we need to improve the query performance?

Large Voluminous Data

Cost

Scalability

Spatial access methods.

slide4
HDFS
  • HDFS is an open source implementation of DFS
index structure in hdfs
Index Structure in HDFS
  • HDFS offers an effective way of manipulating and maintenance index as in the single processor environment.
  • No significant modifications of the original index structure are required to enable its appropriate function.
  • Query processing using index can be integrated with MapReduce framework towards query efficiency.
  • Answering queries by using access methods can be more efficient than by using sequential scanning.
design overview
Design Overview
  • R-Tree like Index Structure

a disk-based hierarchical structure based on B-tree, is one of the most common used multi-dimensional index.

R-Tree node is implemented as a disk page.

Index nodes are of the same size in a index.

query processing
Query Processing
  • Only a small portion of index nodes are involved in handling high selectivity query types, i.e., point query, range query, and nearest neighbor query.
details of implementation
Details of Implementation
  • Buffer Management
  • Node Size
  • Index Structure
  • Query Optimization issues
  • Data Transfer Model
details of implementation1
Details of Implementation
  • Buffer Management

Different strategies are applied to internal nodes and leaf nodes of index.

    • Internal nodes accounts for small fraction of total space.
    • All the internal nodes are kept in buffer once loaded.
    • Access frequently.

In Contrast,

    • Only a certain number of buffer pages are allocated for leaf nodes.
    • Relatively large space.
    • Visited on demand.
    • More buffer for leaf nodes will decrease the disk access and reduce the response time.
buffer management cont
Buffer Management (cont..)
  • Buffer strategy
    • Internal nodes are pinned in buffer once loaded for future node access.
    • Leaf nodes are allocated limited number of buffer pages averagely distributed in each data nodes that are managed by LRU policy
  • Data transferring procedure
    • Once the data request emerges, data node check its buffer first.
    • If the required data packet is hold in the buffer, it is sent to client.
    • Otherwise, disk access is invoked.
node size
Node Size
  • Many factors are involved in the determination of index node size, such as transfer overhead, I/O costs and CPU time.
        • Small Index nodes incurs more data transmission times.
        • Large index node will be used in order to reduce the data transfer costs.
        • Large node requires more data to be processed in query
    • The size of the index node should be aligned to the size of data packet, the minimum unit for data transferring in HDFC.
    • Avoid the transmitting of the unnecessary data.
index structure
Index Structure.
  • Meta-data locates in the front of file, accounting for 1kb disk space.
  • Internal nodes, as well as metadata, need to fit in the first data chunk.
  • The rest space of the first data chunk of the index file is left blank for the extension of internal nodes.
index structure cont
Index Structure (cont..)
  • Leaf nodes are grouped in several data chunks, according to the location proximity.
  • We align the next leaf node to the start position of the next data chunk.
  • In internal node, the entry information includes the sub-tree identifications and the MBR
  • In leaf node, entry information includes the MBR information and pointer to corresponding data object.
query optimization issues
Query Optimization issues
  • Ordered entries can speed up the in-memory search procedure by reducing computing needs.
  • Once the entries of each index nodes is sorted according to some spatial criterion, the order can be well preserved in a static environment.

The point and range query processing within each node costs O(n/2+w) time, where n is the number of entries in each node and w is the cardinality of the object set.

data transfer model
Data Transfer Model
  • Data node pushes data to client in the form of data packet of 64k by default to obtain the best performance for sequential reads.
  • We implement a new data transfer protocol to facilitate the random reads for block-based index structure.
      • The main difference with PUSH model is that Data node is blocked after transmitting one data packet.
      • Data node is blocked in favor of the random access where the client might not need the sequential data packets.
data transfer model cont
Data Transfer Model (Cont..)

Our Transfer Model

Original Push Model

experimental evaluations
Experimental Evaluations
  • Datasets

The following real world datasets are used for the experimentation.

      • CAR contains 2,249,727 road segments extracted from Tiger/Line datasets
      • HYD contains 40,995,718 line segments representing rivers of China and
      • TLK contains up to 157,425,887 points extracted from the elevation data of China.
data transfer overhead
Data transfer overhead
  • Transferred data is compared with the required data by varying size and count of read operations on HYD data set.
performance
Performance
  • This result is based on TLK dataset. The data packet during transfer ranges from 8k to 64.
  • This new protocol offers the best performance for all access patterns when the data packet is set to 64k.
effects of index node size
Effects of index node size
  • Response time of range query and point query on CAR dataset.
      • The worst performance of range query is when the index node size is set 16k, and the performance degenerates rapidly with the increase of query window.
      • The response time for point query is longest when index node size is set 8k because the index has more level and more node visits are involved with smaller node size.
effects of buffer
Effects of Buffer
  • Vary the buffer size to evaluate the effects of buffer on query performance, whereas other parameters are kept constant.
  • We perform 100 range queries of 1% of total space on TLK dataset.
  • The response time decreases as the available buffer increases. The further improvement of response time can be expected with the increase of buffer size.
conclusion future work
Conclusion & Future work
  • Conclusion
      • We propose a method for organizing hierarchical structures applied to both B-tree and R-tree on HDFS.
      • We investigate several systematic parameters like node size, index distribution, buffer, and query processing techniques
      • Data transfer protocol specified for block-wise random reads integrate with HDFS
  • Future work
      • Investigate the problem of combination of MapReduce and index structure.
      • Explore efficient multi-dimensional data distribution strategy according to index structure to further enhance the I/O performance
