Rock Drilling Jumbo for Mining & Tunneling by Zsim

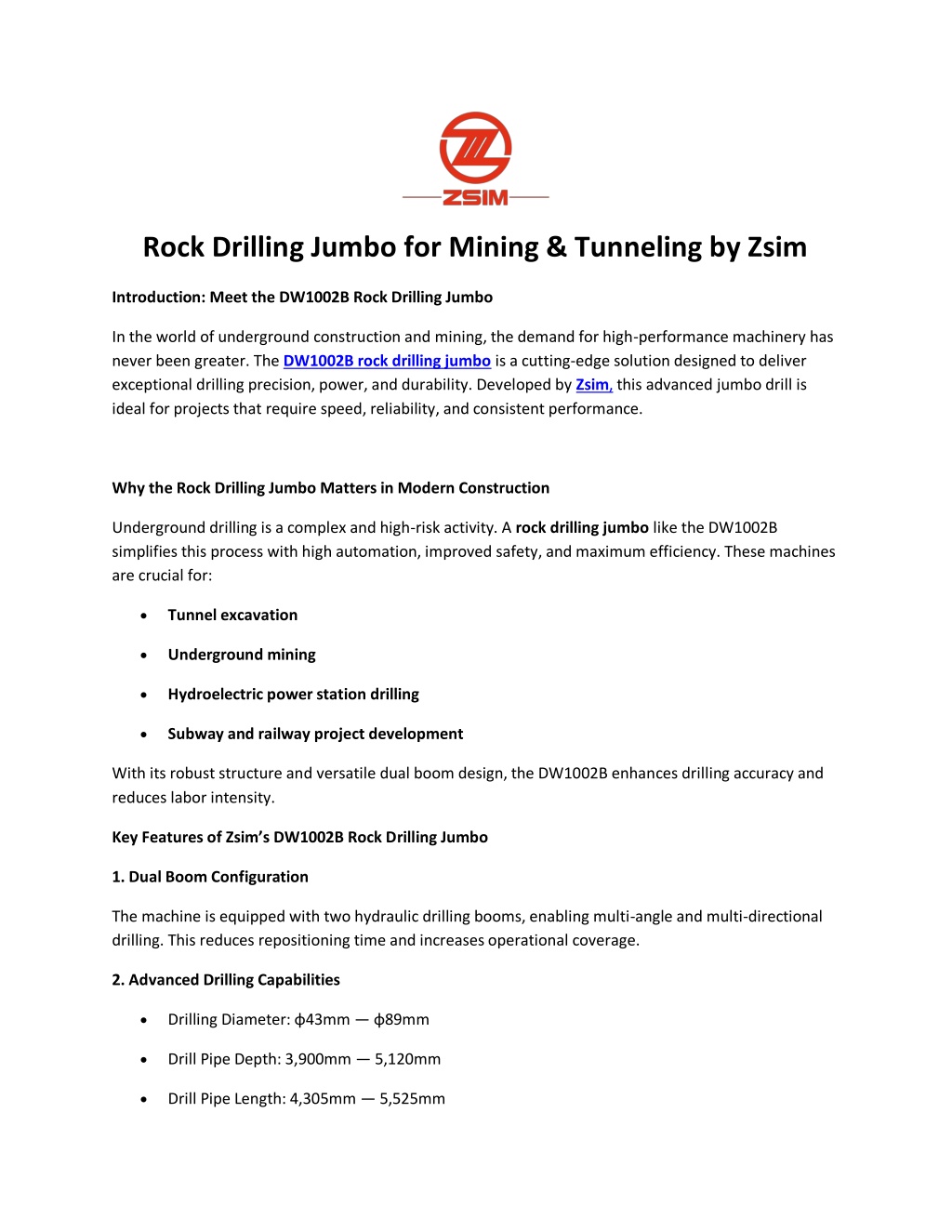

1. Rock Drilling Jumbo for Mining & Tunneling by Zsim Introduction: Meet the DW1002B Rock Drilling Jumbo In the world of underground construction and mining, the demand for high-performance machinery has never been greater. The DW1002B rock drilling jumbo is a cutting-edge solution designed to deliver exceptional drilling precision, power, and durability. Developed by Zsim, this advanced jumbo drill is ideal for projects that require speed, reliability, and consistent performance. Why the Rock Drilling Jumbo Matters in Modern Construction Underground drilling is a complex and high-risk activity. A rock drilling jumbo like the DW1002B simplifies this process with high automation, improved safety, and maximum efficiency. These machines are crucial for:  Tunnel excavation  Underground mining  Hydroelectric power station drilling  Subway and railway project development With its robust structure and versatile dual boom design, the DW1002B enhances drilling accuracy and reduces labor intensity. Key Features of Zsim’s DW1002B Rock Drilling Jumbo 1. Dual Boom Configuration The machine is equipped with two hydraulic drilling booms, enabling multi-angle and multi-directional drilling. This reduces repositioning time and increases operational coverage. 2. Advanced Drilling Capabilities  Drilling Diameter: φ43mm —φ89mm  Drill Pipe Depth: 3,900mm — 5,120mm  Drill Pipe Length: 4,305mm — 5,525mm

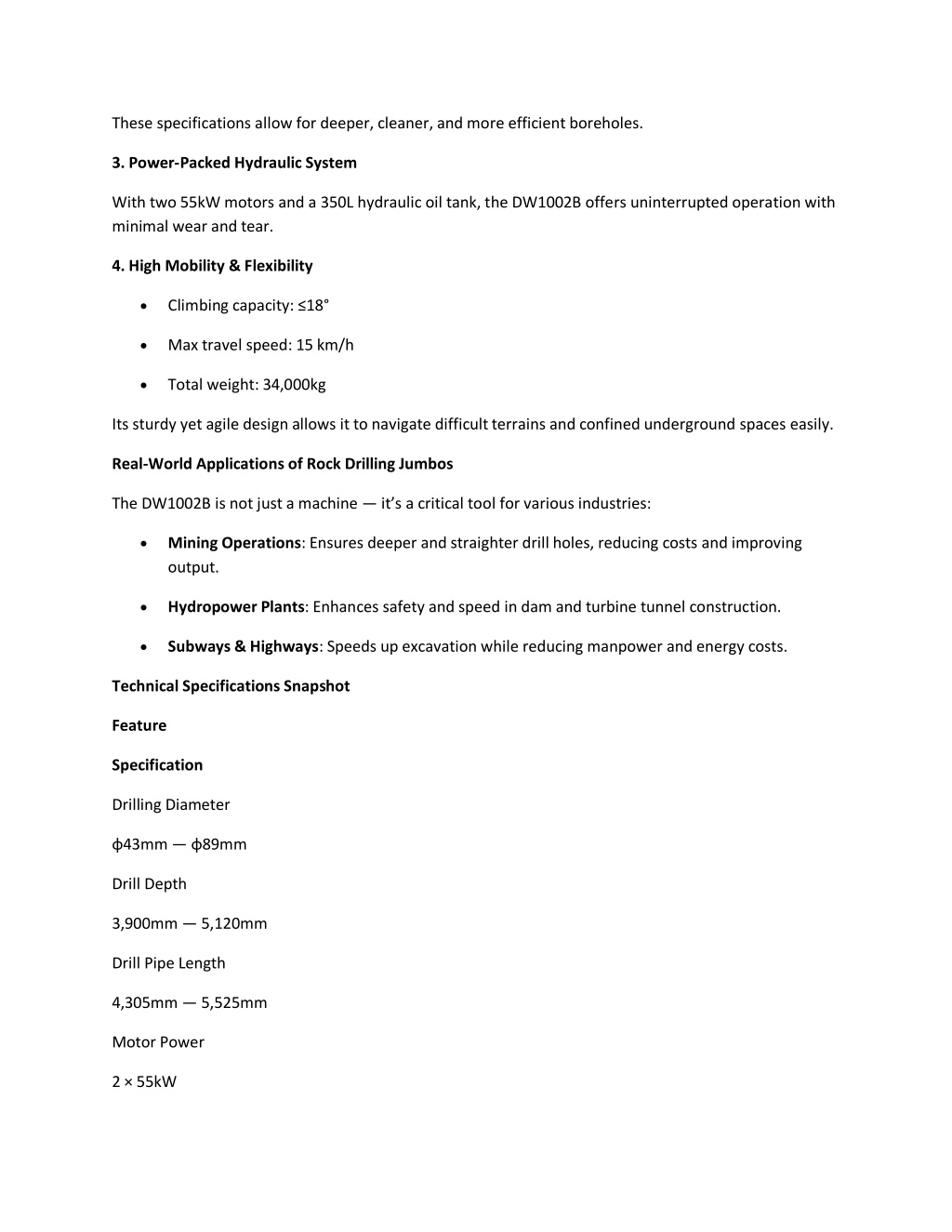

2. These specifications allow for deeper, cleaner, and more efficient boreholes. 3. Power-Packed Hydraulic System With two 55kW motors and a 350L hydraulic oil tank, the DW1002B offers uninterrupted operation with minimal wear and tear. 4. High Mobility & Flexibility  Climbing capacity: ≤18°  Max travel speed: 15 km/h  Total weight: 34,000kg Its sturdy yet agile design allows it to navigate difficult terrains and confined underground spaces easily. Real-World Applications of Rock Drilling Jumbos The DW1002B is not just a machine —it’s a critical tool for various industries:  Mining Operations: Ensures deeper and straighter drill holes, reducing costs and improving output.  Hydropower Plants: Enhances safety and speed in dam and turbine tunnel construction.  Subways & Highways: Speeds up excavation while reducing manpower and energy costs. Technical Specifications Snapshot Feature Specification Drilling Diameter φ43mm —φ89mm Drill Depth 3,900mm — 5,120mm Drill Pipe Length 4,305mm — 5,525mm Motor Power 2 × 55kW

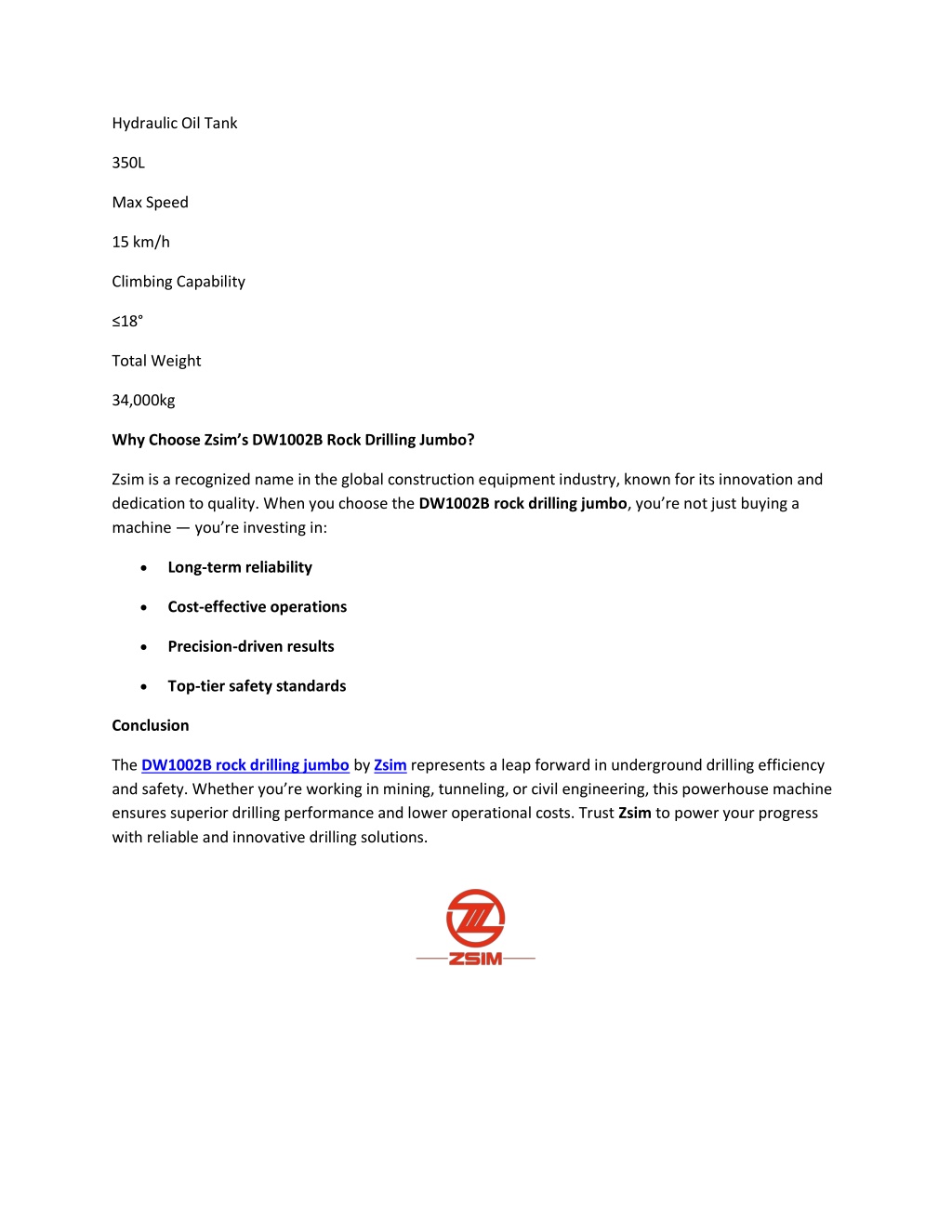

3. Hydraulic Oil Tank 350L Max Speed 15 km/h Climbing Capability ≤18° Total Weight 34,000kg Why Choose Zsim’s DW1002B Rock Drilling Jumbo? Zsim is a recognized name in the global construction equipment industry, known for its innovation and dedication to quality. When you choose the DW1002B rock drilling jumbo, you’re not just buying a machine —you’re investing in:  Long-term reliability  Cost-effective operations  Precision-driven results  Top-tier safety standards Conclusion The DW1002B rock drilling jumbo by Zsim represents a leap forward in underground drilling efficiency and safety. Whether you’re working in mining, tunneling, or civil engineering, this powerhouse machine ensures superior drilling performance and lower operational costs. Trust Zsim to power your progress with reliable and innovative drilling solutions.
