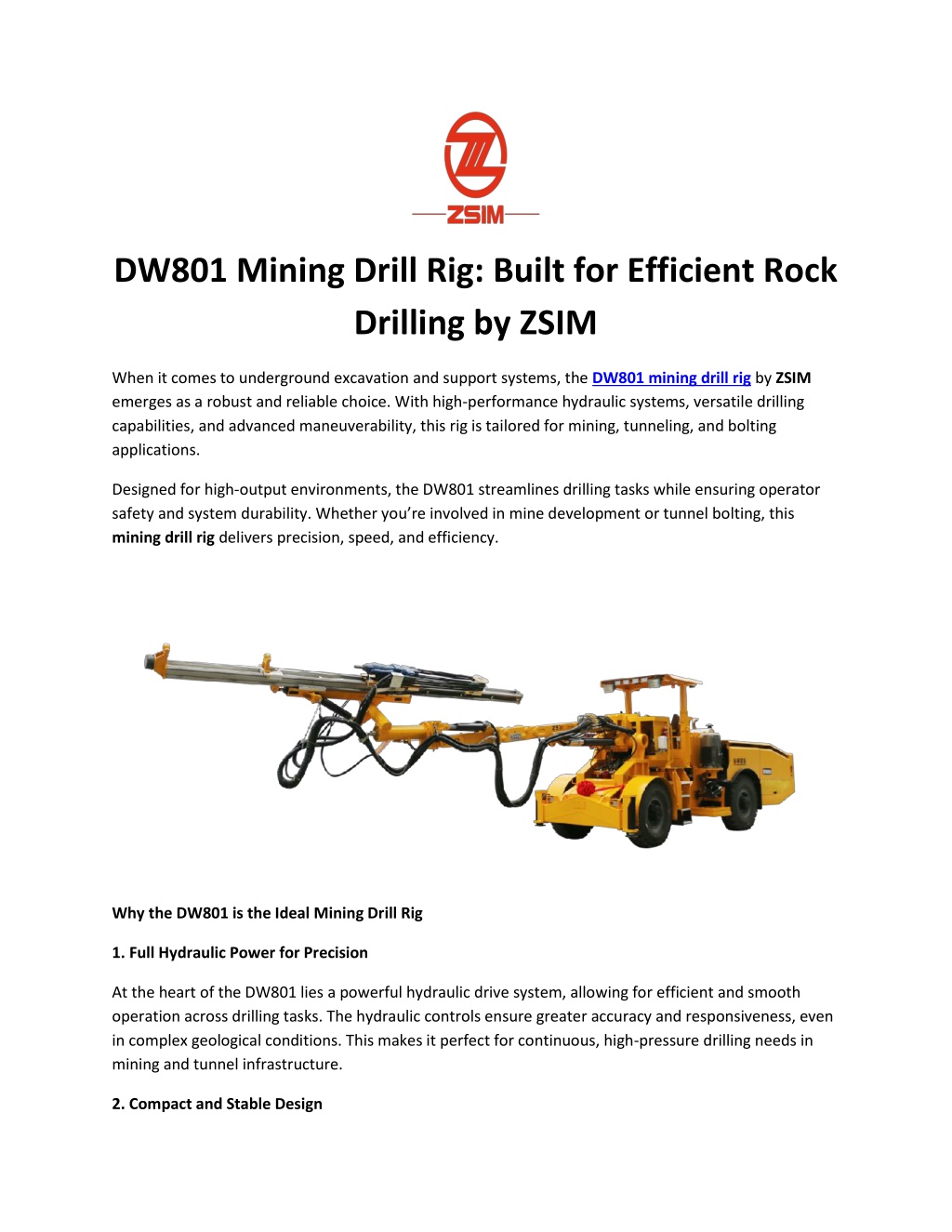

  1. DW801 Mining Drill Rig: Built for Efficient Rock Drilling by ZSIM When it comes to underground excavation and support systems, the DW801 mining drill rig by ZSIM emerges as a robust and reliable choice. With high-performance hydraulic systems, versatile drilling capabilities, and advanced maneuverability, this rig is tailored for mining, tunneling, and bolting applications. Designed for high-output environments, the DW801 streamlines drilling tasks while ensuring operator safety and system durability. Whether you’re involved in mine development or tunnel bolting, this mining drill rig delivers precision, speed, and efficiency. Why the DW801 is the Ideal Mining Drill Rig 1. Full Hydraulic Power for Precision At the heart of the DW801 lies a powerful hydraulic drive system, allowing for efficient and smooth operation across drilling tasks. The hydraulic controls ensure greater accuracy and responsiveness, even in complex geological conditions. This makes it perfect for continuous, high-pressure drilling needs in mining and tunnel infrastructure. 2. Compact and Stable Design

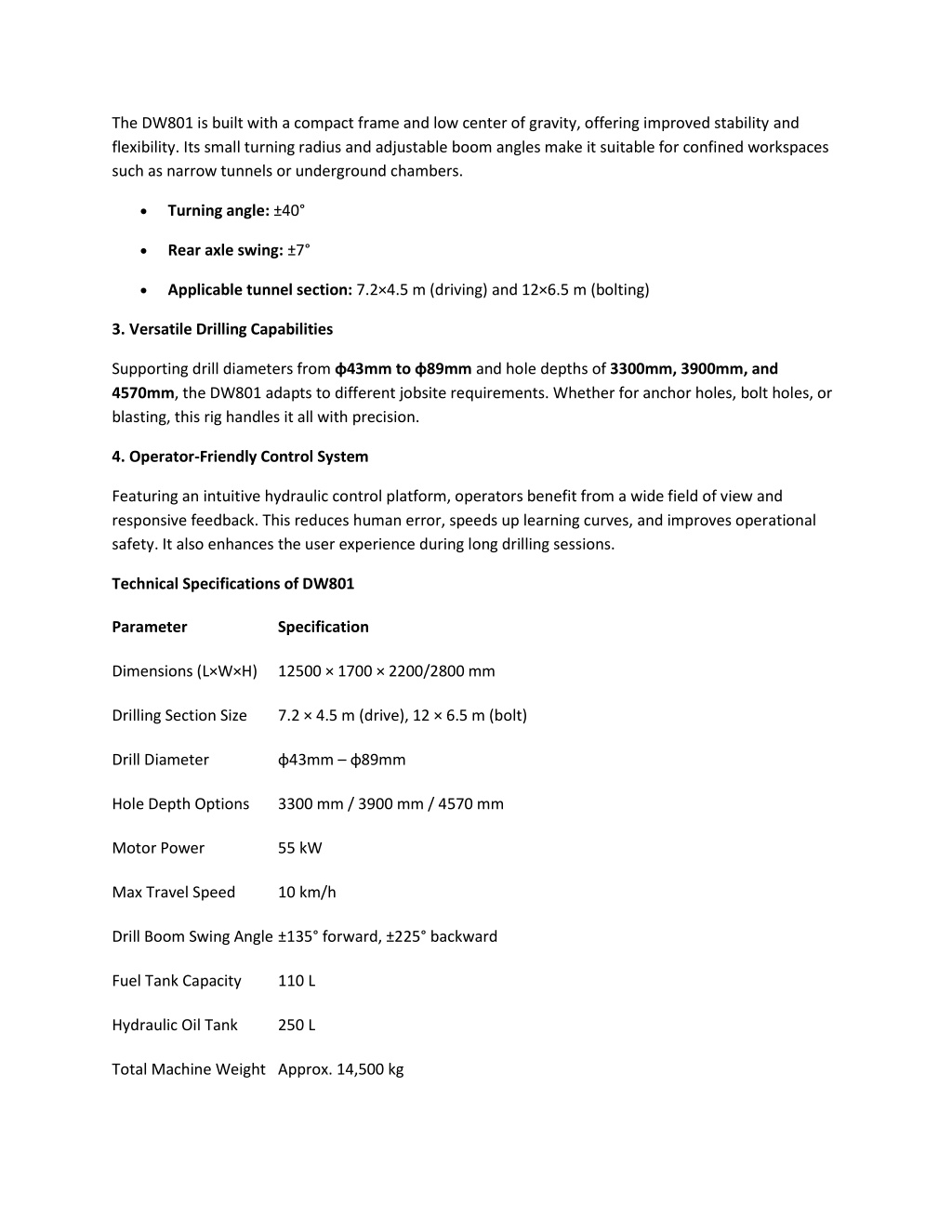

  2. The DW801 is built with a compact frame and low center of gravity, offering improved stability and flexibility. Its small turning radius and adjustable boom angles make it suitable for confined workspaces such as narrow tunnels or underground chambers.  Turning angle: ±40°  Rear axle swing: ±7°  Applicable tunnel section: 7.2×4.5 m (driving) and 12×6.5 m (bolting) 3. Versatile Drilling Capabilities Supporting drill diameters from φ43mm to φ89mm and hole depths of 3300mm, 3900mm, and 4570mm, the DW801 adapts to different jobsite requirements. Whether for anchor holes, bolt holes, or blasting, this rig handles it all with precision. 4. Operator-Friendly Control System Featuring an intuitive hydraulic control platform, operators benefit from a wide field of view and responsive feedback. This reduces human error, speeds up learning curves, and improves operational safety. It also enhances the user experience during long drilling sessions. Technical Specifications of DW801 Parameter Specification Dimensions (L×W×H) 12500 × 1700 × 2200/2800 mm Drilling Section Size 7.2 × 4.5 m (drive), 12 × 6.5 m (bolt) Drill Diameter φ43mm –φ89mm Hole Depth Options 3300 mm / 3900 mm / 4570 mm Motor Power 55 kW Max Travel Speed 10 km/h Drill Boom Swing Angle ±135° forward, ±225° backward Fuel Tank Capacity 110 L Hydraulic Oil Tank 250 L Total Machine Weight Approx. 14,500 kg

  3. Primary Applications of the DW801 Mining Drill Rig The DW801 mining drill rig is engineered for high-demand applications such as:  Mining Operations: For accurate drilling in hard rock environments.  Tunnel Development: Excellent for roadway construction in metro, hydro, and rail projects.  Rock Bolting & Anchoring: Ideal for ground reinforcement in underground structures. It is a reliable option for companies looking for long-term performance with minimal maintenance downtime. Explore More with ZSIM ZSIM not only offers the DW801 but also a wide range of bolting jumbos and drill rigs for various mining and tunneling applications. Their products are trusted globally and backed by technical support, training, and responsive service. For more equipment options, visit the ZSIM homepage. Related External Resources  Mining Technology – Equipment Updates  Tunnel Business Magazine – Industry News  International Society for Rock Mechanics These sources provide insights into modern mining equipment trends and drilling innovations. Conclusion The DW801 mining drill rig is a high-performance solution for mining and tunneling professionals who demand durability, flexibility, and precision. Its powerful hydraulic system, compact form, and adaptable drilling specs make it one of the most efficient rigs in its class. Backed by the engineering excellence of ZSIM, the DW801 meets the evolving needs of the construction and mining industries. Whether you're developing tunnels, installing rock bolts, or expanding your mine, this mining drill rig is the perfect addition to your fleet.
