DW801 Rock Drilling Rig for Tunnel & Mining Projects

Explore the DW801 rock drilling rig by ZSIM, ideal for tunnel and mining operations. Delivers precision, mobility, and hydraulic performance you can trust. For more information, feel free to call us at 86-189-8042-6393.<br>

Zsim
Download Presentation

DW801 Rock Drilling Rig for Tunnel & Mining Projects

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

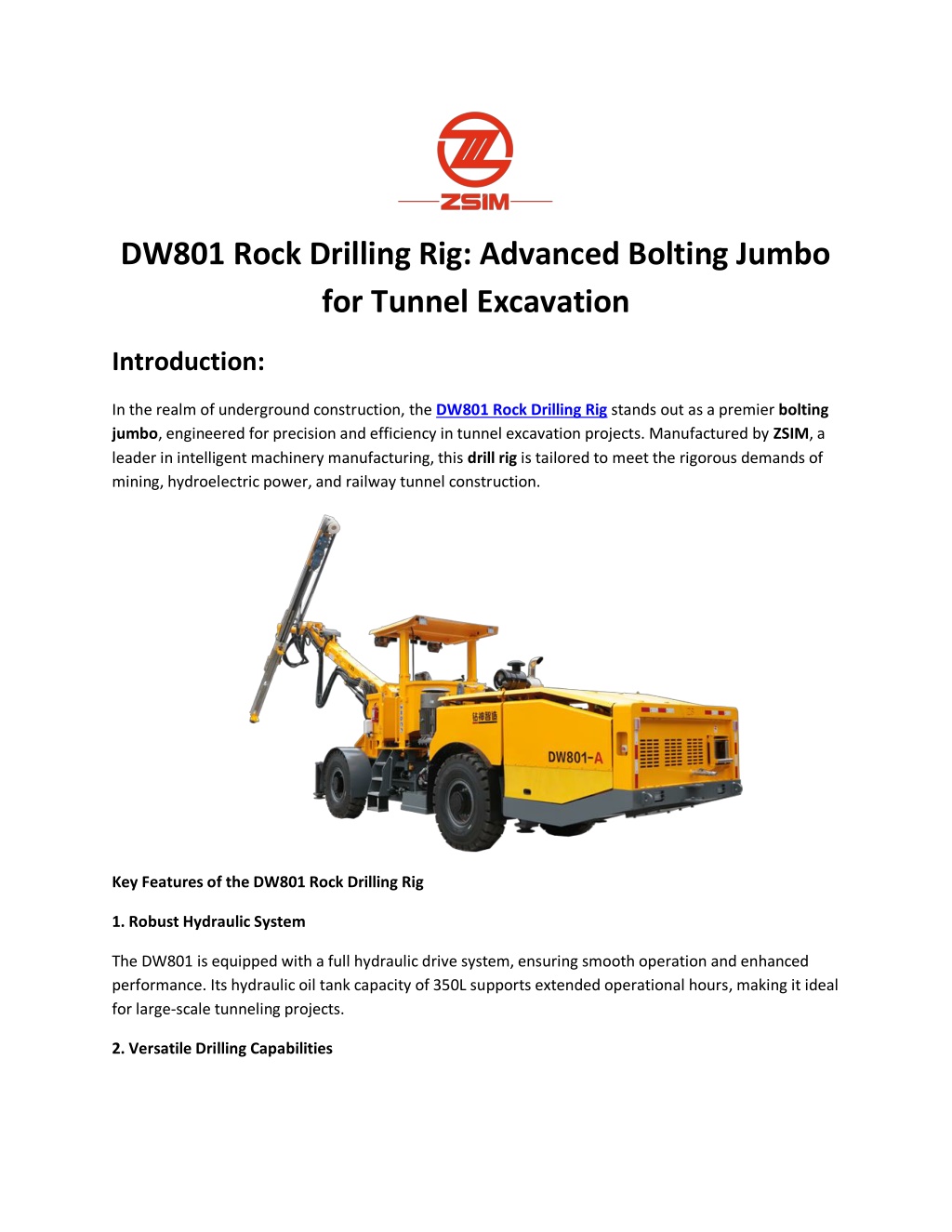

  1. DW801 Rock Drilling Rig: Advanced Bolting Jumbo for Tunnel Excavation Introduction: In the realm of underground construction, the DW801 Rock Drilling Rig stands out as a premier bolting jumbo, engineered for precision and efficiency in tunnel excavation projects. Manufactured by ZSIM, a leader in intelligent machinery manufacturing, this drill rig is tailored to meet the rigorous demands of mining, hydroelectric power, and railway tunnel construction. Key Features of the DW801 Rock Drilling Rig 1. Robust Hydraulic System The DW801 is equipped with a full hydraulic drive system, ensuring smooth operation and enhanced performance. Its hydraulic oil tank capacity of 350L supports extended operational hours, making it ideal for large-scale tunneling projects. 2. Versatile Drilling Capabilities

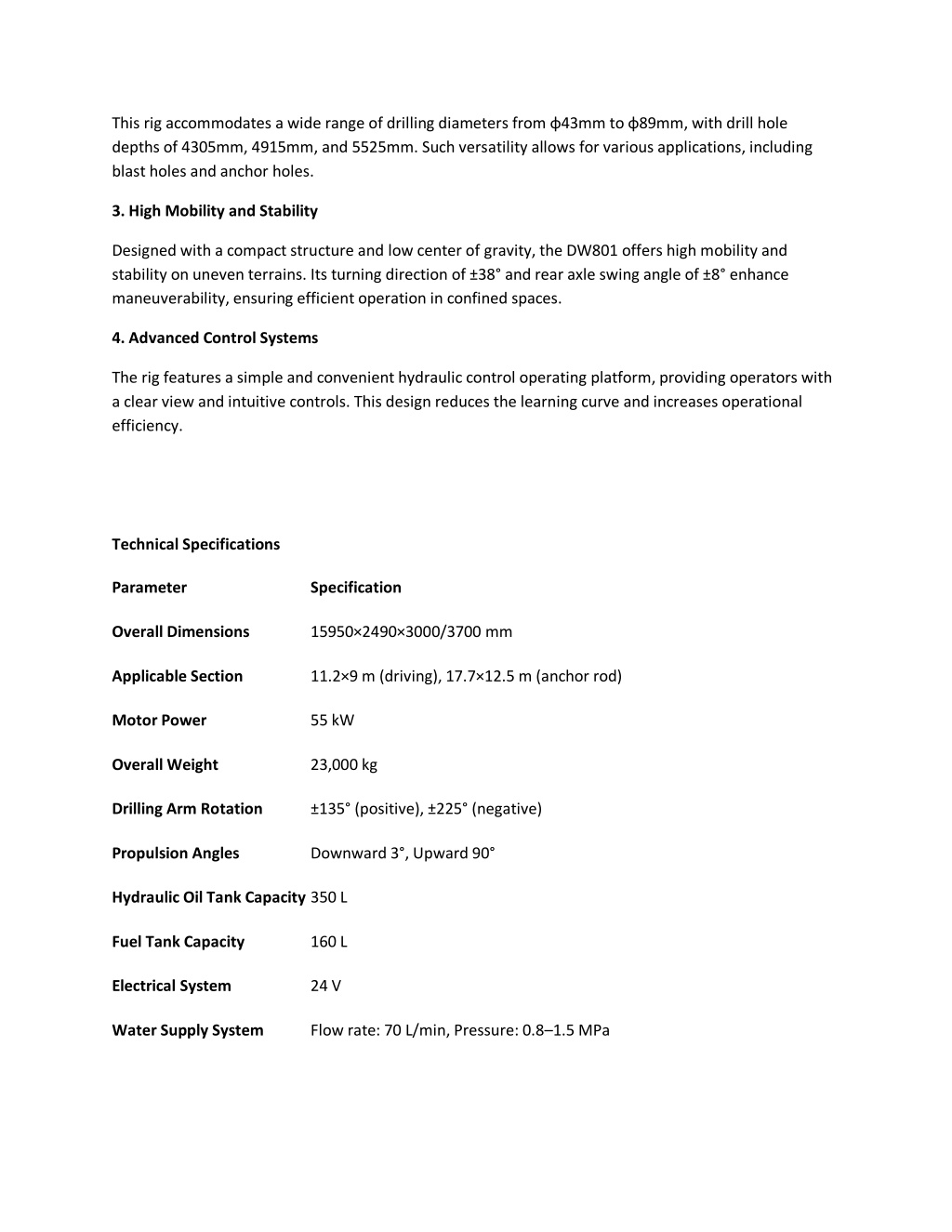

  2. This rig accommodates a wide range of drilling diameters from φ43mm to φ89mm, with drill hole depths of 4305mm, 4915mm, and 5525mm. Such versatility allows for various applications, including blast holes and anchor holes. 3. High Mobility and Stability Designed with a compact structure and low center of gravity, the DW801 offers high mobility and stability on uneven terrains. Its turning direction of ±38° and rear axle swing angle of ±8° enhance maneuverability, ensuring efficient operation in confined spaces. 4. Advanced Control Systems The rig features a simple and convenient hydraulic control operating platform, providing operators with a clear view and intuitive controls. This design reduces the learning curve and increases operational efficiency. Technical Specifications Parameter Specification Overall Dimensions 15950×2490×3000/3700 mm Applicable Section 11.2×9 m (driving), 17.7×12.5 m (anchor rod) Motor Power 55 kW Overall Weight 23,000 kg Drilling Arm Rotation ±135° (positive), ±225° (negative) Propulsion Angles Downward 3°, Upward 90° Hydraulic Oil Tank Capacity 350 L Fuel Tank Capacity 160 L Electrical System 24 V Water Supply System Flow rate: 70 L/min, Pressure: 0.8–1.5 MPa

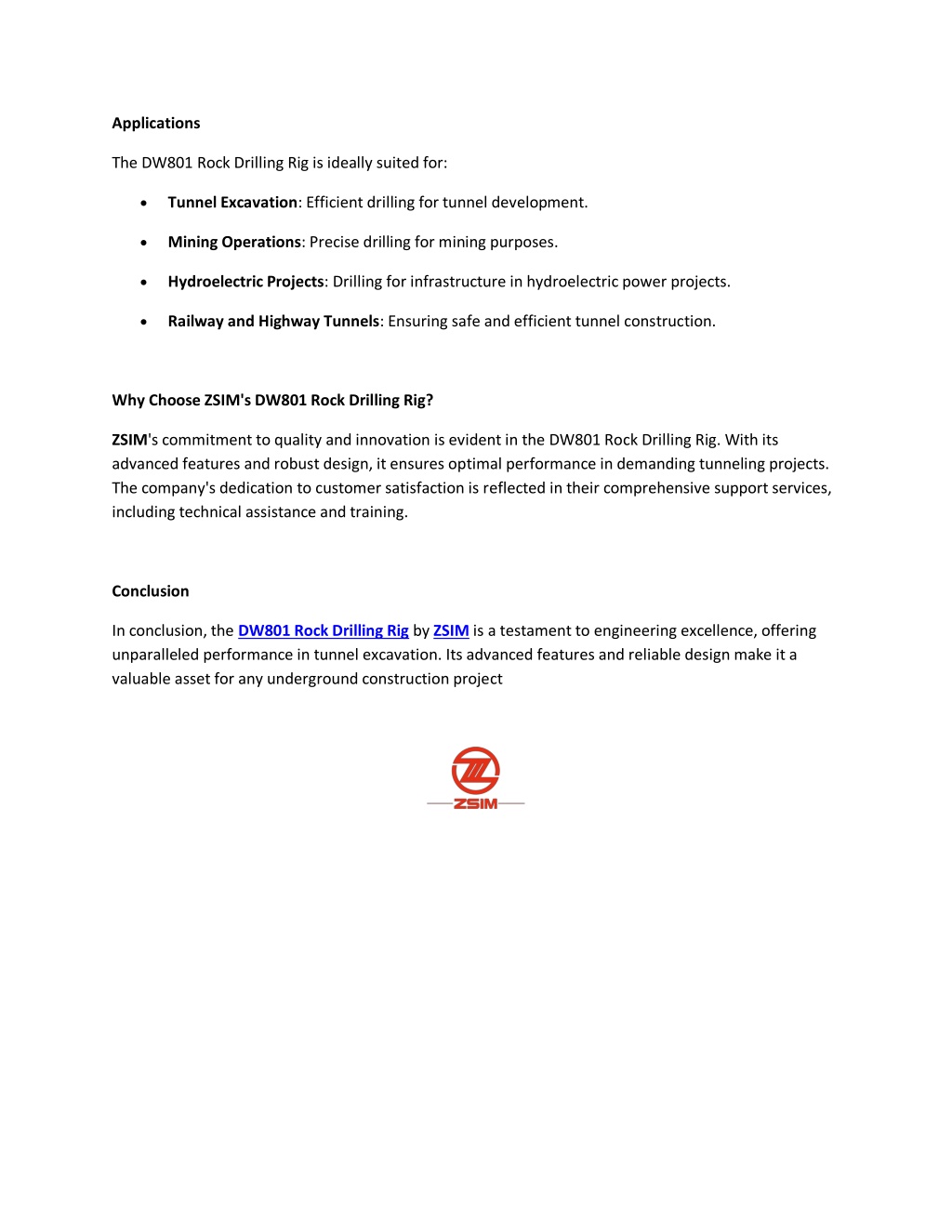

  3. Applications The DW801 Rock Drilling Rig is ideally suited for:  Tunnel Excavation: Efficient drilling for tunnel development.  Mining Operations: Precise drilling for mining purposes.  Hydroelectric Projects: Drilling for infrastructure in hydroelectric power projects.  Railway and Highway Tunnels: Ensuring safe and efficient tunnel construction. Why Choose ZSIM's DW801 Rock Drilling Rig? ZSIM's commitment to quality and innovation is evident in the DW801 Rock Drilling Rig. With its advanced features and robust design, it ensures optimal performance in demanding tunneling projects. The company's dedication to customer satisfaction is reflected in their comprehensive support services, including technical assistance and training. Conclusion In conclusion, the DW801 Rock Drilling Rig by ZSIM is a testament to engineering excellence, offering unparalleled performance in tunnel excavation. Its advanced features and reliable design make it a valuable asset for any underground construction project
