DW1002B Mining Jumbo: Advanced Drilling for Tunneling Projects

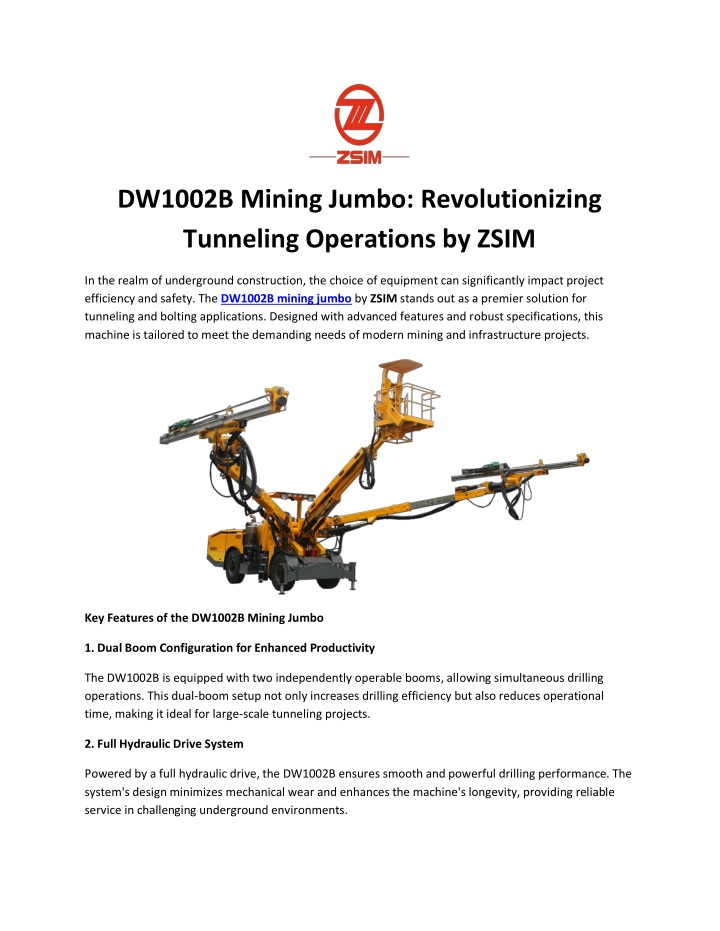

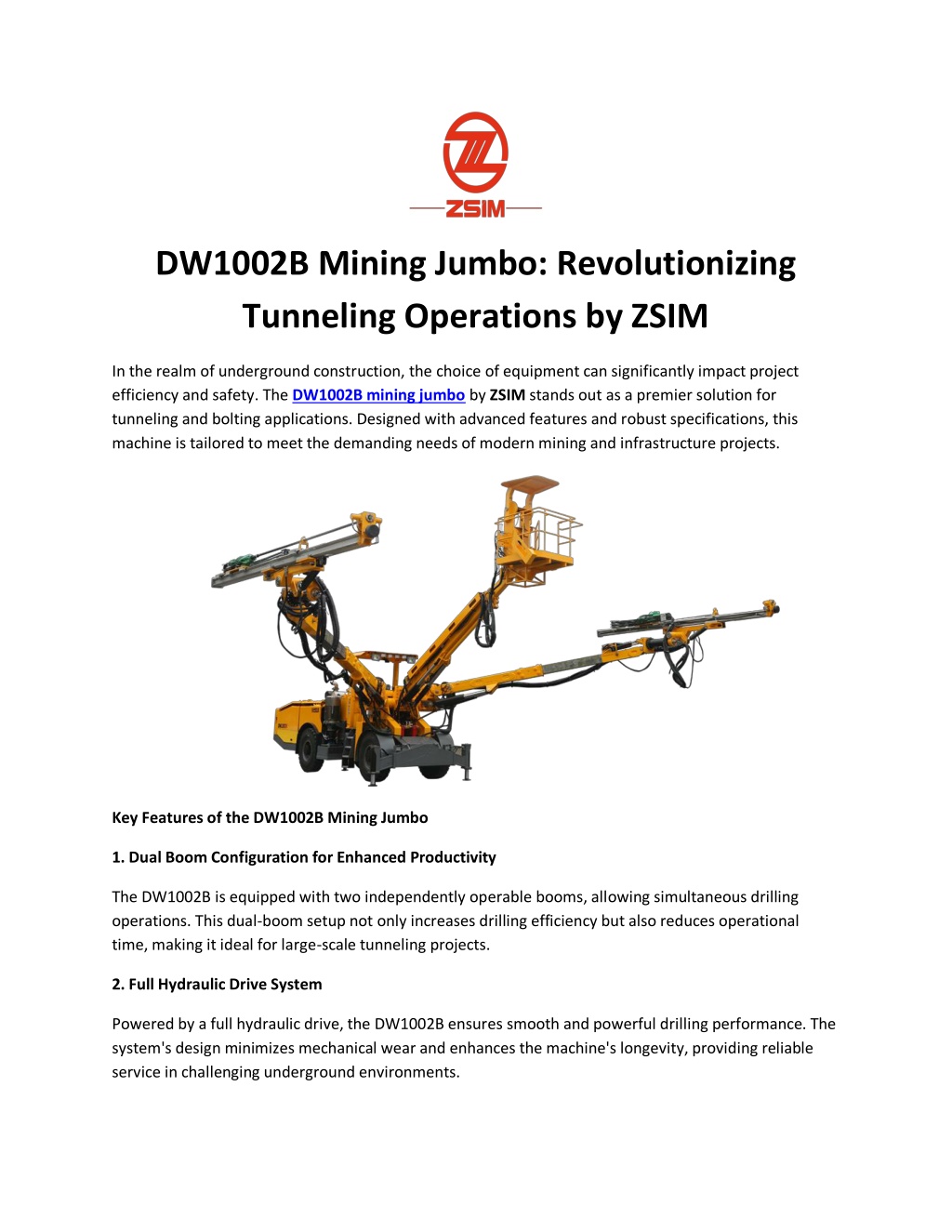

1. DW1002B Mining Jumbo: Revolutionizing Tunneling Operations by ZSIM In the realm of underground construction, the choice of equipment can significantly impact project efficiency and safety. The DW1002B mining jumbo by ZSIM stands out as a premier solution for tunneling and bolting applications. Designed with advanced features and robust specifications, this machine is tailored to meet the demanding needs of modern mining and infrastructure projects. Key Features of the DW1002B Mining Jumbo 1. Dual Boom Configuration for Enhanced Productivity The DW1002B is equipped with two independently operable booms, allowing simultaneous drilling operations. This dual-boom setup not only increases drilling efficiency but also reduces operational time, making it ideal for large-scale tunneling projects. 2. Full Hydraulic Drive System Powered by a full hydraulic drive, the DW1002B ensures smooth and powerful drilling performance. The system's design minimizes mechanical wear and enhances the machine's longevity, providing reliable service in challenging underground environments.

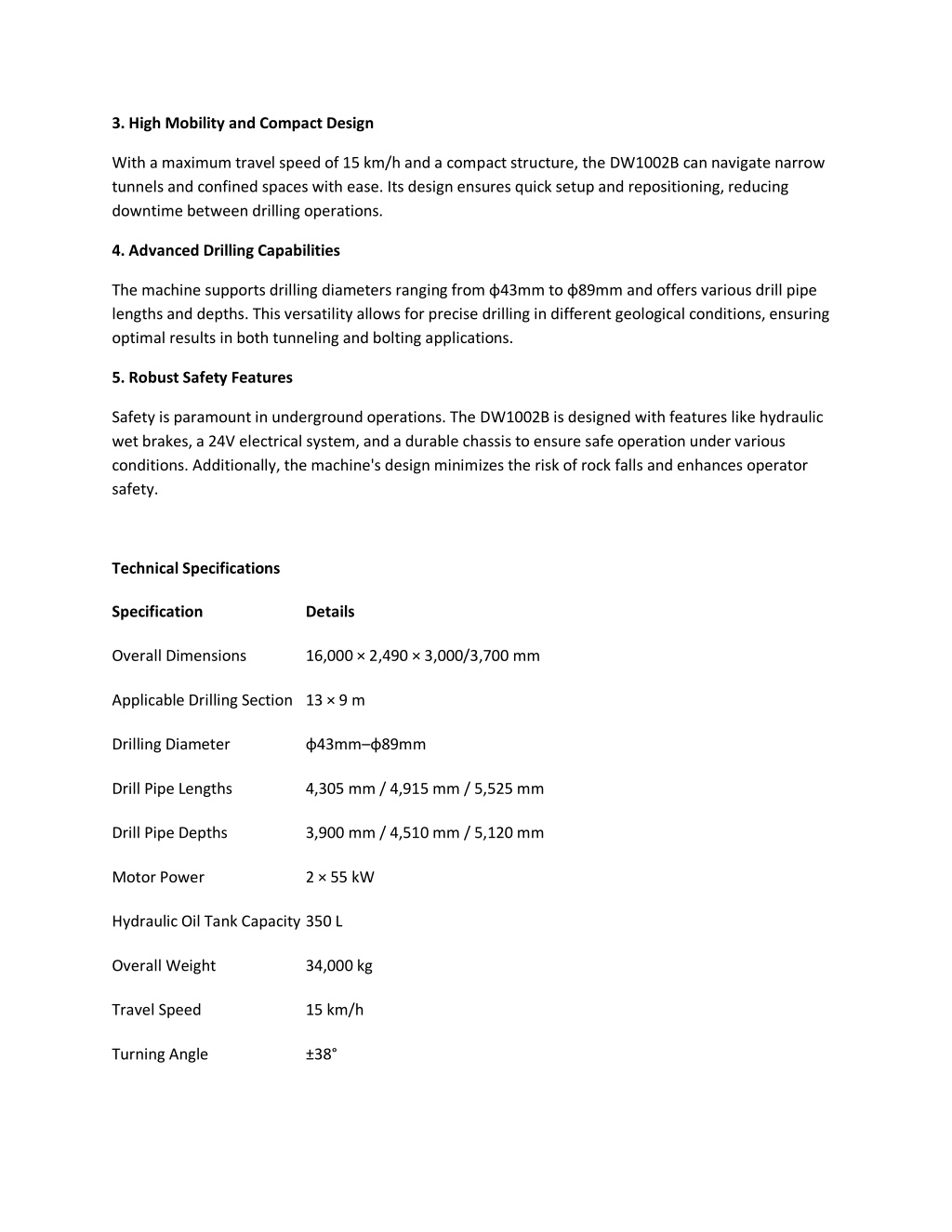

2. 3. High Mobility and Compact Design With a maximum travel speed of 15 km/h and a compact structure, the DW1002B can navigate narrow tunnels and confined spaces with ease. Its design ensures quick setup and repositioning, reducing downtime between drilling operations. 4. Advanced Drilling Capabilities The machine supports drilling diameters ranging from φ43mm to φ89mm and offers various drill pipe lengths and depths. This versatility allows for precise drilling in different geological conditions, ensuring optimal results in both tunneling and bolting applications. 5. Robust Safety Features Safety is paramount in underground operations. The DW1002B is designed with features like hydraulic wet brakes, a 24V electrical system, and a durable chassis to ensure safe operation under various conditions. Additionally, the machine's design minimizes the risk of rock falls and enhances operator safety. Technical Specifications Specification Details Overall Dimensions 16,000 × 2,490 × 3,000/3,700 mm Applicable Drilling Section 13 × 9 m Drilling Diameter φ43mm–φ89mm Drill Pipe Lengths 4,305 mm / 4,915 mm / 5,525 mm Drill Pipe Depths 3,900 mm / 4,510 mm / 5,120 mm Motor Power 2 × 55 kW Hydraulic Oil Tank Capacity 350 L Overall Weight 34,000 kg Travel Speed 15 km/h Turning Angle ±38°

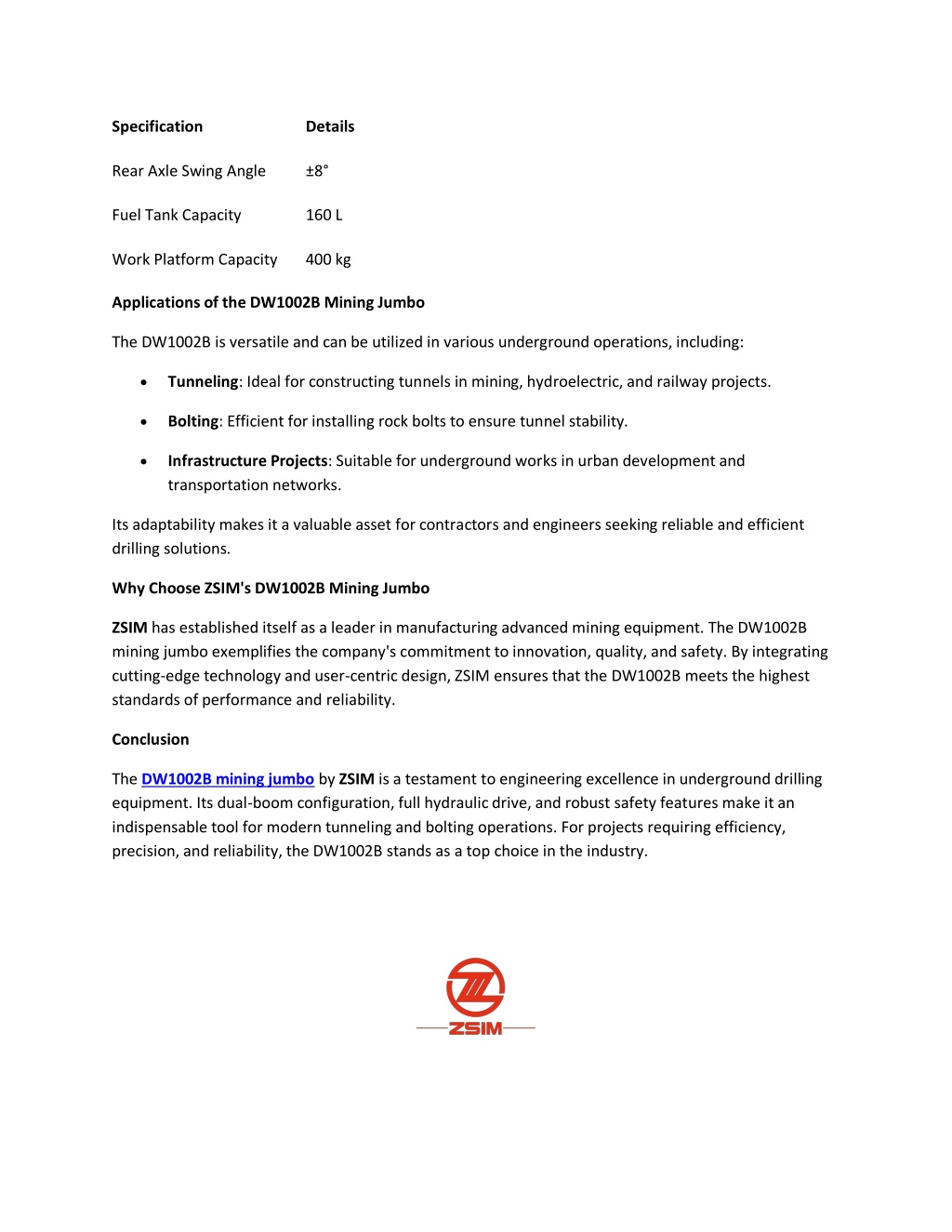

3. Specification Details Rear Axle Swing Angle ±8° Fuel Tank Capacity 160 L Work Platform Capacity 400 kg Applications of the DW1002B Mining Jumbo The DW1002B is versatile and can be utilized in various underground operations, including:  Tunneling: Ideal for constructing tunnels in mining, hydroelectric, and railway projects.  Bolting: Efficient for installing rock bolts to ensure tunnel stability.  Infrastructure Projects: Suitable for underground works in urban development and transportation networks. Its adaptability makes it a valuable asset for contractors and engineers seeking reliable and efficient drilling solutions. Why Choose ZSIM's DW1002B Mining Jumbo ZSIM has established itself as a leader in manufacturing advanced mining equipment. The DW1002B mining jumbo exemplifies the company's commitment to innovation, quality, and safety. By integrating cutting-edge technology and user-centric design, ZSIM ensures that the DW1002B meets the highest standards of performance and reliability. Conclusion The DW1002B mining jumbo by ZSIM is a testament to engineering excellence in underground drilling equipment. Its dual-boom configuration, full hydraulic drive, and robust safety features make it an indispensable tool for modern tunneling and bolting operations. For projects requiring efficiency, precision, and reliability, the DW1002B stands as a top choice in the industry.
