Microcentrifuge

DESCRIPTION

A microcentrifuge is a laboratory instrument used for the rapid spinning of small volumes of liquid, typically in the range <br>of 0.2 to 2 milliliters. It is a type of centrifuge designed for micro-scale applications and is widely used in molecular <br>biology, biochemistry, and other life science research settings.

Download Presentation

Microcentrifuge

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

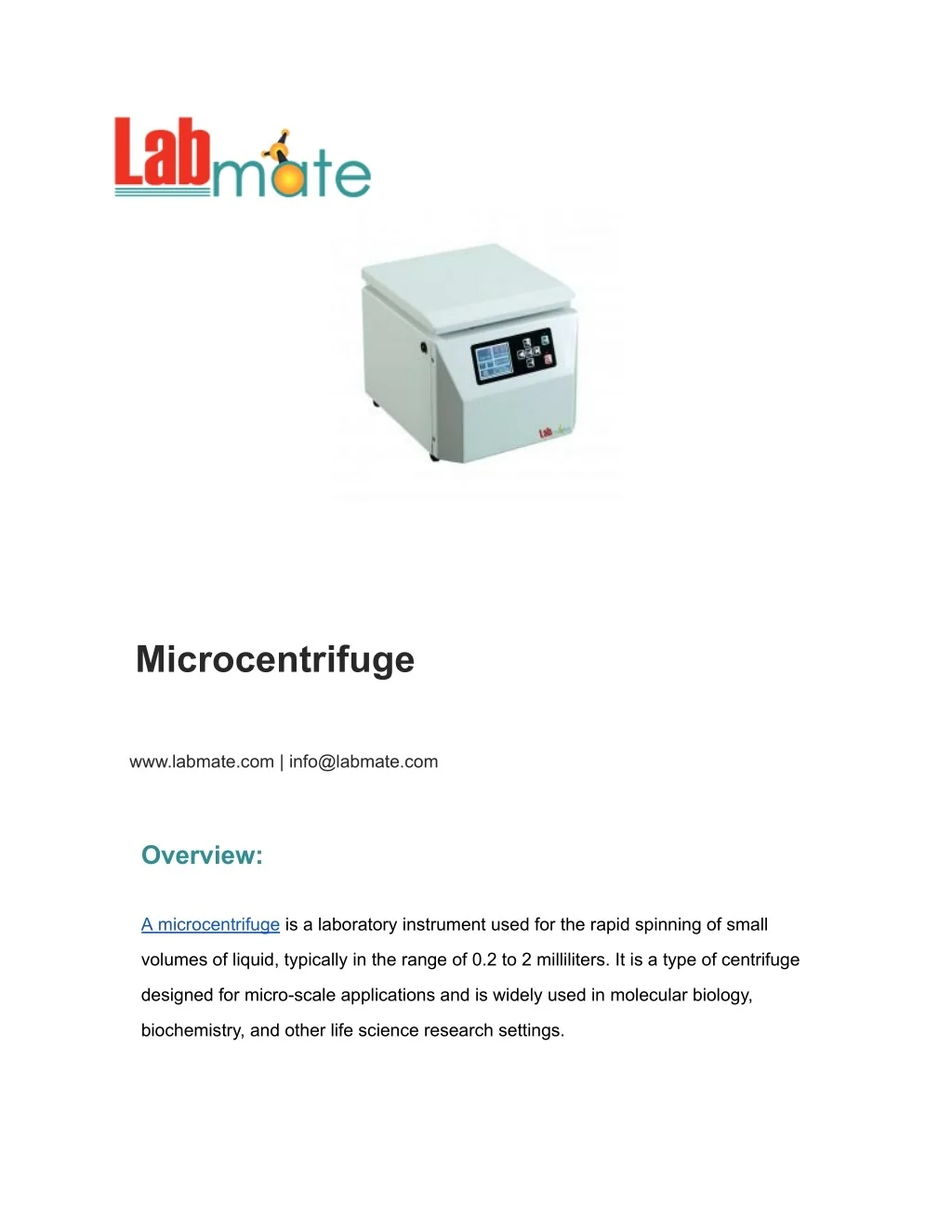

  1. Microcentrifuge www.labmate.com | info@labmate.com Overview: A microcentrifuge is a laboratory instrument used for the rapid spinning of small volumes of liquid, typically in the range of 0.2 to 2 milliliters. It is a type of centrifuge designed for micro-scale applications and is widely used in molecular biology, biochemistry, and other life science research settings.

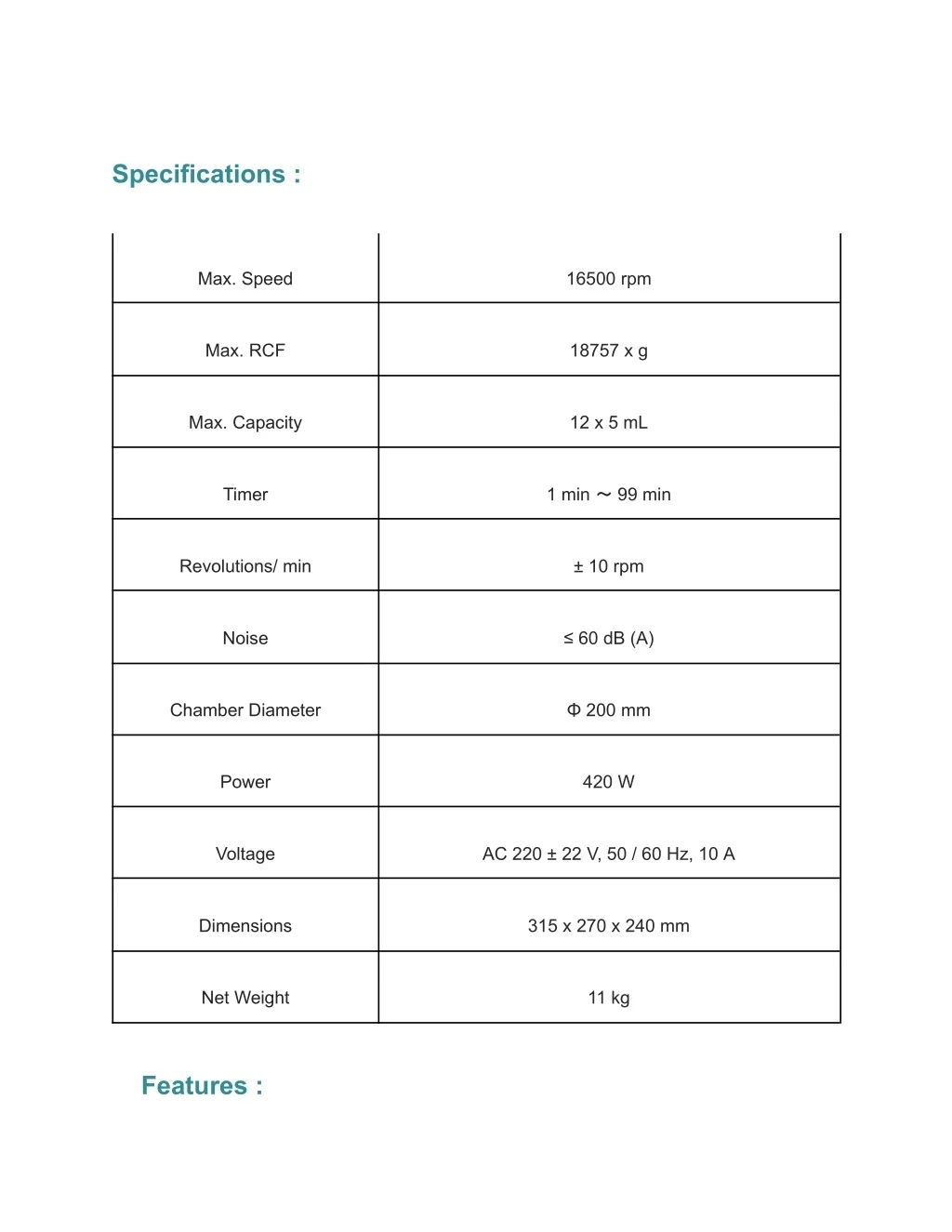

  2. Specifications : Max. Speed 16500 rpm Max. RCF 18757 x g Max. Capacity 12 x 5 mL Timer 1 min ～ 99 min Revolutions/ min ± 10 rpm Noise ≤ 60 dB (A) Chamber Diameter Φ 200 mm Power 420 W Voltage AC 220 ± 22 V, 50 / 60 Hz, 10 A Dimensions 315 x 270 x 240 mm Net Weight 11 kg Features :

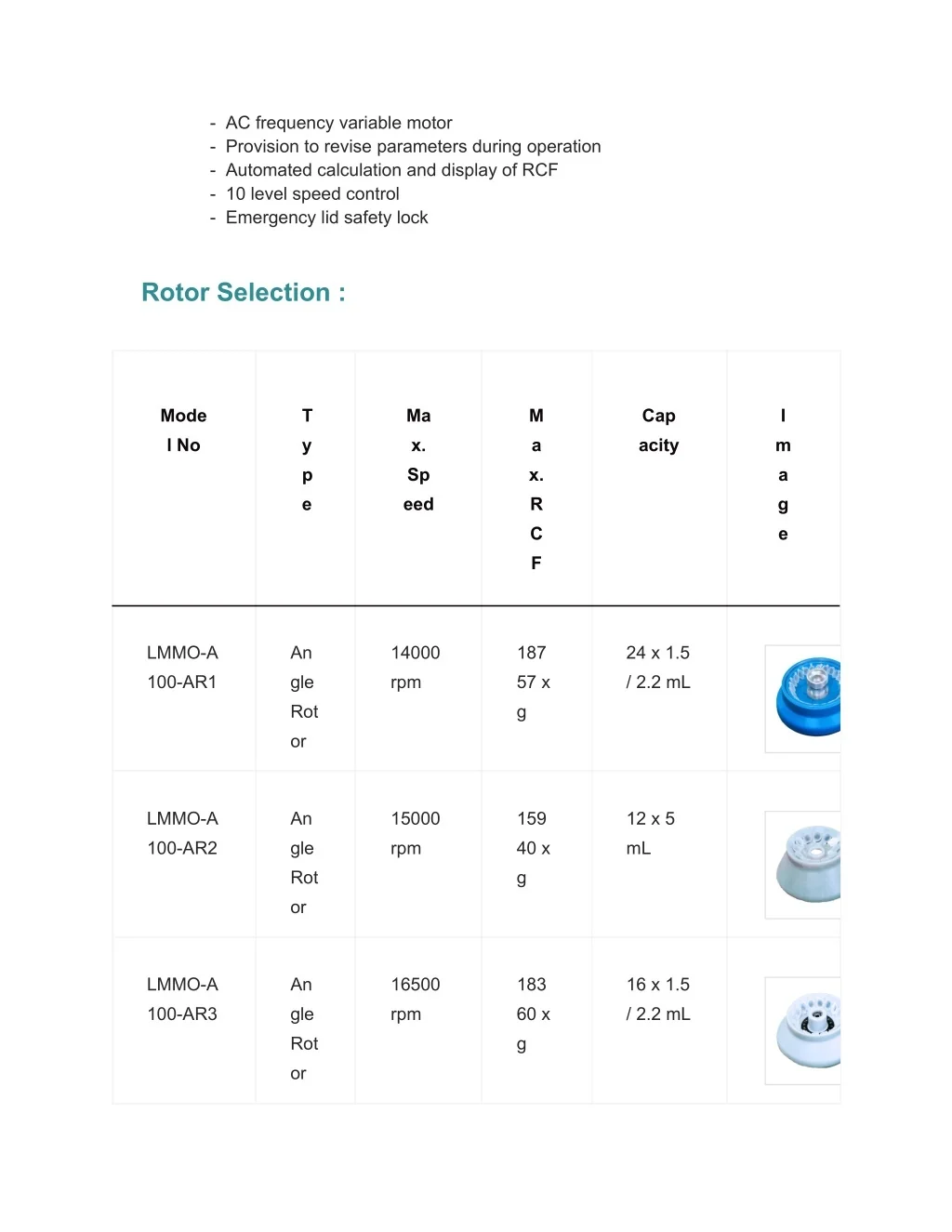

  3. - AC frequency variable motor - Provision to revise parameters during operation - Automated calculation and display of RCF - 10 level speed control - Emergency lid safety lock Rotor Selection : Mode T Ma M Cap I l No y x. a acity m p Sp x. a e eed R g C e F LMMO-A An 14000 187 24 x 1.5 100-AR1 gle rpm 57 x / 2.2 mL Rot g or LMMO-A An 15000 159 12 x 5 100-AR2 gle rpm 40 x mL Rot g or LMMO-A An 16500 183 16 x 1.5 100-AR3 gle rpm 60 x / 2.2 mL Rot g or

  4. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
