Automatic-Surface-Area-Analyzer-LMSAA-102

DESCRIPTION

Automatic Surface Area Analyzer is a sophisticated instrument designed for the precise measurement of surface area. Four samples can be tested <br>simultaneously with independent degassing treatment. Safety protective door prevent accidents and environmental impact. Analyzer offers a <br>comprehensive solution for measuring surface area and porosity, ensuring accuracy, repeatability, and ease of operation.

Download Presentation

Automatic-Surface-Area-Analyzer-LMSAA-102

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

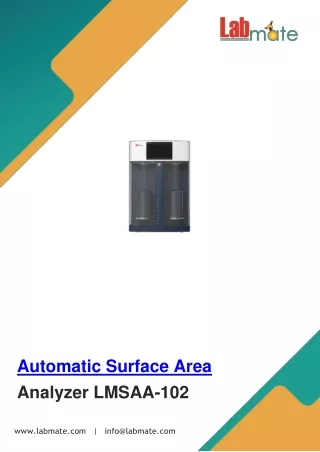

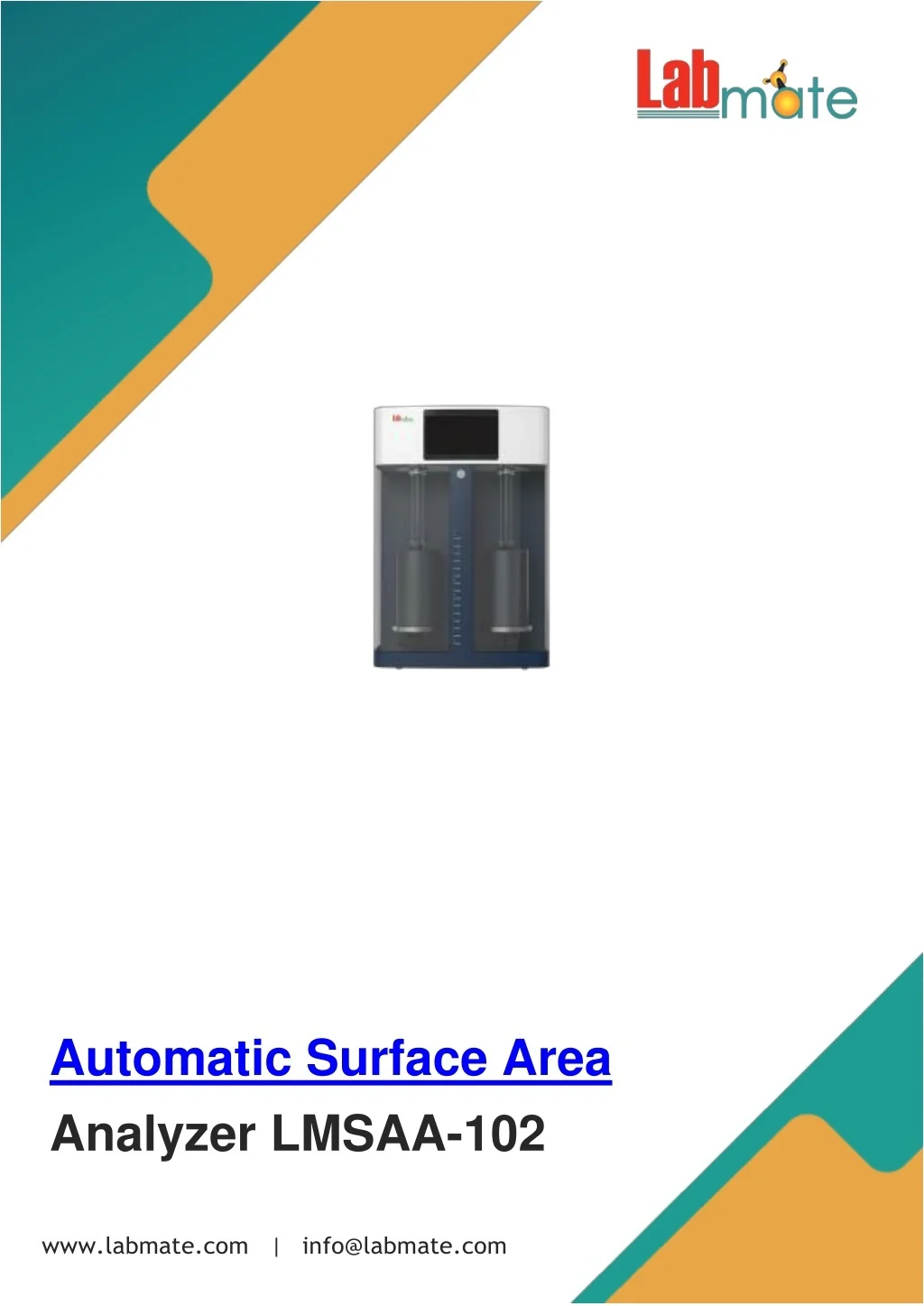

  1. Automatic Surface Area Analyzer LMSAA-102 www.labmate.com | info@labmate.com

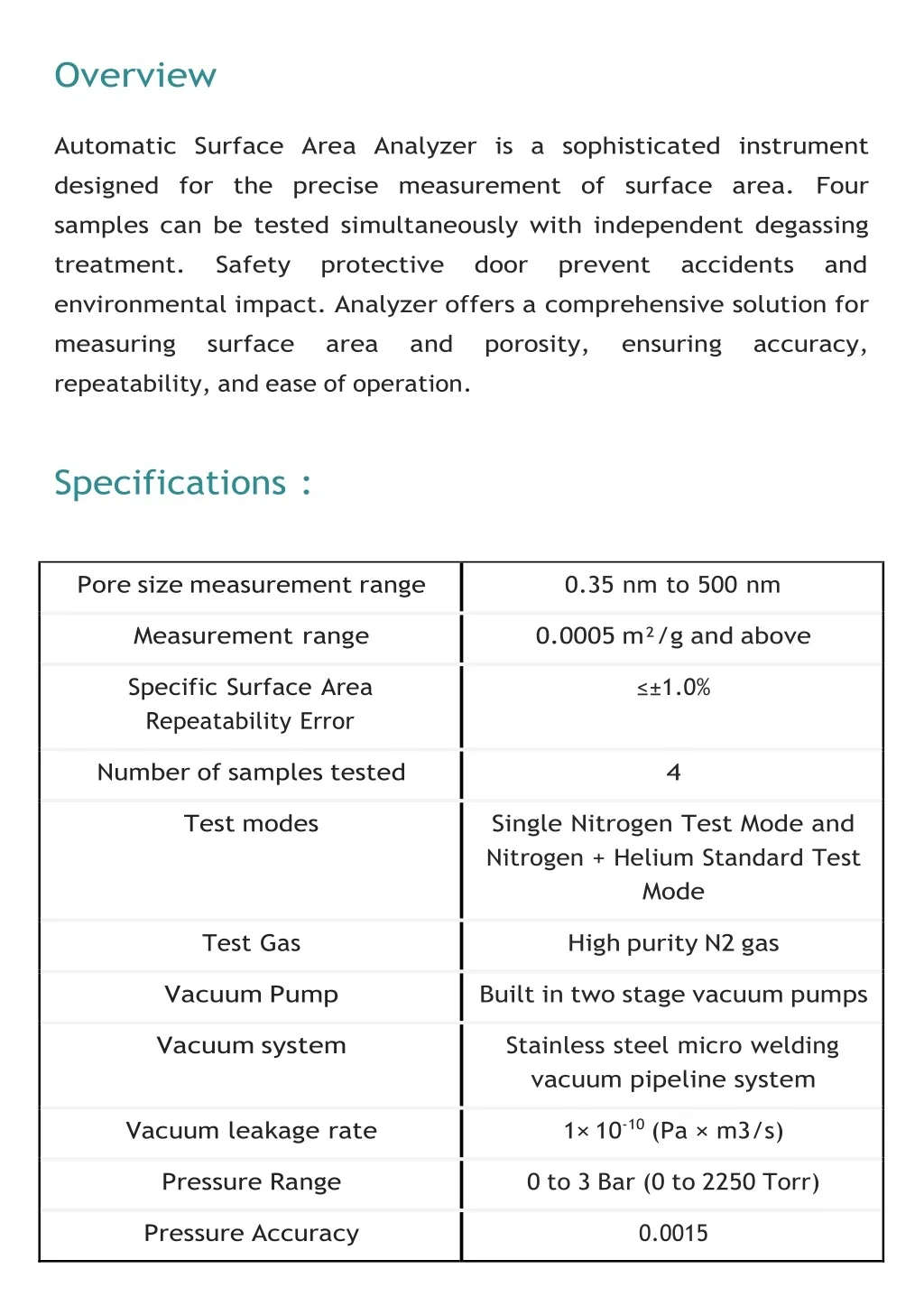

  2. Overview Automatic Surface Area Analyzer is a sophisticated instrument designed for the precise measurement of surface area. Four samples can be tested simultaneously with independent degassing treatment. Safety protective door prevent accidents and environmental impact. Analyzer offers a comprehensive solution for measuring surface area and porosity, ensuring accuracy, repeatability, and ease of operation. Specifications : Pore size measurement range 0.35 nm to 500 nm Measurement range 0.0005 m²/g and above Specific Surface Area Repeatability Error ≤±1.0% Number of samples tested 4 Test modes Single Nitrogen Test Mode and Nitrogen + Helium Standard Test Mode Test Gas High purity N2 gas Vacuum Pump Built in two stage vacuum pumps Vacuum system Stainless steel micro welding vacuum pipeline system 1× 10-10 (Pa × m3/s) Vacuum leakage rate Pressure Range 0 to 3 Bar (0 to 2250 Torr) Pressure Accuracy 0.0015

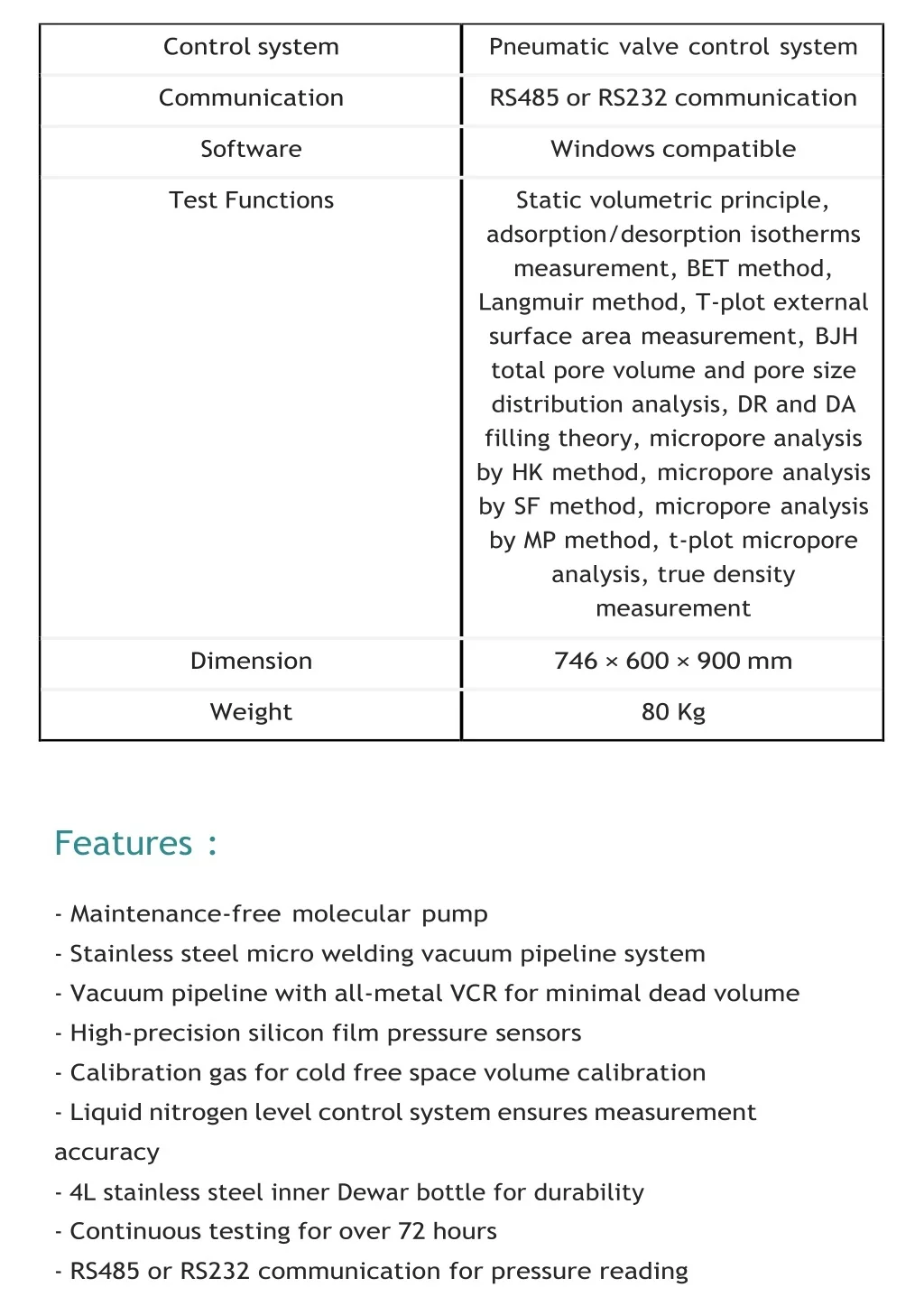

  3. Control system Pneumatic valve control system Communication RS485 or RS232 communication Software Windows compatible Test Functions Static volumetric principle, adsorption/desorption isotherms measurement, BET method, Langmuir method, T-plot external surface area measurement, BJH total pore volume and pore size distribution analysis, DR and DA filling theory, micropore analysis by HK method, micropore analysis by SF method, micropore analysis by MP method, t-plot micropore analysis, true density measurement Dimension 746 × 600 × 900 mm Weight 80 Kg Features : -Maintenance-free molecular pump -Stainless steel micro welding vacuum pipeline system -Vacuum pipeline with all-metal VCR for minimal dead volume -High-precision silicon film pressure sensors -Calibration gas for cold free space volume calibration -Liquid nitrogen level control system ensures measurement accuracy -4L stainless steel inner Dewar bottle for durability -Continuous testing for over 72 hours -RS485 or RS232 communication for pressure reading

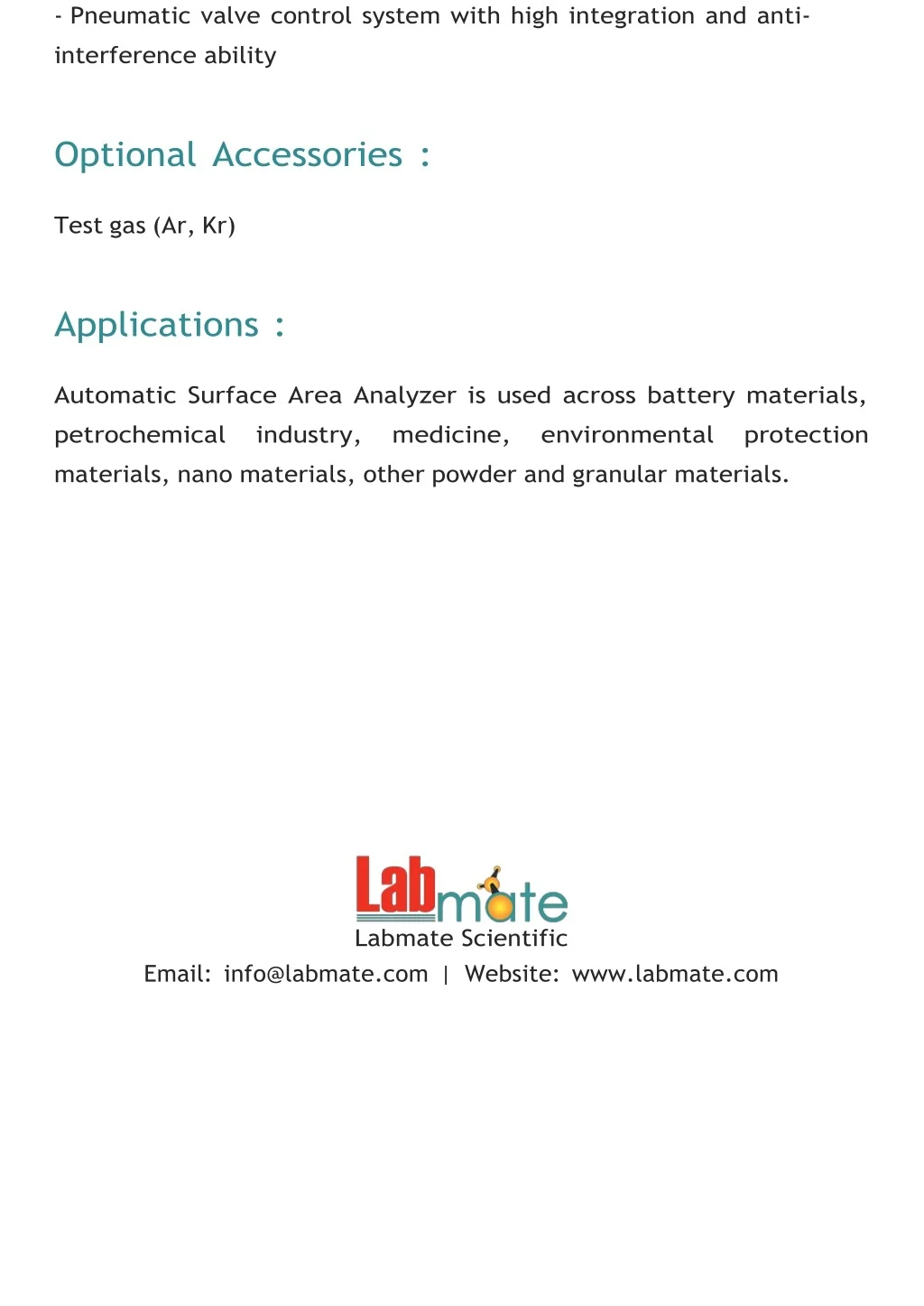

  4. -Pneumatic valve control system with high integration and anti- interference ability Optional Accessories : Test gas (Ar, Kr) Applications : Automatic Surface Area Analyzer is used across battery materials, petrochemical industry, medicine, environmental protection materials, nano materials, other powder and granular materials. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
