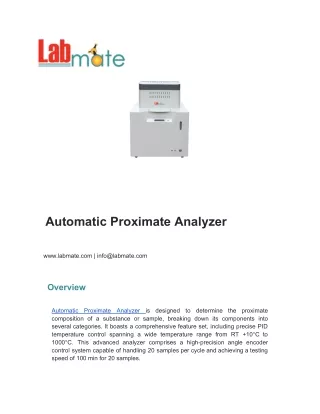

1. Automatic Proximate Analyzer www.labmate.com | info@labmate.com Overview Automatic composition of a substance or sample, breaking down its components into several categories. It boasts a comprehensive feature set, including precise PID temperature control spanning a wide temperature range from RT +10°C to 1000°C. This advanced analyzer comprises a high-precision angle encoder control system capable of handling 20 samples per cycle and achieving a testing speed of 100 min for 20 samples. Proximate Analyzer is designed to determine the proximate

2. Specifications : Temperature Control Range RT+10 to 1000°C Accuracy ± 2°C Sample Weight 0.5 to 1.2 g; 1± 0.1 g (recommended) Sample Number 20 samples/time Testing Time 100 min/20 samples Temperature Control PID Analysis Method Thermogravimetric analysis Furnace Single Power Supply AC 220 V ± 22 V/50 Hz Power ≤ 2 kW Dimension (W×D×H) 560×560×750 mm Weight 80 kg

3. Features : - The MCPC module and balance display module enhance reliability and streamline the test process - Utilizes a single furnace and a stepper motor, integrated with a high-precision angle encoder control system for accuracy - Incorporates a distributed intelligent smoke exhaust interface for effective removal of smoke and dust - Features a heat insulation device at the bottom to minimize heat radiation - Includes a power-off memory function, safeguarding test data - Operates via thermogravimetric analysis, automating sample weighing and delivery - Automates data processing, result calculation, report generation, and storage - Delivers test results compliant with national standards, ensuring accuracy - Offers connectivity to a management system for direct reading, backup, and easy uploading of test results - Provides a high-efficiency, stable, and reliable unit for the determination of volatile matter Applications : Widely utilized in power plants, coal mines, commodity inspection, environmental protection, the chemical industry, scientific research, education, and various other sectors, it plays a pivotal role in analyzing and understanding the composition of these materials. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
