Automatic Bomb Calorimeter
Automatic Bomb Calorimeter is designed to determine the calorific value of solid and liquid combustible materials. It is an <br>Isoperibol type of calorimeter with a temperature range of 5 to 40u2103 and takes just 8 minutes to test per sample. Boasts an automatic<br>detection system for refrigerating capacity and a self-regulating circulation system that maintains calibration accuracy based on <br>the previous calorific value.
Automatic Bomb Calorimeter
E N D
Presentation Transcript

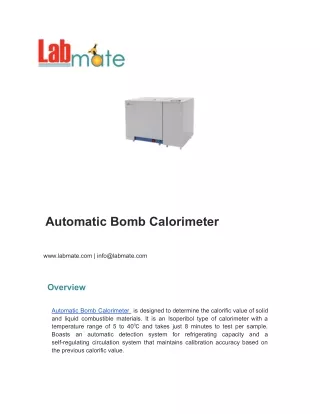

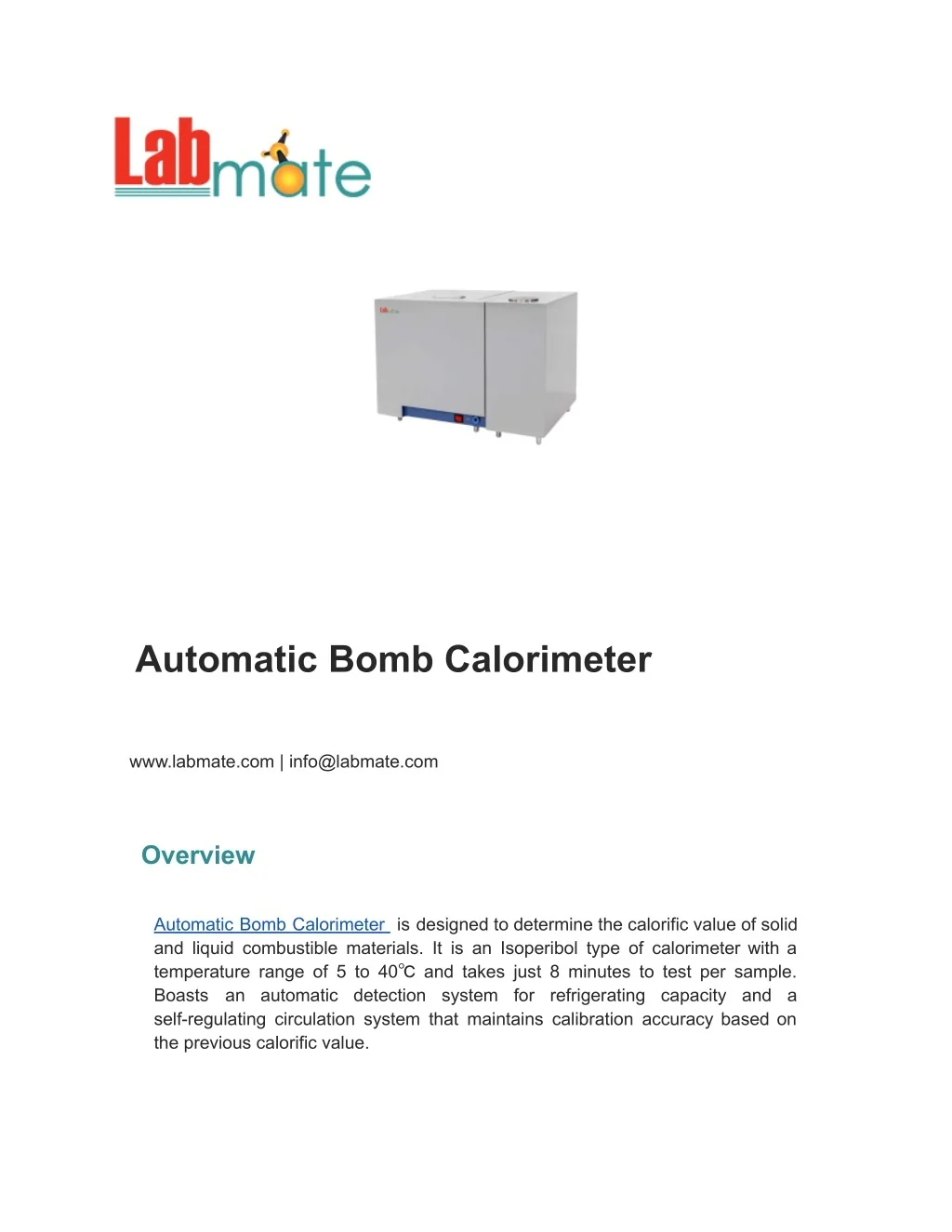

Automatic Bomb Calorimeter www.labmate.com | info@labmate.com Overview Automatic Bomb Calorimeter is designed to determine the calorific value of solid and liquid combustible materials. It is an Isoperibol type of calorimeter with a temperature range of 5 to 40℃ and takes just 8 minutes to test per sample. Boasts an automatic detection system for refrigerating capacity and a self-regulating circulation system that maintains calibration accuracy based on the previous calorific value.

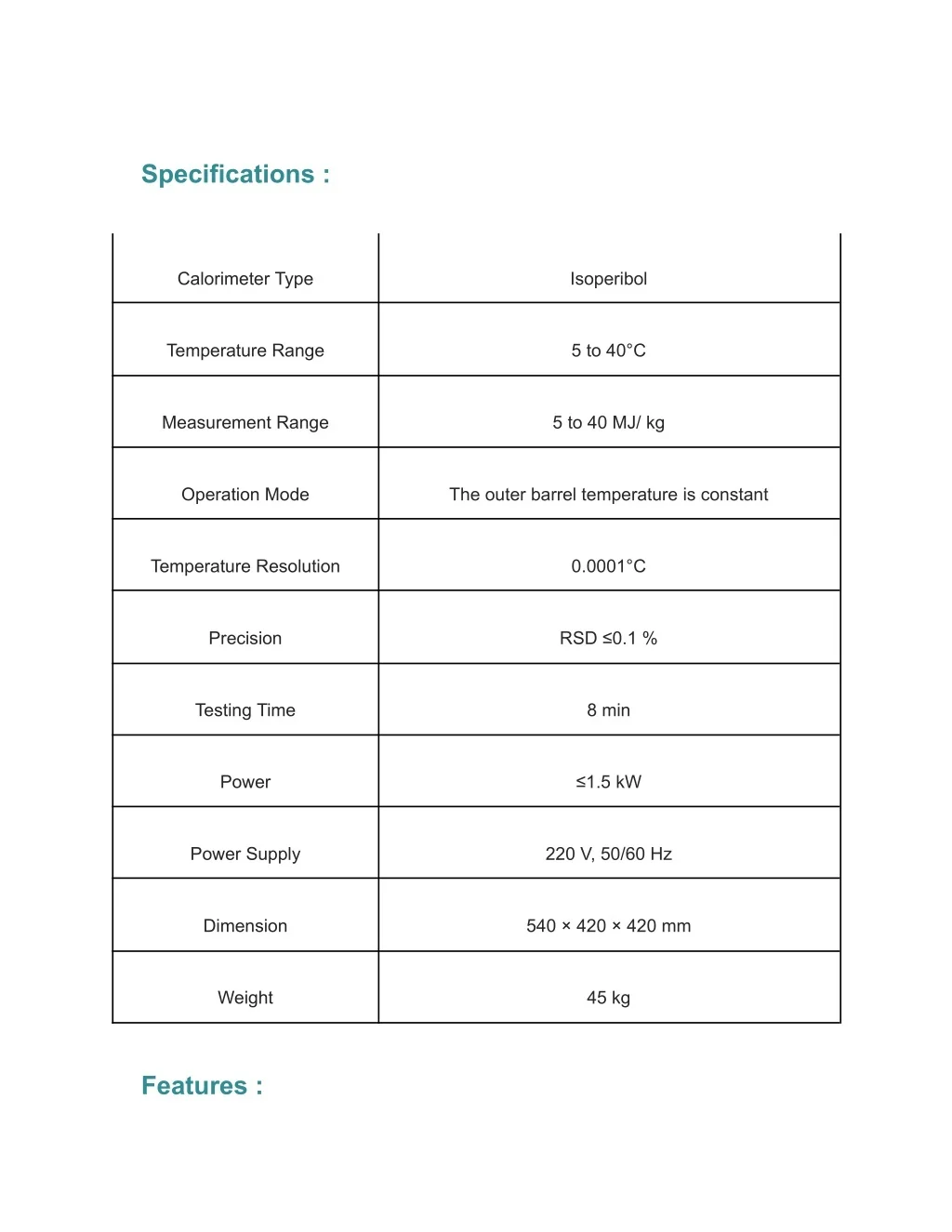

Specifications : Calorimeter Type Isoperibol Temperature Range 5 to 40°C Measurement Range 5 to 40 MJ/ kg Operation Mode The outer barrel temperature is constant Temperature Resolution 0.0001°C Precision RSD ≤0.1 % Testing Time 8 min Power ≤1.5 kW Power Supply 220 V, 50/60 Hz Dimension 540 × 420 × 420 mm Weight 45 kg Features :

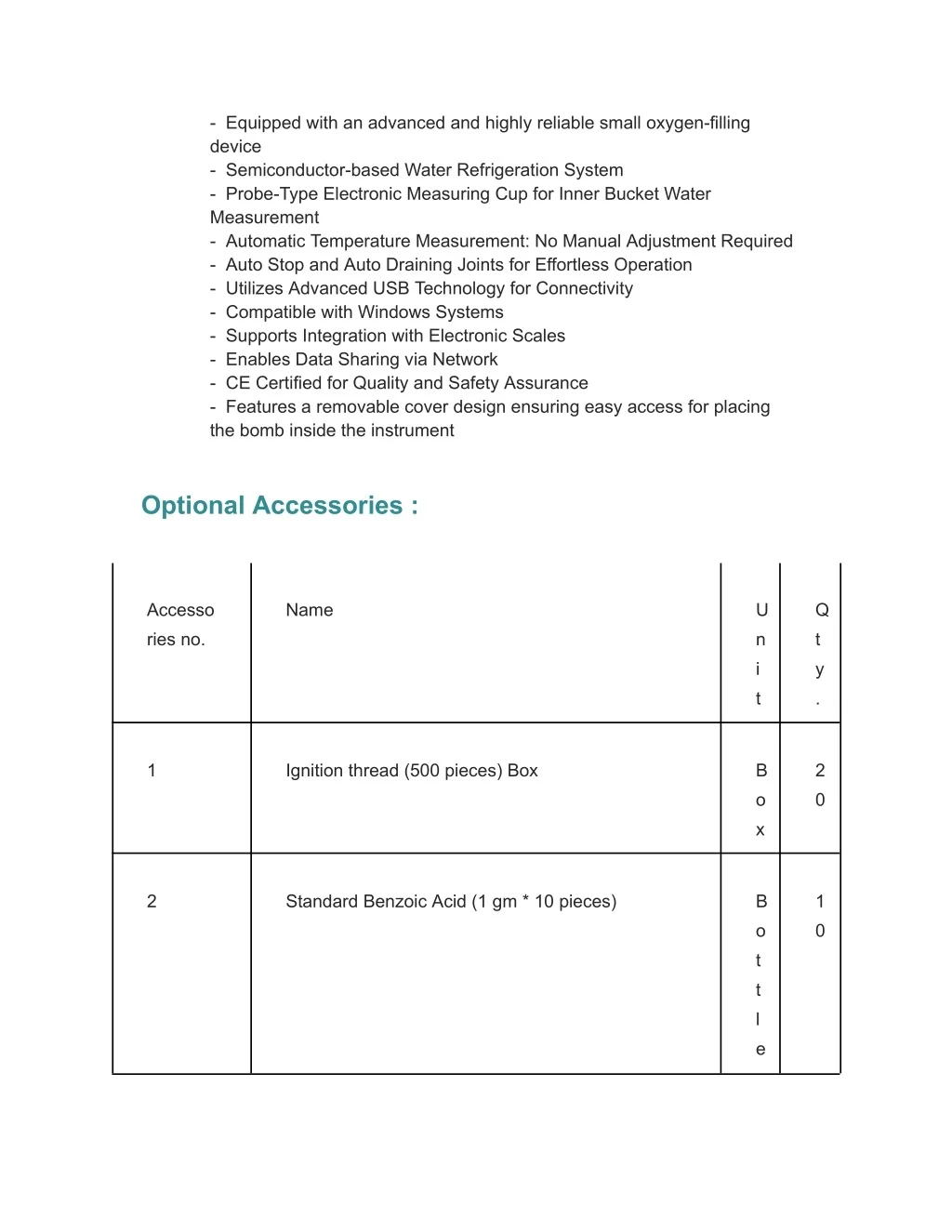

- Equipped with an advanced and highly reliable small oxygen-filling device - Semiconductor-based Water Refrigeration System - Probe-Type Electronic Measuring Cup for Inner Bucket Water Measurement - Automatic Temperature Measurement: No Manual Adjustment Required - Auto Stop and Auto Draining Joints for Effortless Operation - Utilizes Advanced USB Technology for Connectivity - Compatible with Windows Systems - Supports Integration with Electronic Scales - Enables Data Sharing via Network - CE Certified for Quality and Safety Assurance - Features a removable cover design ensuring easy access for placing the bomb inside the instrument Optional Accessories : Accesso Name U Q ries no. n t i y t . 1 Ignition thread (500 pieces) Box B 2 o 0 x 2 Standard Benzoic Acid (1 gm * 10 pieces) B 1 o 0 t t l e

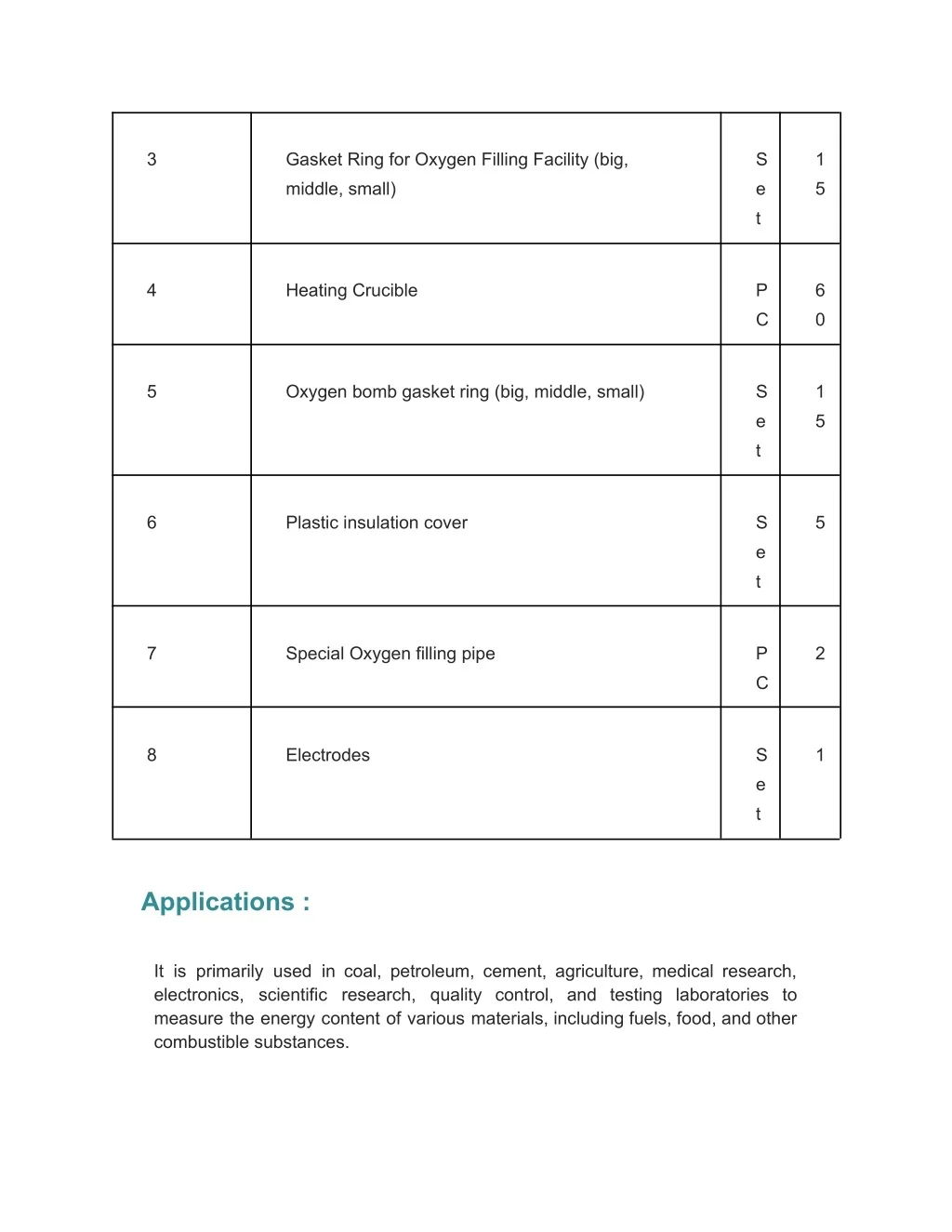

3 Gasket Ring for Oxygen Filling Facility (big, S 1 middle, small) e 5 t 4 Heating Crucible P 6 C 0 5 Oxygen bomb gasket ring (big, middle, small) S 1 e 5 t 6 Plastic insulation cover S 5 e t 7 Special Oxygen filling pipe P 2 C 8 Electrodes S 1 e t Applications : It is primarily used in coal, petroleum, cement, agriculture, medical research, electronics, scientific research, quality control, and testing laboratories to measure the energy content of various materials, including fuels, food, and other combustible substances.
Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
