Tabletop Autoclave 26-TTA103

Labexpo Tabletop Autoclave is a 50L sterilizer with a temperature range of 105u2013134 u00b0C and a sterilization pressure of 0.22 Mpa. Features include automatic shutoff, cold air discharge, and protection against high temperatures and pressure. The features also include rapid sterilization and automated drying

Zoe28
Download Presentation

Tabletop Autoclave 26-TTA103

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

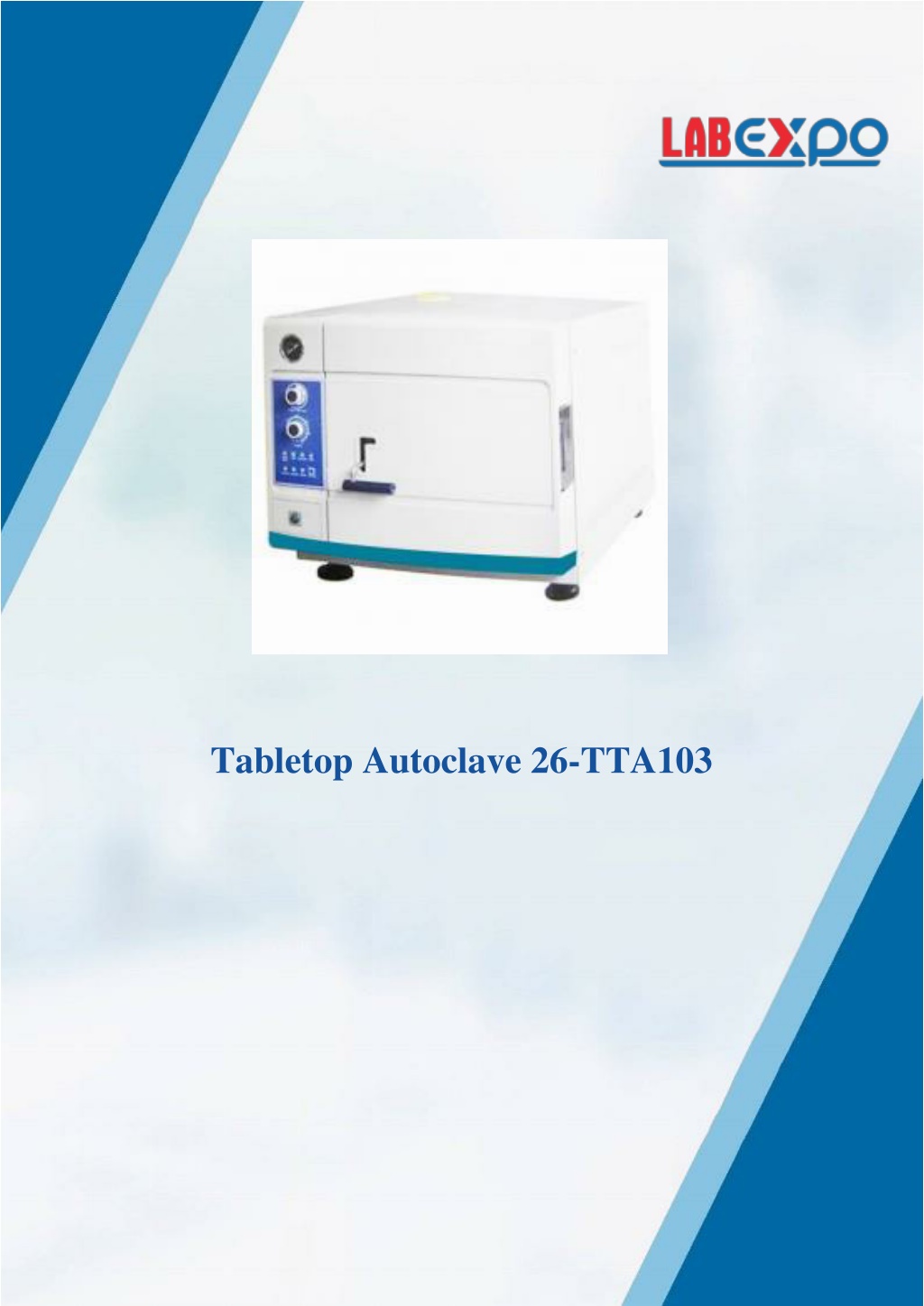

  1. Tabletop Autoclave 26-TTA103

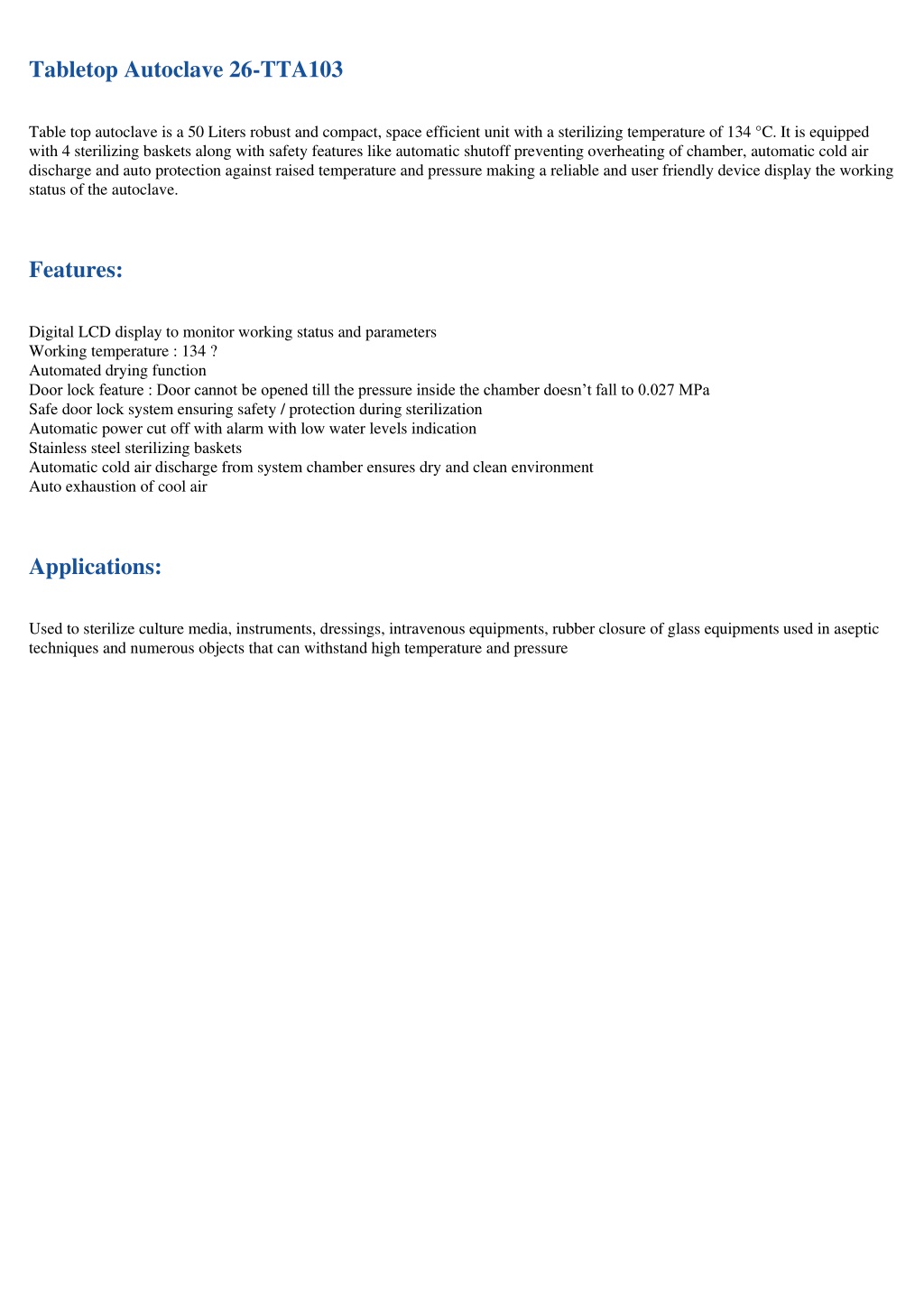

  2. Tabletop Autoclave 26-TTA103 Table top autoclave is a 50 Liters robust and compact, space efficient unit with a sterilizing temperature of 134 °C. It is equipped with 4 sterilizing baskets along with safety features like automatic shutoff preventing overheating of chamber, automatic cold air discharge and auto protection against raised temperature and pressure making a reliable and user friendly device display the working status of the autoclave. Features: Digital LCD display to monitor working status and parameters Working temperature : 134 ? Automated drying function Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Stainless steel sterilizing baskets Automatic cold air discharge from system chamber ensures dry and clean environment Auto exhaustion of cool air Applications: Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure

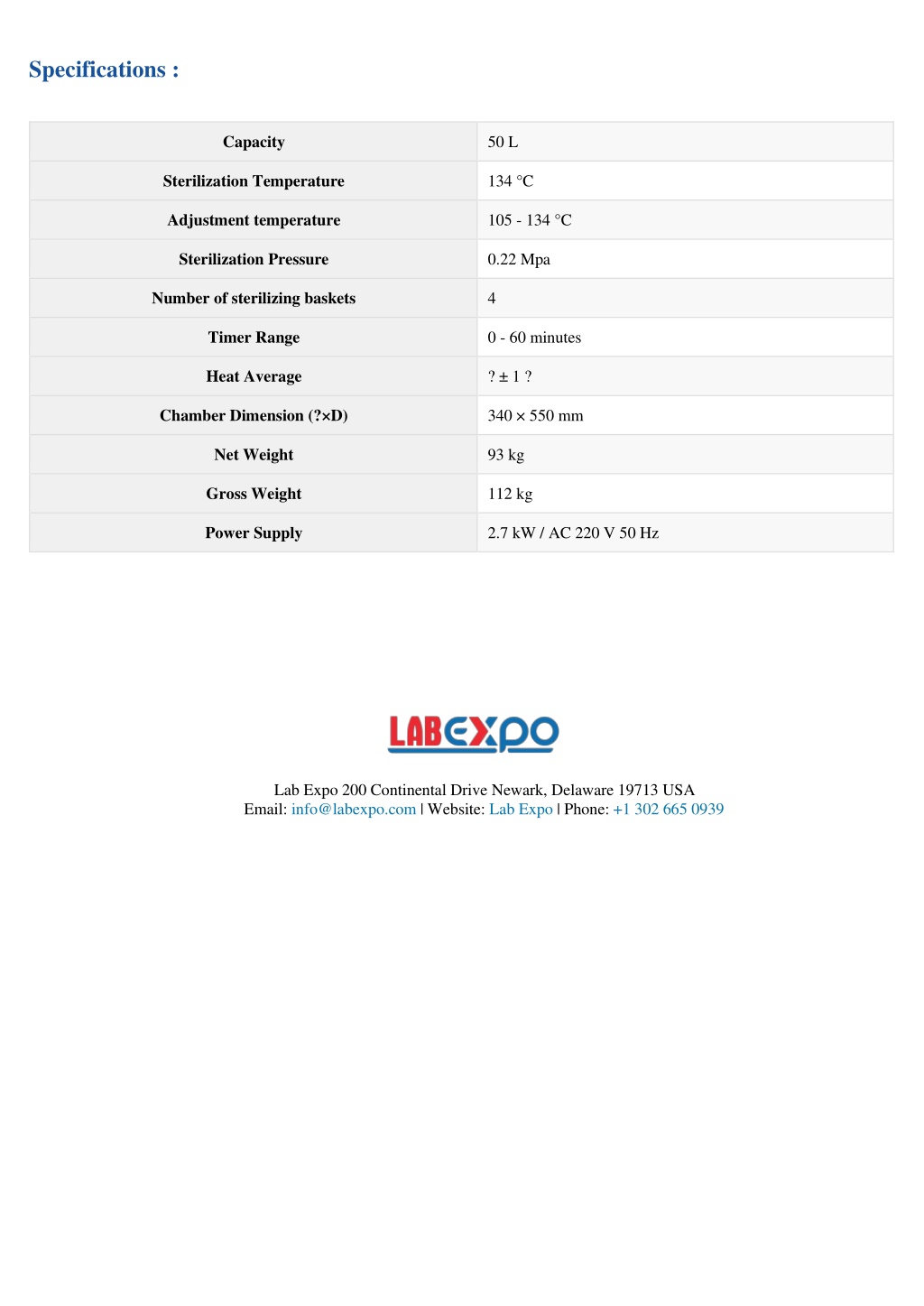

  3. Specifications : Capacity 50 L Sterilization Temperature 134 °C Adjustment temperature 105 - 134 °C Sterilization Pressure 0.22 Mpa Number of sterilizing baskets 4 Timer Range 0 - 60 minutes Heat Average ? ± 1 ? Chamber Dimension (?×D) 340 × 550 mm Net Weight 93 kg Gross Weight 112 kg Power Supply 2.7 kW / AC 220 V 50 Hz Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
