Plasma-Autoclave-202

Labexpo Plasma Autoclave is a 220L sterilizer with an anti-rust aluminum alloy chamber, double doors, and 3 programs. It uses 60% Hu2082Ou2082 at 50u00b0C for 45-50 mins. Features include a 7-inch LCD touchscreen, electric lift doors, automatic controls, and a high-strength rotary van vacuum pump.

Zoe28
Download Presentation

Plasma-Autoclave-202

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

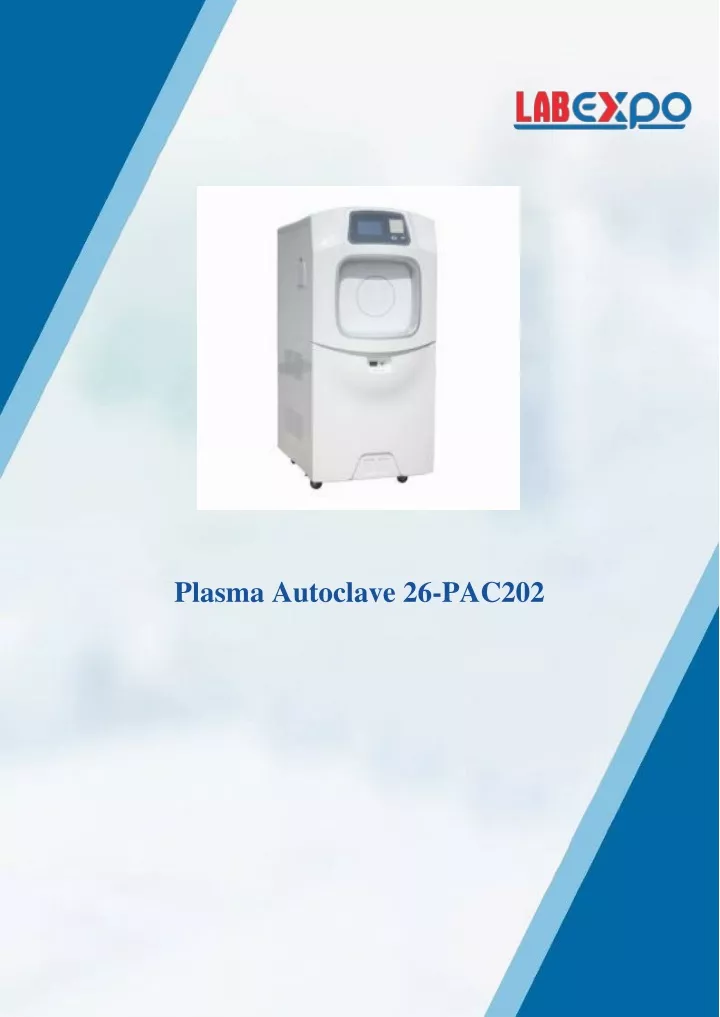

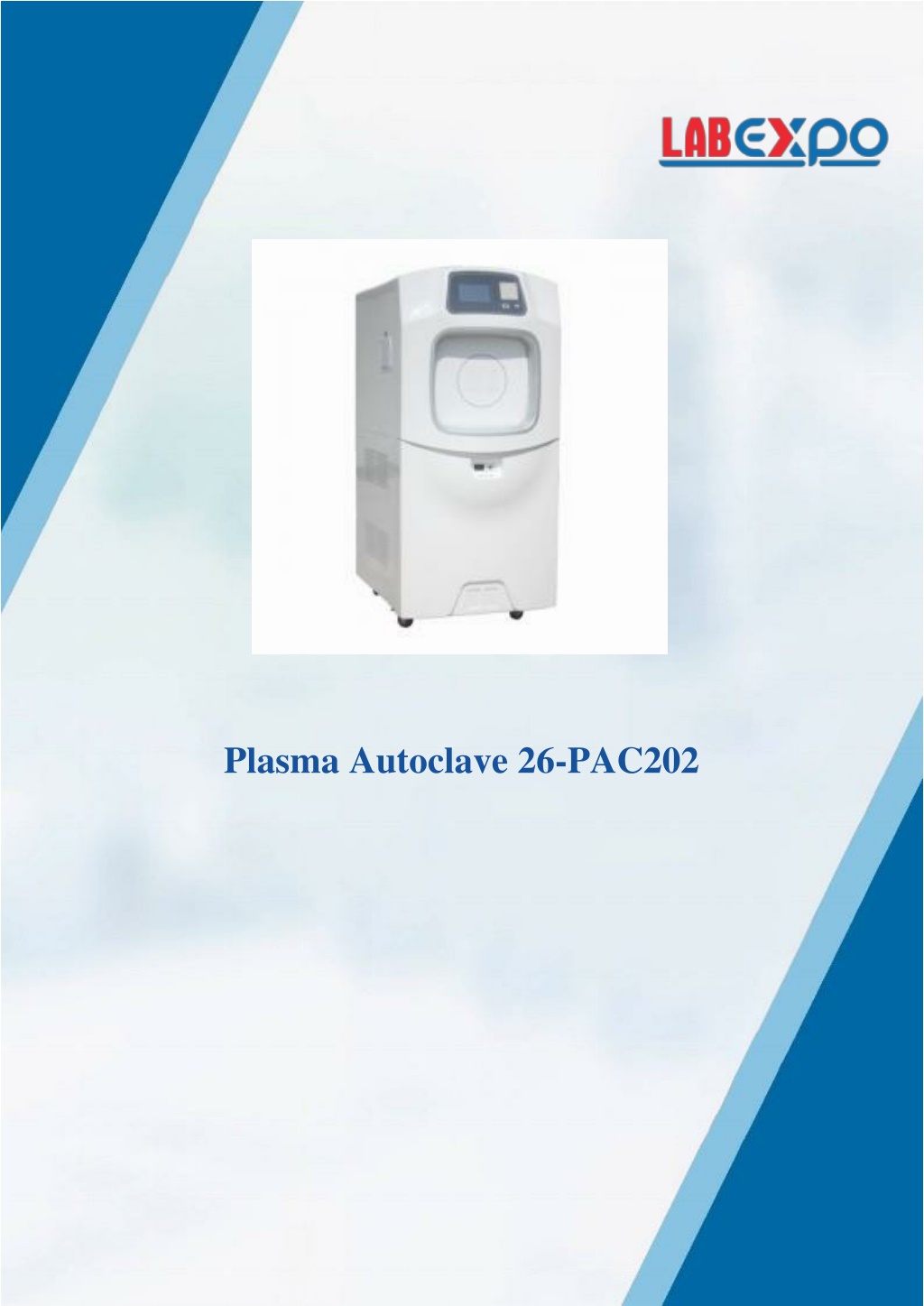

  1. Plasma Autoclave 26-PAC202

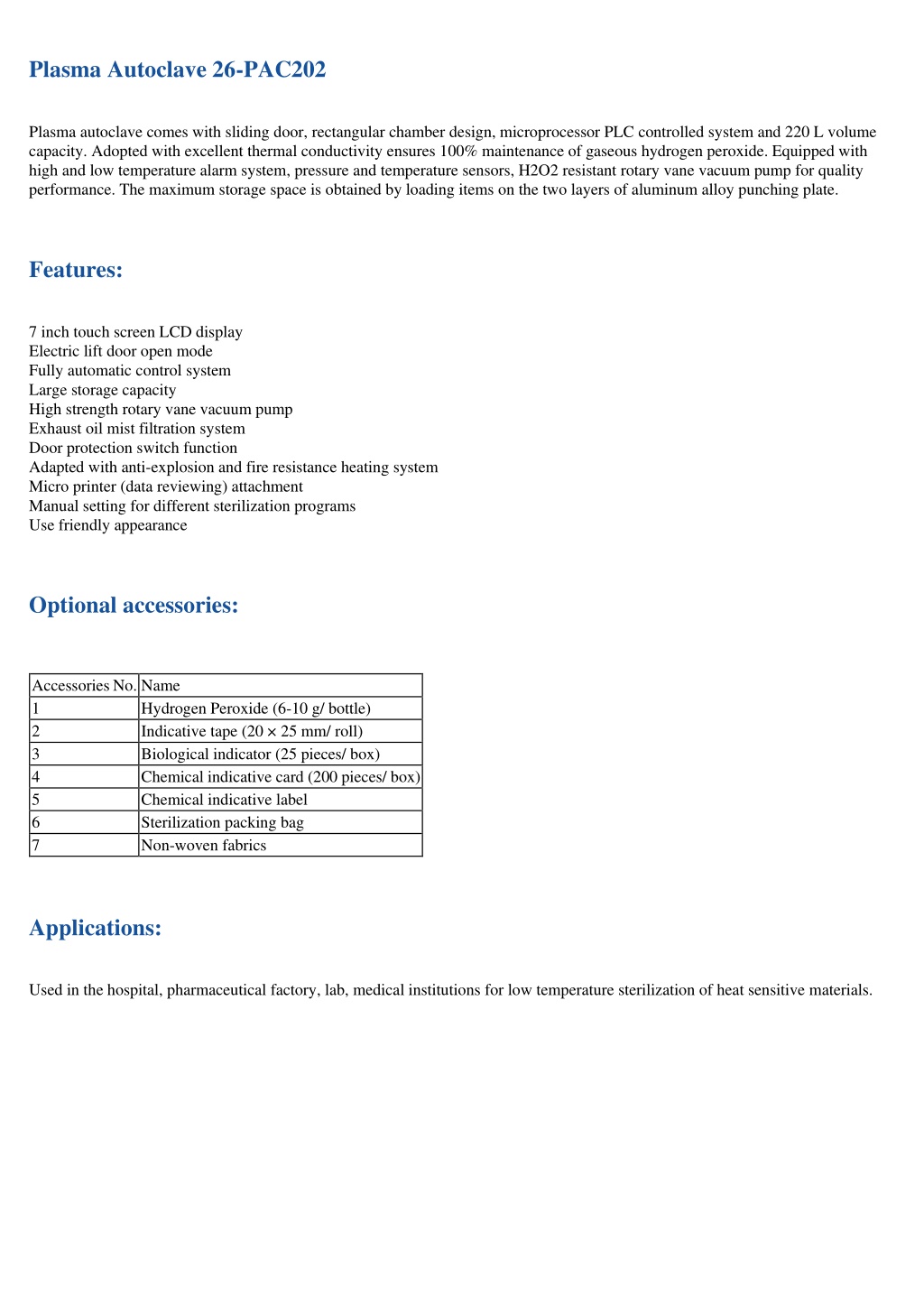

  2. Plasma Autoclave 26-PAC202 Plasma autoclave comes with sliding door, rectangular chamber design, microprocessor PLC controlled system and 220 L volume capacity. Adopted with excellent thermal conductivity ensures 100% maintenance of gaseous hydrogen peroxide. Equipped with high and low temperature alarm system, pressure and temperature sensors, H2O2 resistant rotary vane vacuum pump for quality performance. The maximum storage space is obtained by loading items on the two layers of aluminum alloy punching plate. Features: 7 inch touch screen LCD display Electric lift door open mode Fully automatic control system Large storage capacity High strength rotary vane vacuum pump Exhaust oil mist filtration system Door protection switch function Adapted with anti-explosion and fire resistance heating system Micro printer (data reviewing) attachment Manual setting for different sterilization programs Use friendly appearance Optional accessories: Accessories No. Name 1 2 3 4 5 6 7 Hydrogen Peroxide (6-10 g/ bottle) Indicative tape (20 × 25 mm/ roll) Biological indicator (25 pieces/ box) Chemical indicative card (200 pieces/ box) Chemical indicative label Sterilization packing bag Non-woven fabrics Applications: Used in the hospital, pharmaceutical factory, lab, medical institutions for low temperature sterilization of heat sensitive materials.

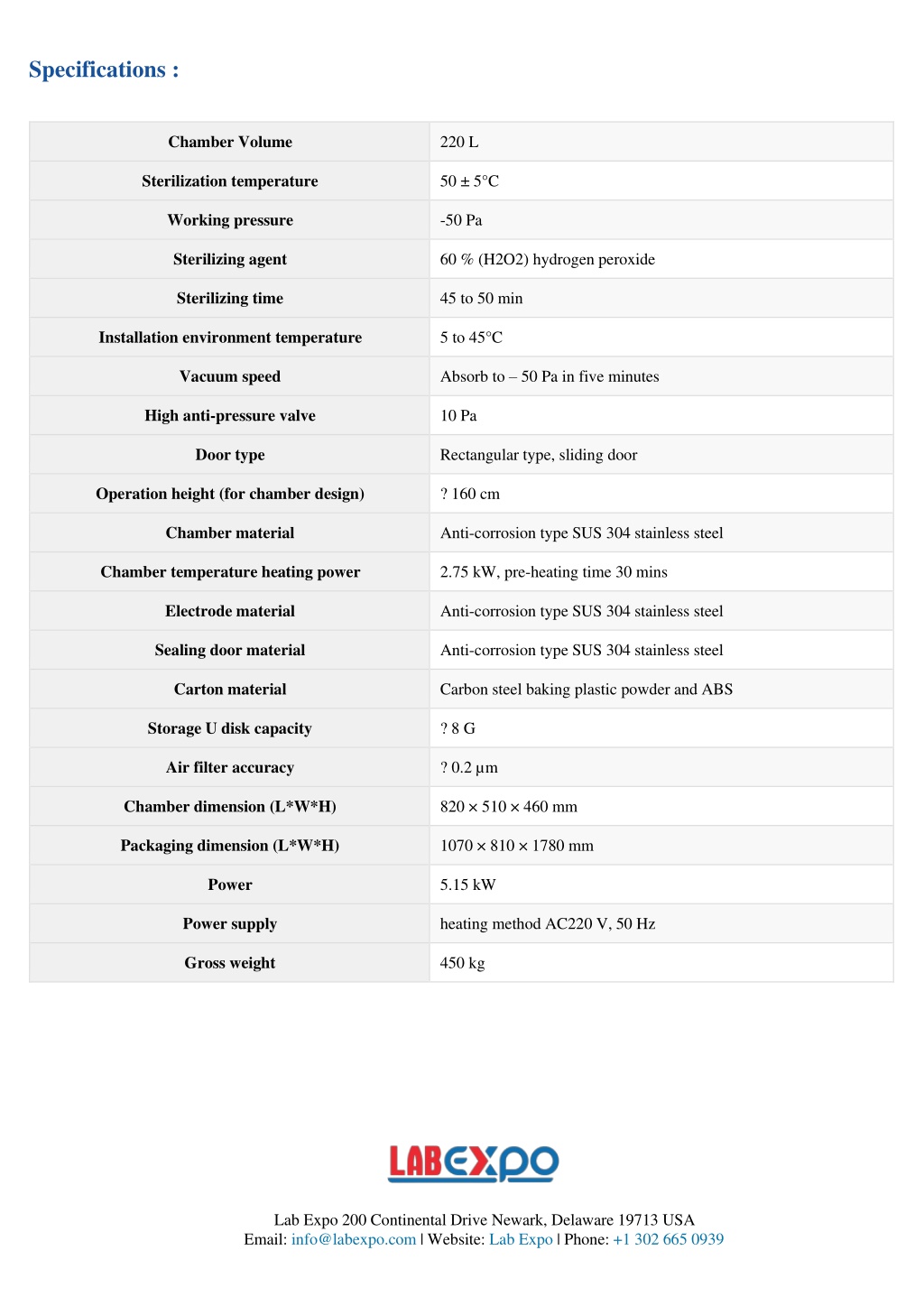

  3. Specifications : Chamber Volume 220 L Sterilization temperature 50 ± 5°C Working pressure -50 Pa Sterilizing agent 60 % (H2O2) hydrogen peroxide Sterilizing time 45 to 50 min Installation environment temperature 5 to 45°C Vacuum speed Absorb to – 50 Pa in five minutes High anti-pressure valve 10 Pa Door type Rectangular type, sliding door Operation height (for chamber design) ? 160 cm Chamber material Anti-corrosion type SUS 304 stainless steel Chamber temperature heating power 2.75 kW, pre-heating time 30 mins Electrode material Anti-corrosion type SUS 304 stainless steel Sealing door material Anti-corrosion type SUS 304 stainless steel Carton material Carbon steel baking plastic powder and ABS Storage U disk capacity ? 8 G Air filter accuracy ? 0.2 µm Chamber dimension (L*W*H) 820 × 510 × 460 mm Packaging dimension (L*W*H) 1070 × 810 × 1780 mm Power 5.15 kW Power supply heating method AC220 V, 50 Hz Gross weight 450 kg Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
