Medical-Autoclave-

Labexpo medical autoclave is a high-performance Class B sterilizer with 8 systems and 2 test programs. It features a 23L capacity, a 121-134u00b0C temperature range, and a 4-20 min cycle time. Equipped with automatic power/water cut-off, overheating protection, and an alarm system, it ensures safety and reliability.

Zoe28
Download Presentation

Medical-Autoclave-

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

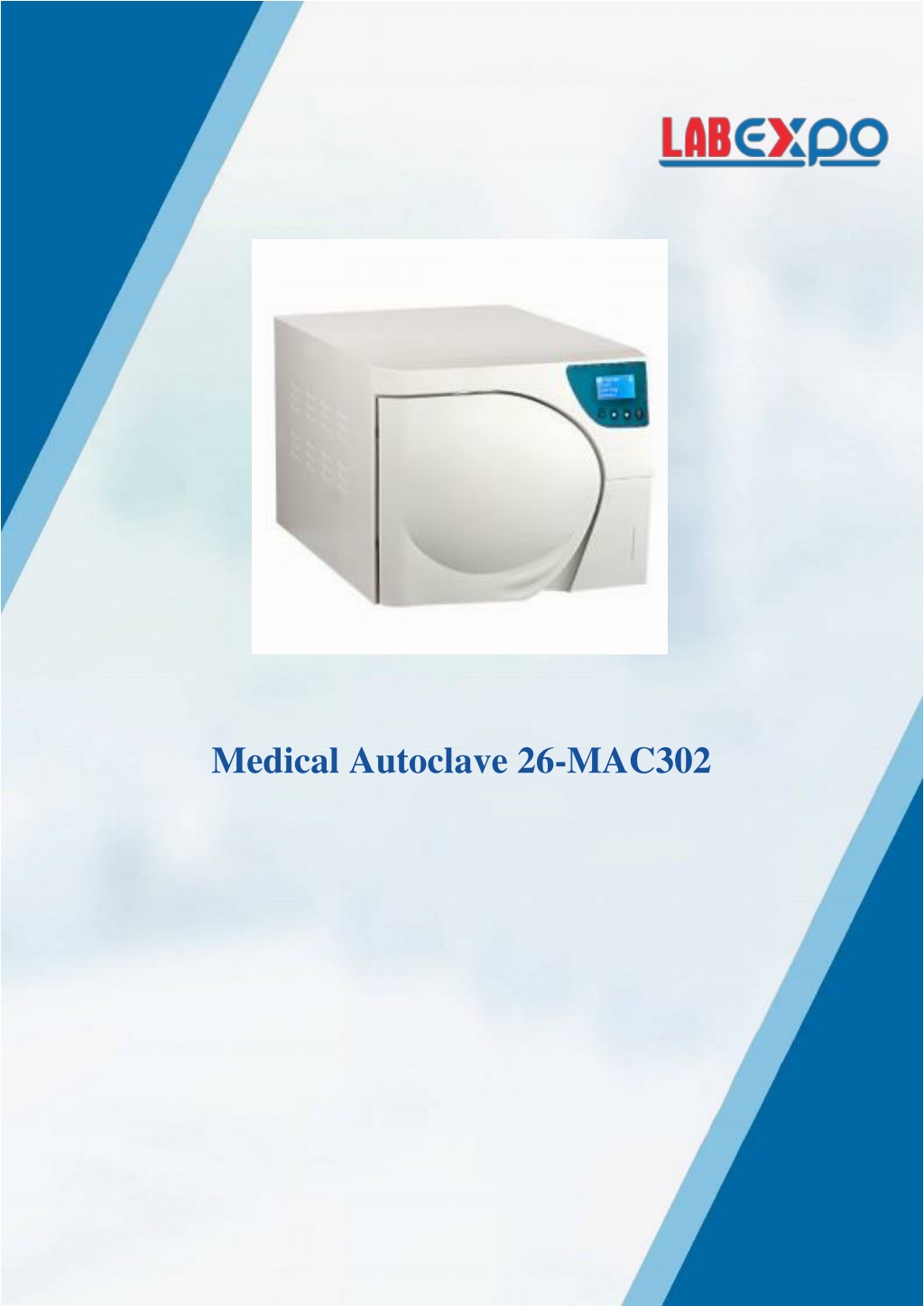

  1. Medical Autoclave 26-MAC302

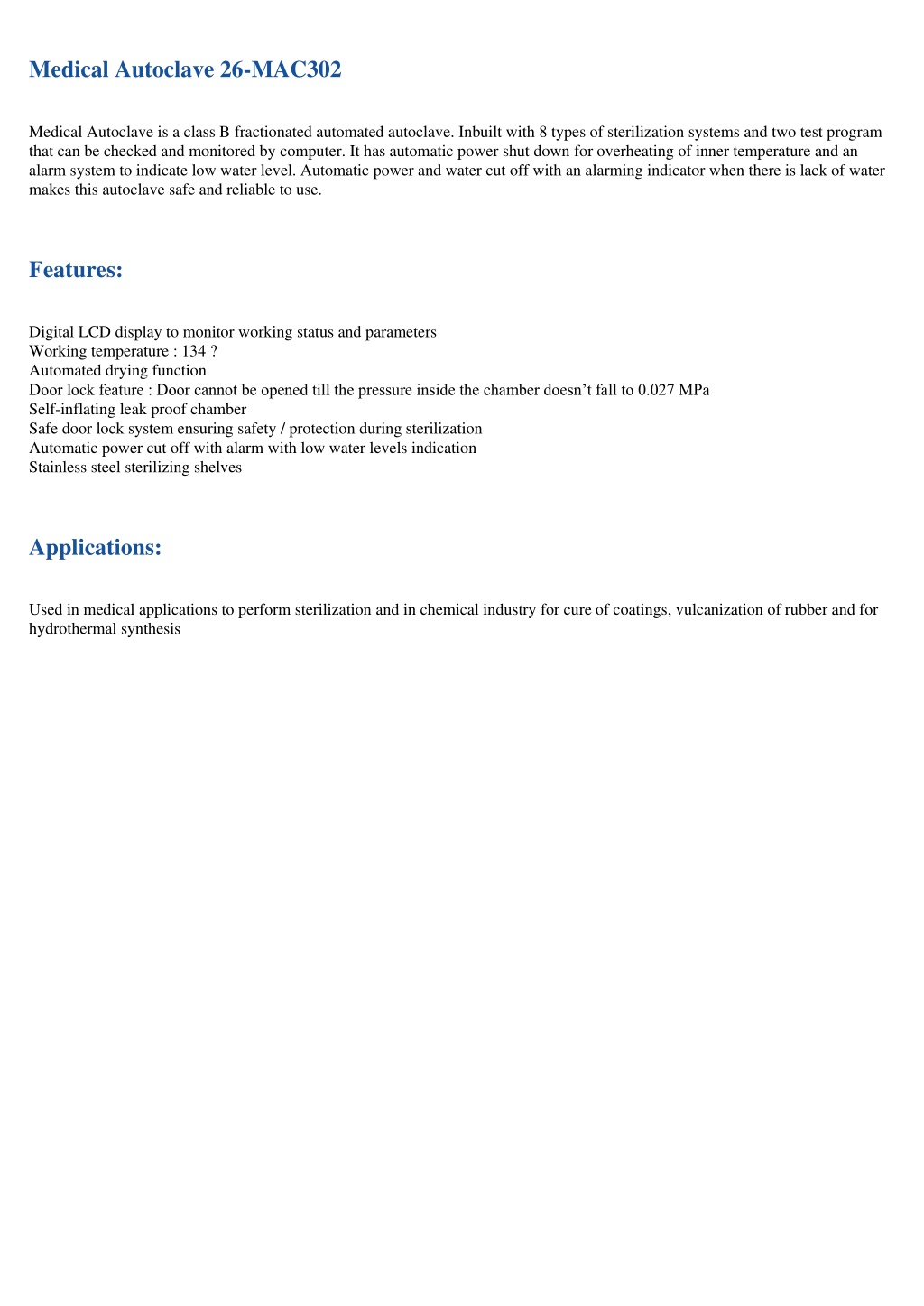

  2. Medical Autoclave 26-MAC302 Medical Autoclave is a class B fractionated automated autoclave. Inbuilt with 8 types of sterilization systems and two test program that can be checked and monitored by computer. It has automatic power shut down for overheating of inner temperature and an alarm system to indicate low water level. Automatic power and water cut off with an alarming indicator when there is lack of water makes this autoclave safe and reliable to use. Features: Digital LCD display to monitor working status and parameters Working temperature : 134 ? Automated drying function Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Self-inflating leak proof chamber Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Stainless steel sterilizing shelves Applications: Used in medical applications to perform sterilization and in chemical industry for cure of coatings, vulcanization of rubber and for hydrothermal synthesis

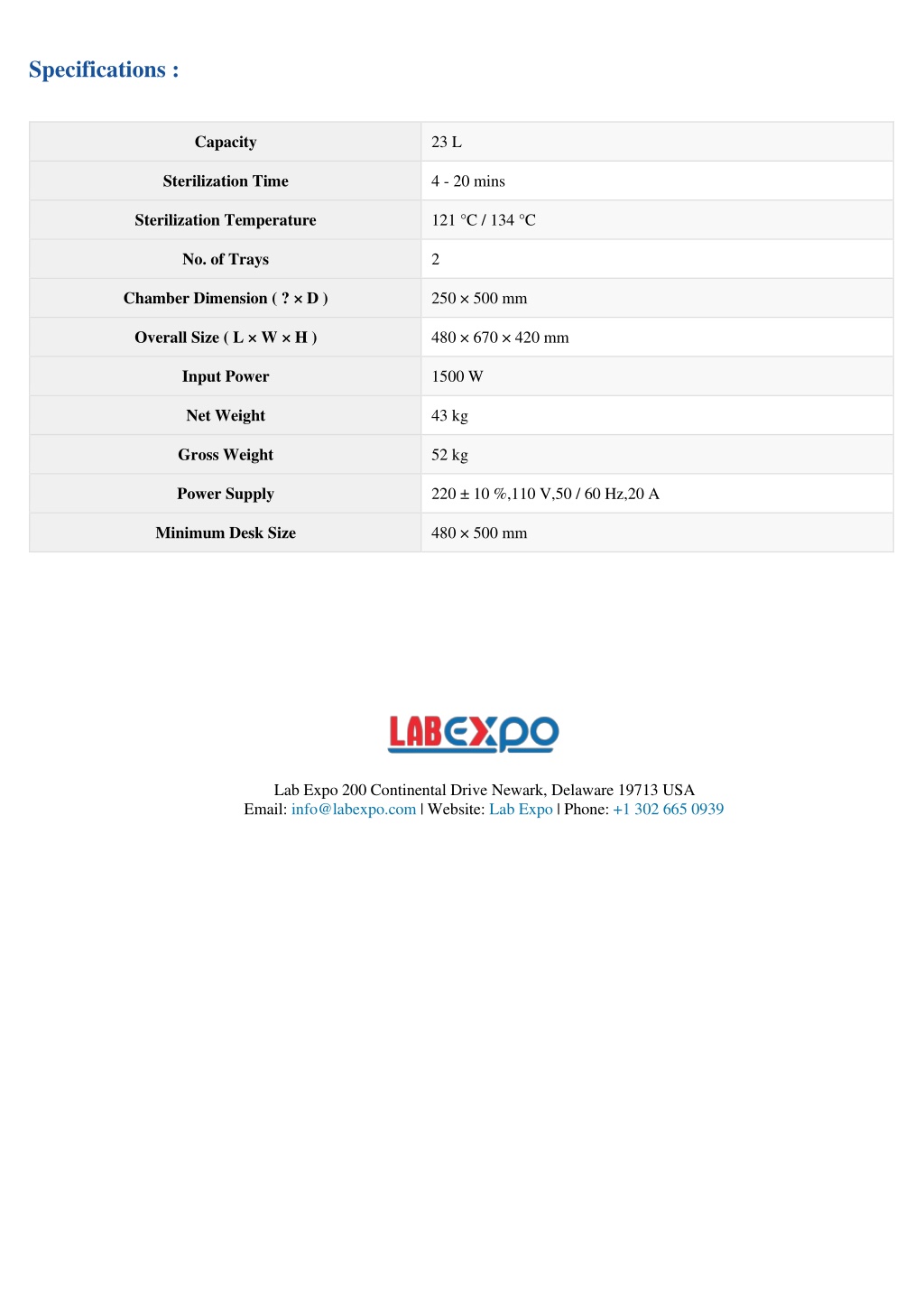

  3. Specifications : Capacity 23 L Sterilization Time 4 - 20 mins Sterilization Temperature 121 °C / 134 °C No. of Trays 2 Chamber Dimension ( ? × D ) 250 × 500 mm Overall Size ( L × W × H ) 480 × 670 × 420 mm Input Power 1500 W Net Weight 43 kg Gross Weight 52 kg Power Supply 220 ± 10 %,110 V,50 / 60 Hz,20 A Minimum Desk Size 480 × 500 mm Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
