Horizontal-Autoclave-C702

Labexpo horizontal autoclave is a 280L fully automatic computer-controlled cylindrical unit that offers a sterilization temperature of 134u00b0C and sterilization pressure of 0.22 MPa. Features heat-resistant silicon rubber and automatic power cut-off with low water level alarms.

Zoe28
Download Presentation

Horizontal-Autoclave-C702

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

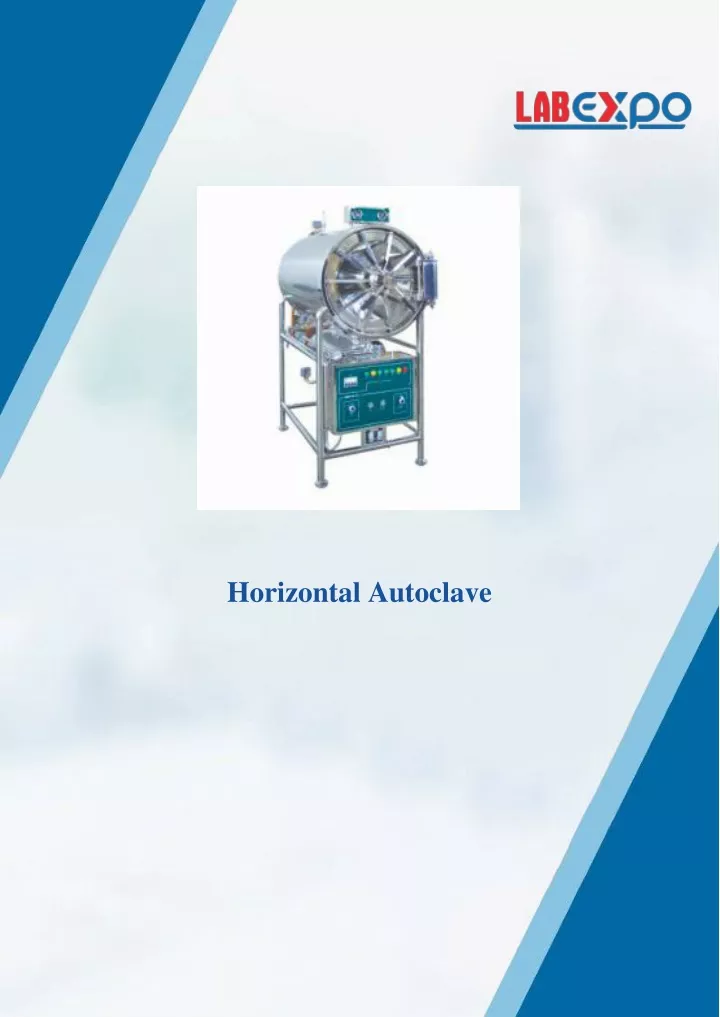

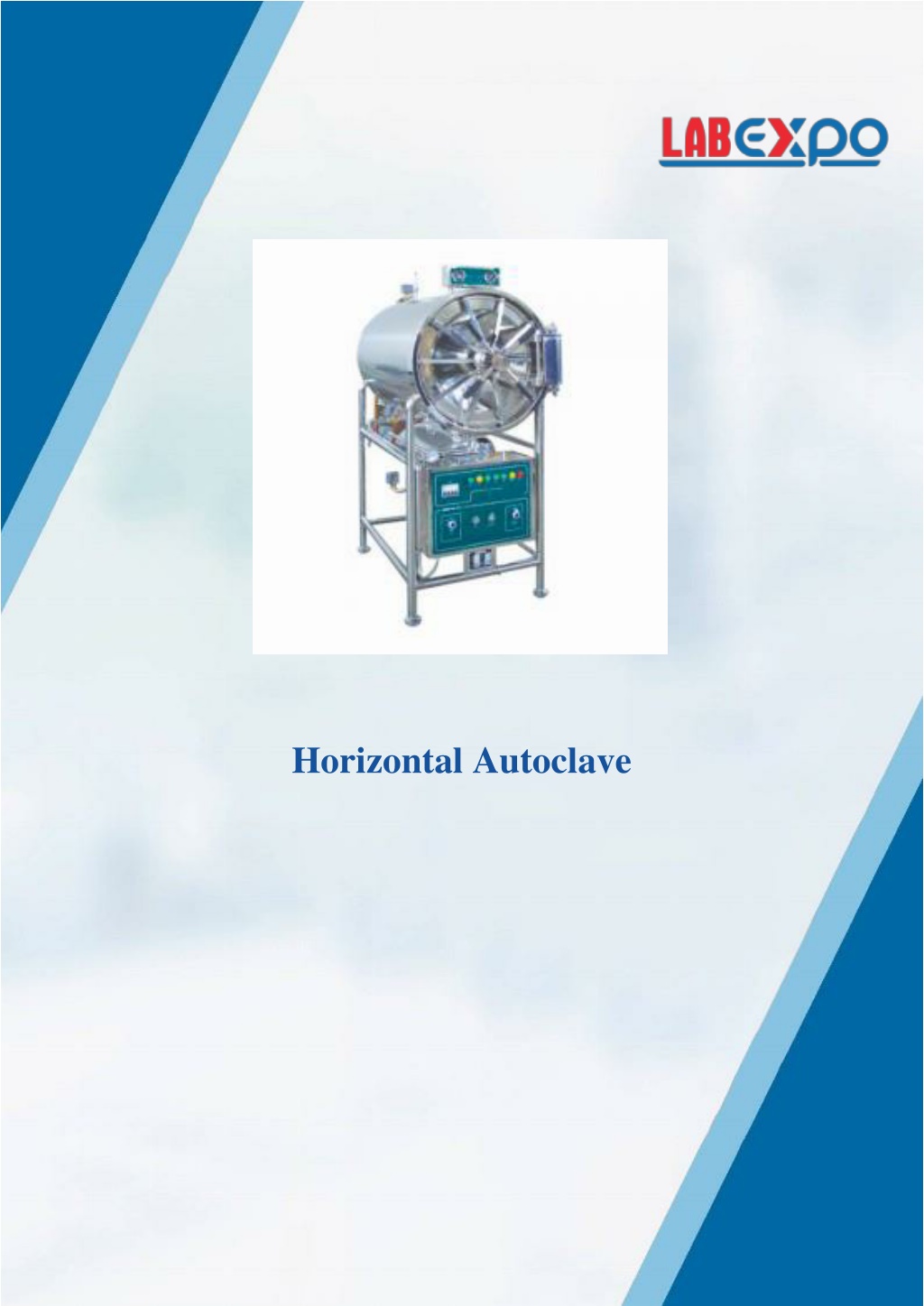

  1. Horizontal Autoclave

  2. Horizontal Autoclave Horizontal Laboratory autoclave is a cylindrical oriented autoclave with a capacity of 280 Liters. Fully automatic computer controlled system with a sterilizing temperature of 134 °C and heat resistant silicon rubber to prevent steam leakage. Automatic open of jacket and chamber valve incase the door is opened during the operation to prevent damage to the unit. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure. Features: Digital LCD display to monitor working status and parameters Working pressure : 0.22 MPa Working temperature : 134 ? Automated drying function Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Self-inflating leak proof chamber Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Applications: Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure

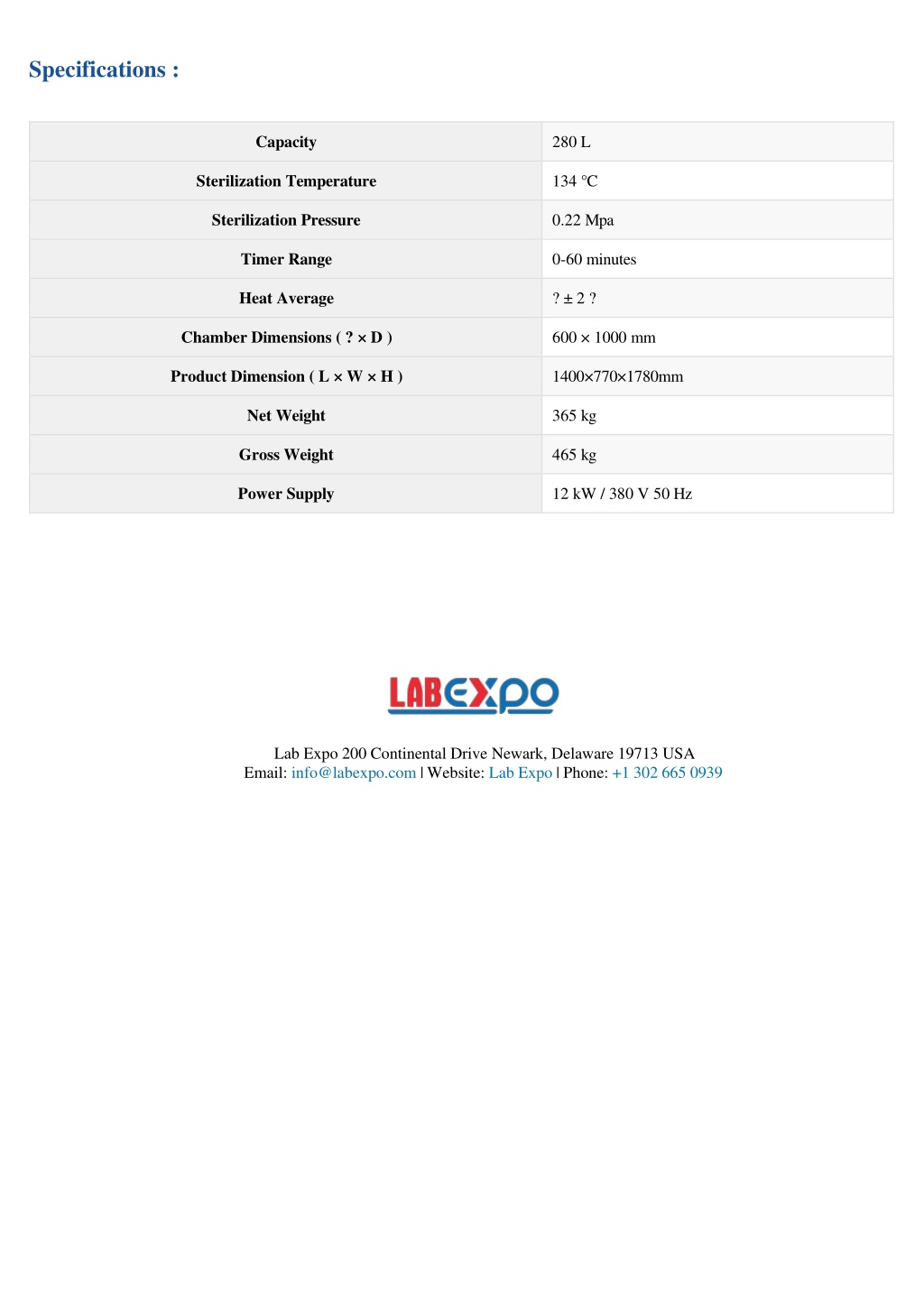

  3. Specifications : Capacity 280 L Sterilization Temperature 134 °C Sterilization Pressure 0.22 Mpa Timer Range 0-60 minutes Heat Average ? ± 2 ? Chamber Dimensions ( ? × D ) 600 × 1000 mm Product Dimension ( L × W × H ) 1400×770×1780mm Net Weight 365 kg Gross Weight 465 kg Power Supply 12 kW / 380 V 50 Hz Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
