Horizontal-Autoclave-2000 L

Labexpo horizontal autoclave is a 2000L microprocessor controlled unit with a sterilization temperature of 139u00b0C and 0.25 MPa. The unit has an LCD display, a safety door lock until pressure drops to 0.027 MPa, and features auto power-off with an alarm and low water level indication.<br>

Zoe28
Download Presentation

Horizontal-Autoclave-2000 L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

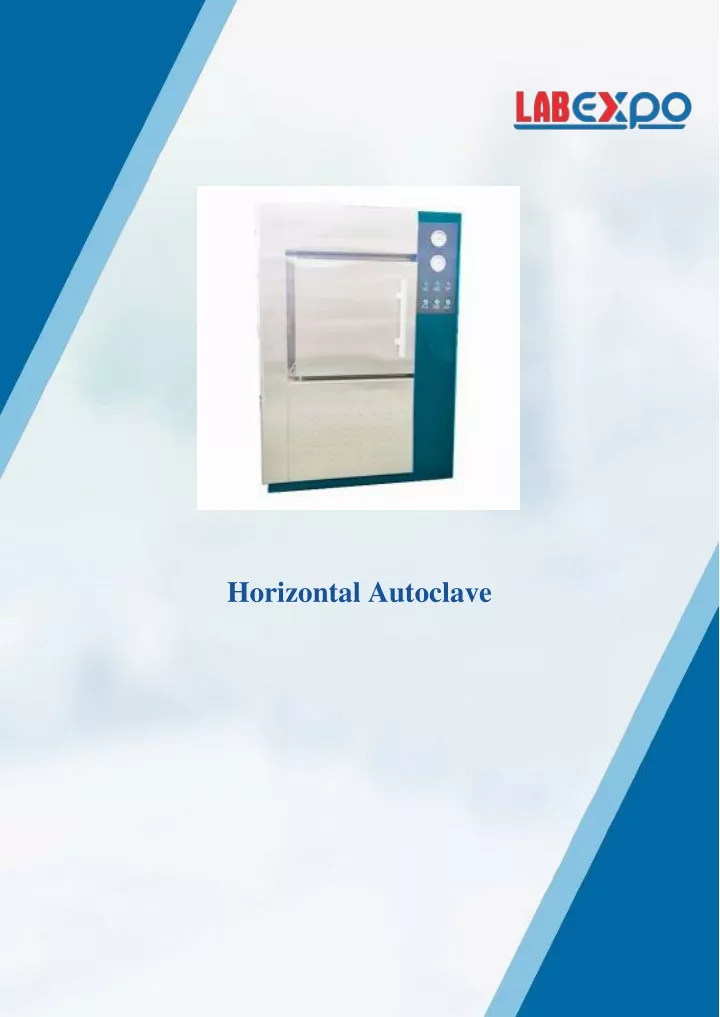

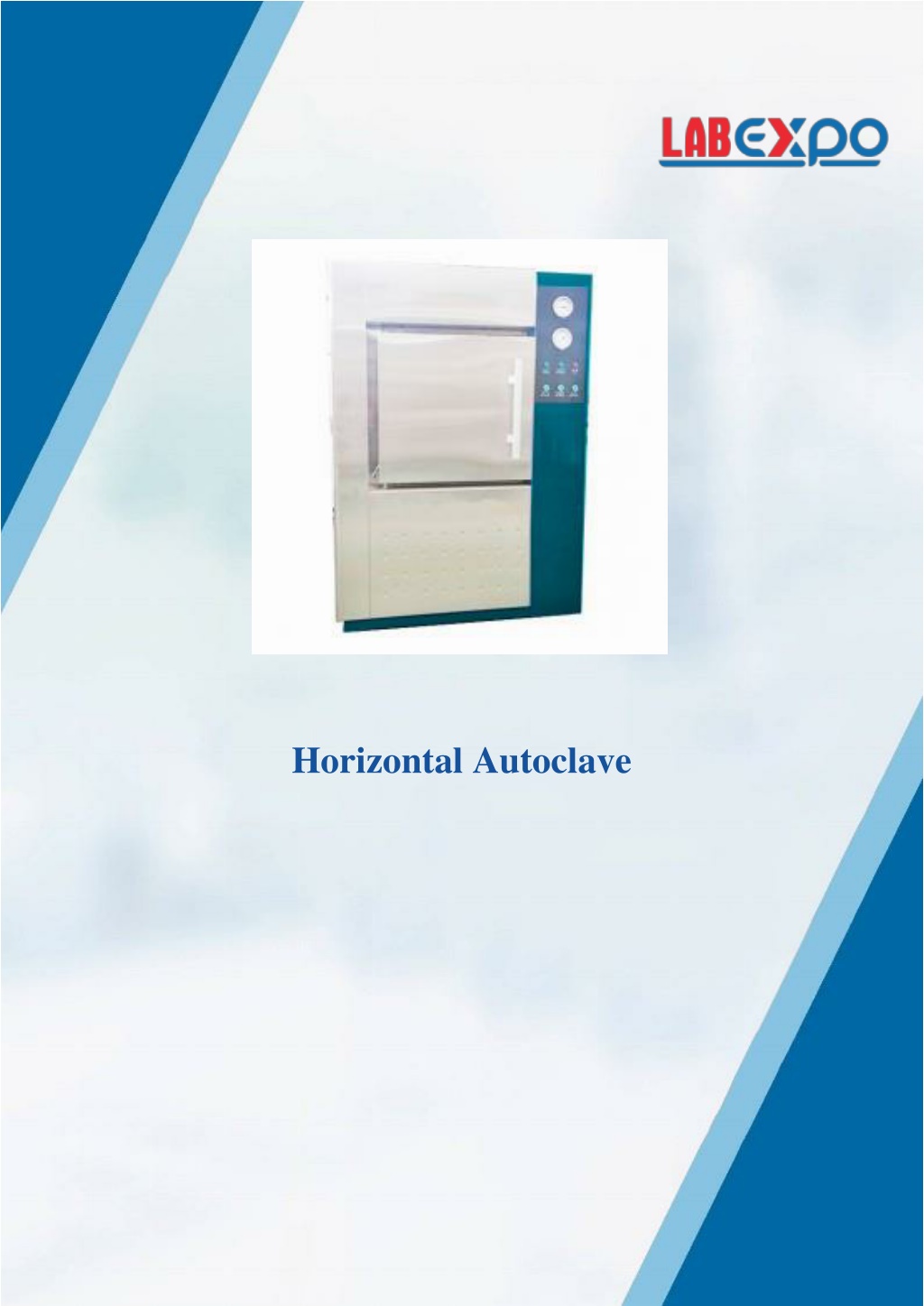

  1. Horizontal Autoclave

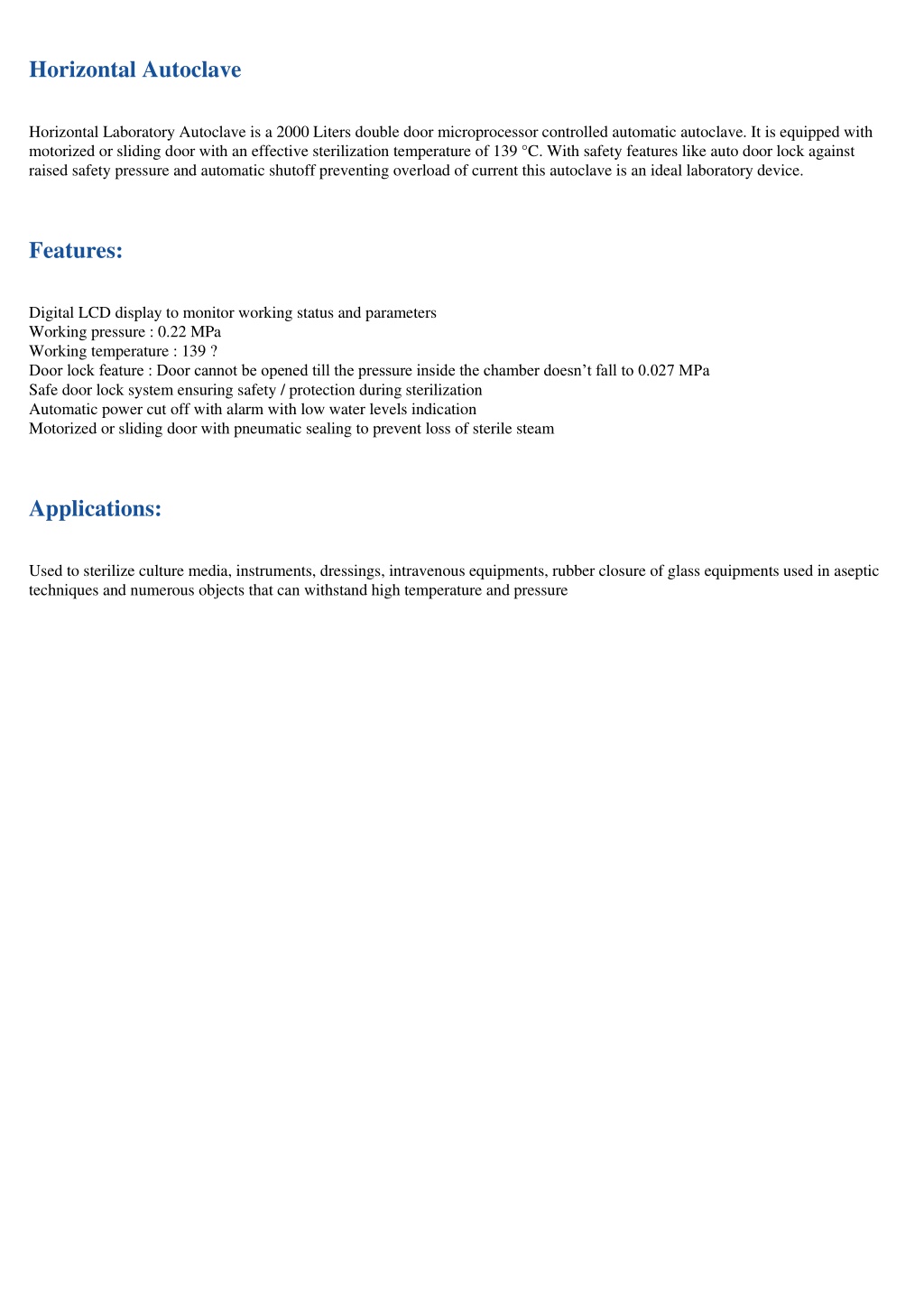

  2. Horizontal Autoclave Horizontal Laboratory Autoclave is a 2000 Liters double door microprocessor controlled automatic autoclave. It is equipped with motorized or sliding door with an effective sterilization temperature of 139 °C. With safety features like auto door lock against raised safety pressure and automatic shutoff preventing overload of current this autoclave is an ideal laboratory device. Features: Digital LCD display to monitor working status and parameters Working pressure : 0.22 MPa Working temperature : 139 ? Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Motorized or sliding door with pneumatic sealing to prevent loss of sterile steam Applications: Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure

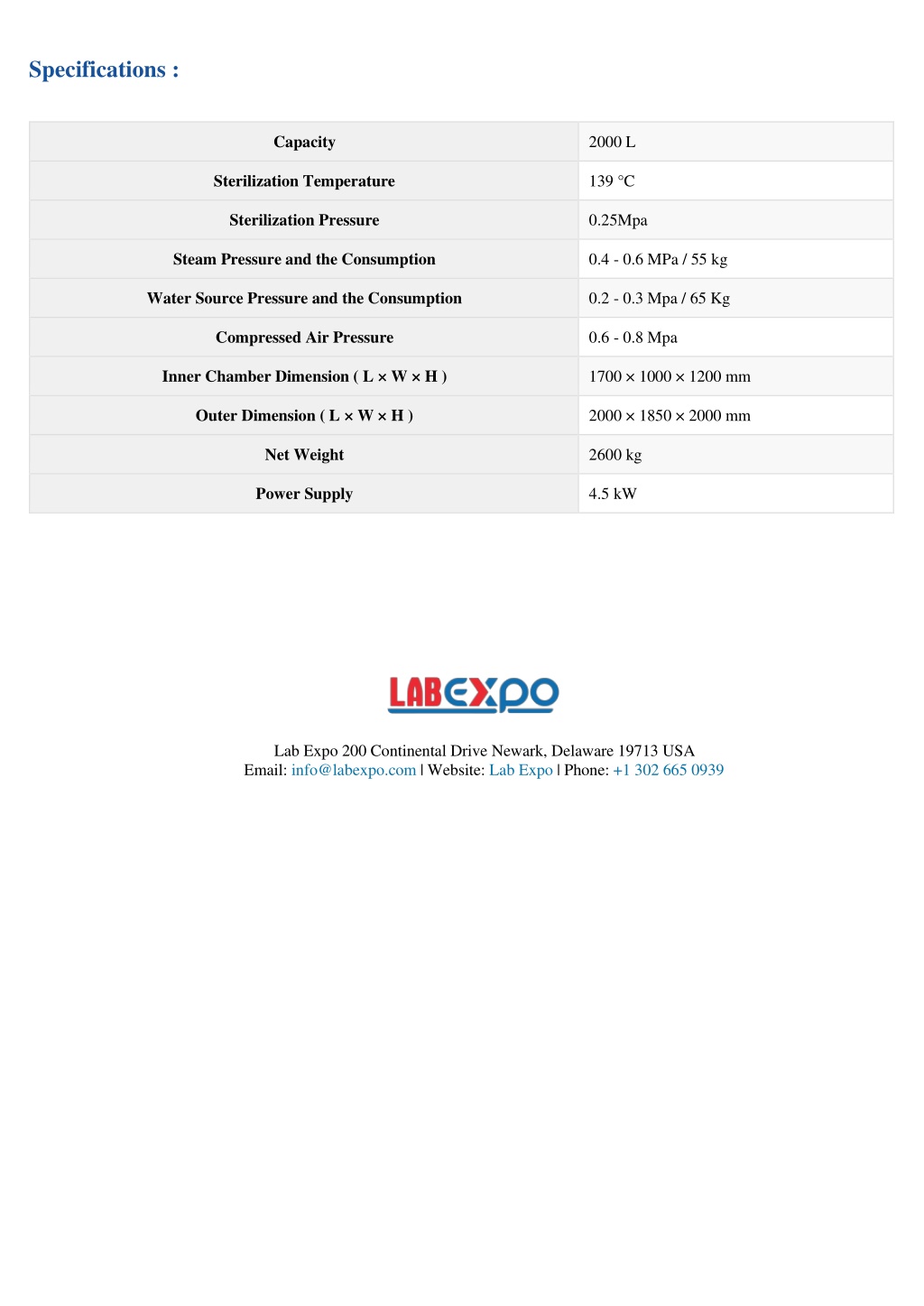

  3. Specifications : Capacity 2000 L Sterilization Temperature 139 °C Sterilization Pressure 0.25Mpa Steam Pressure and the Consumption 0.4 - 0.6 MPa / 55 kg Water Source Pressure and the Consumption 0.2 - 0.3 Mpa / 65 Kg Compressed Air Pressure 0.6 - 0.8 Mpa Inner Chamber Dimension ( L × W × H ) 1700 × 1000 × 1200 mm Outer Dimension ( L × W × H ) 2000 × 1850 × 2000 mm Net Weight 2600 kg Power Supply 4.5 kW Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
