Horizontal-Autoclave-

Labexpo horizontal autoclave is a 280-liter, fully automatic front-loading unit with microprocessor control. It operates at 134u00b0C with a pressure of 0.22 MPa. Key features include heat-resistant silicone rubber seals, automatic power and water shut-off, and low water level alarms for added safety.<br>

Zoe28
Download Presentation

Horizontal-Autoclave-

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

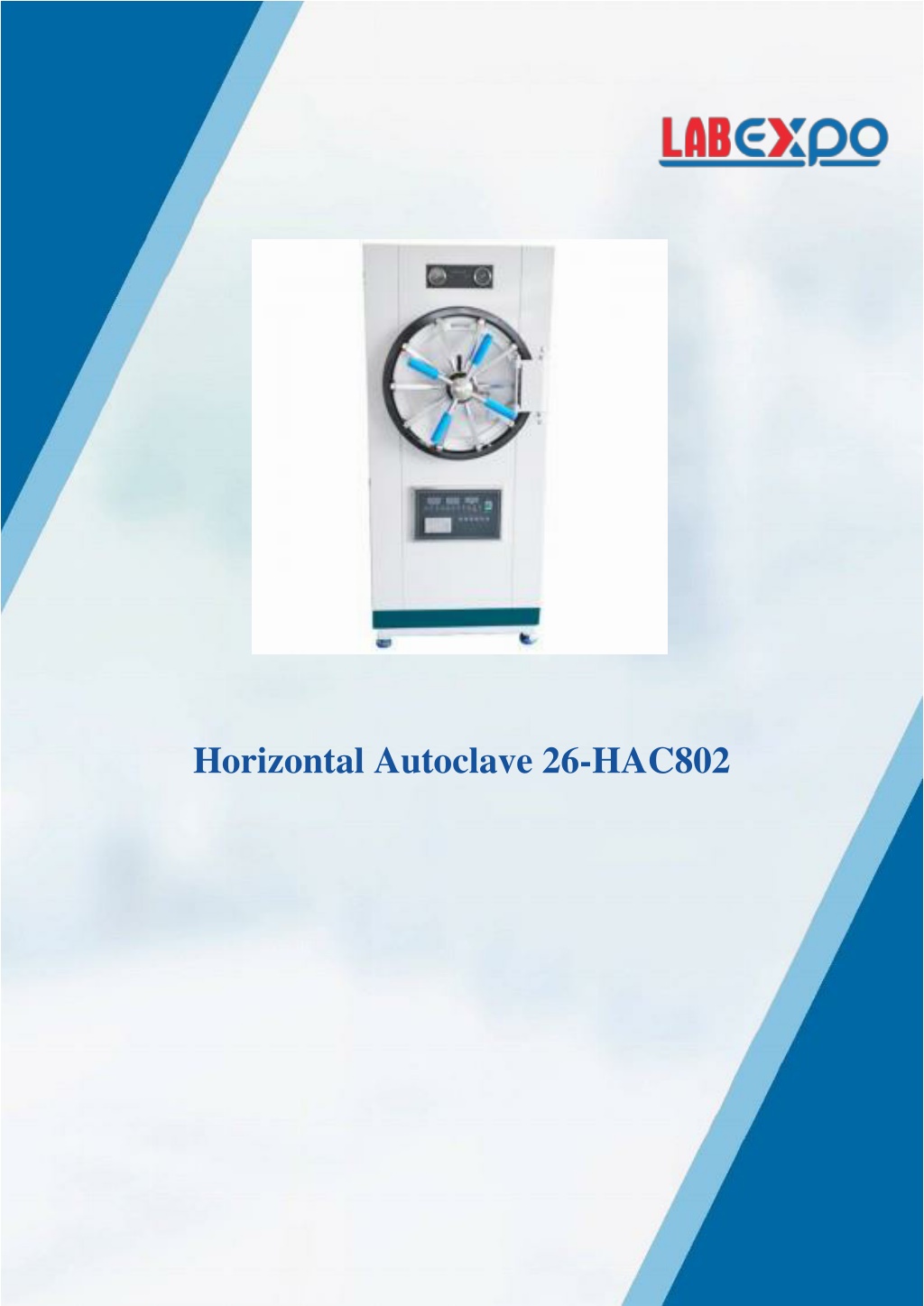

  1. Horizontal Autoclave 26-HAC802

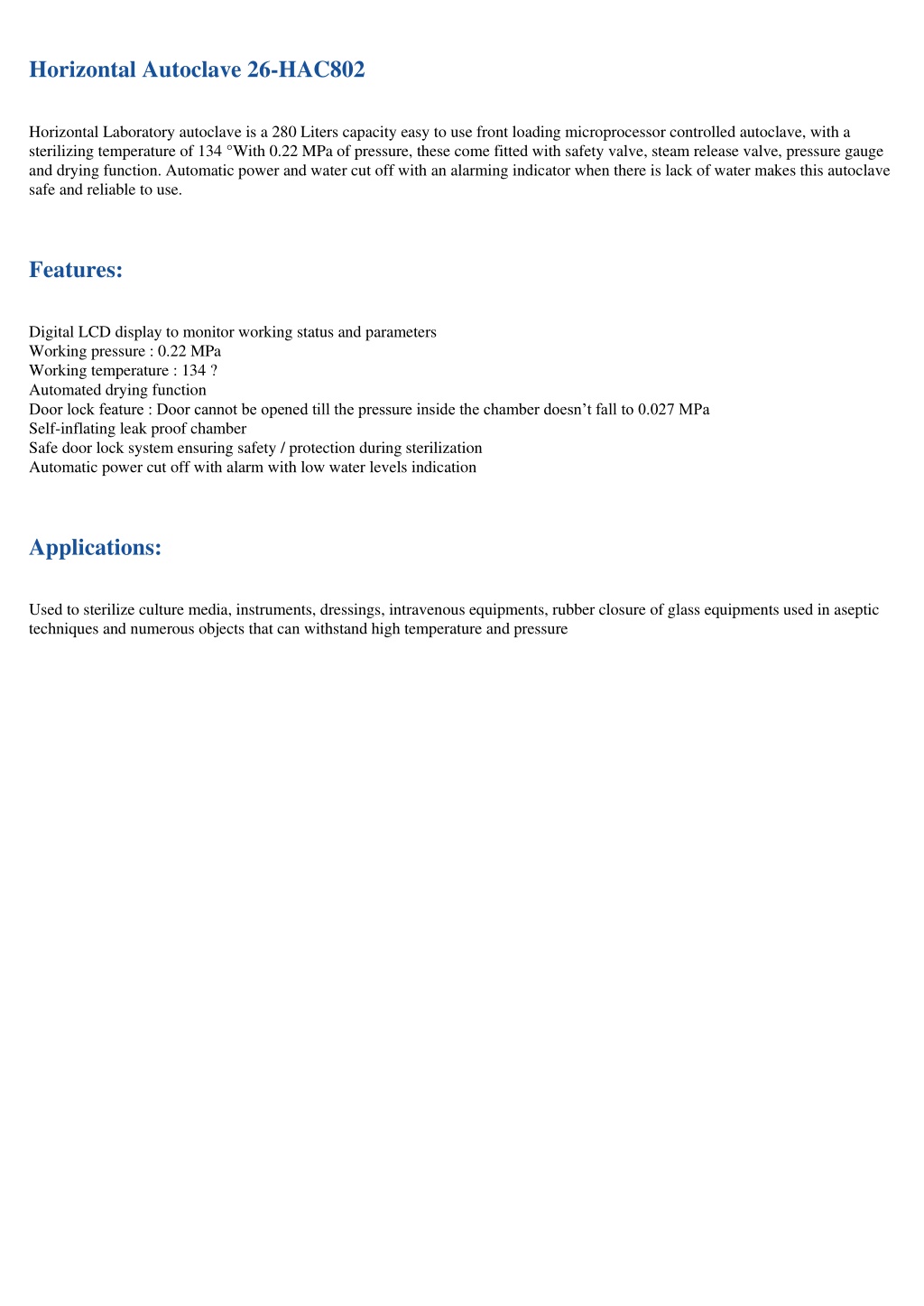

  2. Horizontal Autoclave 26-HAC802 Horizontal Laboratory autoclave is a 280 Liters capacity easy to use front loading microprocessor controlled autoclave, with a sterilizing temperature of 134 °With 0.22 MPa of pressure, these come fitted with safety valve, steam release valve, pressure gauge and drying function. Automatic power and water cut off with an alarming indicator when there is lack of water makes this autoclave safe and reliable to use. Features: Digital LCD display to monitor working status and parameters Working pressure : 0.22 MPa Working temperature : 134 ? Automated drying function Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Self-inflating leak proof chamber Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Applications: Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure

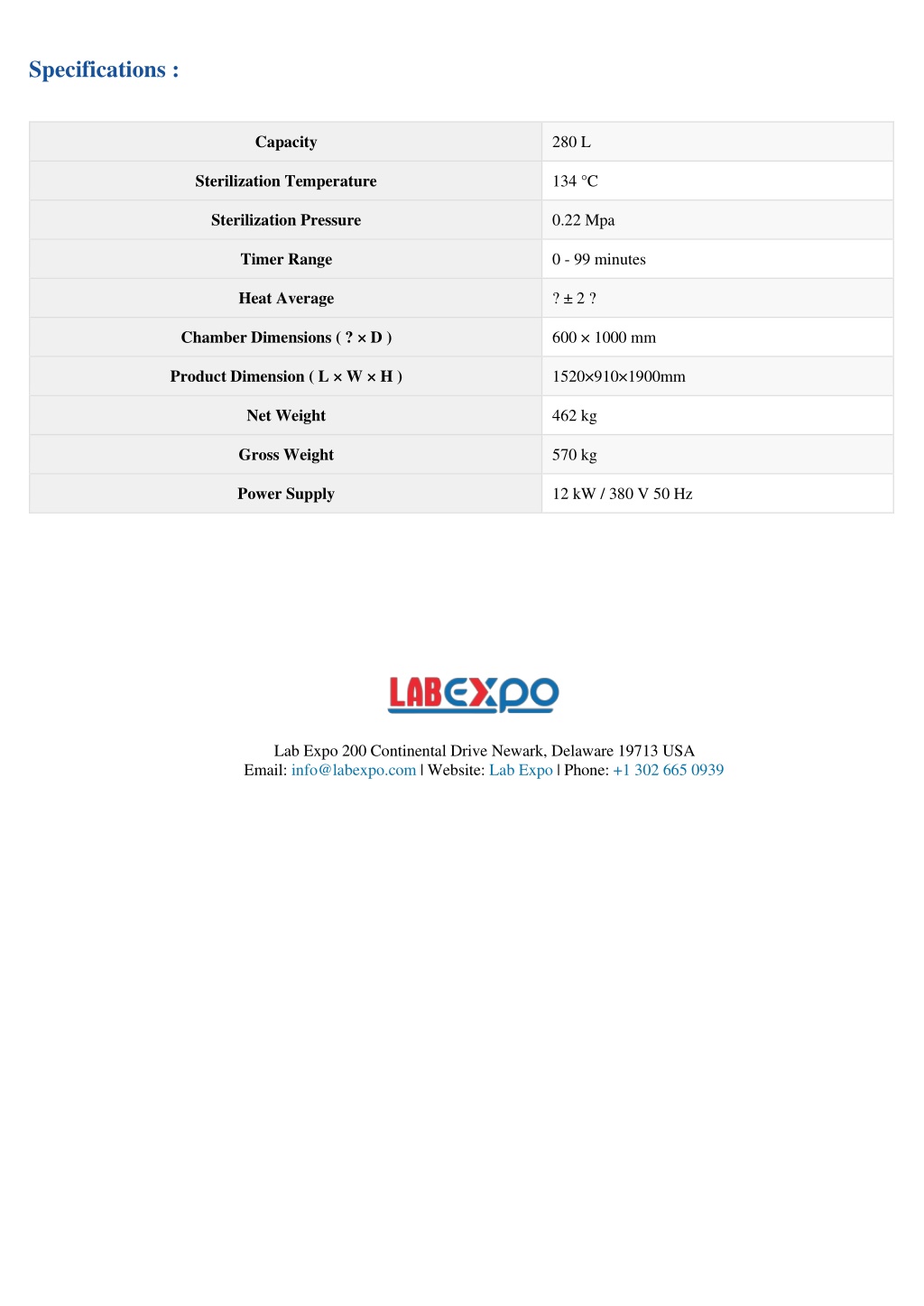

  3. Specifications : Capacity 280 L Sterilization Temperature 134 °C Sterilization Pressure 0.22 Mpa Timer Range 0 - 99 minutes Heat Average ? ± 2 ? Chamber Dimensions ( ? × D ) 600 × 1000 mm Product Dimension ( L × W × H ) 1520×910×1900mm Net Weight 462 kg Gross Weight 570 kg Power Supply 12 kW / 380 V 50 Hz Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
