Horizontal-Autoclave-134 ℃

Labexpo Horizontal Autoclave is a 280 L microprocessor-controlled unit with a 134u00b0C sterilization temperature and 0.22 MPa pressure. Features include a digital LCD display, automatic power cut-off, and safety alarms for low water levels. The door remains secure until pressure drops to 0.027 MPa.<br>

Zoe28
Download Presentation

Horizontal-Autoclave-134 ℃

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

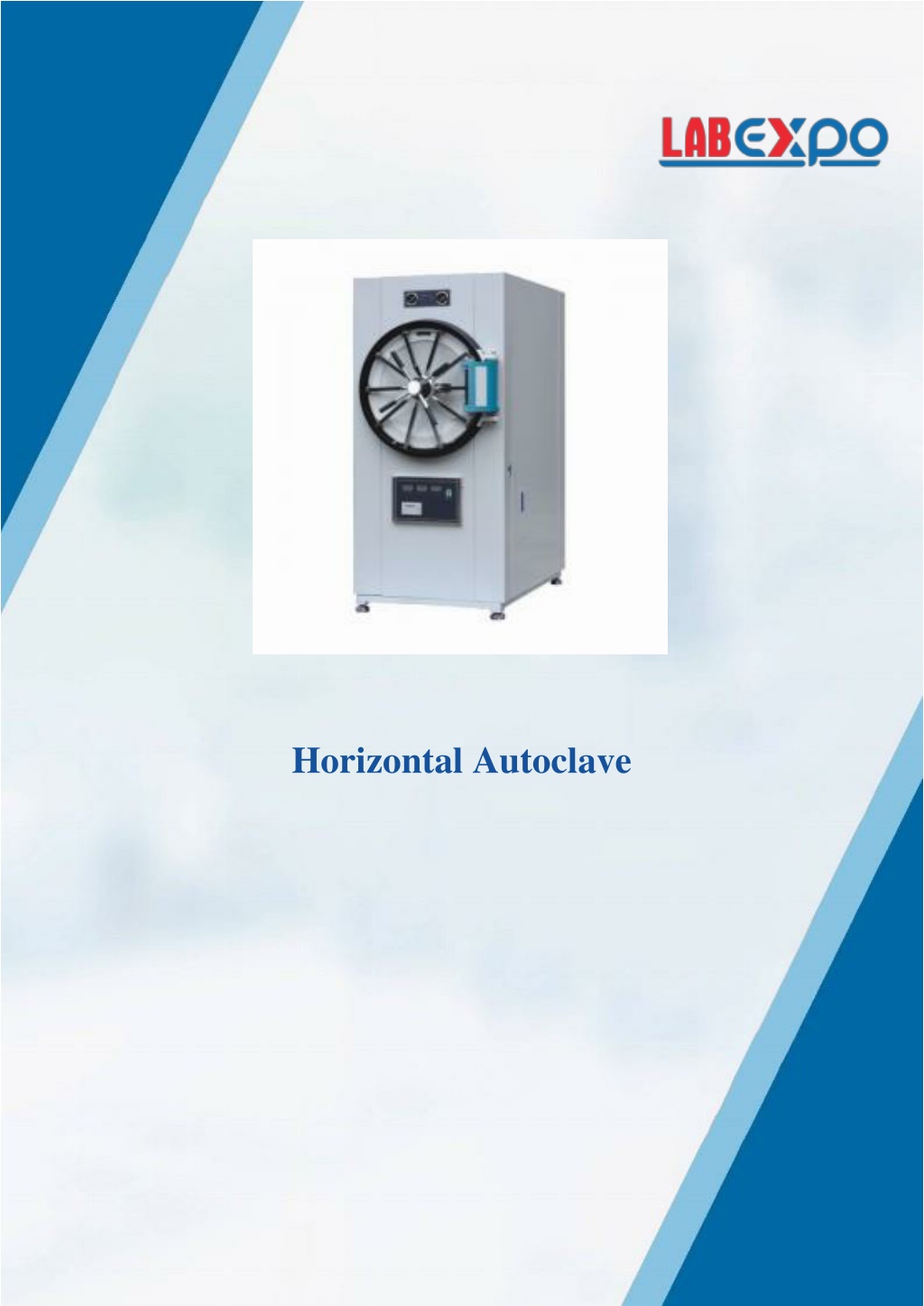

  1. Horizontal Autoclave

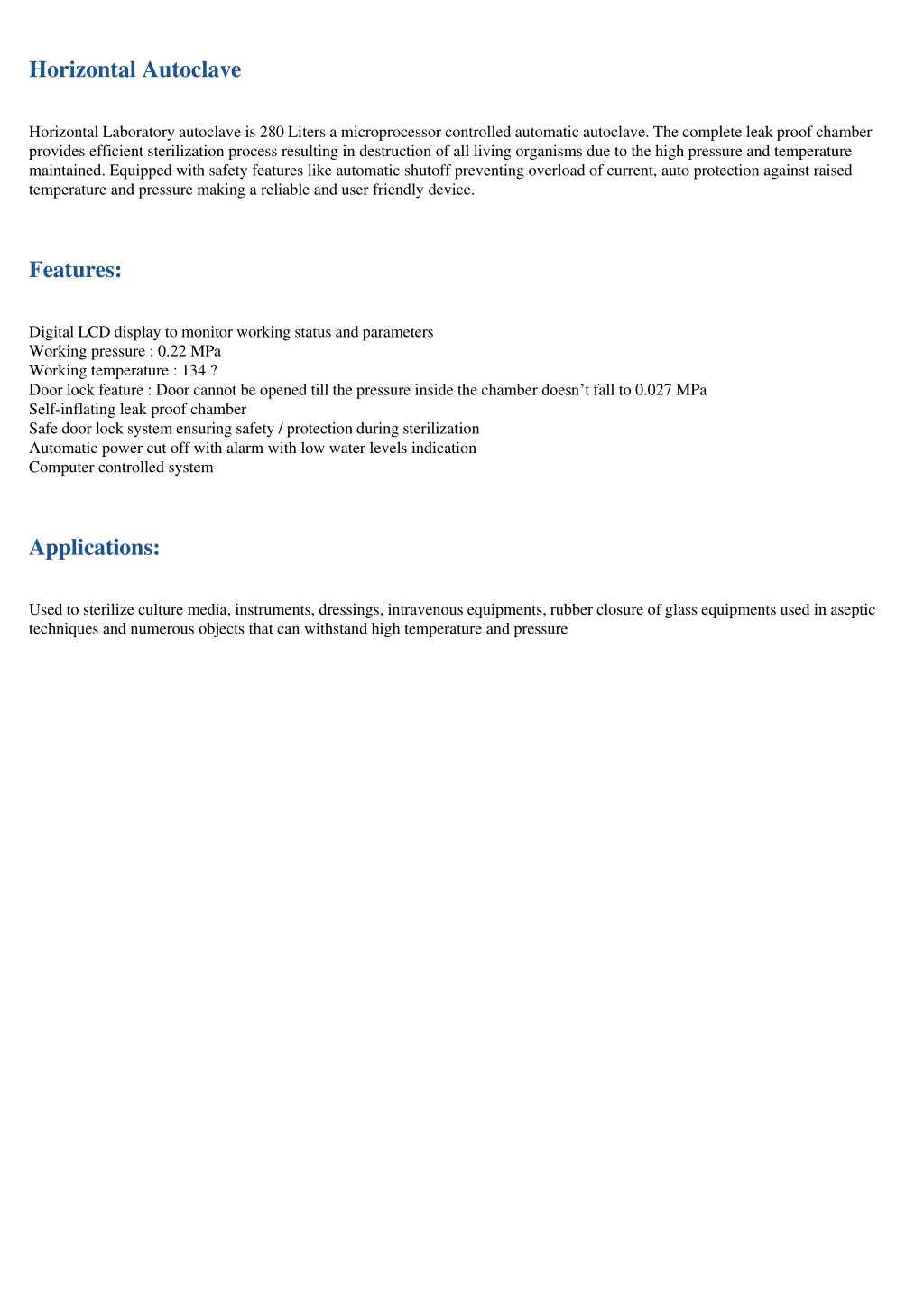

  2. Horizontal Autoclave Horizontal Laboratory autoclave is 280 Liters a microprocessor controlled automatic autoclave. The complete leak proof chamber provides efficient sterilization process resulting in destruction of all living organisms due to the high pressure and temperature maintained. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device. Features: Digital LCD display to monitor working status and parameters Working pressure : 0.22 MPa Working temperature : 134 ? Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Self-inflating leak proof chamber Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Computer controlled system Applications: Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure

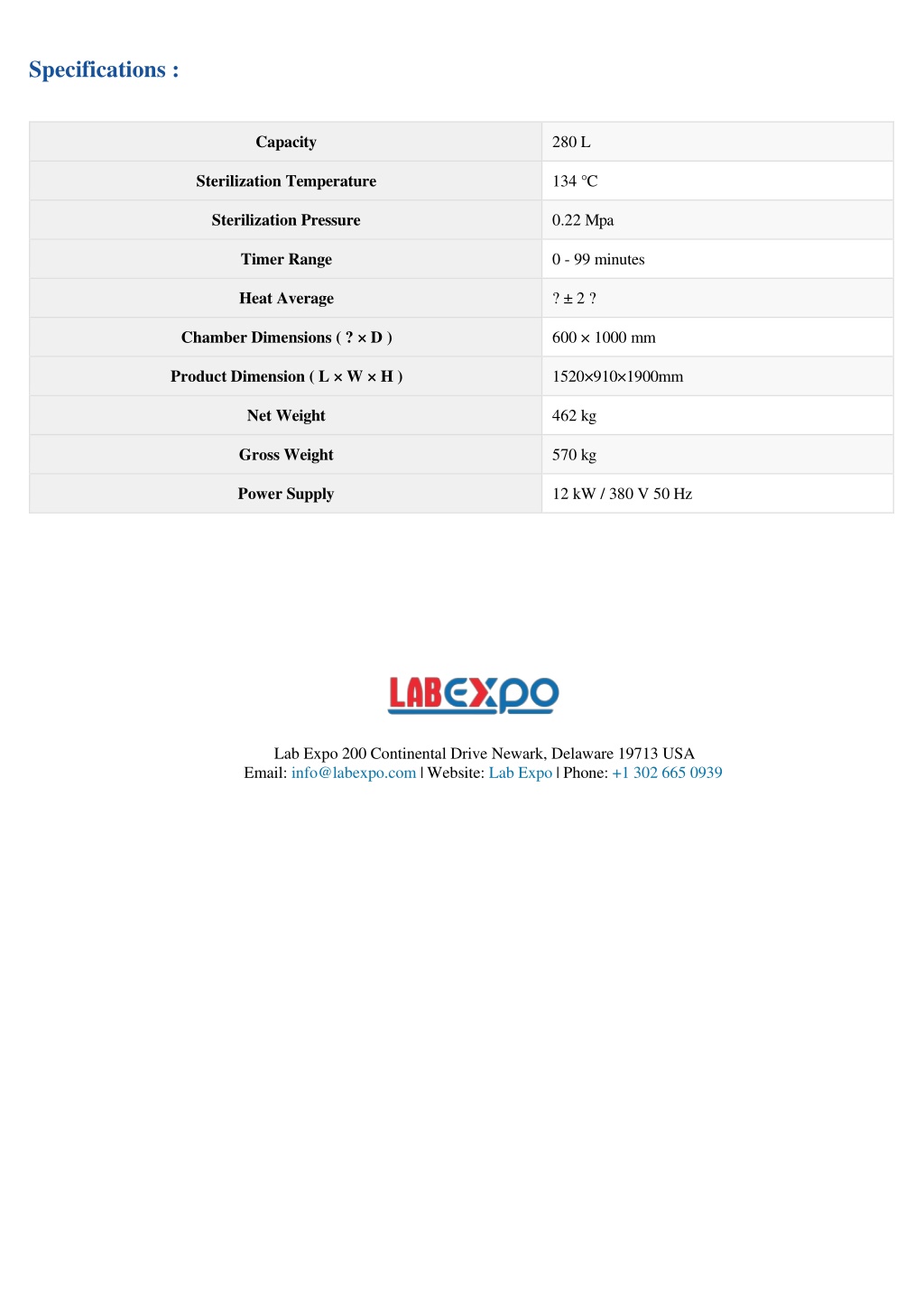

  3. Specifications : Capacity 280 L Sterilization Temperature 134 °C Sterilization Pressure 0.22 Mpa Timer Range 0 - 99 minutes Heat Average ? ± 2 ? Chamber Dimensions ( ? × D ) 600 × 1000 mm Product Dimension ( L × W × H ) 1520×910×1900mm Net Weight 462 kg Gross Weight 570 kg Power Supply 12 kW / 380 V 50 Hz Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
