Horizontal-Autoclave-

Labexpo horizontal autoclave offers 500L capacity, microprocessor control, and operates at 134u00b0C with 0.22 MPa pressure. It features a digital LCD display, a safe door lock system, and automatic power cut-off with an alarm for low water levels, ensuring safe and dependable sterilization.

Zoe28
Download Presentation

Horizontal-Autoclave-

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

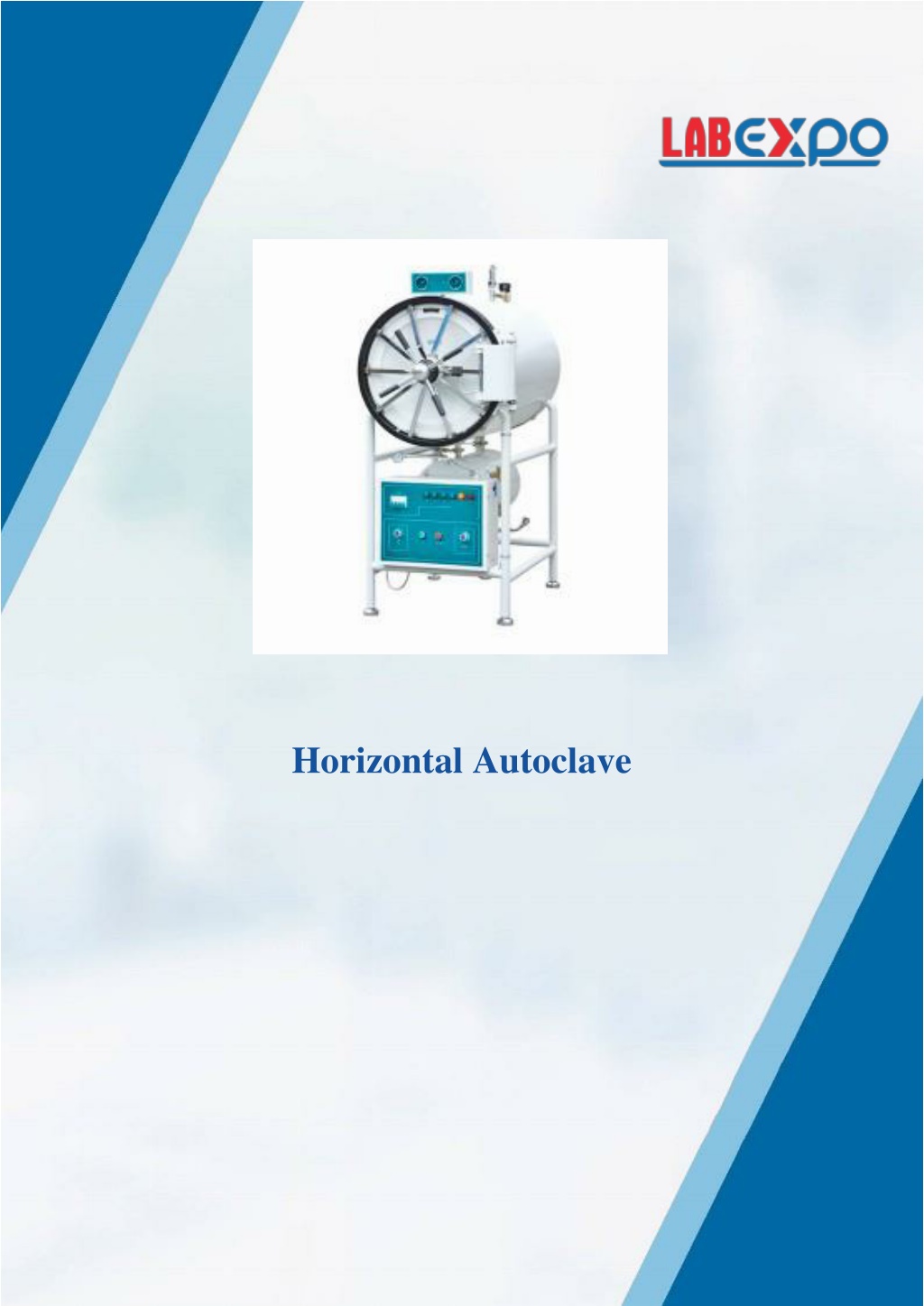

  1. Horizontal Autoclave

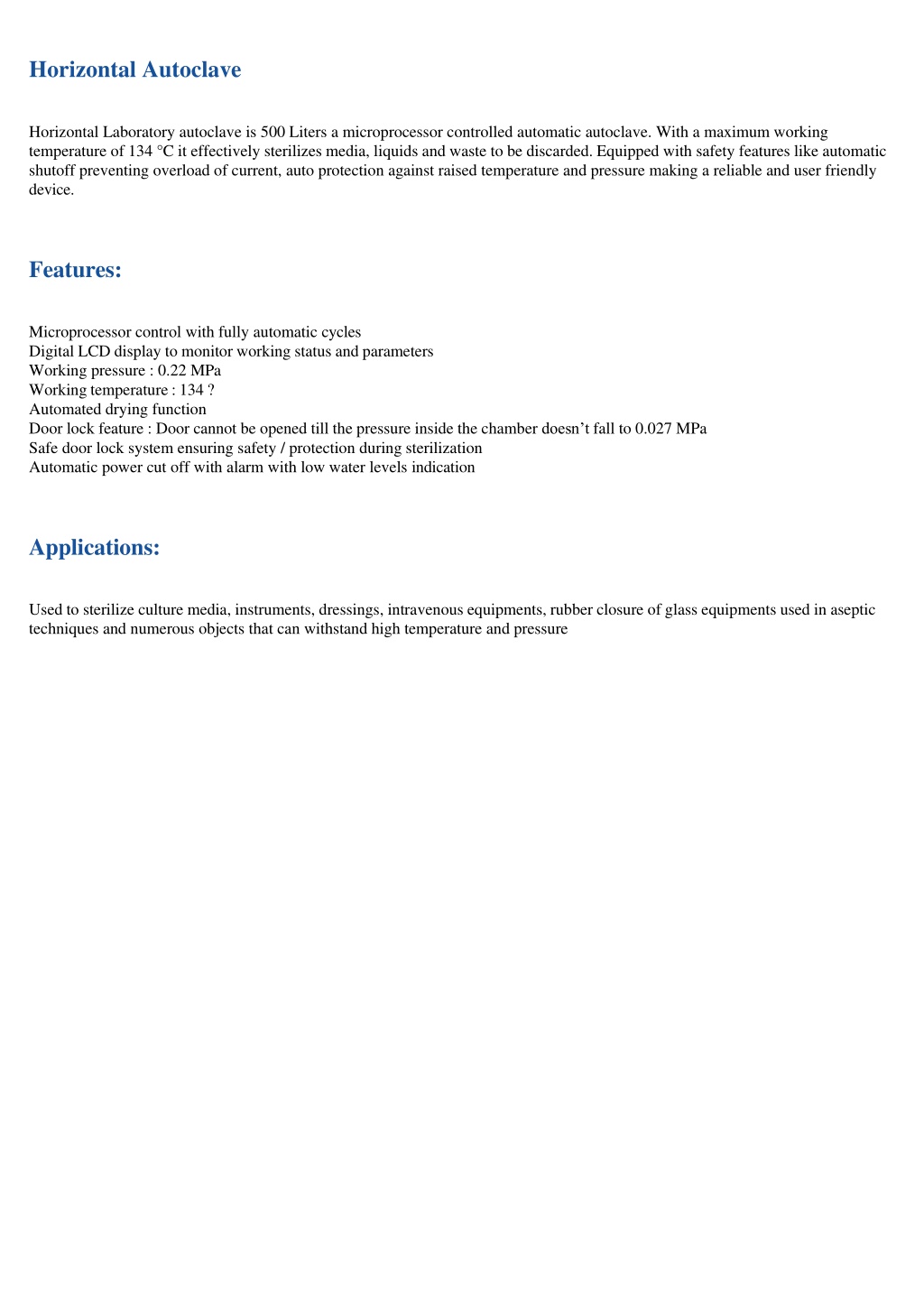

  2. Horizontal Autoclave Horizontal Laboratory autoclave is 500 Liters a microprocessor controlled automatic autoclave. With a maximum working temperature of 134 °C it effectively sterilizes media, liquids and waste to be discarded. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device. Features: Microprocessor control with fully automatic cycles Digital LCD display to monitor working status and parameters Working pressure : 0.22 MPa Working temperature : 134 ? Automated drying function Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Applications: Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure

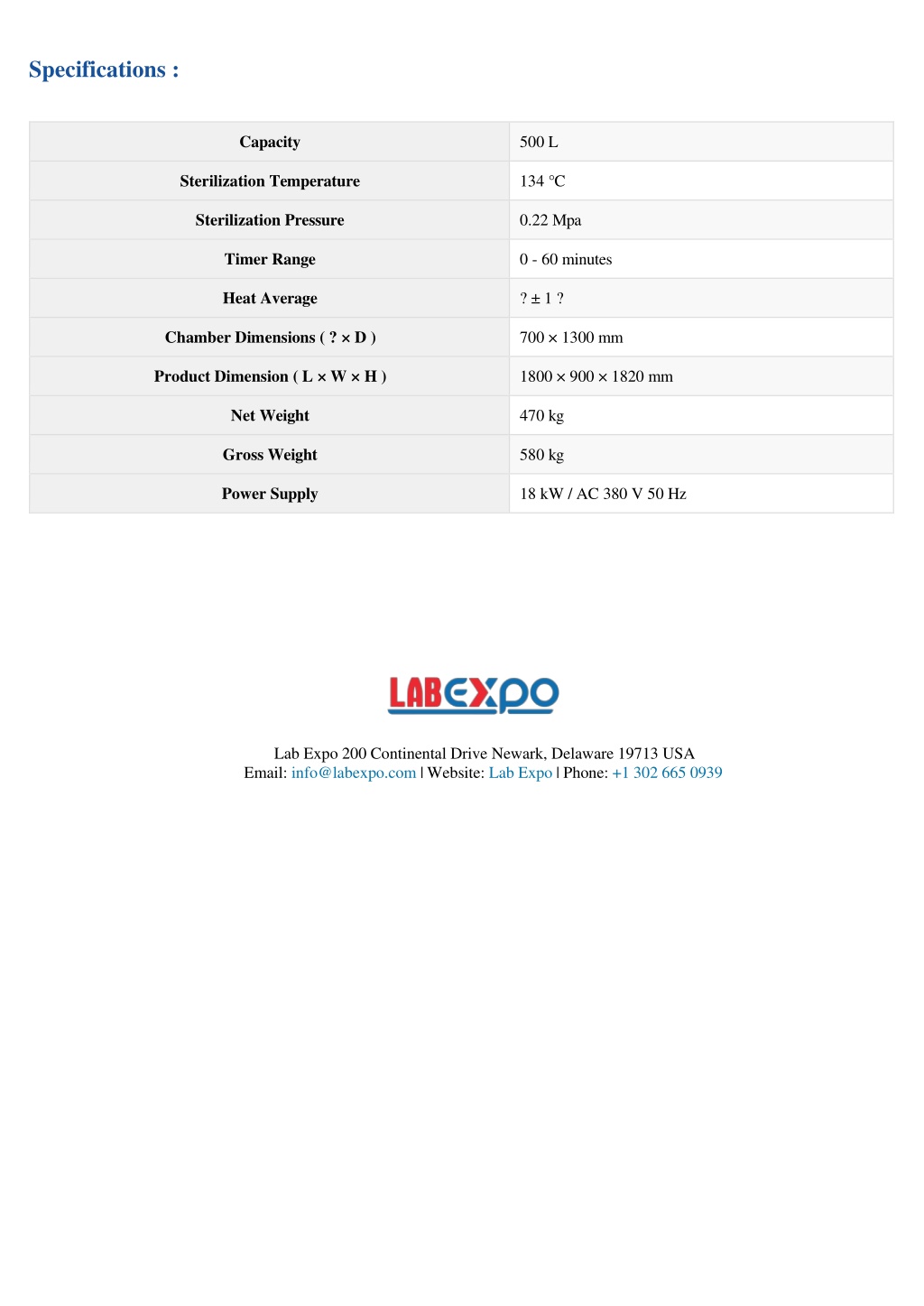

  3. Specifications : Capacity 500 L Sterilization Temperature 134 °C Sterilization Pressure 0.22 Mpa Timer Range 0 - 60 minutes Heat Average ? ± 1 ? Chamber Dimensions ( ? × D ) 700 × 1300 mm Product Dimension ( L × W × H ) 1800 × 900 × 1820 mm Net Weight 470 kg Gross Weight 580 kg Power Supply 18 kW / AC 380 V 50 Hz Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
