Acid-Number-Tester 10 °C ~ 40 °C

Labexpo Acid Number Tester is designed as per ASTM D664-11a test method and measures 0.001-0.999 mg KOH/g with 0.004 mg repeatability. Operating at 10u00b0C to 40u00b0C, it features robotic control, a blue LCD, a lightweight, noiseless design, and automatic data printing. Ideal for precise testing needs<br>

Zoe28
Download Presentation

Acid-Number-Tester 10 °C ~ 40 °C

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

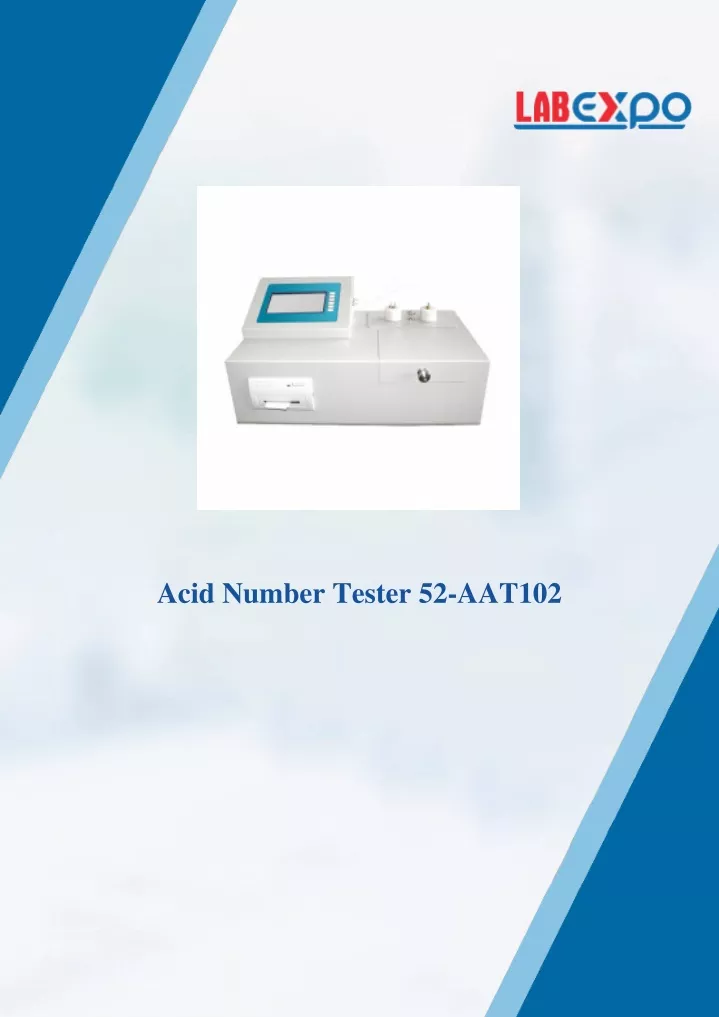

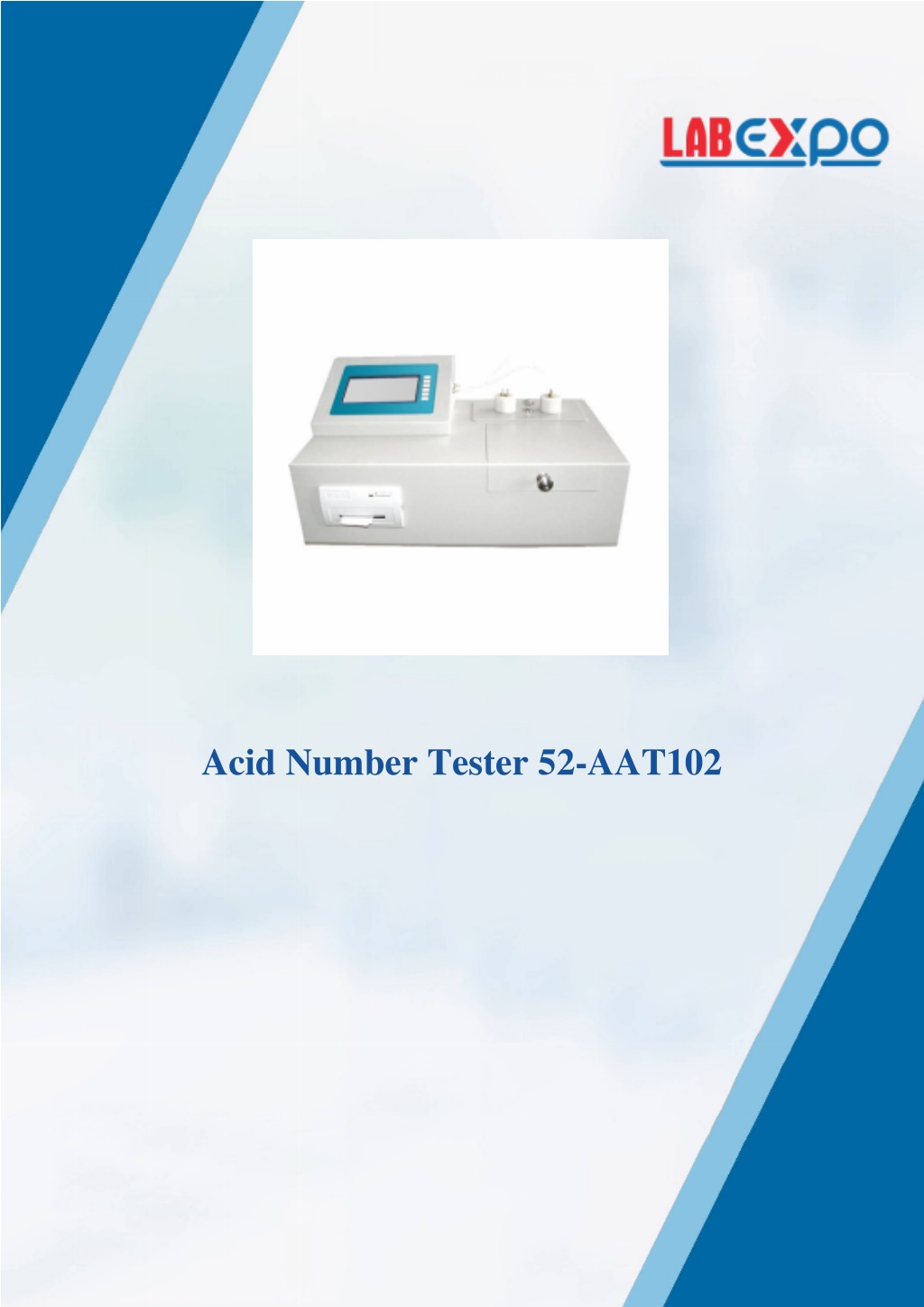

  1. Acid Number Tester 52-AAT102

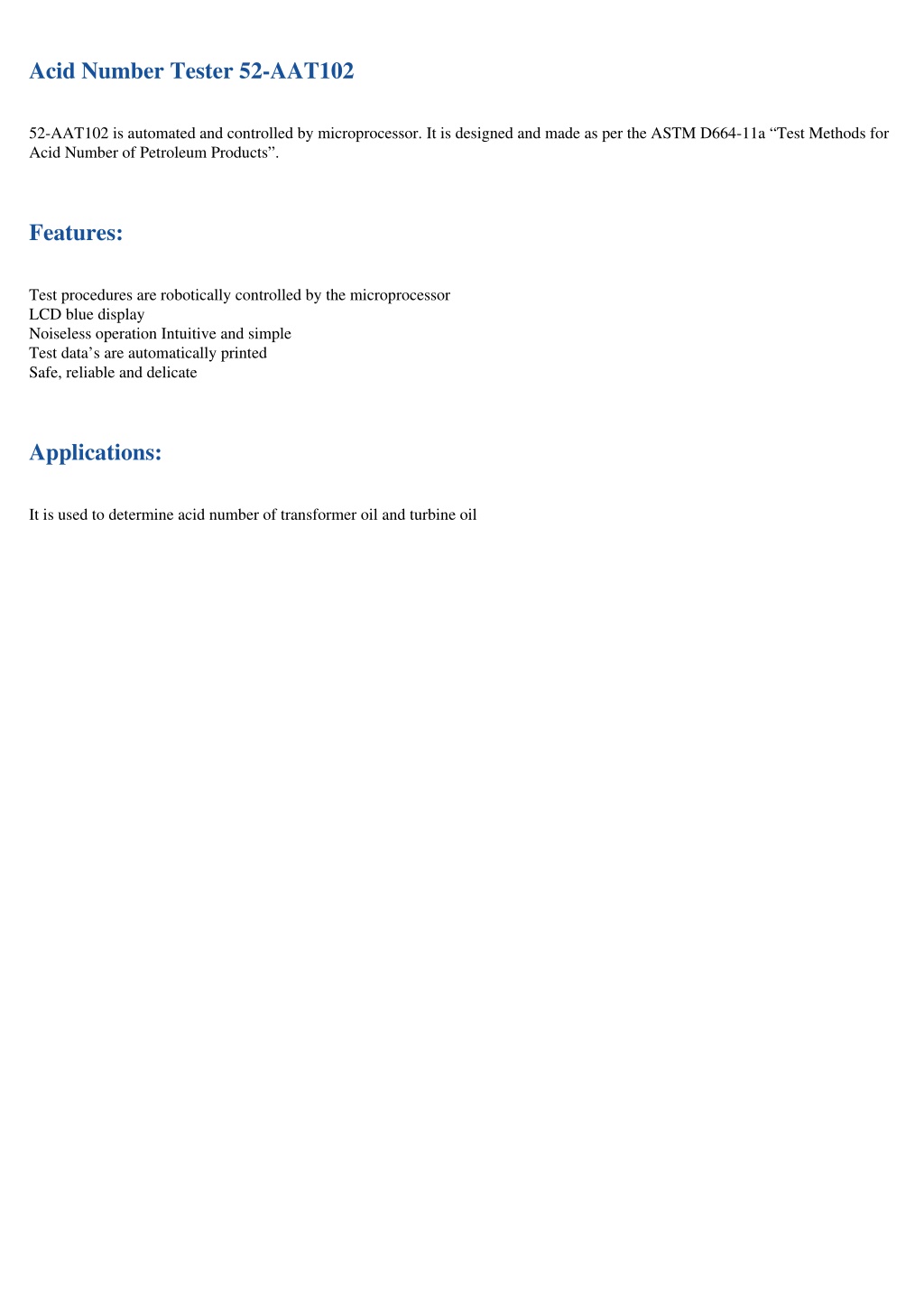

  2. Acid Number Tester 52-AAT102 52-AAT102 is automated and controlled by microprocessor. It is designed and made as per the ASTM D664-11a “Test Methods for Acid Number of Petroleum Products”. Features: Test procedures are robotically controlled by the microprocessor LCD blue display Noiseless operation Intuitive and simple Test data’s are automatically printed Safe, reliable and delicate Applications: It is used to determine acid number of transformer oil and turbine oil

  3. Specifications : Measurement range 0.001 to 0.999 mg KOH / g Resolution 0.001 mg KOH / g Repeatability 0.004 mg KOH / g Acid number 0.1: ± 0.005 mg KOH / g; Acid number ? 0.1: 5 % of displayed value Test accuracy Ambient temperature 10 °C ~ 40 °C Relative humidity 75 % Total power consumption 100 W Power supply AC 220 V ± 10 %, 50 Hz Dimensions 560 x 400 x 350 mm, 70 x 310 x 250 mm Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
