EXPANDED GRAPHITE PACKING (STYLE 41)

Zenith Marketing is one of the leading graphite gasket manufacturers in India, offering expanded graphite packing and sealing solutions that deliver exceptional heat resistance, chemical stability, and durability for demanding industrial applications.

Zenithmarketing
Download Presentation

EXPANDED GRAPHITE PACKING (STYLE 41)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

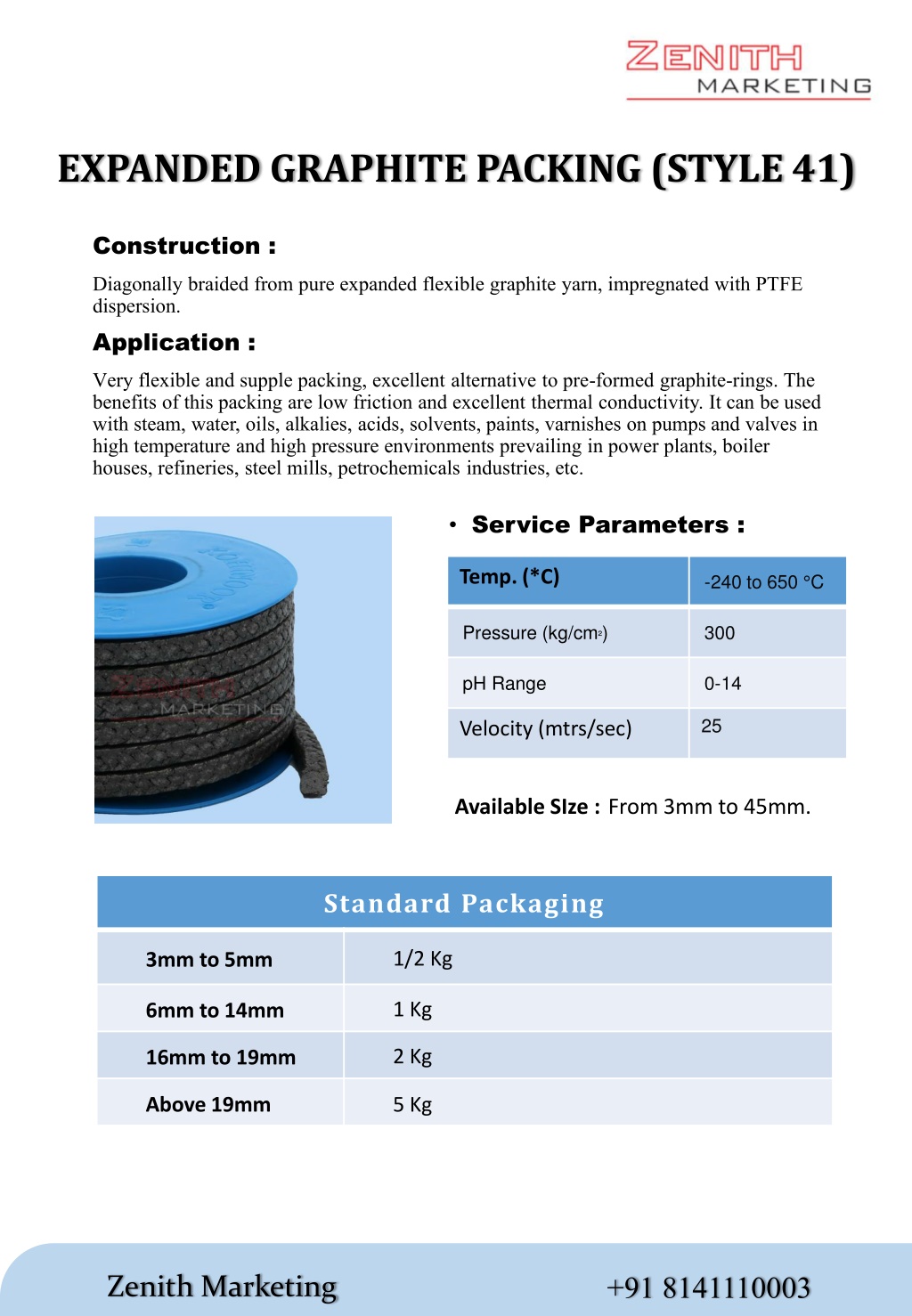

  1. EXPANDED GRAPHITE PACKING (STYLE 41) Construction : Diagonally braided from pure expanded flexible graphite yarn, impregnated with PTFE dispersion. Application : Very flexible and supple packing, excellent alternative to pre-formed graphite-rings. The benefits of this packing are low friction and excellent thermal conductivity. It can be used with steam, water, oils, alkalies, acids, solvents, paints, varnishes on pumps and valves in high temperature and high pressure environments prevailing in power plants, boiler houses, refineries, steel mills, petrochemicals industries, etc. • Service Parameters : Temp. (*C) -240 to 650 °C Pressure (kg/cm²) 300 pH Range 0-14 25 Velocity (mtrs/sec) Available SIze :From 3mm to 45mm. Standard Packaging 1/2 Kg 3mm to 5mm 1 Kg 6mm to 14mm 2 Kg 16mm to 19mm Above 19mm 5 Kg +91 8141110003 Zenith Marketing
