Plasma-Autoclave-LX600LA

The Labdex Plasma Autoclave is a 190L sterilizer with an anti-rust aluminum chamber, double doors, and three sterilization programs. It uses 60% Hu2082Ou2082 at 50u00b0C for 45u201350 minutes. Key features include a 7-inch touchscreen, real-time data display, alarm system, and an Hu2082Ou2082-resistant vacuum pump for enhanced performance.

Zaynab6
Download Presentation

Plasma-Autoclave-LX600LA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

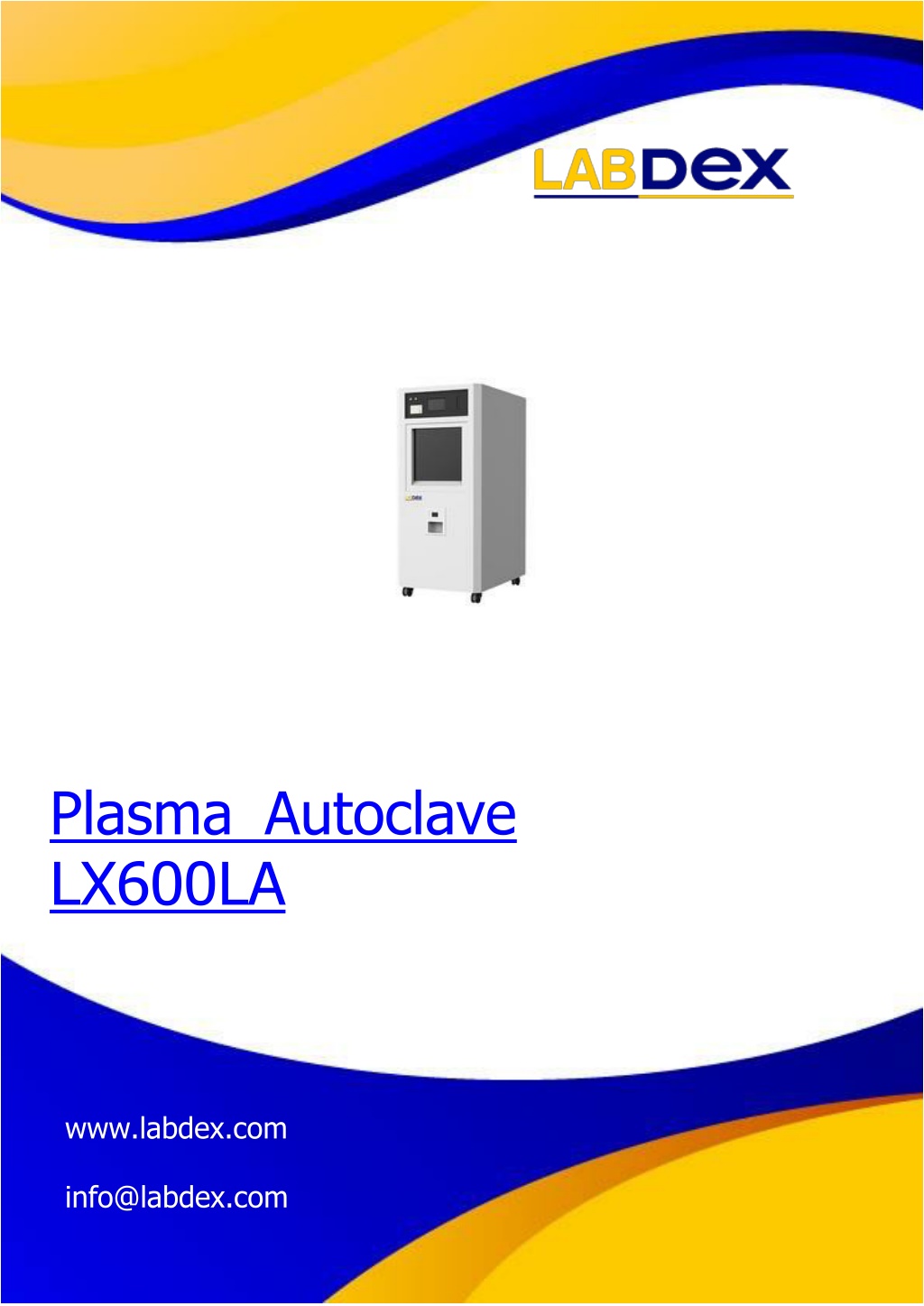

  1. Plasma Autoclave LX600LA www.labdex.com info@labdex.com

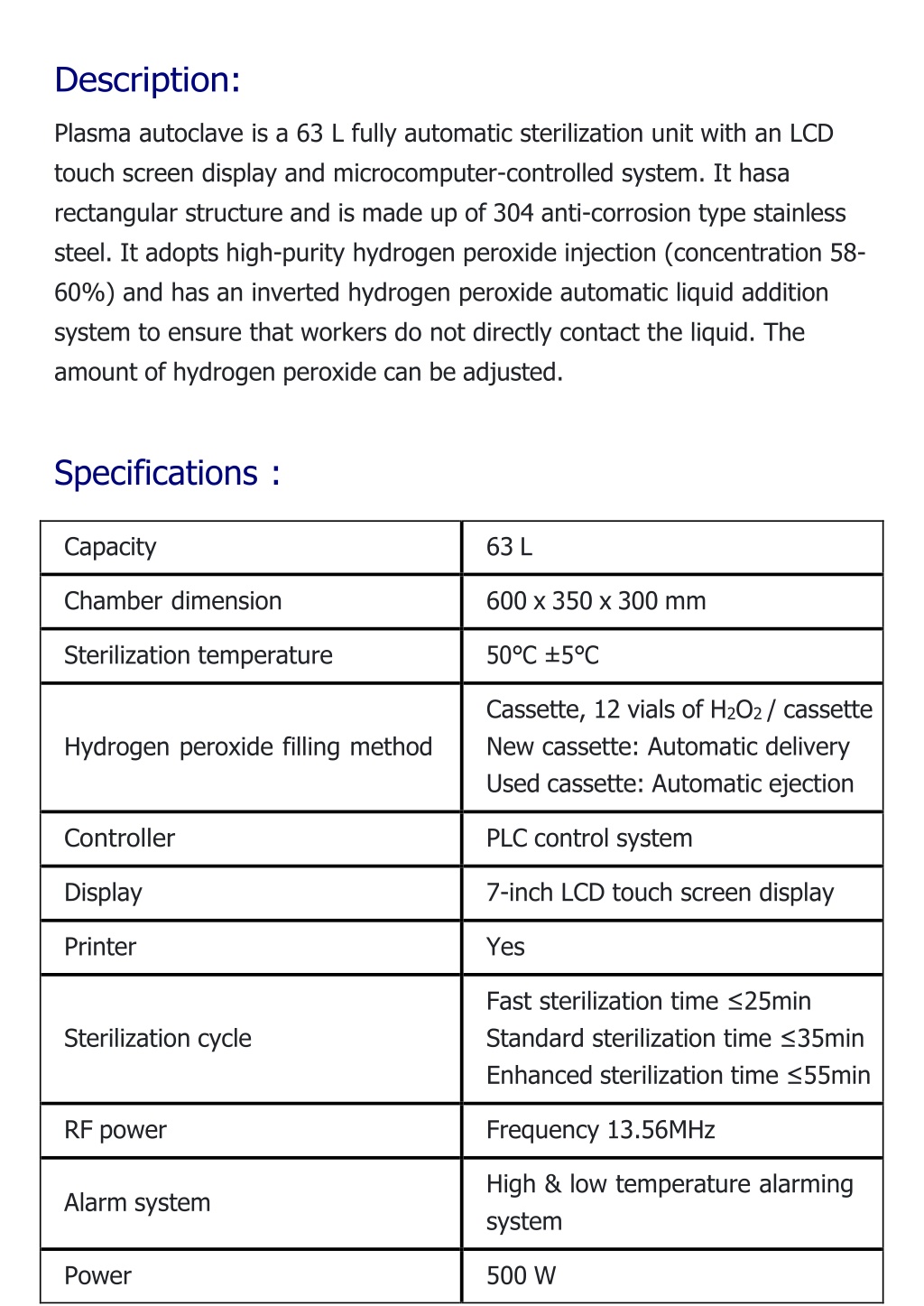

  2. Description: Plasma autoclave is a 63 L fully automatic sterilization unit with an LCD touch screen display and microcomputer-controlled system. It has a rectangular structure and is made up of 304 anti-corrosion type stainless steel. It adopts high-purity hydrogen peroxide injection (concentration 58- 60%) and has an inverted hydrogen peroxide automatic liquid addition system to ensure that workers do not directly contact the liquid. The amount of hydrogen peroxide can be adjusted. Specifications : Capacity 63 L Chamber dimension 600 x 350 x 300 mm Sterilization temperature 50℃ ±5℃ Cassette, 12 vials of H2O2 / cassette New cassette: Automatic delivery Used cassette: Automatic ejection Hydrogen peroxide filling method Controller PLC control system Display 7-inch LCD touch screen display Printer Yes Fast sterilization time ≤25min Standard sterilization time ≤35min Enhanced sterilization time ≤55min Sterilization cycle RF power Frequency 13.56MHz High & low temperature alarming system Alarm system Power 500 W

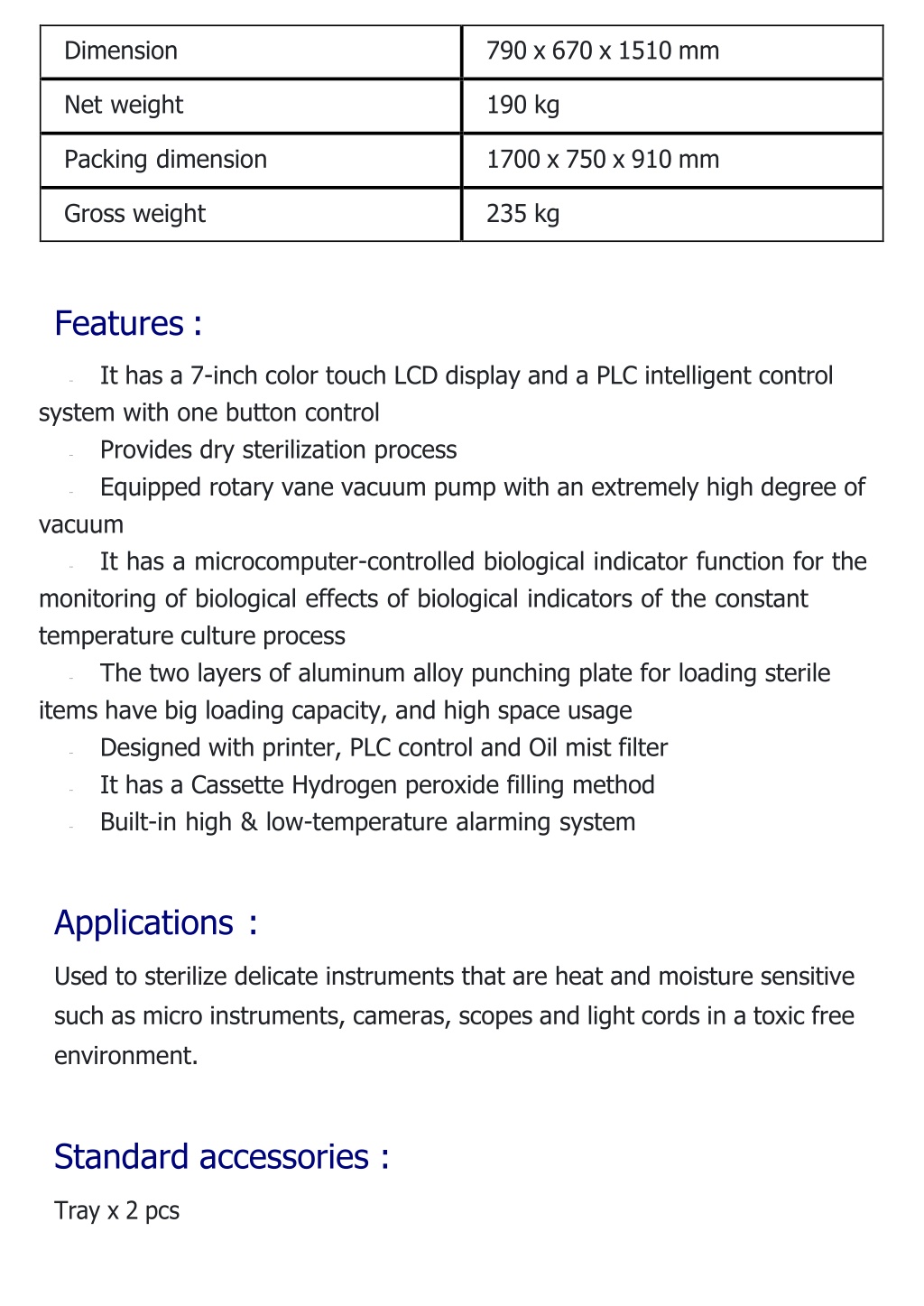

  3. Dimension 790 x 670 x 1510 mm Net weight 190 kg Packing dimension 1700 x 750 x 910 mm Gross weight 235 kg Features : It has a 7-inch color touch LCD display and a PLC intelligent control system with one button control Provides dry sterilization process Equipped rotary vane vacuum pump with an extremely high degree of vacuum It has a microcomputer-controlled biological indicator function for the monitoring of biological effects of biological indicators of the constant temperature culture process The two layers of aluminum alloy punching plate for loading sterile items have big loading capacity, and high space usage Designed with printer, PLC control and Oil mist filter It has a Cassette Hydrogen peroxide filling method Built-in high & low-temperature alarming system ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ Applications : Used to sterilize delicate instruments that are heat and moisture sensitive such as micro instruments, cameras, scopes and light cords in a toxic free environment. Standard accessories : Tray x 2 pcs

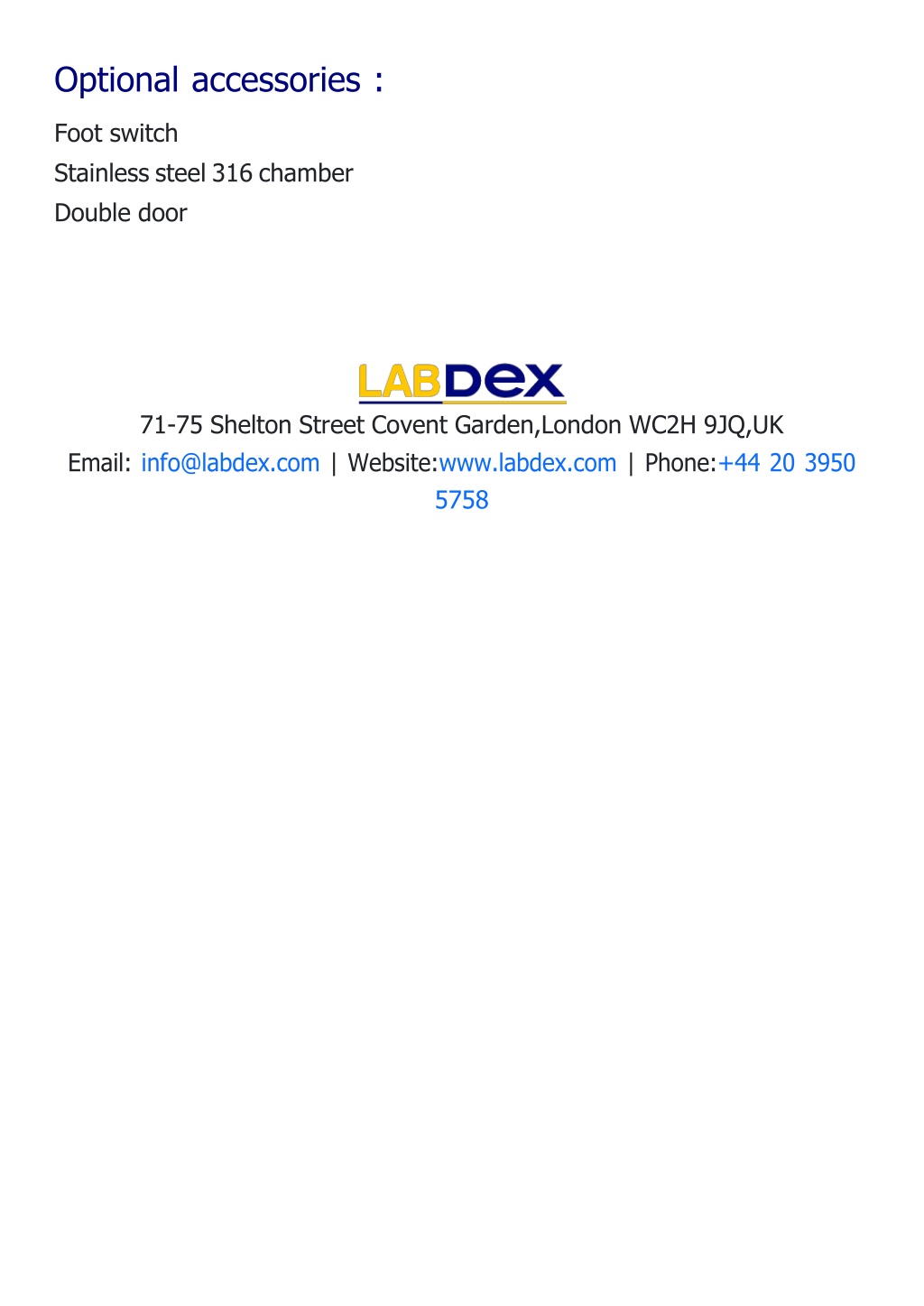

  4. Optional accessories : Foot switch Stainless steel 316 chamber Double door 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
