Horizontal-Laboratory-Autoclave-LX170HA

Labdex horizontal laboratory autoclave offers a 150-liter capacity with an adjustable sterilization range from 105u00b0C to 134u00b0C. Equipped with a premium water ring pump and internal circulation, it ensures easy setup. Its automatic power cut off with low water level indication.

Zaynab6
Download Presentation

Horizontal-Laboratory-Autoclave-LX170HA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

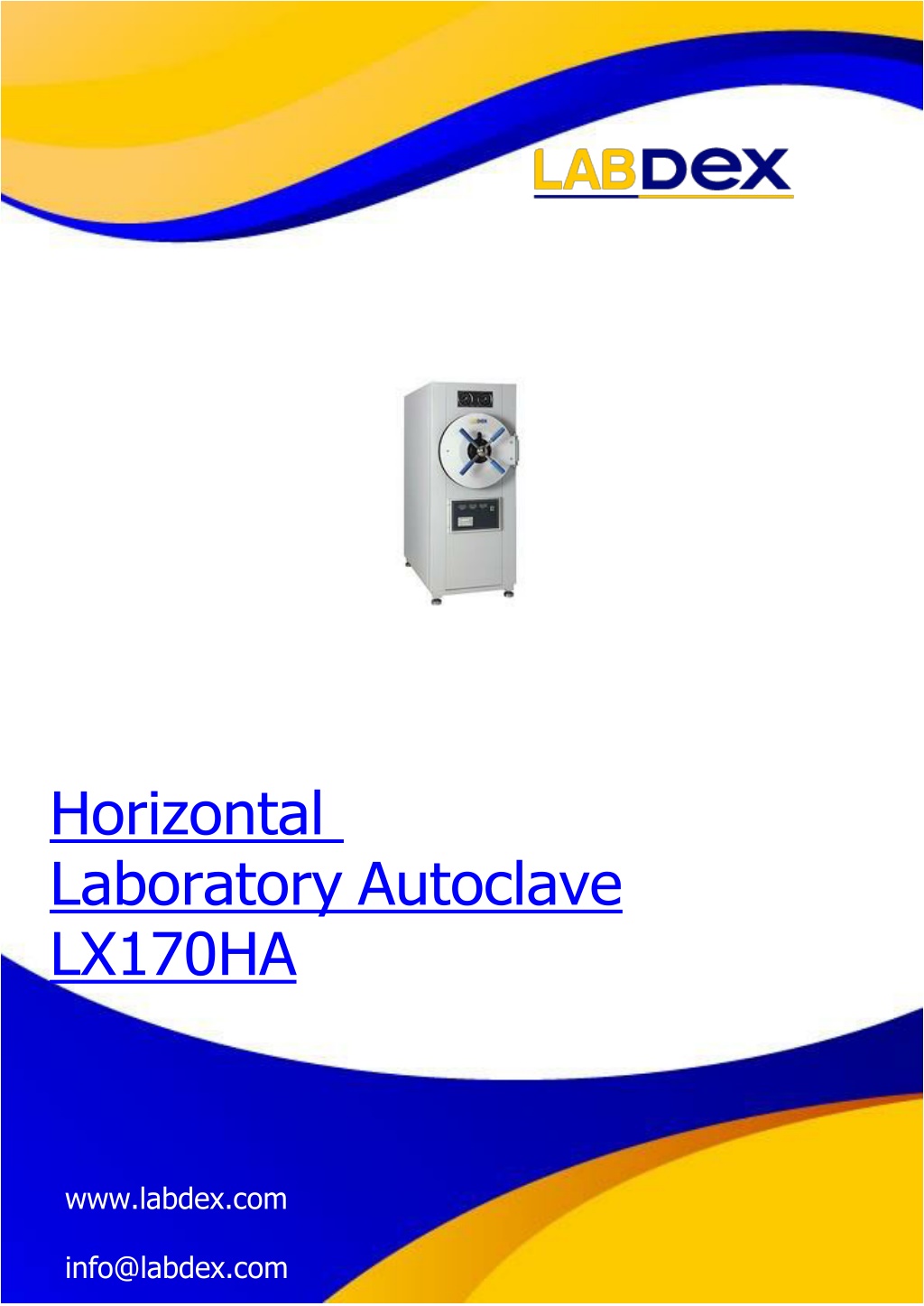

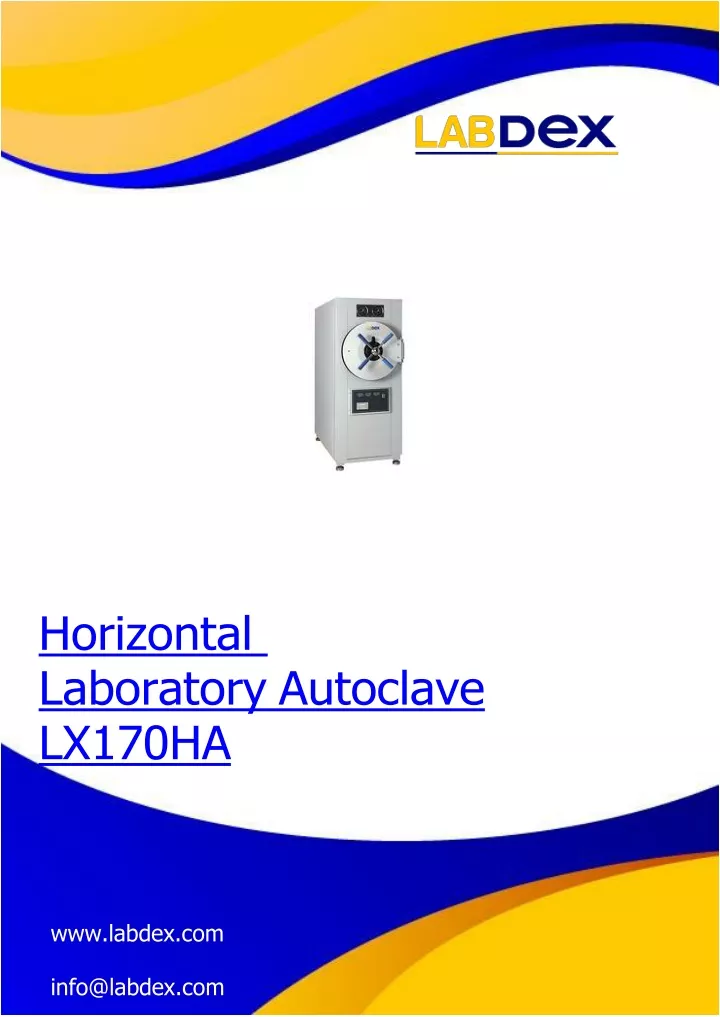

  1. Horizontal Laboratory Autoclave LX170HA www.labdex.com info@labdex.com

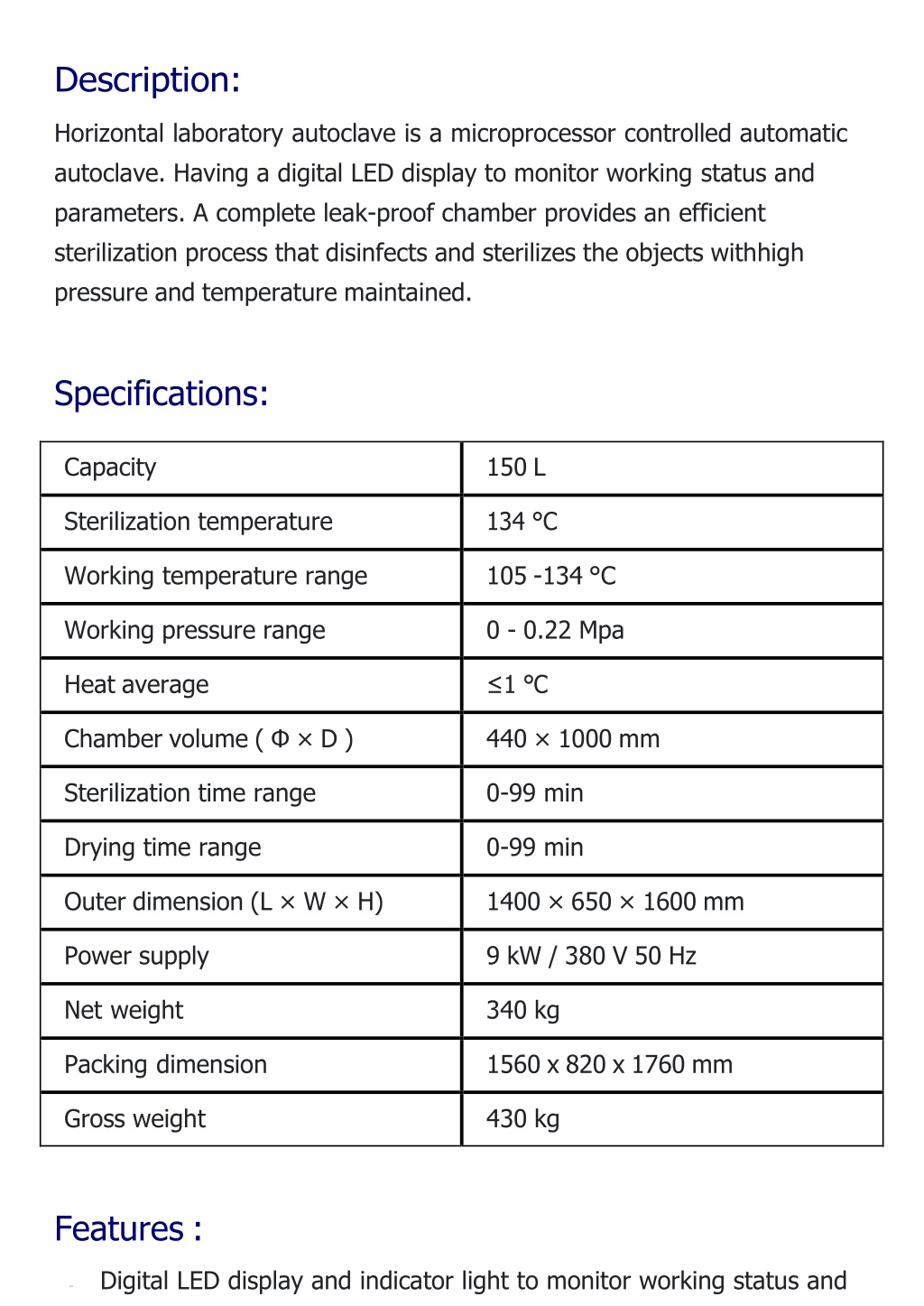

  2. Description: Horizontal laboratory autoclave is a microprocessor controlled automatic autoclave. Having a digital LED display to monitor working status and parameters. A complete leak-proof chamber provides an efficient sterilization process that disinfects and sterilizes the objects with high pressure and temperature maintained. Specifications: Capacity 150 L Sterilization temperature 134 °C Working temperature range 105 -134 °C Working pressure range 0 - 0.22 Mpa Heat average ≤1℃ Chamber volume ( Φ × D ) 440 × 1000 mm Sterilization time range 0-99 min Drying time range 0-99 min Outer dimension (L × W × H) 1400 × 650 × 1600 mm Power supply 9 kW / 380 V 50 Hz Net weight 340 kg Packing dimension 1560 x 820 x 1760 mm Gross weight 430 kg Features : Digital LED display and indicator light to monitor working status and ¨

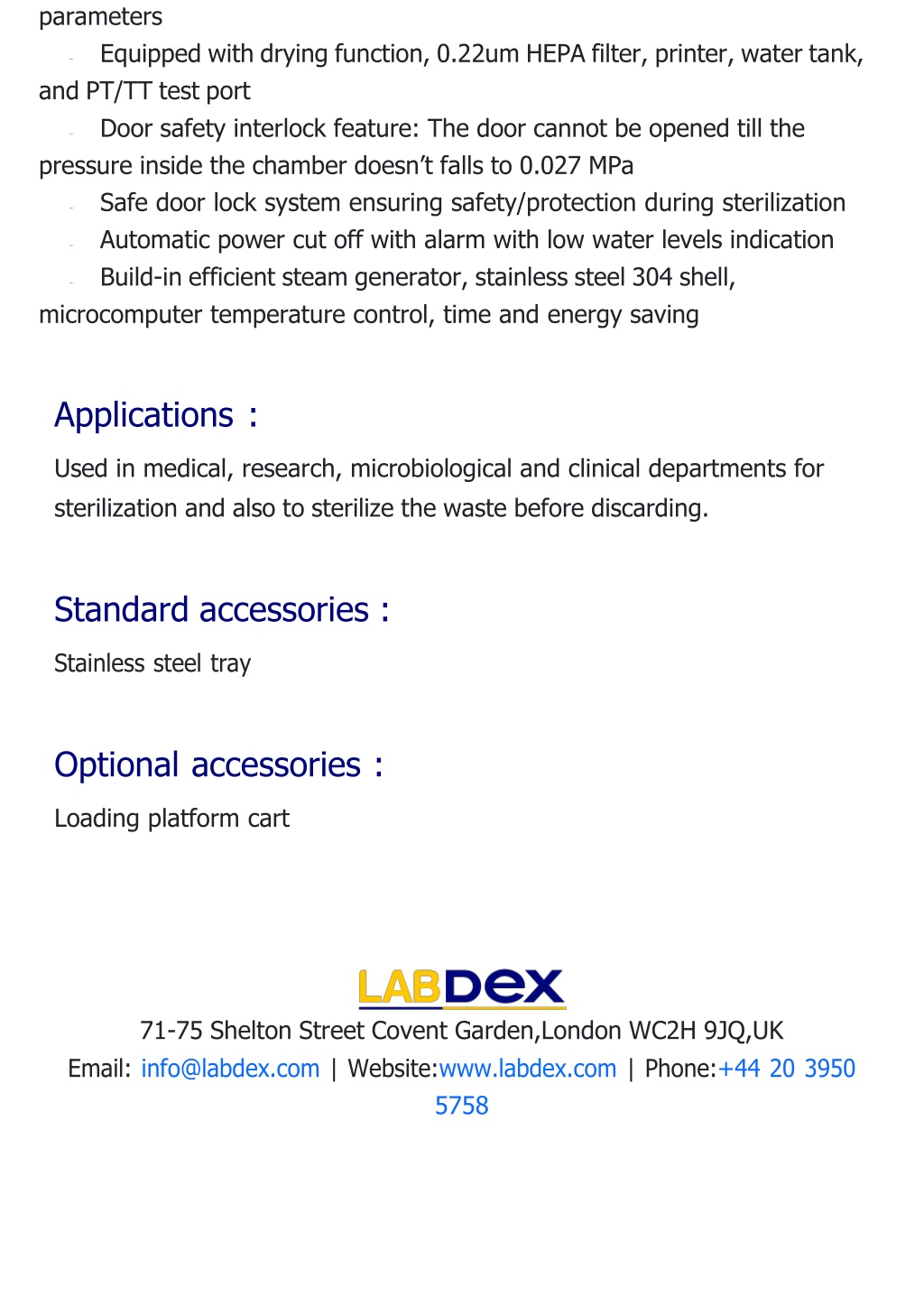

  3. parameters Equipped with drying function, 0.22um HEPA filter, printer, water tank, and PT/TT test port Door safety interlock feature: The door cannot be opened till the pressure inside the chamber doesn’t falls to 0.027 MPa Safe door lock system ensuring safety/protection during sterilization Automatic power cut off with alarm with low water levels indication Build-in efficient steam generator, stainless steel 304 shell, microcomputer temperature control, time and energy saving ¨ ¨ ¨ ¨ ¨ Applications : Used in medical, research, microbiological and clinical departments for sterilization and also to sterilize the waste before discarding. Standard accessories : Stainless steel tray Optional accessories : Loading platform cart 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
