Horizontal-Laboratory-Autoclave-LX150HA

Labdex horizontal laboratory autoclave offers a 150-liter capacity with an adjustable sterilization range from 105u00b0C to 134u00b0C. Equipped with a premium water ring pump and internal circulation, it ensures easy setup. Its advanced pulse vacuum drying minimizes moisture <0.2%, and the integrated fault detection system provides real-time alerts.

Zaynab6
Download Presentation

Horizontal-Laboratory-Autoclave-LX150HA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

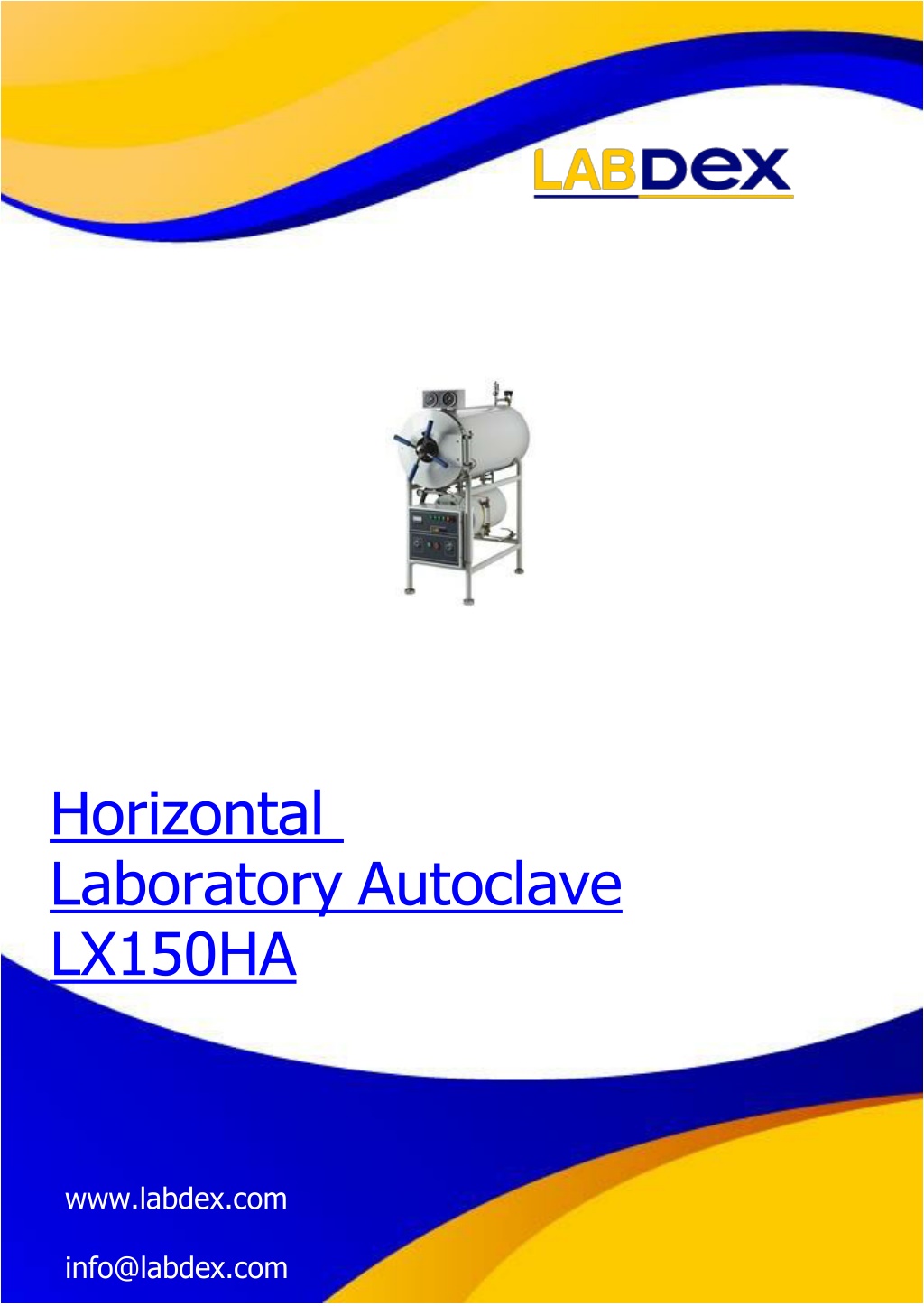

  1. Horizontal Laboratory Autoclave LX150HA www.labdex.com info@labdex.com

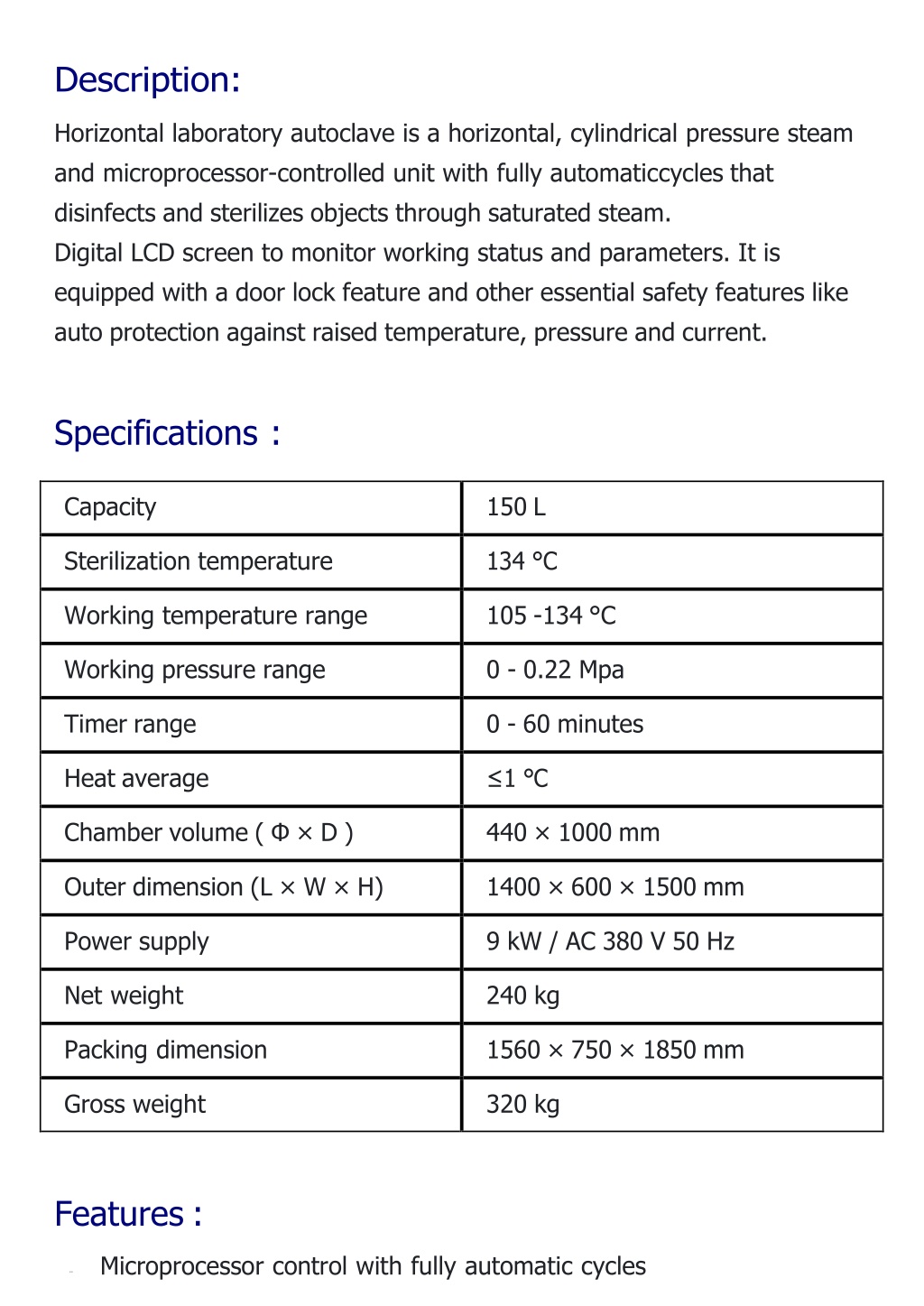

  2. Description: Horizontal laboratory autoclave is a horizontal, cylindrical pressure steam and microprocessor-controlled unit with fully automatic cycles that disinfects and sterilizes objects through saturated steam. Digital LCD screen to monitor working status and parameters. It is equipped with a door lock feature and other essential safety features like auto protection against raised temperature, pressure and current. Specifications : Capacity 150 L Sterilization temperature 134 °C Working temperature range 105 -134 °C Working pressure range 0 - 0.22 Mpa Timer range 0 - 60 minutes Heat average ≤1℃ Chamber volume ( Φ × D ) 440 × 1000 mm Outer dimension (L × W × H) 1400 × 600 × 1500 mm Power supply 9 kW / AC 380 V 50 Hz Net weight 240 kg Packing dimension 1560 × 750 × 1850 mm Gross weight 320 kg Features : Microprocessor control with fully automatic cycles ¨

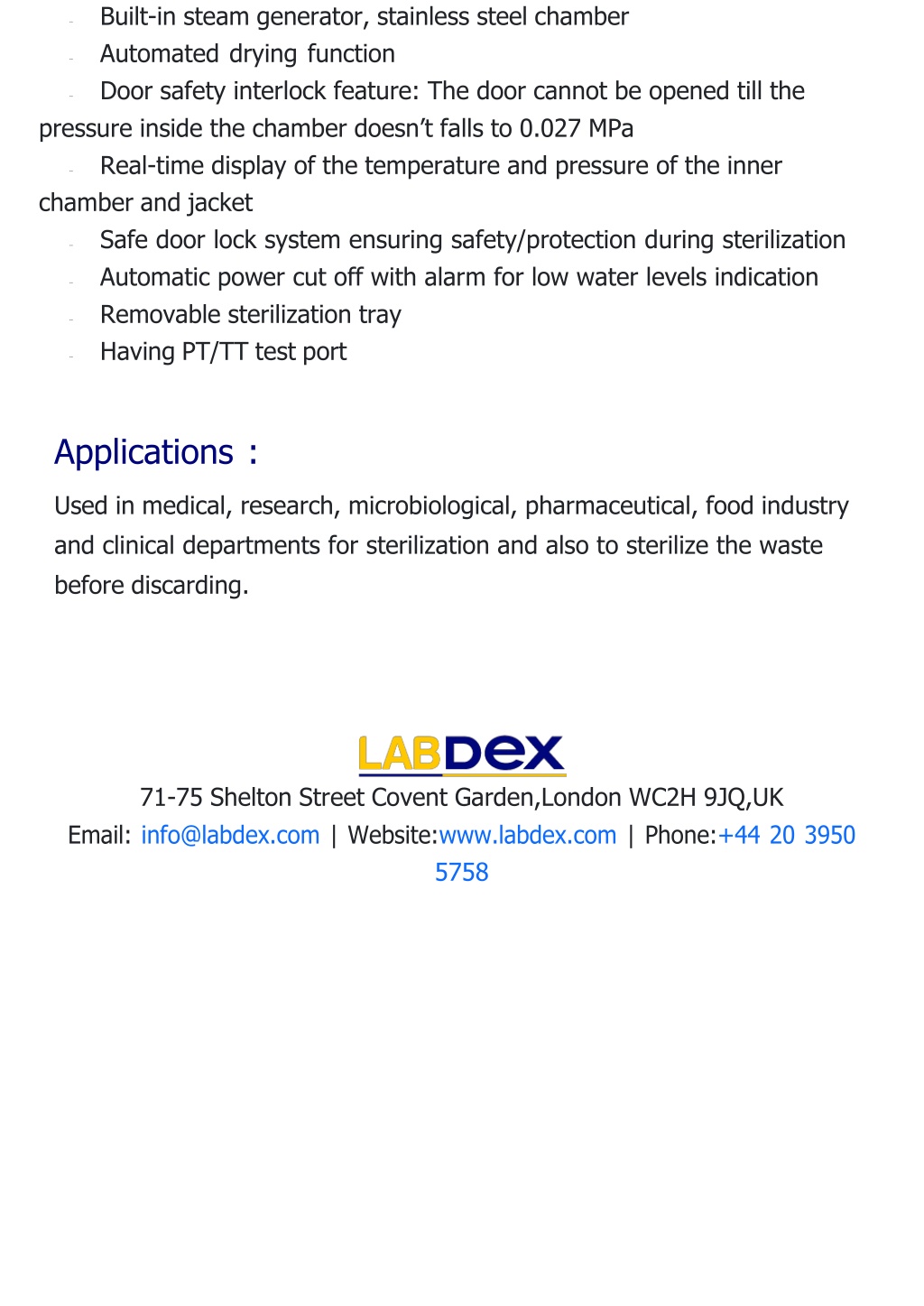

  3. Built-in steam generator, stainless steel chamber Automated drying function Door safety interlock feature: The door cannot be opened till the pressure inside the chamber doesn’t falls to 0.027 MPa Real-time display of the temperature and pressure of the inner chamber and jacket Safe door lock system ensuring safety/protection during sterilization Automatic power cut off with alarm for low water levels indication Removable sterilization tray Having PT/TT test port ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ Applications : Used in medical, research, microbiological, pharmaceutical, food industry and clinical departments for sterilization and also to sterilize the waste before discarding. 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
