Horizontal-Laboratory-Autoclave-LX140HA

Labdex horizontal laboratory autoclave offers a 60-liter capacity with an adjustable sterilization range from 105u00b0C to 138u00b0C. Equipped with a premium water ring pump and internal circulation, it ensures easy setup. Its advanced pulse vacuum drying minimizes moisture <0.2%, and the integrated fault detection system provides real-time alerts.

Zaynab6
Download Presentation

Horizontal-Laboratory-Autoclave-LX140HA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

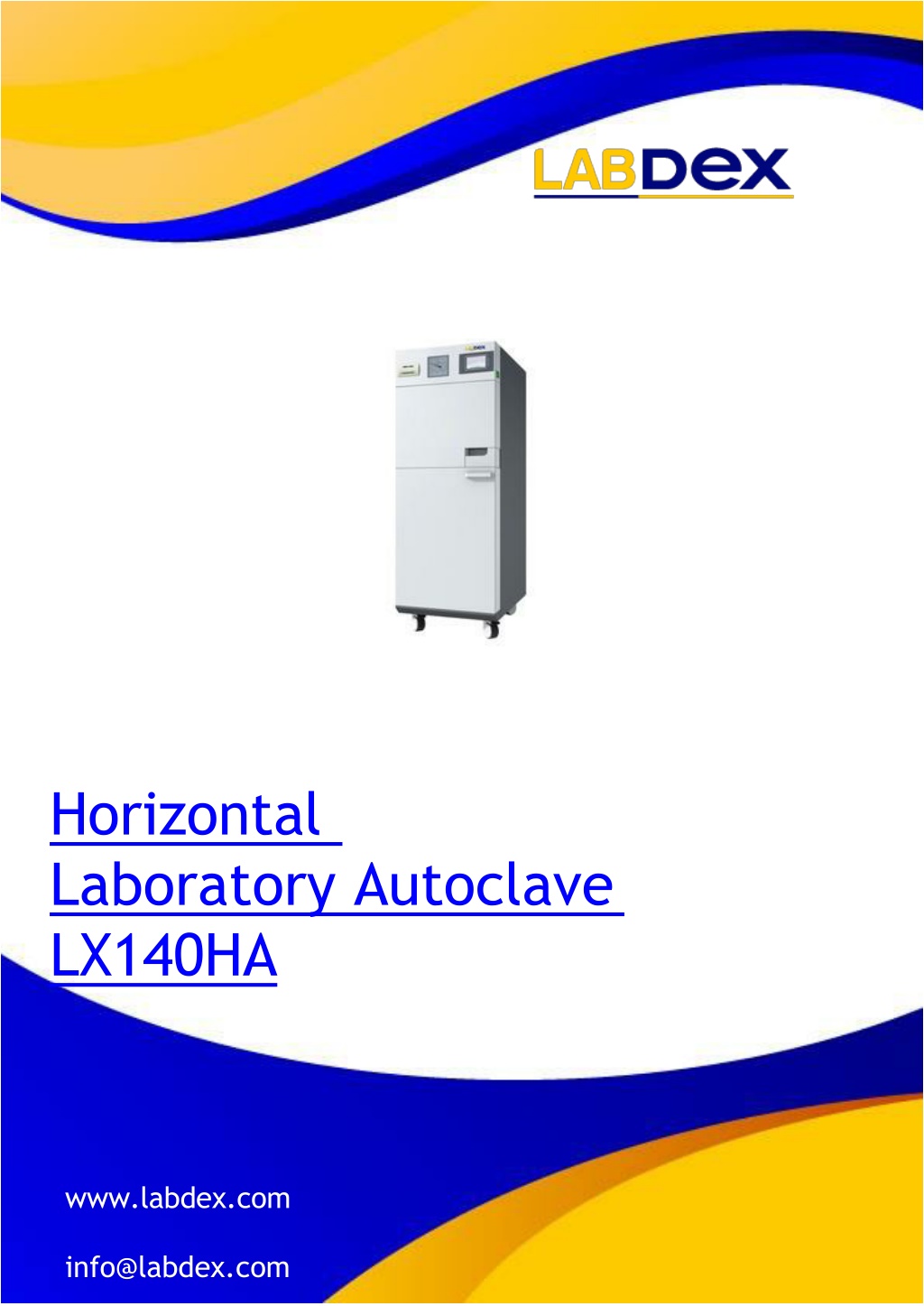

  1. Horizontal Laboratory Autoclave LX140HA www.labdex.com info@labdex.com

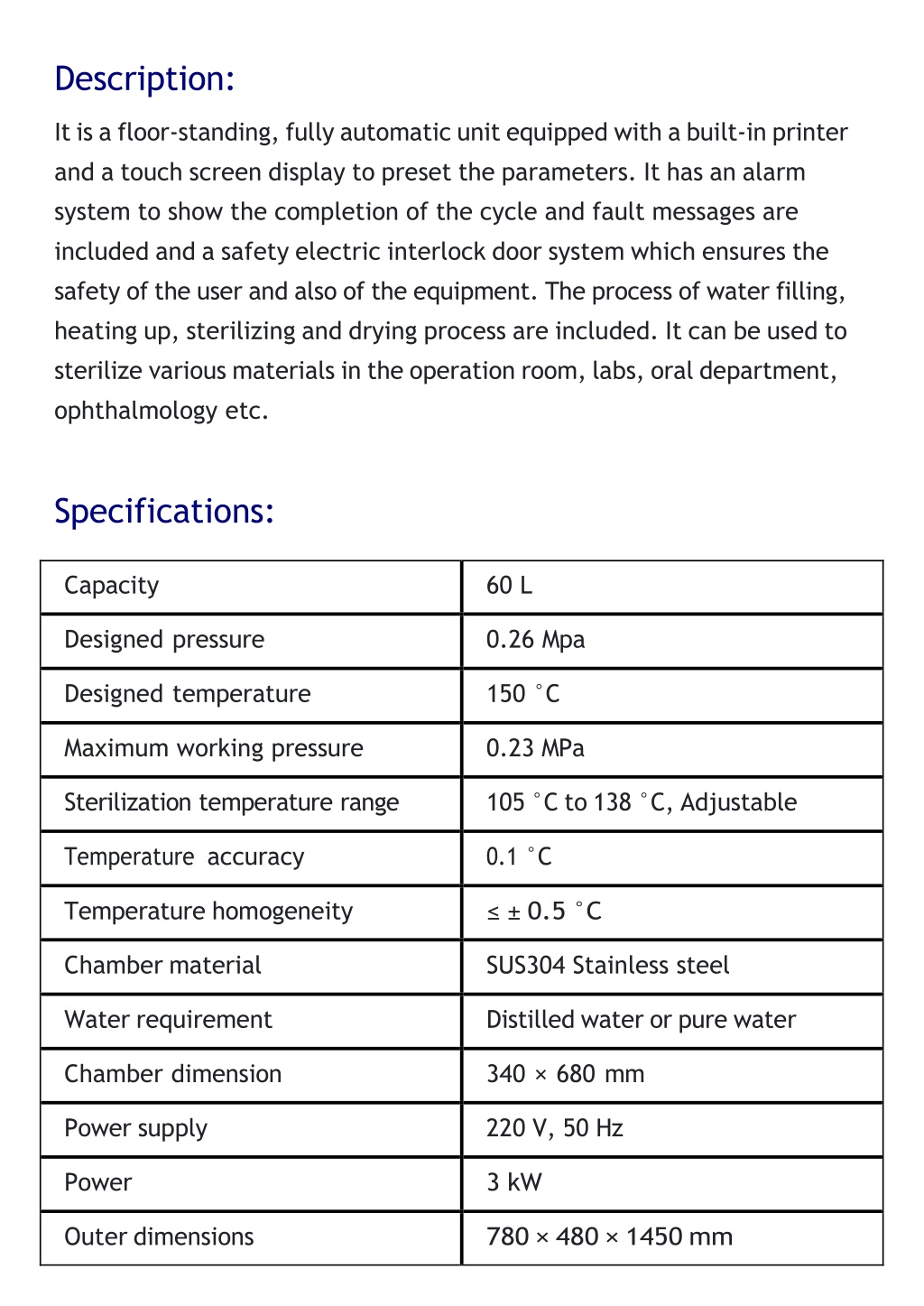

  2. Description: It is a floor-standing, fully automatic unit equipped with a built-in printer and a touch screen display to preset the parameters. It has an alarm system to show the completion of the cycle and fault messages are included and a safety electric interlock door system which ensures the safety of the user and also of the equipment. The process of water filling, heating up, sterilizing and drying process are included. It can be used to sterilize various materials in the operation room, labs, oral department, ophthalmology etc. Specifications: Capacity 60 L Designed pressure 0.26 Mpa Designed temperature 150 °C Maximum working pressure 0.23 MPa Sterilization temperature range 105 °C to 138 °C, Adjustable Temperature accuracy 0.1 °C Temperature homogeneity ≤ ± 0.5 °C Chamber material SUS304 Stainless steel Water requirement Distilled water or pure water Chamber dimension 340 × 680 mm Power supply 220 V, 50 Hz Power 3 kW Outer dimensions 780 × 480 × 1450 mm

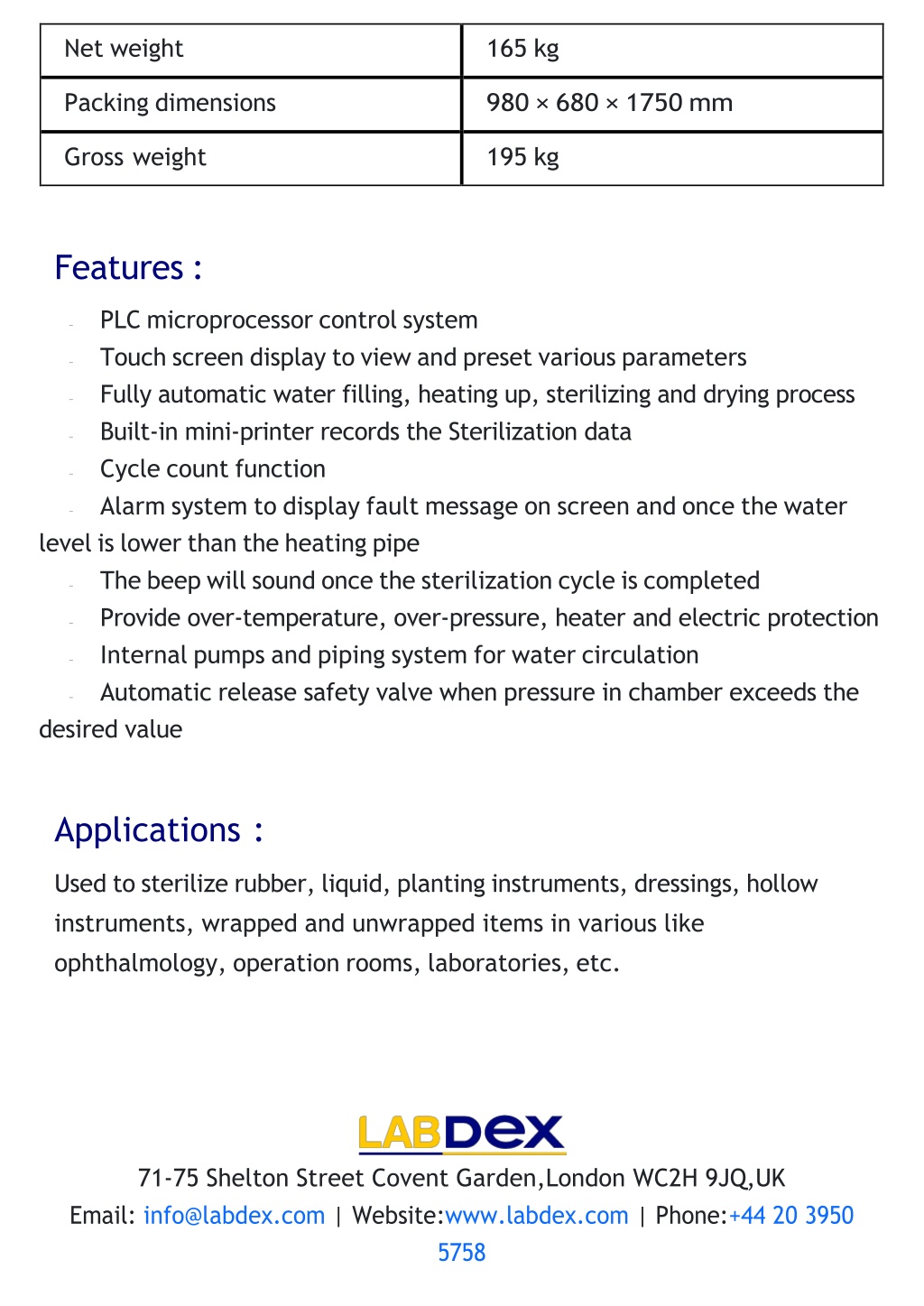

  3. Net weight 165 kg Packing dimensions 980 × 680 × 1750 mm Gross weight 195 kg Features : PLC microprocessor control system Touch screen display to view and preset various parameters Fully automatic water filling, heating up, sterilizing and drying process Built-in mini-printer records the Sterilization data Cycle count function Alarm system to display fault message on screen and once the water level is lower than the heating pipe The beep will sound once the sterilization cycle is completed Provide over-temperature, over-pressure, heater and electric protection Internal pumps and piping system for water circulation Automatic release safety valve when pressure in chamber exceeds the desired value ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ Applications : Used to sterilize rubber, liquid, planting instruments, dressings, hollow instruments, wrapped and unwrapped items in various like ophthalmology, operation rooms, laboratories, etc. 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
