Horizontal-Autoclave-LX127HA

Labdex horizontal laboratory autoclave offers a 150-liter capacity with an adjustable sterilization range from 105u00b0C to 138u00b0C. Equipped with a premium water ring pump and internal circulation, it ensures easy setup. Its advanced pulse vacuum drying minimizes moisture <0.2%, and the integrated fault detection system provides real-time alerts.

Zaynab6
Download Presentation

Horizontal-Autoclave-LX127HA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

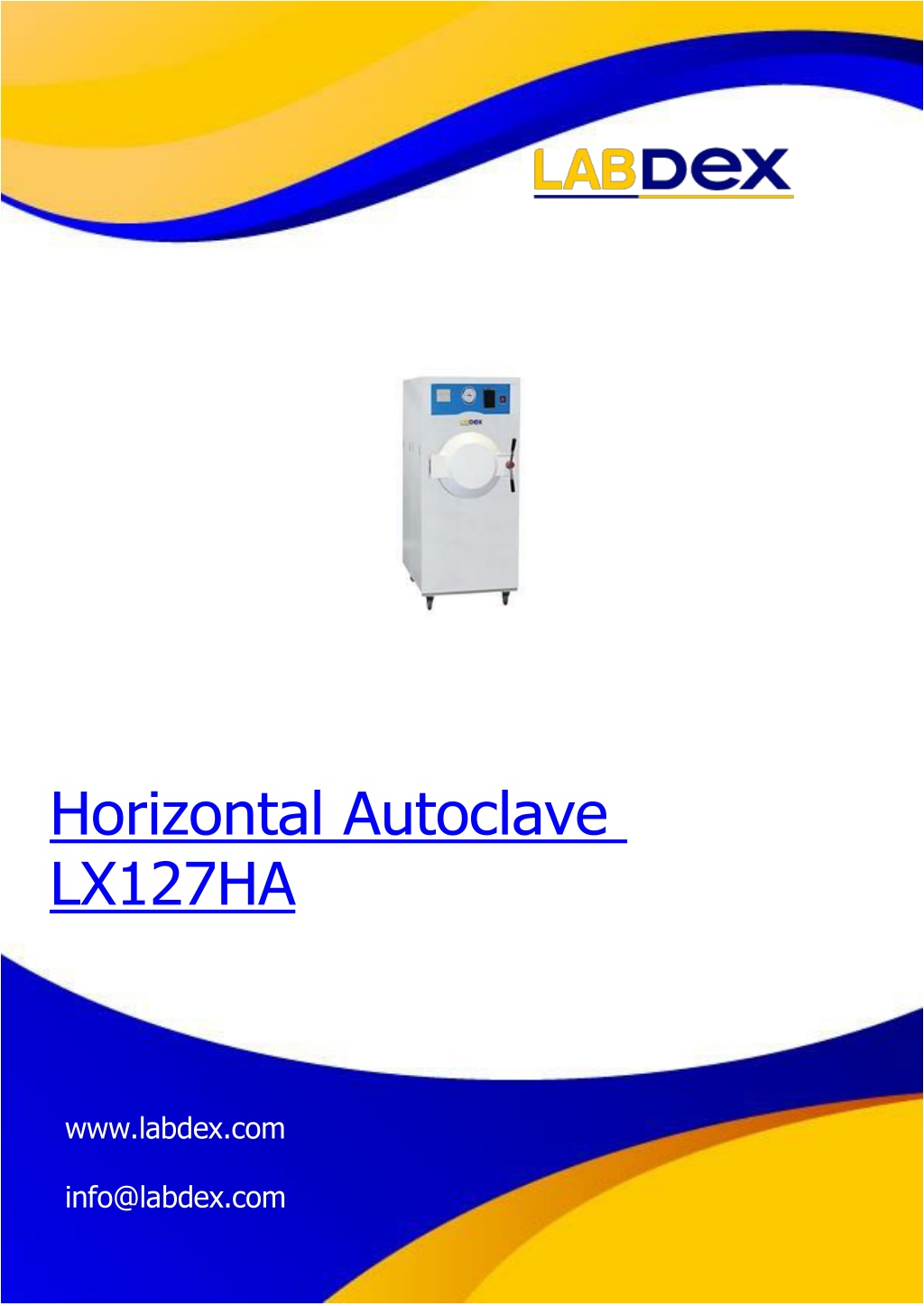

  1. Horizontal Autoclave LX127HA www.labdex.com info@labdex.com

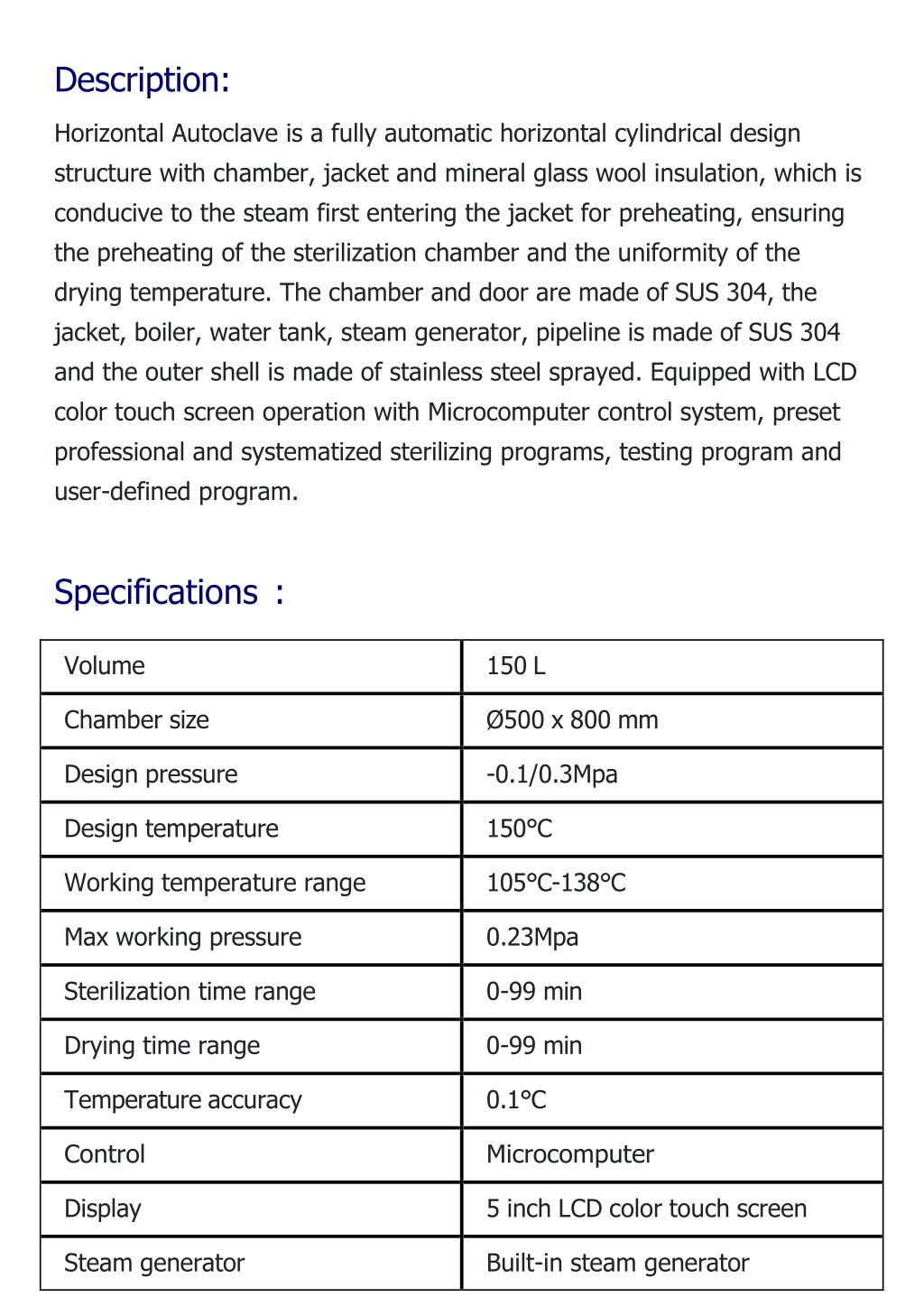

  2. Description: Horizontal Autoclave is a fully automatic horizontal cylindrical design structure with chamber, jacket and mineral glass wool insulation, which is conducive to the steam first entering the jacket for preheating, ensuring the preheating of the sterilization chamber and the uniformity of the drying temperature. The chamber and door are made of SUS 304, the jacket, boiler, water tank, steam generator, pipeline is made of SUS 304 and the outer shell is made of stainless steel sprayed. Equipped with LCD color touch screen operation with Microcomputer control system, preset professional and systematized sterilizing programs, testing program and user-defined program. Specifications : Volume 150 L Chamber size Ø500 x 800 mm Design pressure -0.1/0.3Mpa Design temperature 150℃ Working temperature range 105℃-138℃ Max working pressure 0.23Mpa Sterilization time range 0-99 min Drying time range 0-99 min Temperature accuracy 0.1℃ Control Microcomputer Display 5 inch LCD color touch screen Steam generator Built-in steam generator

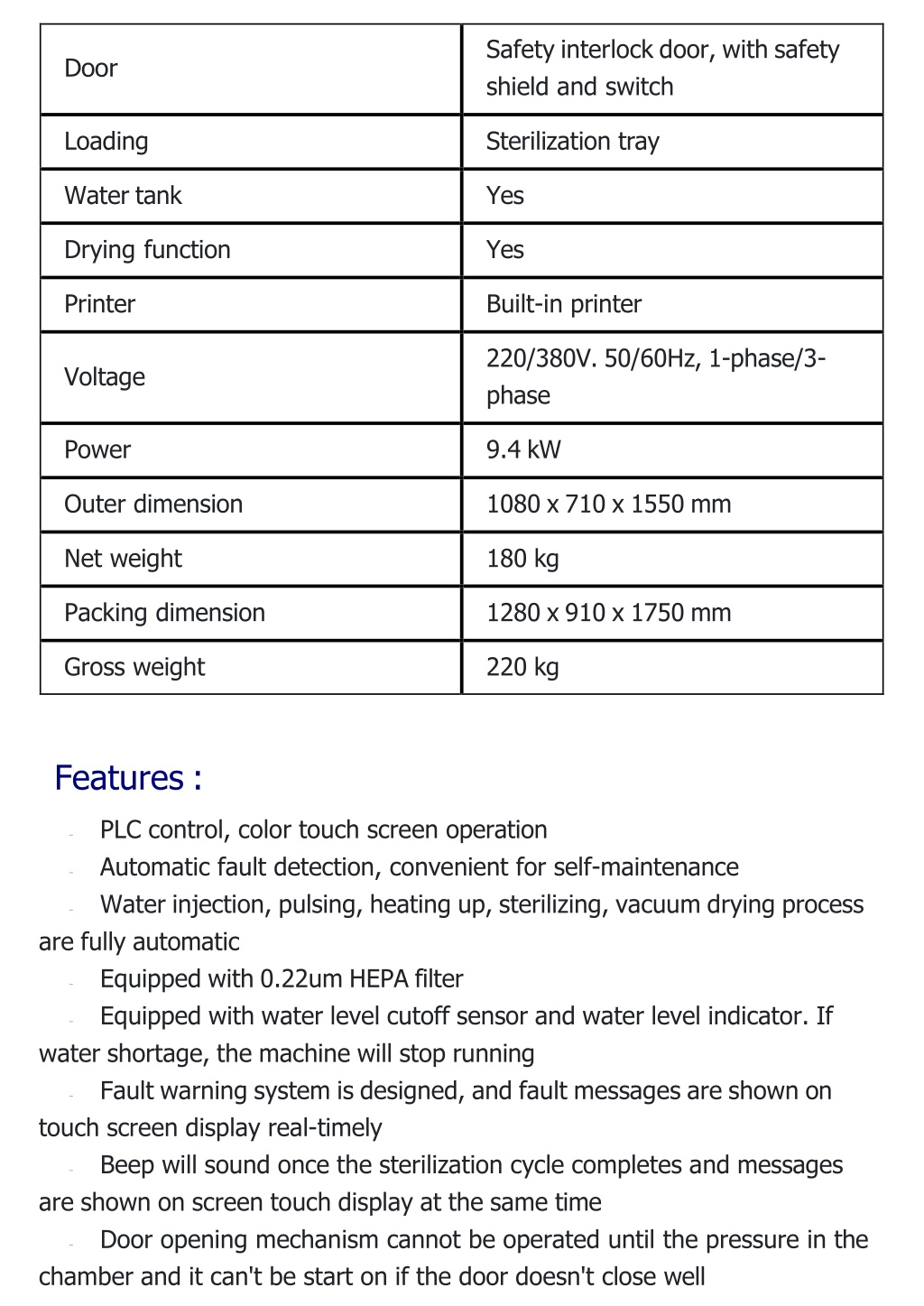

  3. Safety interlock door, with safety shield and switch Door Loading Sterilization tray Water tank Yes Drying function Yes Printer Built-in printer 220/380V. 50/60Hz, 1-phase/3- phase Voltage Power 9.4 kW Outer dimension 1080 x 710 x 1550 mm Net weight 180 kg Packing dimension 1280 x 910 x 1750 mm Gross weight 220 kg Features : PLC control, color touch screen operation Automatic fault detection, convenient for self-maintenance Water injection, pulsing, heating up, sterilizing, vacuum drying process are fully automatic Equipped with 0.22um HEPA filter Equipped with water level cutoff sensor and water level indicator. If water shortage, the machine will stop running Fault warning system is designed, and fault messages are shown on touch screen display real-timely Beep will sound once the sterilization cycle completes and messages are shown on screen touch display at the same time Door opening mechanism cannot be operated until the pressure in the chamber and it can't be start on if the door doesn't close well ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨

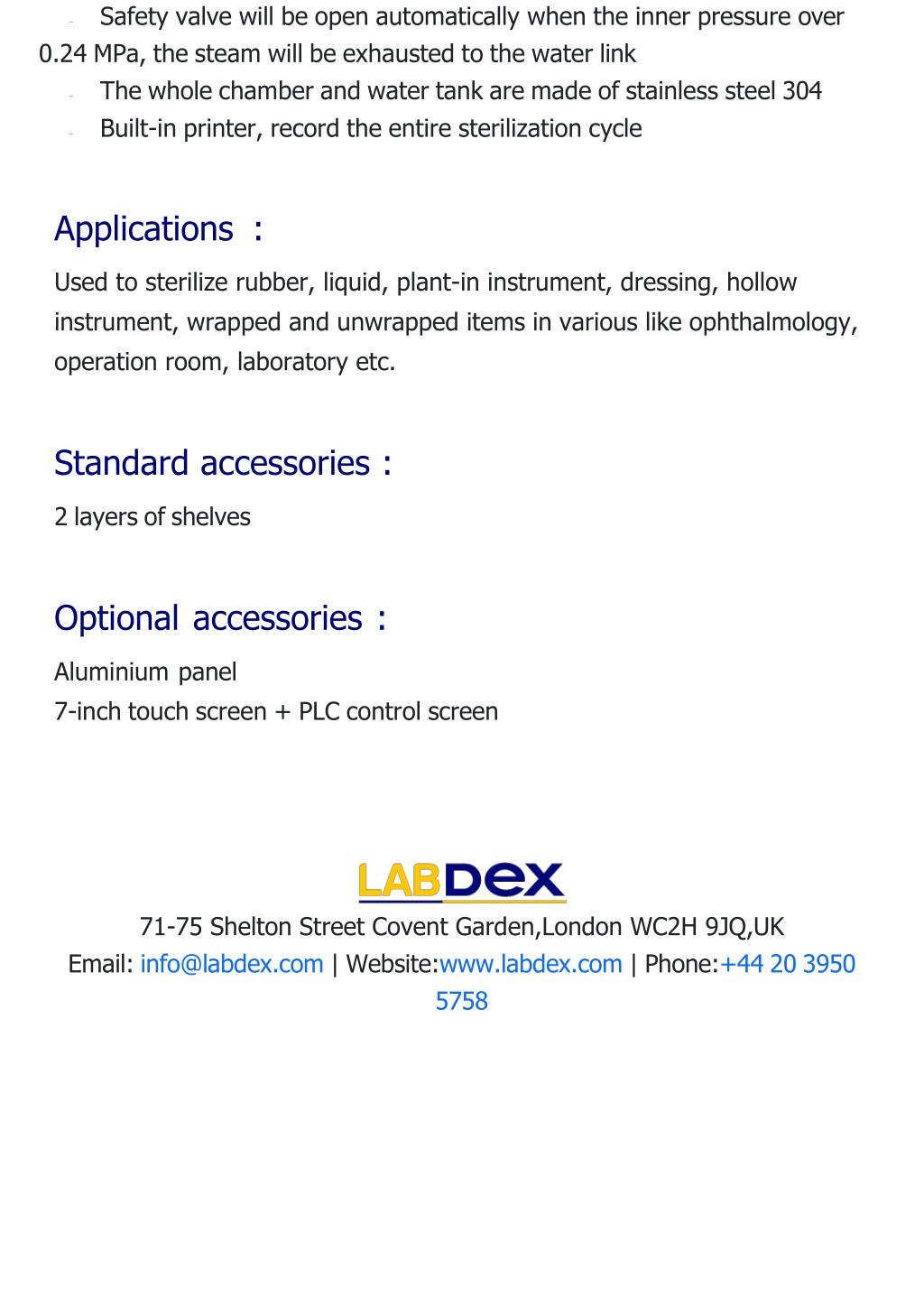

  4. Safety valve will be open automatically when the inner pressure over 0.24 MPa, the steam will be exhausted to the water link The whole chamber and water tank are made of stainless steel 304 Built-in printer, record the entire sterilization cycle ¨ ¨ ¨ Applications: Used to sterilize rubber, liquid, plant-in instrument, dressing, hollow instrument, wrapped and unwrapped items in various like ophthalmology, operation room, laboratory etc. Standard accessories : 2 layers of shelves Optional accessories : Aluminium panel 7-inch touch screen + PLC control screen 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
