60-L-Table-Top-Sterilizer

Labdex 60L class B tabletop sterilizer ensures fast, efficient sterilization with a rapid steam generator and drying function. It features microprocessor control, an LCD display, and safety mechanisms like automatic shutoff, air exhaustion, and protection against high pressure. Stainless steel chamber and easy-to-clean water tank.

Zaynab6
Download Presentation

60-L-Table-Top-Sterilizer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

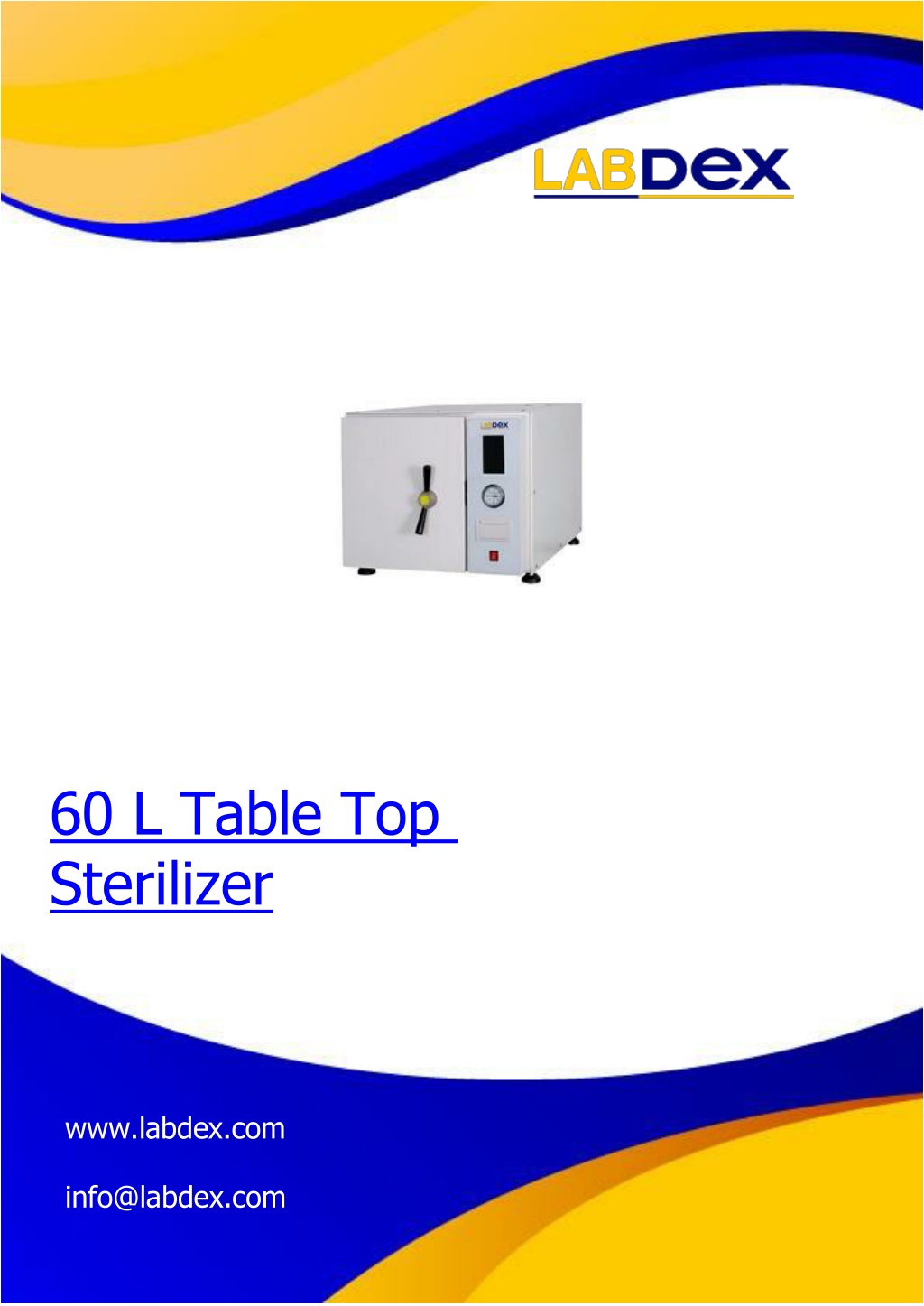

  1. 60 L Table Top Sterilizer www.labdex.com info@labdex.com

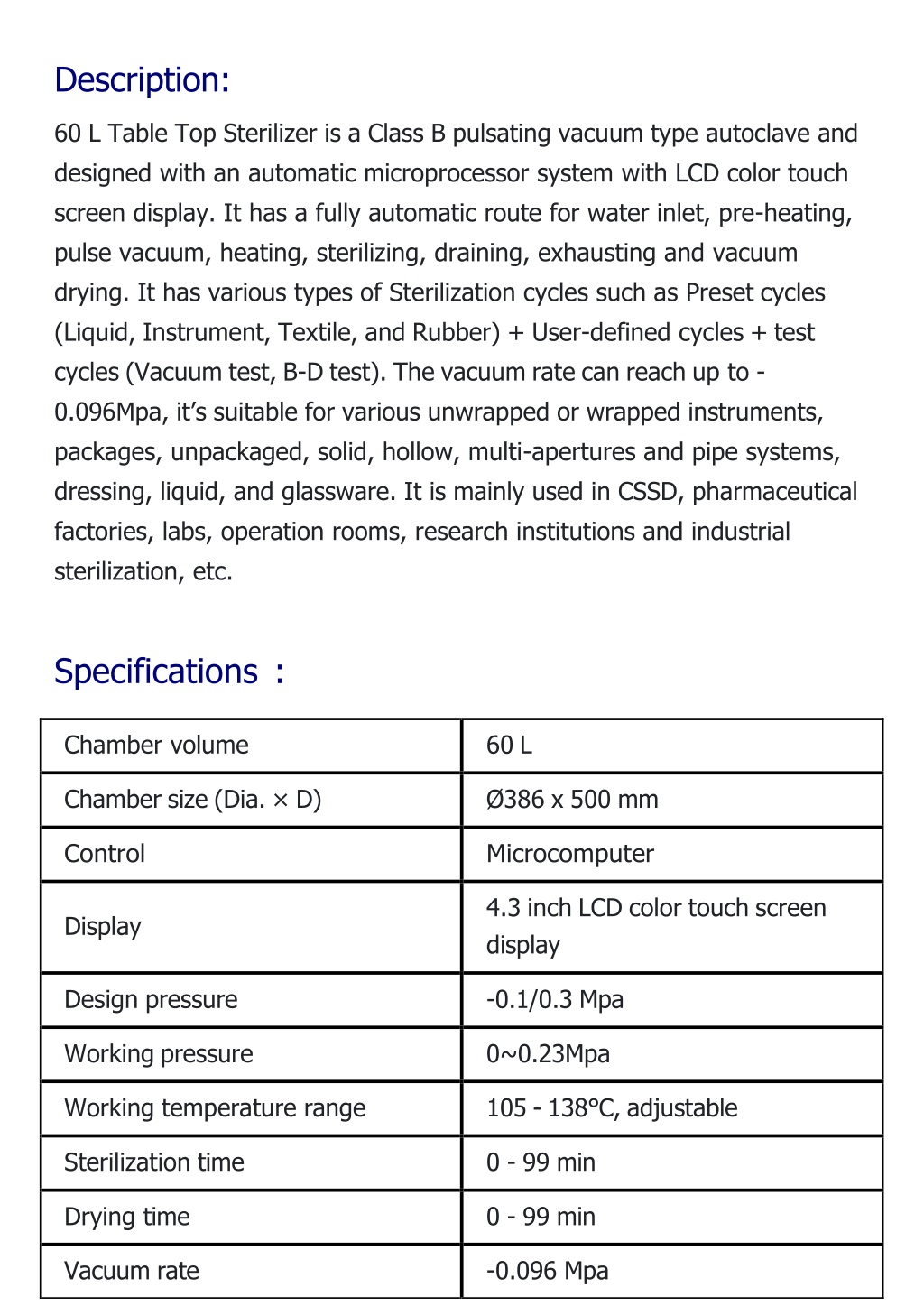

  2. Description: 60 L Table Top Sterilizer is a Class B pulsating vacuum type autoclave and designed with an automatic microprocessor system with LCD color touch screen display. It has a fully automatic route for water inlet, pre-heating, pulse vacuum, heating, sterilizing, draining, exhausting and vacuum drying. It has various types of Sterilization cycles such as Preset cycles (Liquid, Instrument, Textile, and Rubber) + User-defined cycles + test cycles (Vacuum test, B-D test). The vacuum rate can reach up to - 0.096Mpa, it’s suitable for various unwrapped or wrapped instruments, packages, unpackaged, solid, hollow, multi-apertures and pipe systems, dressing, liquid, and glassware. It is mainly used in CSSD, pharmaceutical factories, labs, operation rooms, research institutions and industrial sterilization, etc. Specifications : Chamber volume 60 L Chamber size (Dia. × D) Ø386 x 500 mm Control Microcomputer 4.3 inch LCD color touch screen display Display Design pressure -0.1/0.3 Mpa Working pressure 0~0.23Mpa Working temperature range 105 - 138℃, adjustable Sterilization time 0 - 99 min Drying time 0 - 99 min Vacuum rate -0.096 Mpa

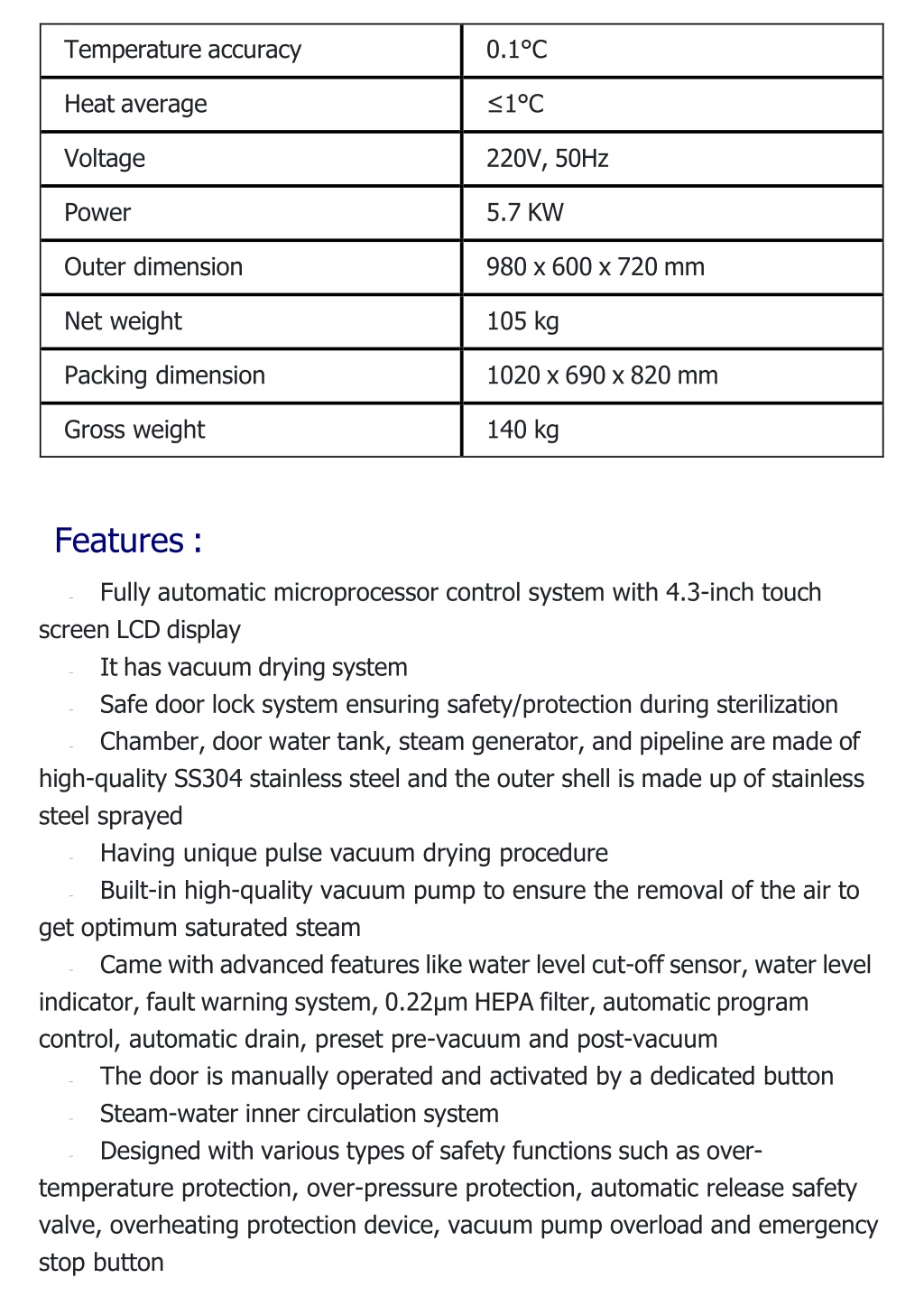

  3. Temperature accuracy 0.1°C Heat average ≤1°C Voltage 220V, 50Hz Power 5.7 KW Outer dimension 980 x 600 x 720 mm Net weight 105 kg Packing dimension 1020 x 690 x 820 mm Gross weight 140 kg Features : Fully automatic microprocessor control system with 4.3-inch touch screen LCD display It has vacuum drying system Safe door lock system ensuring safety/protection during sterilization Chamber, door water tank, steam generator, and pipeline are made of high-quality SS304 stainless steel and the outer shell is made up of stainless steel sprayed Having unique pulse vacuum drying procedure Built-in high-quality vacuum pump to ensure the removal of the air to get optimum saturated steam Came with advanced features like water level cut-off sensor, water level indicator, fault warning system, 0.22µm HEPA filter, automatic program control, automatic drain, preset pre-vacuum and post-vacuum The door is manually operated and activated by a dedicated button Steam-water inner circulation system Designed with various types of safety functions such as over- temperature protection, over-pressure protection, automatic release safety valve, overheating protection device, vacuum pump overload and emergency stop button ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨

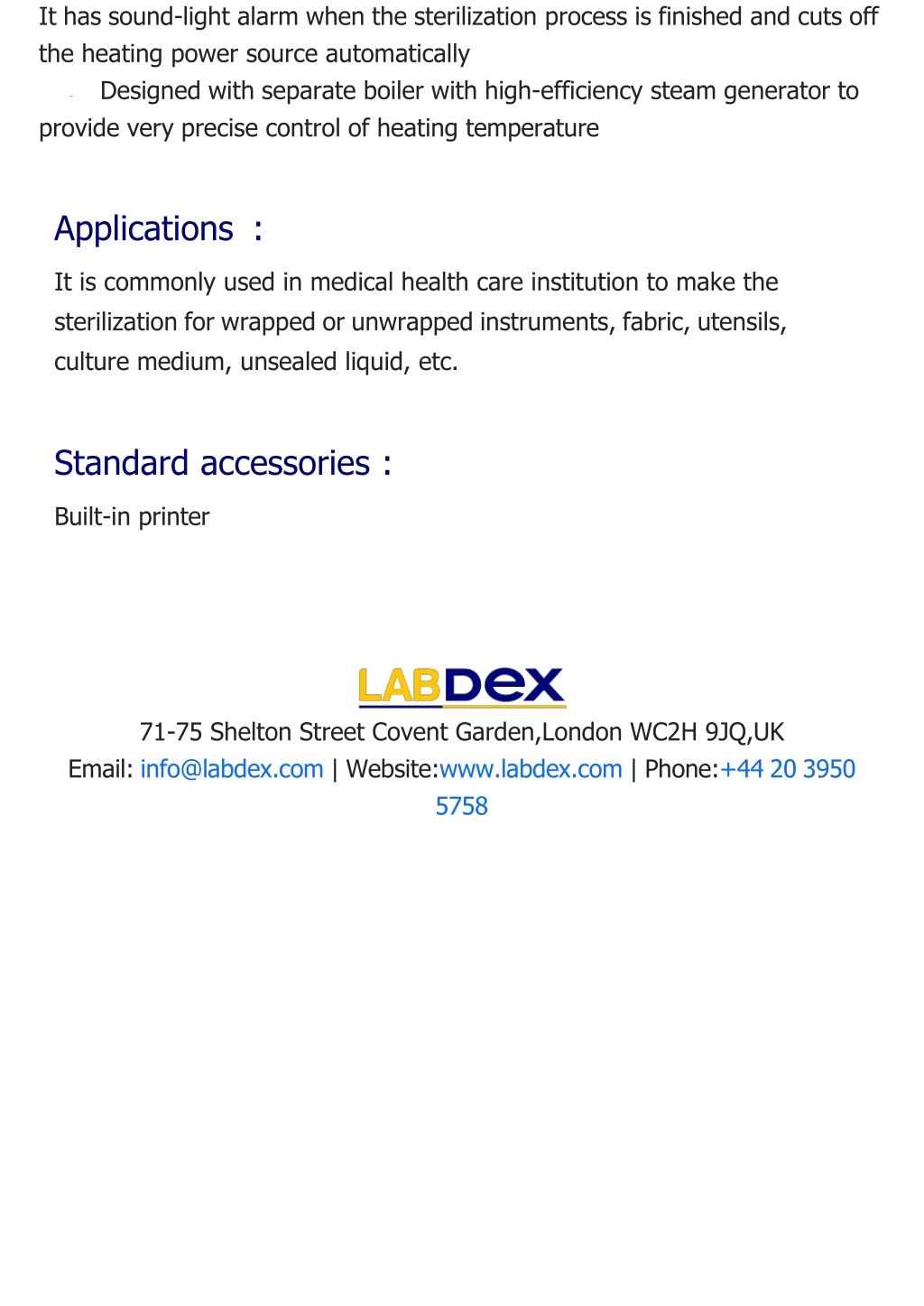

  4. It has sound-light alarm when the sterilization process is finished and cuts off the heating power source automatically Designed with separate boiler with high-efficiency steam generator to provide very precise control of heating temperature ¨ Applications: It is commonly used in medical health care institution to make the sterilization for wrapped or unwrapped instruments, fabric, utensils, culture medium, unsealed liquid, etc. Standard accessories : Built-in printer 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
