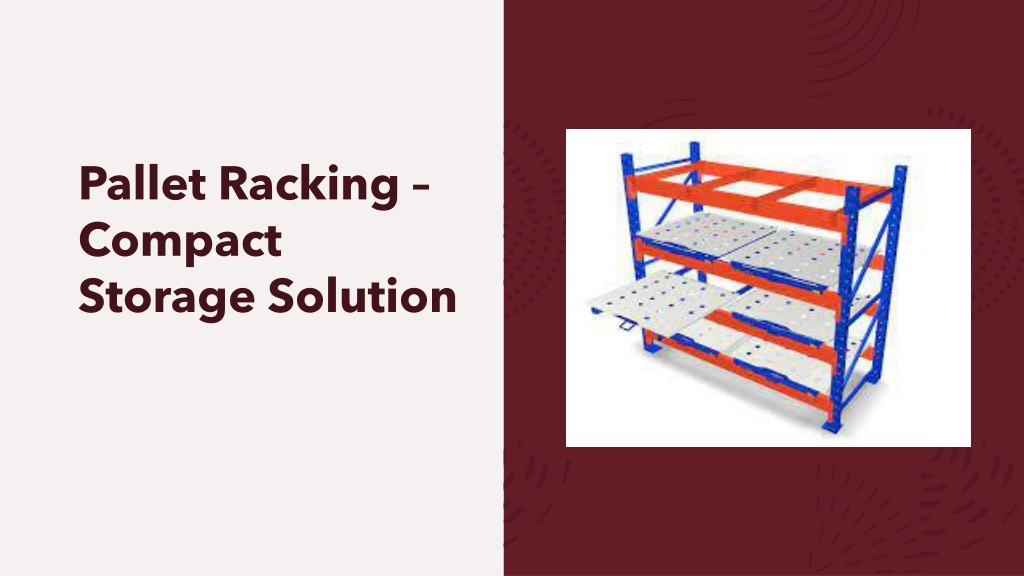

  1. Pallet Racking – Compact Storage Solution

  2. What is Pallet Racking? Pallet Racking is an effective storage solution that incorporates the use of pallets in material storage. The material is loaded on the pallets that are kept on racks. The pallet racks consist of a combination of beams and uprights. The uprights support the structure from the sides, whereas the beams connect the uprights and act as a platform for the pallets.

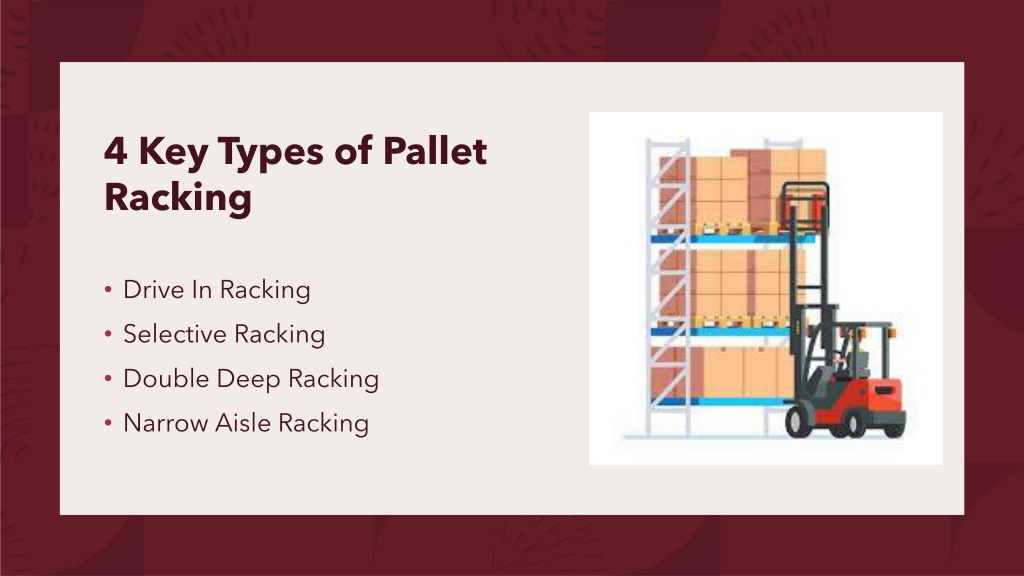

  3. 4 Key Types of Pallet Racking • Drive In Racking • Selective Racking • Double Deep Racking • Narrow Aisle Racking

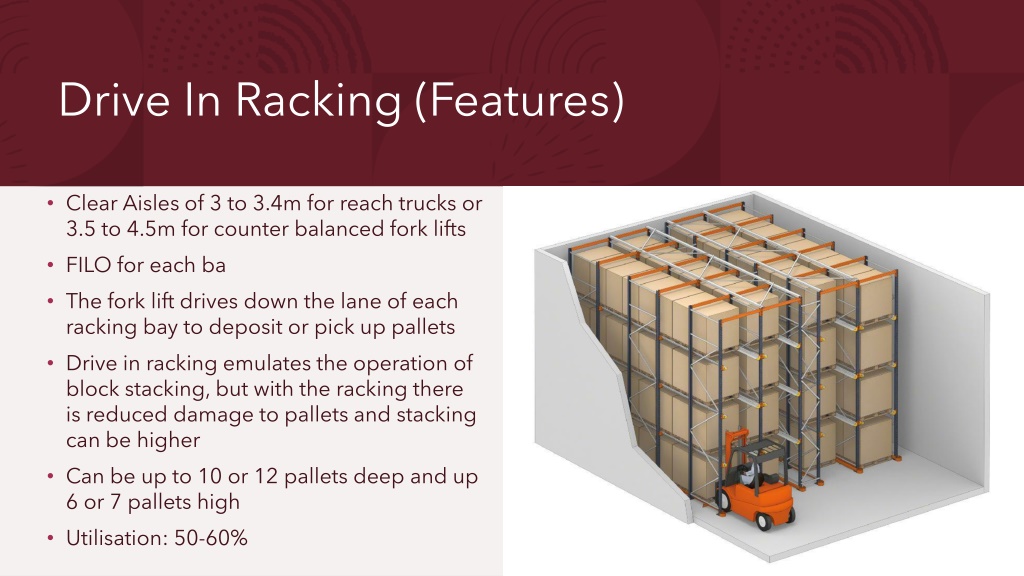

  4. Drive In Racking (Features)  • Clear Aisles of 3 to 3.4m for reach trucks or 3.5 to 4.5m for counter balanced fork lifts • FILO for each ba • The fork lift drives down the lane of each racking bay to deposit or pick up pallets • Drive in racking emulates the operation of block stacking, but with the racking there is reduced damage to pallets and stacking can be higher • Can be up to 10 or 12 pallets deep and up 6 or 7 pallets high • Utilisation: 50-60%

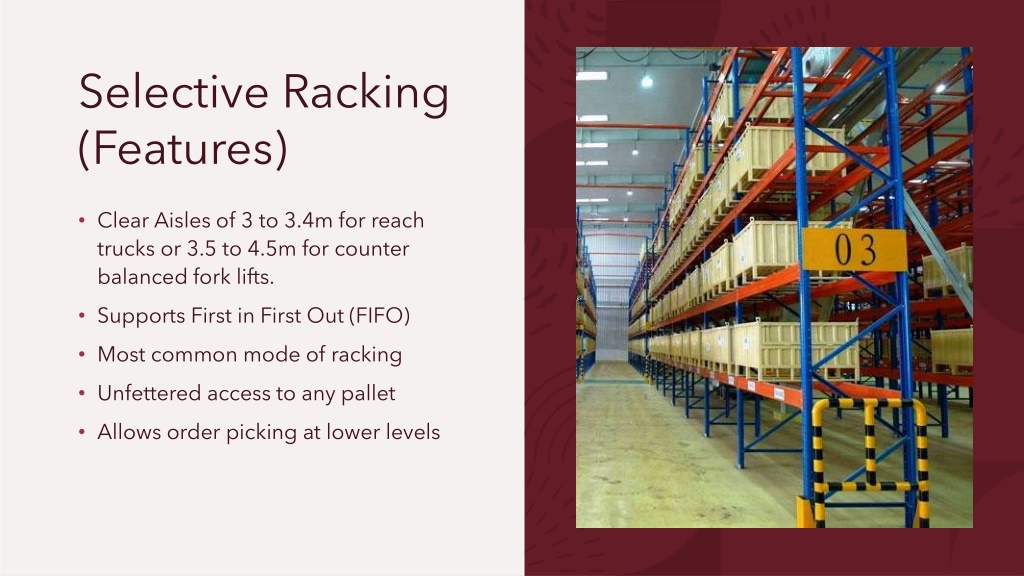

  5. Selective Racking (Features) • Clear Aisles of 3 to 3.4m for reach trucks or 3.5 to 4.5m for counter balanced fork lifts. • Supports First in First Out (FIFO) • Most common mode of racking • Unfettered access to any pallet • Allows order picking at lower levels

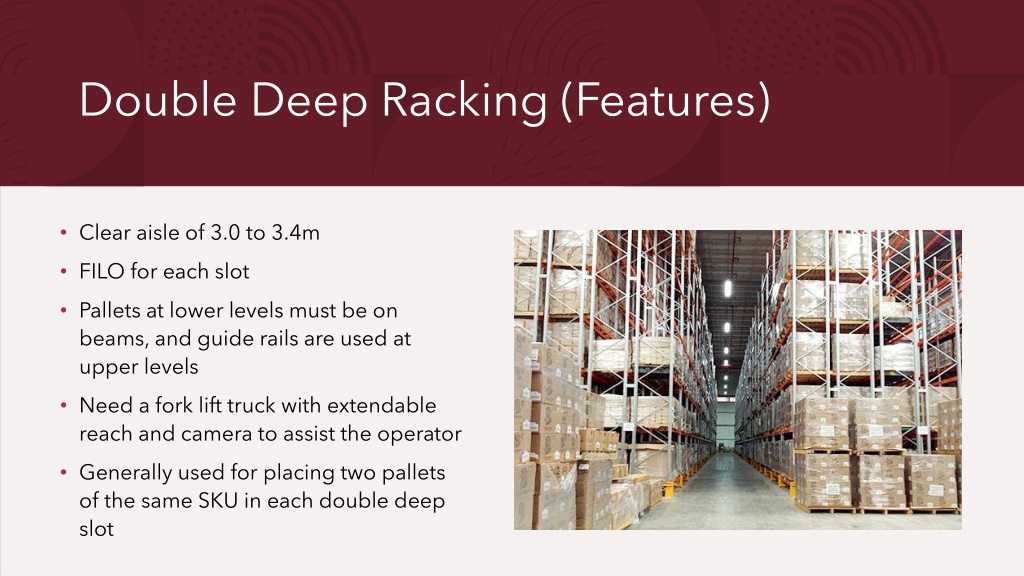

  6. Double Deep Racking (Features)   • Clear aisle of 3.0 to 3.4m • FILO for each slot • Pallets at lower levels must be on beams, and guide rails are used at upper levels • Need a fork lift truck with extendable reach and camera to assist the operator • Generally used for placing two pallets of the same SKU in each double deep slot

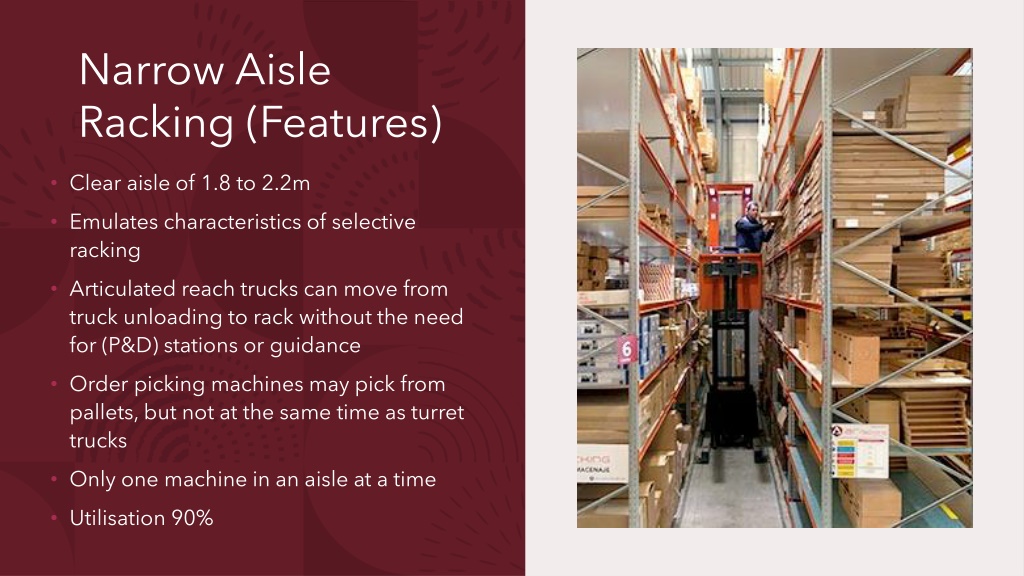

  7. Narrow Aisle Racking (Features)  • Clear aisle of 1.8 to 2.2m • Emulates characteristics of selective racking • Articulated reach trucks can move from truck unloading to rack without the need for (P&D) stations or guidance • Order picking machines may pick from pallets, but not at the same time as turret trucks • Only one machine in an aisle at a time • Utilisation 90%

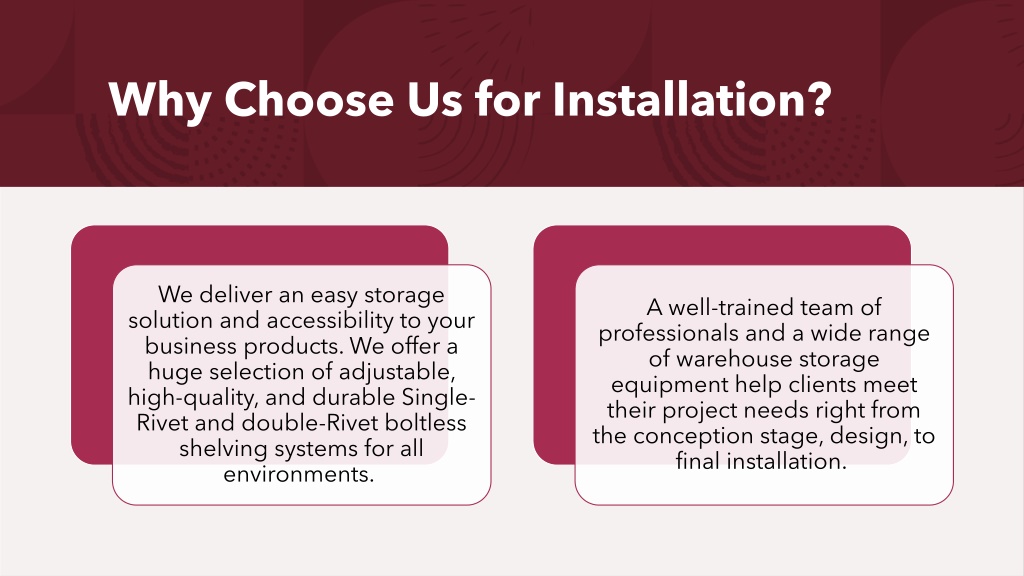

  8. Why Choose Us for Installation?

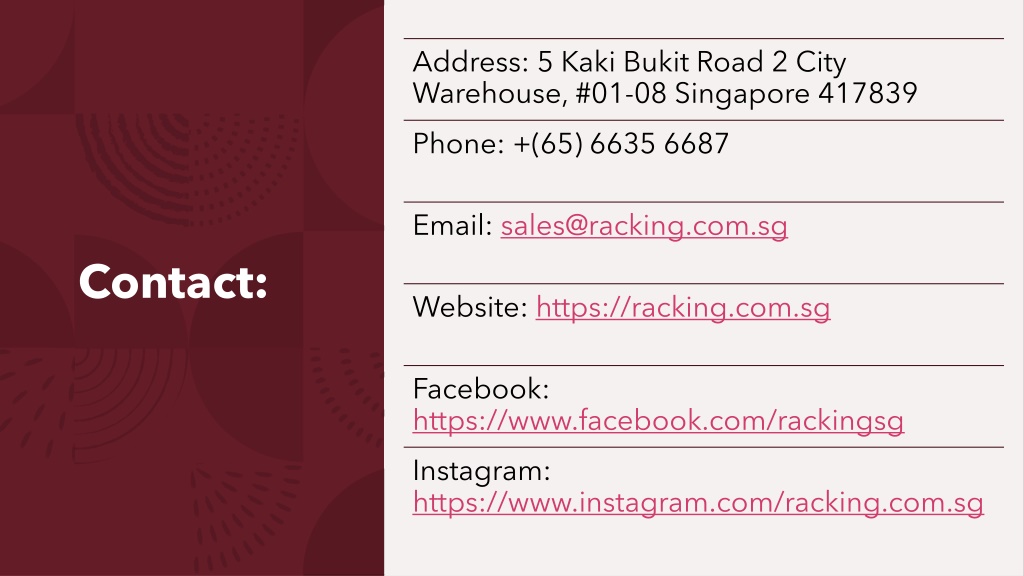

  9. Contact:
