Mastering MSI Afterburner_ A Comprehensive Guide

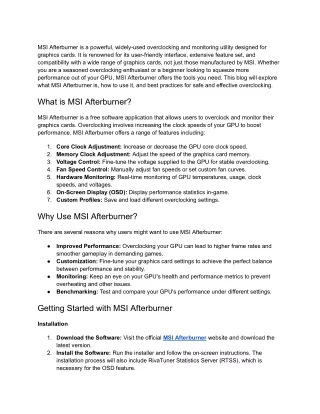

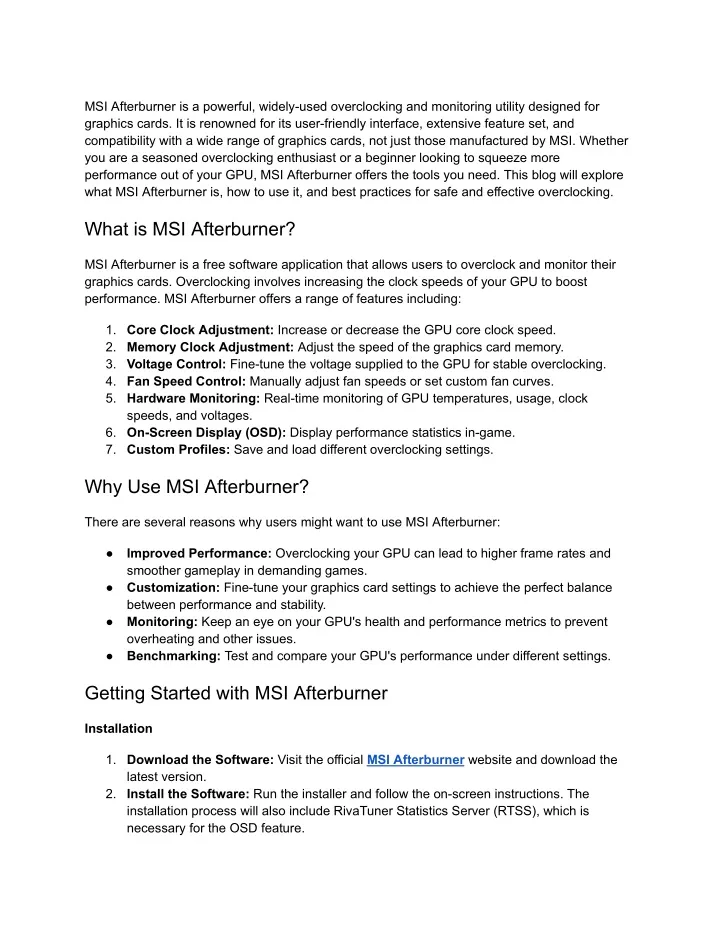

1. MSI Afterburner is a powerful, widely-used overclocking and monitoring utility designed for graphics cards. It is renowned for its user-friendly interface, extensive feature set, and compatibility with a wide range of graphics cards, not just those manufactured by MSI. Whether you are a seasoned overclocking enthusiast or a beginner looking to squeeze more performance out of your GPU, MSI Afterburner offers the tools you need. This blog will explore what MSI Afterburner is, how to use it, and best practices for safe and effective overclocking. What is MSI Afterburner? MSI Afterburner is a free software application that allows users to overclock and monitor their graphics cards. Overclocking involves increasing the clock speeds of your GPU to boost performance. MSI Afterburner offers a range of features including: 1. Core Clock Adjustment: Increase or decrease the GPU core clock speed. 2. Memory Clock Adjustment: Adjust the speed of the graphics card memory. 3. Voltage Control: Fine-tune the voltage supplied to the GPU for stable overclocking. 4. Fan Speed Control: Manually adjust fan speeds or set custom fan curves. 5. Hardware Monitoring: Real-time monitoring of GPU temperatures, usage, clock speeds, and voltages. 6. On-Screen Display (OSD): Display performance statistics in-game. 7. Custom Profiles: Save and load different overclocking settings. Why Use MSI Afterburner? There are several reasons why users might want to use MSI Afterburner: ● Improved Performance: Overclocking your GPU can lead to higher frame rates and smoother gameplay in demanding games. Customization: Fine-tune your graphics card settings to achieve the perfect balance between performance and stability. Monitoring: Keep an eye on your GPU's health and performance metrics to prevent overheating and other issues. Benchmarking: Test and compare your GPU's performance under different settings. ● ● ● Getting Started with MSI Afterburner Installation 1. Download the Software: Visit the official MSI Afterburner website and download the latest version. 2. Install the Software: Run the installer and follow the on-screen instructions. The installation process will also include RivaTuner Statistics Server (RTSS), which is necessary for the OSD feature.

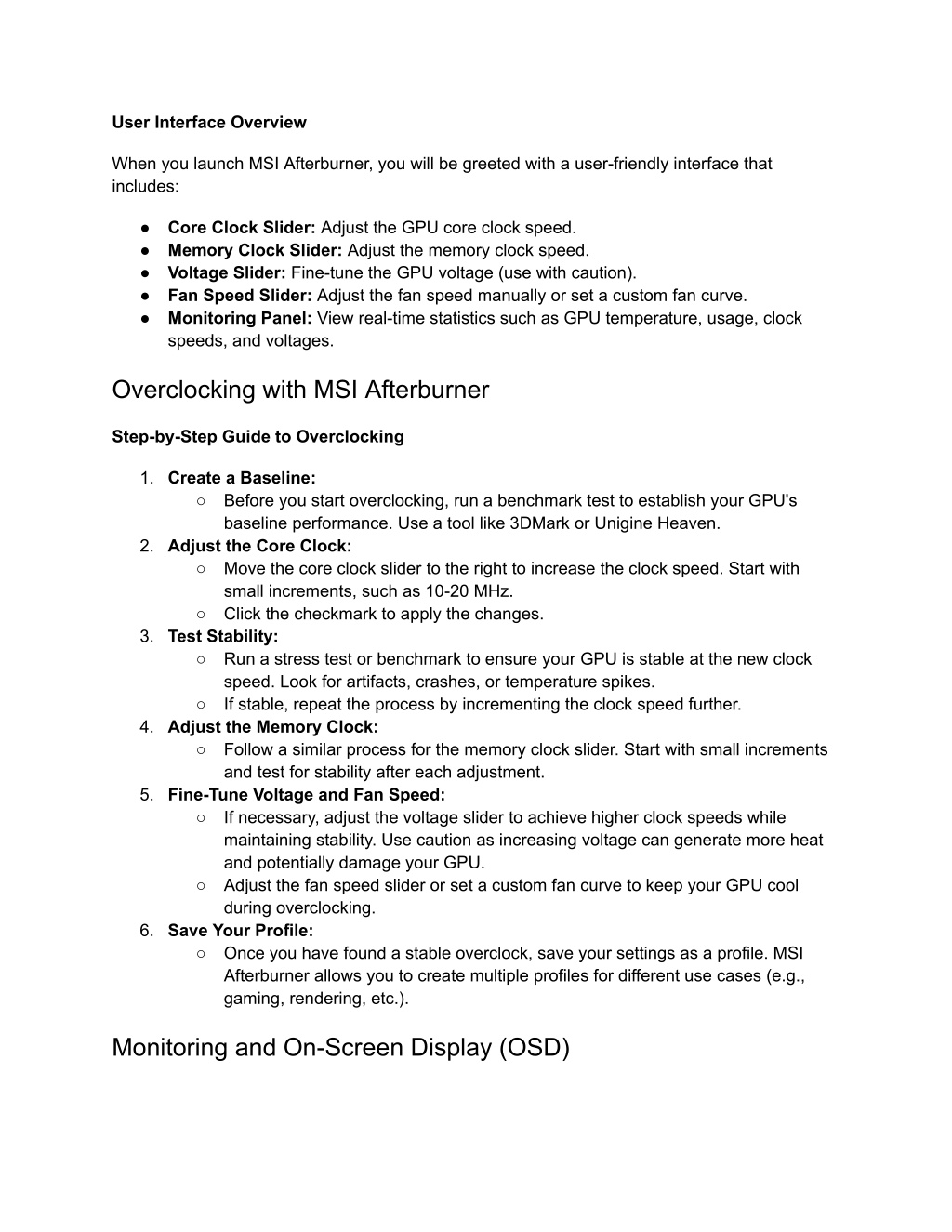

2. User Interface Overview When you launch MSI Afterburner, you will be greeted with a user-friendly interface that includes: ● ● ● ● ● Core Clock Slider: Adjust the GPU core clock speed. Memory Clock Slider: Adjust the memory clock speed. Voltage Slider: Fine-tune the GPU voltage (use with caution). Fan Speed Slider: Adjust the fan speed manually or set a custom fan curve. Monitoring Panel: View real-time statistics such as GPU temperature, usage, clock speeds, and voltages. Overclocking with MSI Afterburner Step-by-Step Guide to Overclocking 1. Create a Baseline: ○ Before you start overclocking, run a benchmark test to establish your GPU's baseline performance. Use a tool like 3DMark or Unigine Heaven. 2. Adjust the Core Clock: ○ Move the core clock slider to the right to increase the clock speed. Start with small increments, such as 10-20 MHz. ○ Click the checkmark to apply the changes. 3. Test Stability: ○ Run a stress test or benchmark to ensure your GPU is stable at the new clock speed. Look for artifacts, crashes, or temperature spikes. ○ If stable, repeat the process by incrementing the clock speed further. 4. Adjust the Memory Clock: ○ Follow a similar process for the memory clock slider. Start with small increments and test for stability after each adjustment. 5. Fine-Tune Voltage and Fan Speed: ○ If necessary, adjust the voltage slider to achieve higher clock speeds while maintaining stability. Use caution as increasing voltage can generate more heat and potentially damage your GPU. ○ Adjust the fan speed slider or set a custom fan curve to keep your GPU cool during overclocking. 6. Save Your Profile: ○ Once you have found a stable overclock, save your settings as a profile. MSI Afterburner allows you to create multiple profiles for different use cases (e.g., gaming, rendering, etc.). Monitoring and On-Screen Display (OSD)

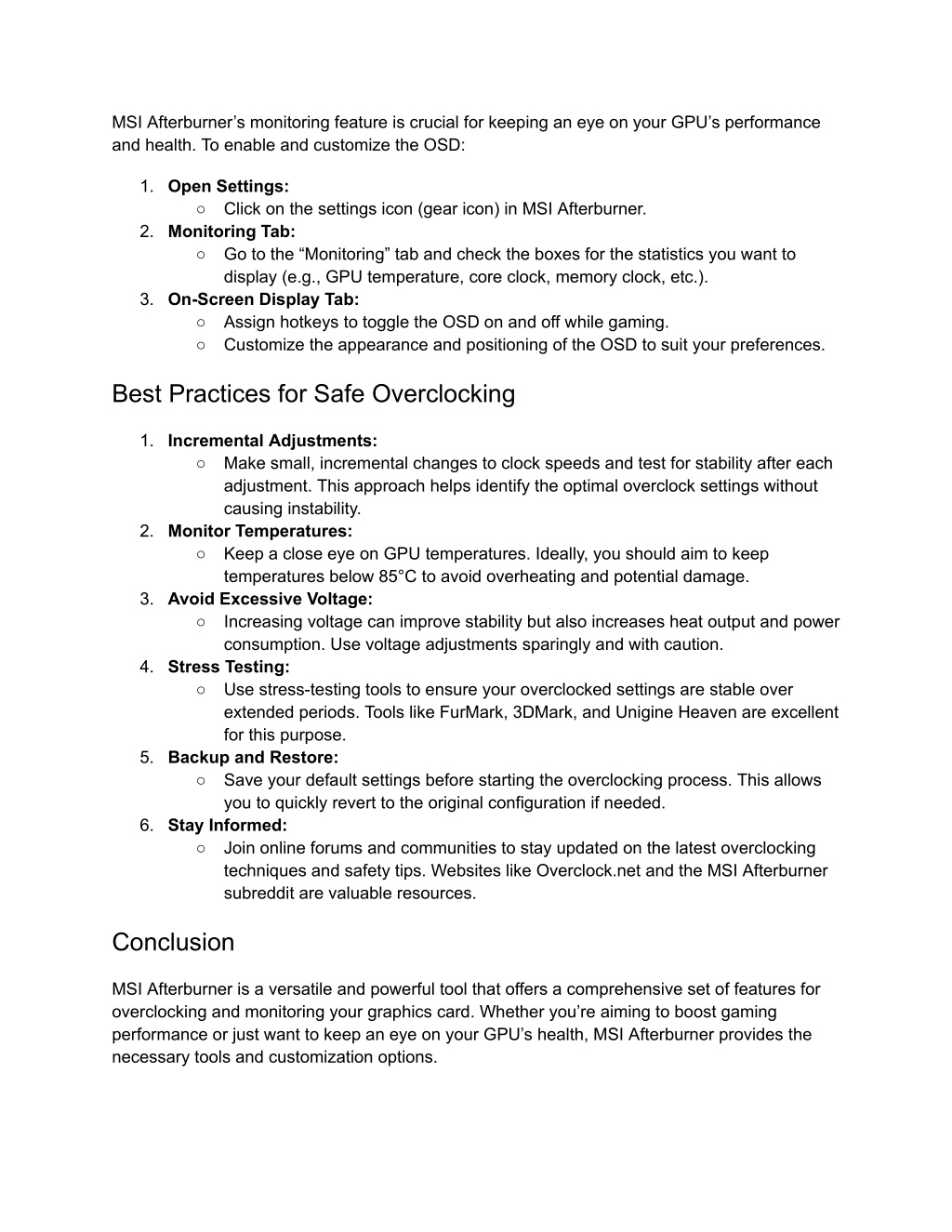

3. MSI Afterburner’s monitoring feature is crucial for keeping an eye on your GPU’s performance and health. To enable and customize the OSD: 1. Open Settings: ○ 2. Monitoring Tab: ○ Click on the settings icon (gear icon) in MSI Afterburner. Go to the “Monitoring” tab and check the boxes for the statistics you want to display (e.g., GPU temperature, core clock, memory clock, etc.). 3. On-Screen Display Tab: ○ Assign hotkeys to toggle the OSD on and off while gaming. ○ Customize the appearance and positioning of the OSD to suit your preferences. Best Practices for Safe Overclocking 1. Incremental Adjustments: ○ Make small, incremental changes to clock speeds and test for stability after each adjustment. This approach helps identify the optimal overclock settings without causing instability. 2. Monitor Temperatures: ○ Keep a close eye on GPU temperatures. Ideally, you should aim to keep temperatures below 85°C to avoid overheating and potential damage. 3. Avoid Excessive Voltage: ○ Increasing voltage can improve stability but also increases heat output and power consumption. Use voltage adjustments sparingly and with caution. 4. Stress Testing: ○ Use stress-testing tools to ensure your overclocked settings are stable over extended periods. Tools like FurMark, 3DMark, and Unigine Heaven are excellent for this purpose. 5. Backup and Restore: ○ Save your default settings before starting the overclocking process. This allows you to quickly revert to the original configuration if needed. 6. Stay Informed: ○ Join online forums and communities to stay updated on the latest overclocking techniques and safety tips. Websites like Overclock.net and the MSI Afterburner subreddit are valuable resources. Conclusion MSI Afterburner is a versatile and powerful tool that offers a comprehensive set of features for overclocking and monitoring your graphics card. Whether you’re aiming to boost gaming performance or just want to keep an eye on your GPU’s health, MSI Afterburner provides the necessary tools and customization options.

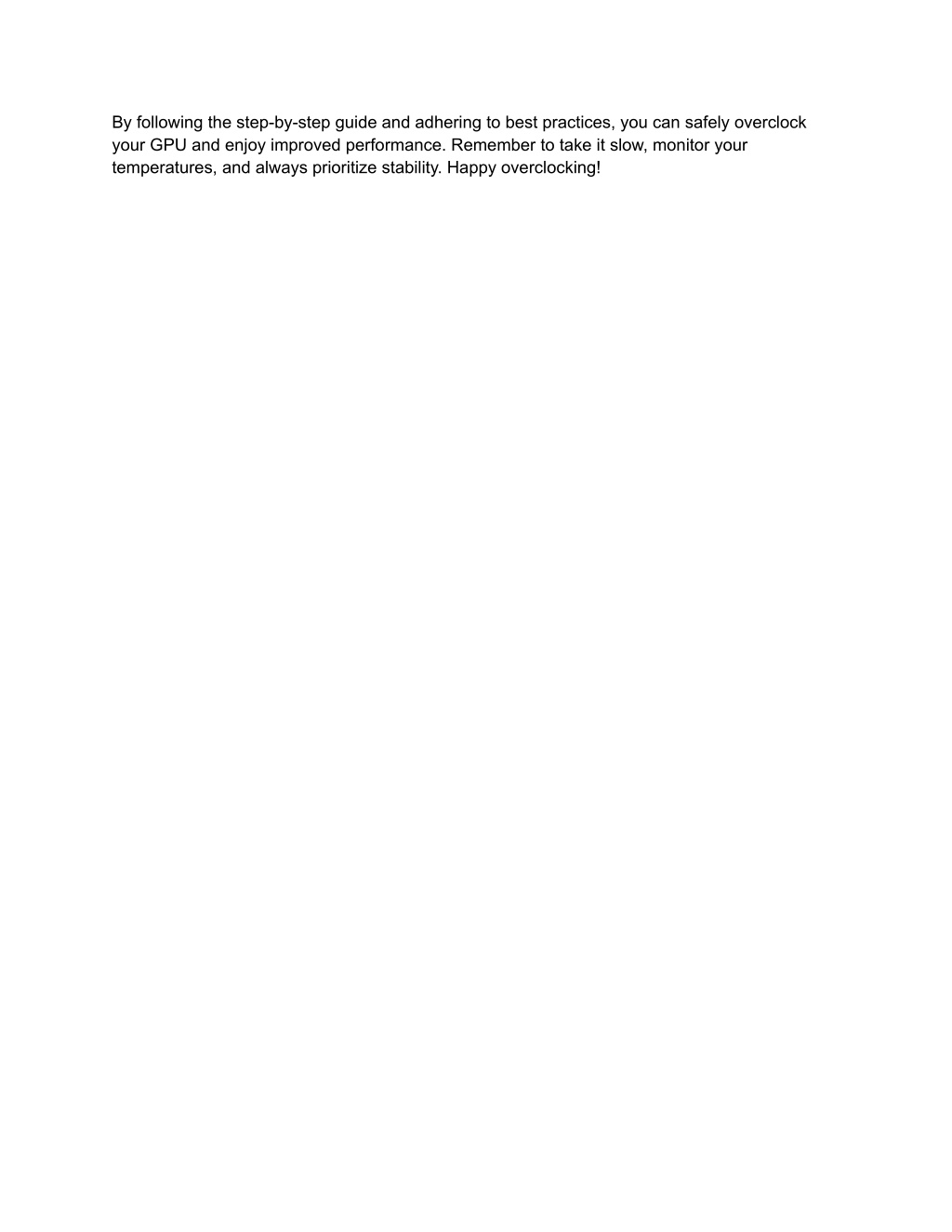

4. By following the step-by-step guide and adhering to best practices, you can safely overclock your GPU and enjoy improved performance. Remember to take it slow, monitor your temperatures, and always prioritize stability. Happy overclocking!
