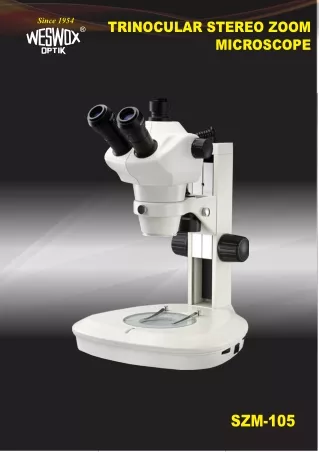

  1. Since 1954 TRINOCULAR STEREO ZOOM ® MICROSCOPE SZM-105

  2. TRINOCULAR STEREOZOOM MICROSCOPE ® SZM-105 Technical Specifications : n Trinocular Observation Head : Galileo optical system left & right parallel optical path, Observation head inclined from 45°,Vertical tube for micro photography, Diopter adjustment ring on ocular tube, Interpupillary distance from 55mm to 75mm. n Eyepiece ( Anti fungus) : Wide field 10X (paired) F.O.V. 22mm. n Zooming Range & Ratio : Zoom 0.6X to 5.1X with magnification ratio of 1:7:8. n Mechanical Body : Track stand with Fan type base, Base Size is 330mmX300mm,On/off switch to provide flexibility to use either both light or any of them, Clip for holding specimen, Lateral zoom control movement. n Magnification Range : 6.5Xto 5.5X. n Working Distance : 110 mm. n Standard Accessories : Operating manual, dust cover, guarantee card & Styrofoam molded pack. n Illumination System : Incident and transmitted light system with LED lamp, The system regulated with transformer has intensity control knob. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
