TOOL MAKER MICROSCOPE TM-30

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX TOOL MAKER MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

TOOL MAKER MICROSCOPE TM-30

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

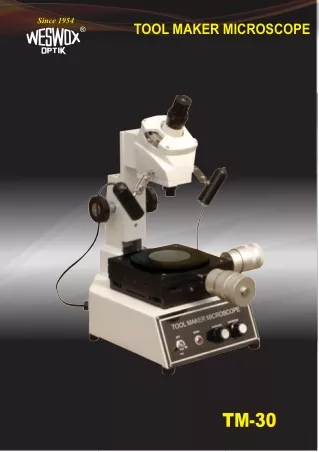

  1. Since 1954 TOOL MAKER MICROSCOPE ® TM-30

  2. TOOL MAKER MICROSCOPE ® TM-30 Technical Specifications : With X-Y movement on ball bearing slides with 25mm graduated Micrometers (50mm dia) L.C. 0.01mm with 360° goniometer & venire of 1 min. Fixed magnification 30x having 15x WF eyepiece with 90° cross hair line for angle measurement, 150 X150mm 360° ROTARY bed. Having both contour (12V/100W) lamp and two surface (6V/20W) lamps having both transmitted and incident light in wooden box. Standard Accessories : Operating Manual, dust cover, STYRO FOAM molded. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: 1 :2 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
