THREE 3- MOTION VERNIER HL-10

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX THREE 3-MOTION VERNIER/TRAVELLING MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

THREE 3- MOTION VERNIER HL-10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

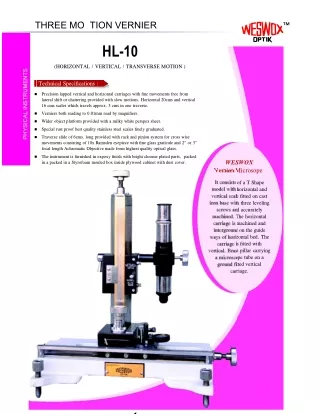

  1. THREE MO TION VERNIER TM HL-10 (HORIZONTAL / VERTICAL / TRANSVERSE MOTION ) PHYSICAL INSTRUMENTS Technical Specifications : Technical Specifications : Precision lapped vertical and horizontal carriages with fine movements free from lateral shift or chattering provided with slow motions. Horizontal 20cms and vertical 16 cms scales which travels approx. 3 cms in one traverse.  Verniers both reading to 0.01mm read by magnifiers.  Wider object platform provided with a milky white perspex sheet.  Special rust proof best quality stainless steel scales finely graduated.  Traverse slide of 6cms. long provided with rack and pinion system for cross wise movements consisting of 10x Ramsden eyepiece with fine glass graticule and 2" or 3" focal length Achromatic Objective made from highest quality optical glass.  The instrument is furnished in expoxy finish with bright chrome plated parts, packed in a packed in a Styrofoam mouled box inside plywood cabinet with dust cover.  WESWOX Vernier Microsope It consists of a T Shape model with horizontal and vertical scale fitted on cast iron base with three leveling screws and accurately machined. The horizontal carriage is machined and interground on the guide ways of horizontal bed. The carriage is fitted with vertical. Brass pillar carrying a microscope tube on a ground fitted vertical carriage. ISO9001:2008 An 66 C E R T I F I E D
