STUDENT MICROSCOPE HL-3

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX JUNIOR STUDENT COMPOUND MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

STUDENT MICROSCOPE HL-3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

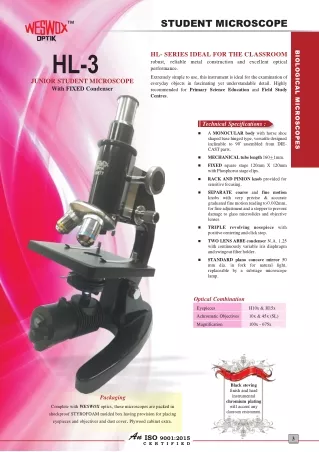

  1. STUDENT MICROSCOPE TM HL-3 JUNIOR STUDENT MICROSCOPE With FIXED Condenser BIOLOGICAL MICROSCOPES HL- SERIES IDEAL FOR THE CLASSROOM robust, reliable metal construction and excellent optical performance. Extremely simple to use, this instrument is ideal for the examination of everyday objects in fascinating yet understandable detail. Highly recommended for Primary Science Education and Field Study Centres. Technical Specifications :  A MONOCULARbody with horse shoe shaped base hinged type, versatile designed o inclinable to 90 assembled from DIE- CAST parts. MECHANICAL tube length 160+1mm.  FIXED square stage 120mm X 120mm with Phosphorus stage clips.  RACK AND PINIONknob provided for sensitive focusing.  SEPARATEcoarse and fine motion knobs withvery precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses.  TRIPLErevolving nosepiece with positive centering and click stop.  TWO LENS ABBEcondenser N.A. 1.25 with continuously variable iris diaphragm and swingout filter holder.  STANDARD plano concave mirror 50 mm dia. in fork for natural light, replaceable by a substage microscope lamp.  Optical Combination Eyepieces H10x & H15x Achromatic Objectives 10x & 45x (SL) Magnification 100x - 675x Black stoving finish and hard instrumental chromium plating will accent any classroom environment. Packaging Complete with WESWOX optics, these microscopes are packed in shockproof STYROFOAM molded box having provision for placing eyepieces and objectives and dust cover. Plywood cabinet extra. ISO9001:2015 An 3 C E R T I F I E D
