STEREOZOOM MICROSCOPE SZM-101 NEW

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX STEREO ZOOM MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

STEREOZOOM MICROSCOPE SZM-101 NEW

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

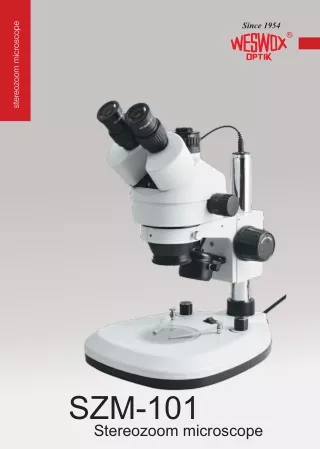

  1. Since 1954 ® SZM-101 Stereozoom microscope

  2. Since 1954 ® SZM-101 Stereozoom microscope Technical Specications Zoom ration :- 6.7:1. 110mm working distance. Stand with focusing and ESD capability. Glass stage plate. Imaging software plus stand-alone compatible camera. Dust cover + PSU. Observation method: Simple Polarized Light, Brighteld. Observation tubes: Wideeld eyepieces WF10X Fn22mm with both Binocular and Trinocular options. LED Transmitted and Reected illumination stand. Diopter adjustment ring on ocular tube(±5). o Trinocular head 45 inclination. Interpupillary distance from 52mm to 76mm. 0.5x C-Mount camera adapter for 1/2” sensor camera Left / right single-shaft horizontal knob and interpupillary adjustable range 52-76mm. Wide eld 10X (paired) F.O.V. 22mm. Eyepiece:- “ComfortView” Lead-free. Optics:- Greenough zoom optical system. Magnication range: 0.67-4.5x                   Optinal Accessories The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 1 5 0 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
