RESEARCH MICROSCOPE Jxi-200

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX ADVANCE RESEARCH BINOCULAR CLINICAL MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines.

Weswox
Download Presentation

RESEARCH MICROSCOPE Jxi-200

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

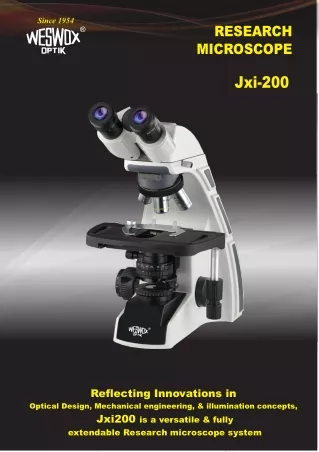

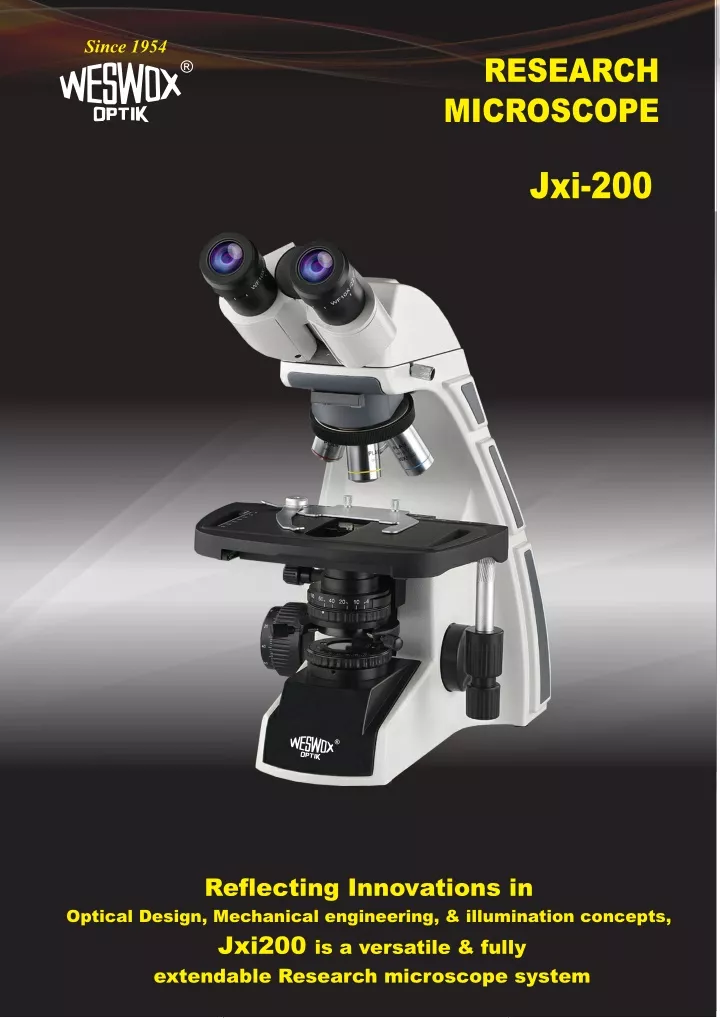

  1. Since 1954 RESEARCH MICROSCOPE ® Jxi-200 ® Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, Jxi200 is a versatile & fully extendable Research microscope system

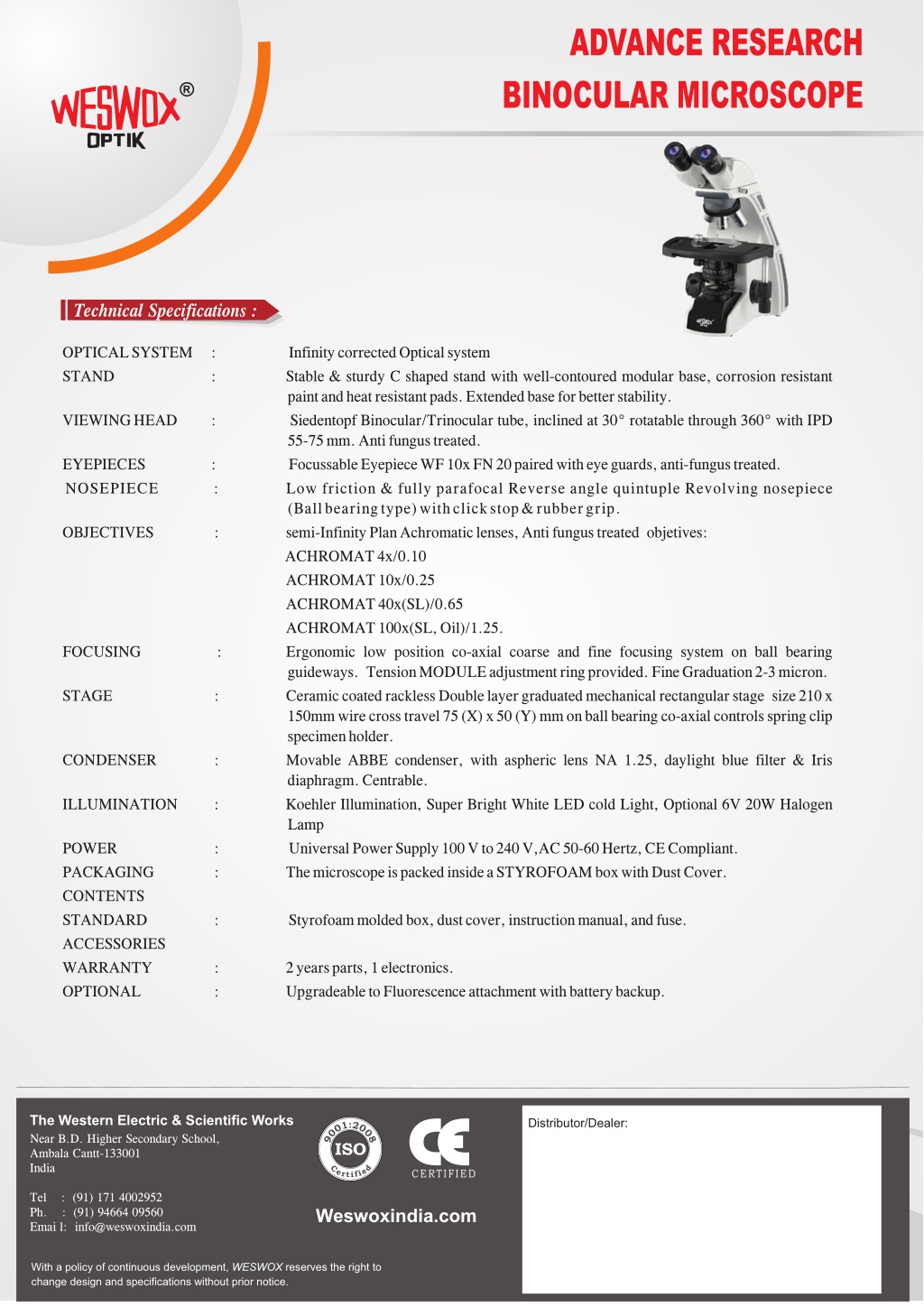

  2. ADVANCE RESEARCH BINOCULAR MICROSCOPE ® Technical Specifications : ® OPTICAL SYSTEM : STAND Infinity corrected Optical system Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads. Extended base for better stability. Siedentopf Binocular/Trinocular tube, inclined at 30° rotatable through 360° with IPD 55-75 mm. Anti fungus treated. Focussable Eyepiece WF 10x FN 20 paired with eye guards, anti-fungus treated. Low friction & fully parafocal Reverse angle quintuple Revolving nosepiece (Ball bearing type) with click stop & rubber grip. semi-Infinity Plan Achromatic lenses, Anti fungus treated objetives: ACHROMAT 4x/0.10 ACHROMAT 10x/0.25 ACHROMAT 40x(SL)/0.65 ACHROMAT 100x(SL, Oil)/1.25. Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Tension MODULE adjustment ring provided. Fine Graduation 2-3 micron. Ceramic coated rackless Double layer graduated mechanical rectangular stage size 210 x 150mm wire cross travel 75 (X) x 50 (Y) mm on ball bearing co-axial controls spring clip specimen holder. Movable ABBE condenser, with aspheric lens NA 1.25, daylight blue filter & Iris diaphragm. Centrable. Koehler Illumination, Super Bright White LED cold Light, Optional 6V 20W Halogen Lamp Universal Power Supply 100 V to 240 V,AC 50-60 Hertz, CE Compliant. The microscope is packed inside a STYROFOAM box with Dust Cover. : VIEWING HEAD : EYEPIECES NOSEPIECE : : OBJECTIVES : FOCUSING : STAGE : CONDENSER : ILLUMINATION : POWER PACKAGING CONTENTS STANDARD ACCESSORIES WARRANTY OPTIONAL : : : Styrofoam molded box, dust cover, instruction manual, and fuse. : : 2 years parts, 1 electronics. Upgradeable to Fluorescence attachment with battery backup. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
