LIFE SCIENCE RESEARCH MICROSCOPE mp-40

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX LIFE SCIENCE RESEARCH MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

LIFE SCIENCE RESEARCH MICROSCOPE mp-40

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

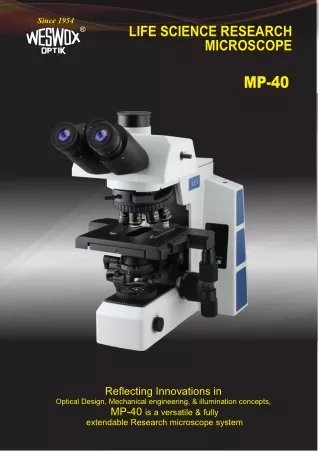

  1. Since 1954 LIFE SCIENCE RESEARCH MICROSCOPE ® MP-40 Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, MP-40 is a versatile & fully extendable Research microscope system

  2. LIFE SCIENCE RESEARCH MICROSCOPE ® MP-40 Technical Specifications : Trinocular Observation Head : Siedentopf observation head inclined at 30 rotatable at 360.Vertical phototube for micro photography. Diopter adjustment ring on ocular tube. Inter-pupillary distance from 48mm to 75mm.Binocular observation heads, inclined at 30º Fixed on adjustable stand (Five sets). : Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. Reverse angle septuple nosepiece on ball bearing. Slot for Polarizer & DIC. Double plate Reckless layer Mechanical stage is 187mmX167mm. The mechanical stage has low positioned co-axial controls on ball bearing guide ways. Fine division 0.001mm corse, per rotation, fine stroke 0.1mm per rotation, moving range : 80mm X 55mm. Built in transmitted filter LBD/ND6/ND25. : Extra wide field 10X (paired), F.O.V. 26.5mm.Ocular dia 30mm. Mechanical Body Eyepiece (Anti fungus coated) Objectives (Infinite Corrected) Anti Mold & Anti fungus coated : Plan Achromatic 2X, Plan Achromatic 4X, Plan Achromatic 10X, Plan Achromatic 20X, Plan Achromatic 40X, Plan Achromatic 100X. : Dual Color LED Pointer Brightness adjustable. : Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm. : 12V/100W halogen lamp house for transmitted light, centre pre-set, intensity adjustable. : 12V/100W halogen tungsten bulb. Power cord and cedar oil. : Two Years And One Years On Electrical. Color LED Pointer Sub Stage Condenser Illumination System Standard Accessories Warranty The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: 1 :2 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
