INVERTED METALLURGICAL MICROSCOPE 2 mhl-49

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX INVERTED METALLURGICAL MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

INVERTED METALLURGICAL MICROSCOPE 2 mhl-49

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

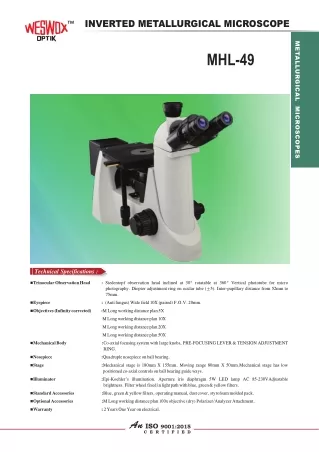

  1. INVERTED METALLURGICAL MICROSCOPE TM METALLURGICAL MICROSCOPES MHL-49 Technical Specifications : Technical Specifications : nTrinocular Observation Head : Siedentopf observation head inclined at 30° rotatable at 360° Vertical phototube for micro photography. Diopter adjustment ring on ocular tube (±5). Inter-pupillary distance from 52mm to 75mm. nEyepiece : (Anti fungus) Wide field 10X (paired) F.O.V. 20mm. nObjectives (Infinity corrected) :M Long working distance plan 5X M Long working distance plan 10X M Long working distance plan 20X M Long working distance plan 50X nMechanical Body :Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. nNosepiece :Quadruple nosepiece on ball bearing. nStage :Mechanical stage is 180mm X 155mm. Moving range 80mm X 50mm.Mechanical stage has low positioned co-axial controls on ball bearing guide ways. nIlluminator :Epi-Koehler's illumination. Aperture iris diaphragm 5W LED lamp AC 85-230VAdjustable brightness. Filter wheel fixed in light path with blue, green & yellow filters. nStandard Accessories :Blue, green & yellow filters, operating manual, dust cover, styrofoam molded pack. nOptional Accessories :M Long working distance plan 100x objective (dry) Polarizer/Analyzer Attachment. nWarranty : 2 Years One Year on electrical. ISO9001:2015 An C E R T I F I E D
