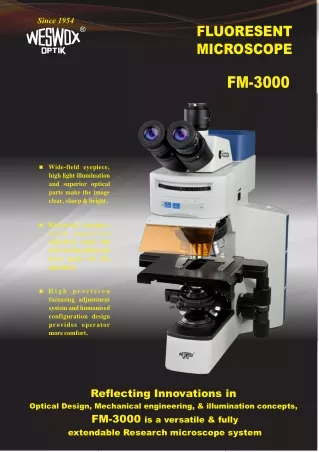

  1. Since 1954 FLUORESENT MICROSCOPE ® FM-3000  Wide-field eyepiece, high light illumination and superior optical parts make the image clear, sharp & bright.  Backward nosepiece w i t h s u p e r i o r objectives make the best viewing effect and more space for the operation.  H i g h p r e c i s i o n focussing adjustment system and humanised configuration design provides operator more comfort. ® Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, FM-3000 is a versatile & fully extendable Research microscope system

  2. FLUORESENT MICROSCOPE ® Technical Specifications : ® ® Stand : Single mold sturdy stand with anti rust materials. Extended base for better stability. Observation Head : Siedentopf observation head inclined at 30º rotatable at 360º.Interpupillary distance adjustable between 55-75mm.Diopter adjustment ring on ocular provides correction for eye acuity. Eyepiece : Wide Field Eyepiece 10x (PAIRED) FOV 25 mm anti-fungal. Nosepiece : Reverse angle sextuple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. Objective : Plan Achromatic INFINITY CORRECTED OBJECTIVES FLOUR PLAN 4X/0.10. FLOUR PLAN 10X/0.25. FLOUR PLAN 20X/0.25. FLOUR PLAN 40X/0.65 spring. FLOUR PLAN 100X/1.25 (Spring, oil). Stage : Double Plate Mechanical stage with Size 187 mm x 167 mm, supported on ball bearing guide ways and having low positioned co-axial controls for stage movement. Focusing : Co-axial focusing control with ball bearing guide ways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm. Condenser : Swing out front lens NA 0.9/1.25 filter holder & IRIS diaphragm. Excitation Filter : Module Set Green(520nm-530nm), Blue (460nm-470nm), Violet (V),Ultra Violet UV Illumination : EPI Fluorescent Illumination System 3W high brightness LED. Enable selecting monochromatic or bi-chromatic LED for light source, every monochromatic LED wave bend. Transmitted Illumination: System Blue filter and ground glass collector for LED illumination and integrated field diaphragm. 3W high brightness white LED, brightness adjustable. Power : power supply AC adapter , power connector. Packaging Contents : Power Cord, User Instruction Manual, Dust Cover, STYROFOAM molded box. Warranty Information: 2 Years & 1Years on electric. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
