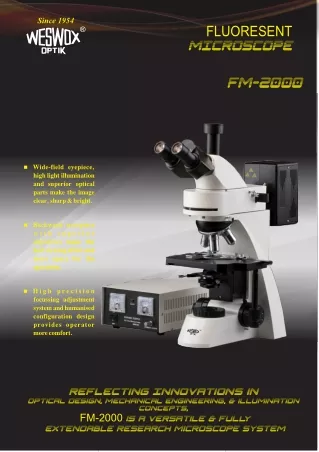

  1. Since 1954 FLUORESENT MICROSCOPE ® FM-2000  Wide-field eyepiece, high light illumination and superior optical parts make the image clear, sharp & bright.  Backward nosepiece w i t h s u p e r i o r objectives make the best viewing effect and more space for the operation.  H i g h p r e c i s i o n focussing adjustment system and humanised configuration design provides operator more comfort. TM Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, FM-2000 is a versatile & full y extendable Research microscope system

  2. FLUORESENT MICROSCOPE ® Technical Specifications : TM ®  Stand : Single mold sturdy stand with anti rust materials. Extended base for better stability. TRINOCULAR observation head inclined at 30 and 360 rotatable. Diopter adjustment ring on ocular tube interpupillary distance from55 to 75mm. Wide Field Eyepiece 10x (PAIRED) FOV 22mm anti-fungal with diopter adjustment. Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. Plan Achromatic objective 4x. Infinity Corrected Plan Achromatic objective 10x. Plan Achromatic objective 40x (SL). Plan Achromatic objective 100x (SL) Oil Immersion.  Stage : Mechanical stage with Size 145mmx142mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement.  Focusing : Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring and rubber tubes for excellent grip. The slow motion has 1DIV=0.002mm.  Condenser : Abbe condenser NA 1.25 with iris diaphragm.  Illumination : Built-in base illumination system incorporates LED Lamp , AMPS and intensity Control knob.  Filter : B Excitation Standard. G Excitation Standard  Light Source : Transmitted light source: 3W LED bulb integrated field diaphragm. Epi- fluorescence illumination through 100 watt murcury vapour lamp. o o  Observation Head :  Eyepiece :  Nosepiece :  Objectives :  Packaging contents : Fuse Tube, Power Cord, Instruction Manual, Dust Cover, STYROFOAM molded box.  Warranty : Two Years & One Year on electric. Optional : V Excitation Standard, UV Excitation Standard The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
