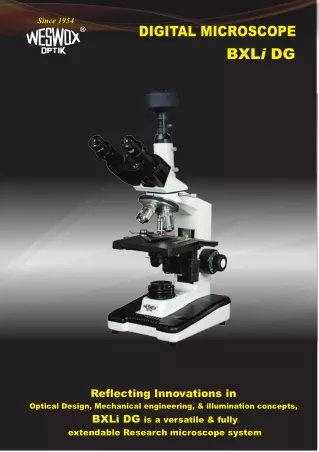

  1. Since 1954 DIGITAL MICROSCOPE ® BXLi DG Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, BXLi DG is a versatile & fully extendable Research microscope system

  2. DIGITAL MICROSCOPE ® BXLi DG Technical Specifications : OPTICAL SYSTEM BINOCULAR OBSERVATION HEAD : Infinity corrected optical system : Siedentopf Binocular head inclined at 30o rotatable at 3600. Suitable for eyepieces upto field of view 20mm.Diopter adjustment ring on ocular tube.Interpupillary distance 48-75mm adjustable.Standard ergonomically designed rugged stand for long time comfortable usage. : Image Sensor : ½” CMOS 5.0MP, Resolution : 2592 X 1944 (5.17M Pixels), Frame Rate : 7.5 fps, 1280X960, 2.5 frames/sec, @ 2592 X 1944, Output Interface : USB- 2.0/3.0, Software : Preview, static capture, video capture.System Required : Microsoft windows 2000, XP SP2/SP3, Vista;USB2.0 Port, Application : High resolution microscope imaging, Mount : C/CS mount. Mounting Tube : 23mm, Camera size : 60mm diameter, Image File Type : JPEG, PNG, BMP, TIF. : KEOWA WF 10x/FOV 18mm (PAIRED) with high point and eyeguards offer maximum resolution and high colour fidelity as all of them are A.R. coated and perfectly designed for a FLAT FIELD. : KEOWA high resolution Infinity S-Plan DIN Achromatic objectives, anti-fungus treated 4x NA 0.10, 10x NA 0.25, 40x (Spring Loaded) NA 0.65, 100x (Spring Loaded) oil immersion NA 1.25. : Dust proof Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop. : Double Layer Mechanical stage size 120mm X 140mm having right sand side low positioned co-axial controls on ball bearing with fine vernier graduation. Spring clip specimen holder : 75mm X 30mm. : Low position Co-axial focusing system with TENSION ADJUSTMENT RING provides a soft and sophisticated touch to the microscope. : Focusable Abbe Condenser centerable NA 1.25 with rack & pinion, aspheric lens, swing out filter holder, Iris Diaphragm with BLUE filter. : Built-in-base transmitted illumination system 6V20W Halogen lamp or 3W LED lamp. : Universal power supply (AC input 100V-240V, 50/60 Hz) ISO 9001, CE approved. CAMERA EYEPIECE OBJECTIVES NOSEPIECE MECHANICAL STAGE Cross movement travelling range FOCUSSING SYSTEM SUB STAGE CONDENSER ILLUMINATION POWER The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
