DIGITAL AUTOMATIC POLARIMETER HLX-100

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX DIGITAL AUTOMATIC POLARIMETER Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines.<br>

Weswox
Download Presentation

DIGITAL AUTOMATIC POLARIMETER HLX-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

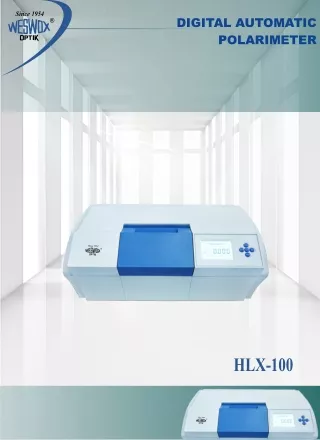

  1. DIGITAL AUTOMATIC POLARIMETER HLX-100

  2. HLX-100 Discription : Technical Specification : Test Modes optical rotation, sugar degree A polarimeter is a scientic instrument used to measure the angle of rotation caused by passing polarized light through an optically active substance. Some chemical substances are optically active, and polarized (uni-directional) light will rotate either to the left (counter-clockwise) or right (clockwise) when passed through these substances. The amount by which the light is rotated is known as the angle of rotation. The angle of rotation is basically known as observed angle. Light source LED Wavelength 589.44nm Measurement ±45° (optical rotation) ±120º Z (sugar) Minimum indicating value 0.001° (optical rotation) 0.01º Z (sugar) Accuracy ±(0.01+ measurement value x 0.05%)º (optical rotation) ±(0.03 + measurement value x 0.05%)º Z (sugar Feature : Repeatability <0.002º (optical rotation) Display LCD  Automatic Polarimeter instrument used to measure specic optical rotation of optically active substance. Measuring optical rotation and sugar degree Storage of three times results Built in auto controlling system with servomechanism Calculation of average values Automatic Measurement Measurement of dark colored sample RS232 Interface Test tube 200mm, 100mm        Sample transmittance > 1% Interface Rs232 Operation voltage 220V ± 22V,50Hz Overall Dimensions 730mm x 480mm x 470mm Weight (Grass) 36kg Software Yes Standard Accessories : 1. Software Kit : RS232 Cable, Software CD 2. Main Lead 3. Fuse 4. Instruction manual Optional Accessories : Sample Tubes 100mm, 200mm The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Weswoxindia.com 22 With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
